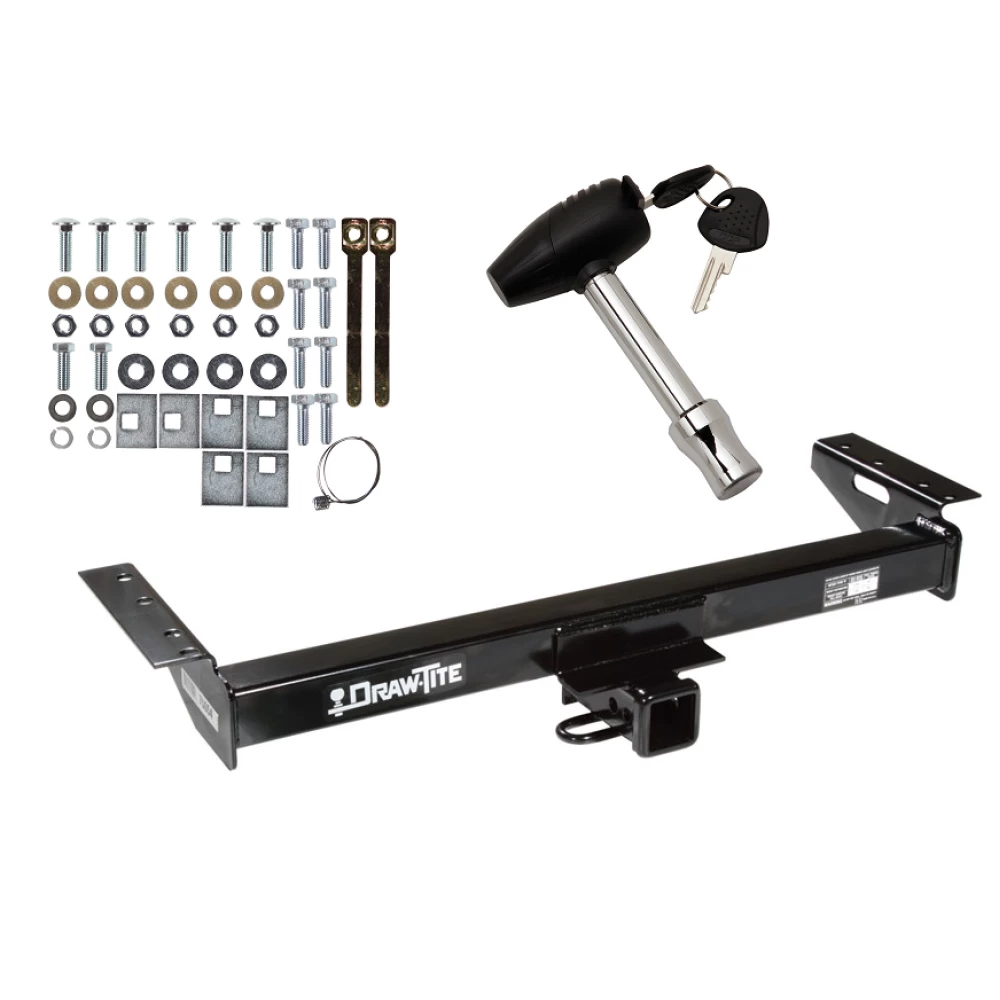

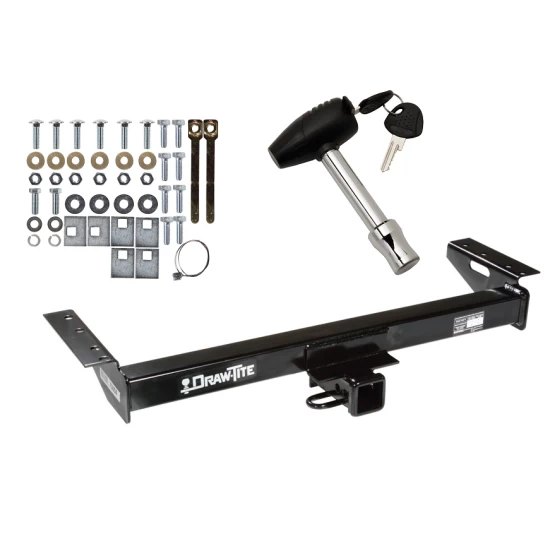

Trailer Tow Hitch For 84‑01 Jeep Cherokee Wagoneer w/ Security Lock Pin Key

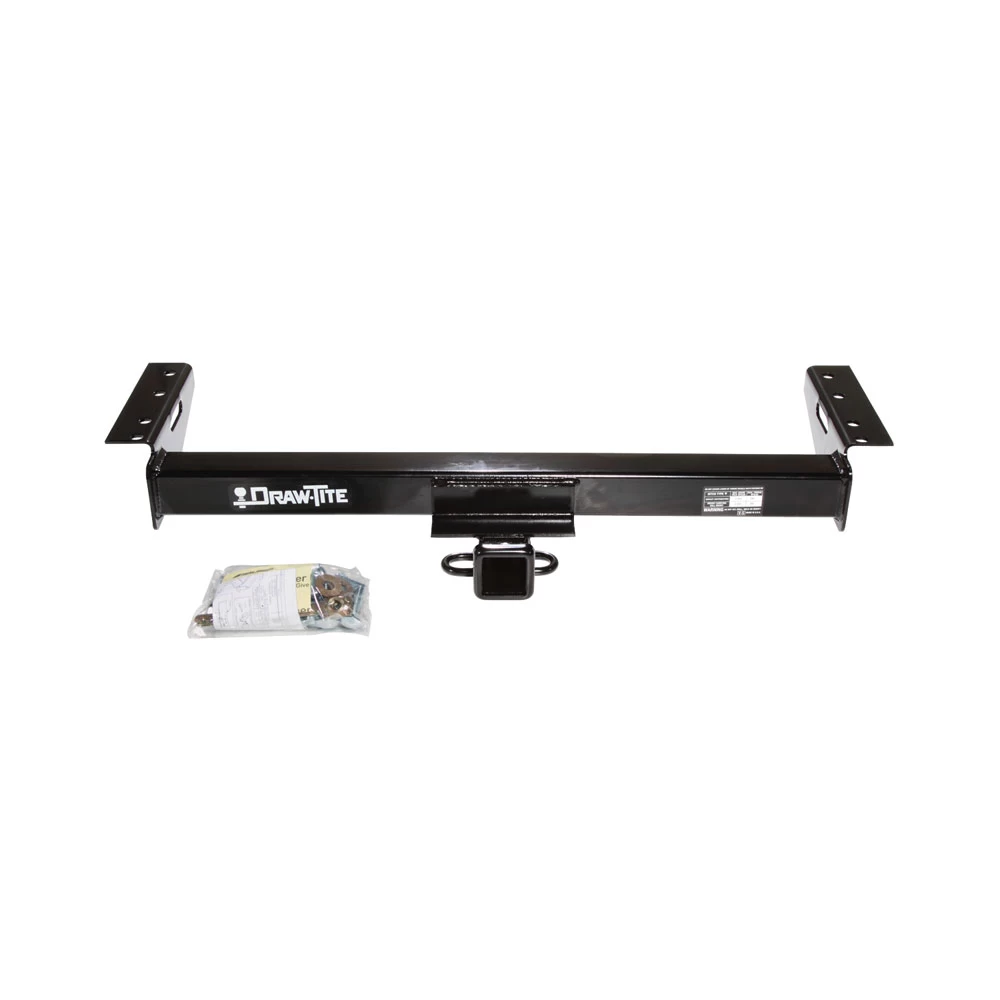

Model: 75054 580407Custom Fit Front Mount Trailer Hitch
Security Lock Pin & Key

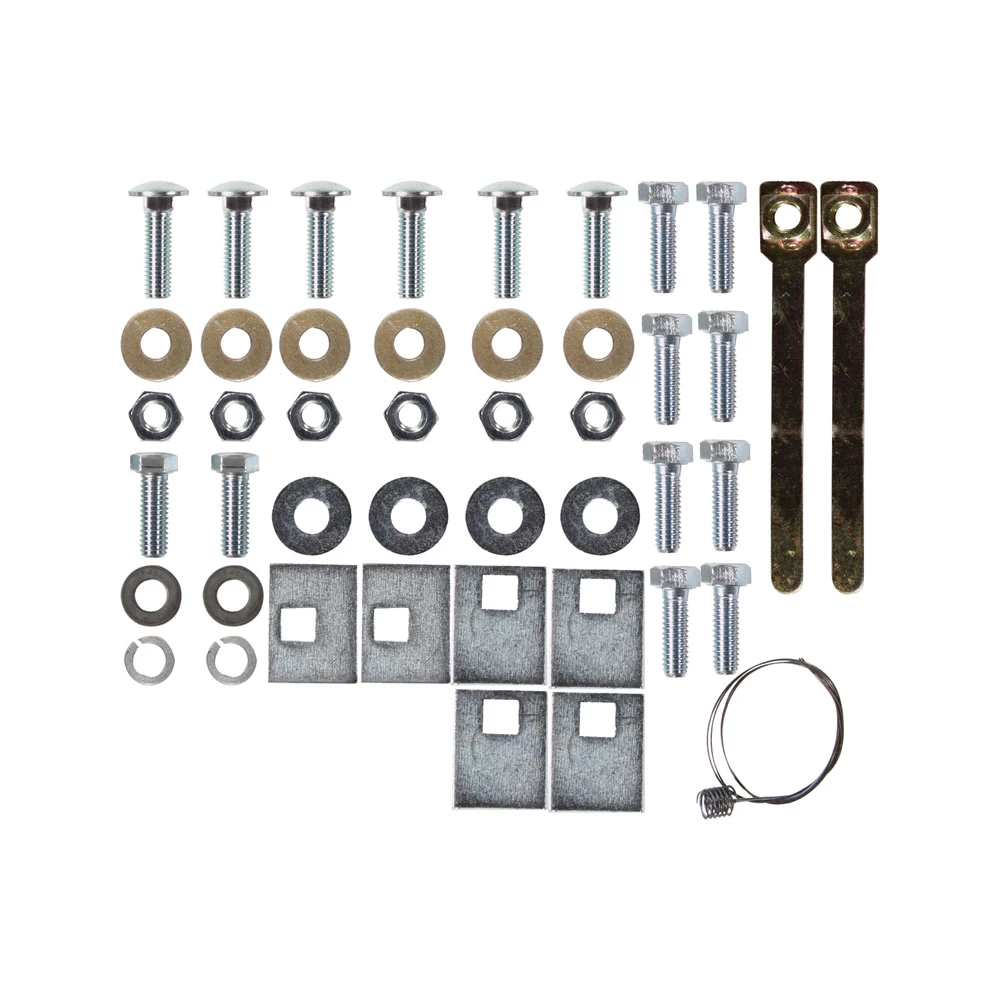

Installation Hardware
Installation Instructions
Fits The Following Vehicles
1984 - 2001 Jeep, Cherokee, All Styles
1984 - 1990 Jeep, Wagoneer, All Styles
Trailer Hitch Specs:
| Part Number | 75054 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | 5,500 lbs |
| Max Tongue Weight | 350/550 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Easy Access Lock w/Sleeve
- Includes Dust Cap
- Fits 2" and 1-7/8" Tow Receivers
- Prevents theft
- Use in place of standard pin and clip
- Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees.
- 1 Year Limited Warranty
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 00 01 1984 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001
$222 90 $350.70 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$350.70 $222 90
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $55.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75054 580407
- Includes: Class 3 Trailer Tow Hitch, Trailer Tow Hitch Lock
Compatibility Chart
| Year Range | Make | Model | Style |
|---|
Custom Fit Front Mount Trailer Hitch
Security Lock Pin & Key
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1984 - 2001 Jeep, Cherokee, All Styles
1984 - 1990 Jeep, Wagoneer, All Styles
Trailer Hitch Specs:
| Part Number | 75054 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | 5,500 lbs |
| Max Tongue Weight | 350/550 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Easy Access Lock w/Sleeve
- Includes Dust Cap
- Fits 2" and 1-7/8" Tow Receivers
- Prevents theft
- Use in place of standard pin and clip
- Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees.
- 1 Year Limited Warranty
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 00 01 1984 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001
Get Expert Help
Trailer Tow Hitch For 84-01 Jeep Cherokee Wagoneer w/ Security Lock Pin Key Install Notes
Installation Instructions for Jeep Cherokee, Jeep Wagoneer (Downsized Model)
Part Numbers:
- 75054
- 44088
- 87591
Wiring Access Location:
- SUV3
Tools Required:
- Wrenches: 18 mm, 3/4", 13/16", 7/8"
- Drill Bits: None (unless specified for specific models)
Specifications:
- Weight Carrying Capacity:
- Max Trailer Weight: 3,500 lbs
- Max Tongue Weight: 350 lbs
- Weight Distributing Capacity:
- Not applicable.
Step-by-Step Instructions:
General Installation Notes:
- Five (5) installation options are available depending on the vehicle configuration. Refer to diagrams (Figures 1-5) for proper fastener combinations.
- Remove all rust and debris from attachment surfaces.
Option A: Closed Sided Skid Shield (1997 and Later Models):
-
Preparation:
- Remove the skid shield mounting bolts.
- Drill the skid shield to remove interference with the receiver tube.
- Reattach the skid shield with M12 bolts and hardened flat washers.
-
Position Hitch:
- Position the hitch side brackets over the skid shield and frame.
-
Install Hardware:
- Attach with M12 x 1.75 bolts and conical washers through the weld nuts on the frame.
Option B: Open Skid Shield (Passenger Side Only):
-
Position Hitch:
- Use the side bracket as a guide to align the hitch with the open skid shield on the passenger side.
-
Install Hardware:
- Insert carriage bolts and spacers through the side bracket and frame.
- Attach with conical washers and locknuts.
Option C: Open Skid Shield with Driver Side Reinforcement:
-
Prepare Driver Side:
- Align the driver-side bracket reinforcement over the frame.
-
Install Hardware:
- Attach using M12 bolts and spacers, ensuring alignment with the open skid shield on the passenger side.
Option D: No Skid Shield Present:
-
Position Hitch:
- Align the hitch brackets directly to the frame on both sides.
-
Install Hardware:
- Use all provided fasteners, including carriage bolts, conical washers, and locknuts, for secure attachment.
Hardware List:
- (2) Carriage Bolt 1/2"-13 x 1-3/4" GR5
- (2) Spacer Block 1/4" x 1-1/2" x 2"
- (2) Hex Bolt M12 x 1.75 x 40 mm
- (2) Hardened Flat Washer
- (2) Conical Washer
- (2) Hex Nut 1/2"-13
Torque Specifications:
- Tighten all 1/2"-13 fasteners to 75 lb-ft.
- Tighten all M12 fasteners to 50 lb-ft.
Safety Notes:
- Regularly inspect all fasteners and the hitch to ensure secure attachment.
- Replace damaged components immediately.
- Plug any holes in the body or frame if the hitch is removed to prevent water or exhaust fumes from entering.
- Always wear safety glasses during installation.
- Do not use a torch to cut or enlarge attachment holes.
Additional Notes:
- Installation time for professional installers is approximately 30-45 minutes.
- Refer to diagrams for exact fastener placement and alignment (Figures 1-5 in the manual).
- Proper orientation of spacers and blocks is necessary to ensure alignment.
Installation Instructions for Jeep Cherokee, Jeep Wagoneer (Downsized Model)
Part Numbers:
- 75054
- 44088
- 87591
Wiring Access Location:
- SUV3
Tools Required:
- Wrenches: 18 mm, 3/4", 13/16", 7/8"
- Drill Bits: None (unless specified for specific models)
Specifications:
- Weight Carrying Capacity:
- Max Trailer Weight: 3,500 lbs
- Max Tongue Weight: 350 lbs
- Weight Distributing Capacity:
- Not applicable.
Step-by-Step Instructions:
General Installation Notes:
- Five (5) installation options are available depending on the vehicle configuration. Refer to diagrams (Figures 1-5) for proper fastener combinations.
- Remove all rust and debris from attachment surfaces.
Option A: Closed Sided Skid Shield (1997 and Later Models):
-
Preparation:
- Remove the skid shield mounting bolts.
- Drill the skid shield to remove interference with the receiver tube.
- Reattach the skid shield with M12 bolts and hardened flat washers.
-
Position Hitch:
- Position the hitch side brackets over the skid shield and frame.
-
Install Hardware:
- Attach with M12 x 1.75 bolts and conical washers through the weld nuts on the frame.
Option B: Open Skid Shield (Passenger Side Only):
-
Position Hitch:
- Use the side bracket as a guide to align the hitch with the open skid shield on the passenger side.
-
Install Hardware:
- Insert carriage bolts and spacers through the side bracket and frame.
- Attach with conical washers and locknuts.
Option C: Open Skid Shield with Driver Side Reinforcement:
-
Prepare Driver Side:
- Align the driver-side bracket reinforcement over the frame.
-
Install Hardware:
- Attach using M12 bolts and spacers, ensuring alignment with the open skid shield on the passenger side.
Option D: No Skid Shield Present:
-
Position Hitch:
- Align the hitch brackets directly to the frame on both sides.
-
Install Hardware:
- Use all provided fasteners, including carriage bolts, conical washers, and locknuts, for secure attachment.
Hardware List:
- (2) 1/2"-13 x 1-3/4" GR5 Carriage Bolts
- (2) 1/4" x 1-1/2" x 2" Spacer Blocks
- (2) M12 x 1.75 x 40 mm Hex Bolts
- (2) Hardened Flat Washers
- (2) Conical Washers
- (2) 1/2"-13 Hex Nuts
Torque Specifications:
- Tighten all 1/2"-13 fasteners to 75 lb-ft.
- Tighten all M12 fasteners to 50 lb-ft.
Safety Notes:
- Regularly inspect all fasteners and the hitch to ensure secure attachment.
- Replace damaged components immediately.
- Plug any holes in the body or frame if the hitch is removed to prevent water or exhaust fumes from entering.
- Always wear safety glasses during installation.
- Do not use a torch to cut or enlarge attachment holes.
Additional Notes:
- Installation time for professional installers is approximately 30-45 minutes.
- Refer to diagrams for exact fastener placement and alignment (Figures 1-5 in the manual).
- Proper orientation of spacers and blocks is necessary to ensure alignment.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty:
The product comes with a standard warranty. For complete warranty instructions, please download the full installation PDF.
