Product Details
- Brand: Draw-Tite
- Model: 75082 118344 23 63845

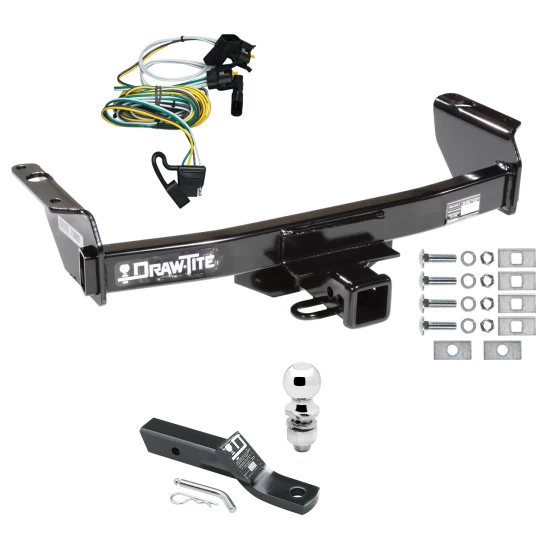

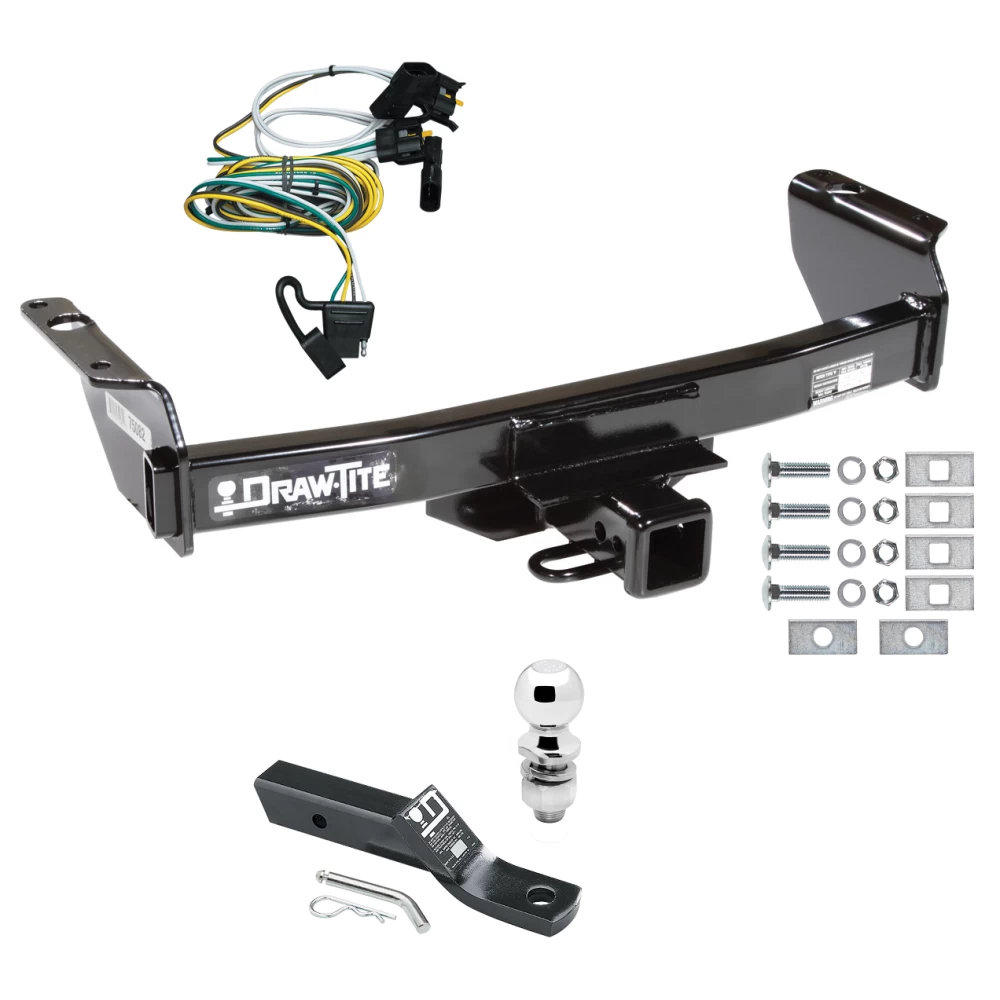

- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball
Compatibility Chart
Description
Get Expert Help
Trailer Tow Hitch For 00-03 Ford Ranger Complete Package w/ Wiring and 2" Ball Install Notes
Installation Instructions for Ford Ranger and Mazda B-Series (B2300, B3000, B4000)
Part Numbers:
- 75082
- 44101
- 78165
- 87161
Wiring Access Location:
- PU3
Tools Required:
- Wrenches: 18mm, 19mm, 7/8"
- Drill Bits: 1/2"
Step-by-Step Instructions:
-
Remove Rearmost Fasteners:
- For vehicles with a step bumper, remove the rearmost bumper bracket bolt and J-nut from both sides.
-
Position Hitch:
- Place the hitch on the vehicle, ensuring the bumper brackets (if present) are sandwiched between the hitch and the vehicle frame. Install the rearmost fasteners.
-
Drill Forward Holes:
- Using the hitch as a template, drill two (2) 1/2" holes into the frame at the forward end of the hitch.
- Note: On some models, the holes may already exist.
-
Install Remaining Fasteners:
- Secure the hitch using the provided hardware. For vehicles with a step bumper, place the 3/16" x 1" x 2" block between the frame and the side brackets at the forward attachment point.
-
Tighten Fasteners:
- Tighten all 1/2"-13 Grade 5 fasteners to 75 lb-ft (102 N*m).
Torque Specifications:
- 1/2"-13 GR5: 75 lb-ft (102 N*m)
Hardware List:
- (4) Carriage Bolts, 1/2"-13 x 1-3/4"
- (4) Blocks, 1/4" x 1" x 2"
- (2) Blocks, 3/16" x 1" x 2"
- (4) Lock Washers, 1/2"
- (4) Hex Nuts, 1/2"-13
Safety Notes:
- Regularly inspect the hitch to ensure all fasteners and the ball are securely tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug all holes in the frame or body panels to prevent water or exhaust fumes from entering.
- Always wear safety glasses and observe proper safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 4,000 lb (1,816 kg)
- Max Tongue Weight: 400 lb (182 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 6,000 lb (2,724 kg)
- Max Tongue Weight: 750 lb (340.5 kg)
Additional Notes:
- A 19mm open-end wrench must be purchased to allow removal of the spare tire after hitch installation.
- This product complies with SAE J684 safety standards and V.E.S.C. Regulation V-5.
- Ensure all fasteners are properly torqued before towing.
Installation Instructions for Ford Ranger and Mazda B-Series (B2300, B3000, B4000)
Part Numbers:
- 75082
- 44101
- 78165
- 87161
Wiring Access Location:
- PU3
Tools Required:
- Wrenches: 18mm, 19mm, 7/8"
- Drill Bits: 1/2"
Step-by-Step Instructions:
-
Remove Rearmost Fasteners:
- For vehicles with a step bumper, remove the rearmost bumper bracket bolt and J-nut from both sides.
-
Position Hitch:
- Place the hitch on the vehicle, ensuring the bumper brackets (if present) are sandwiched between the hitch and the vehicle frame. Install the rearmost fasteners.
-
Drill Forward Holes:
- Using the hitch as a template, drill two (2) 1/2" holes into the frame at the forward end of the hitch.
- Note: On some models, the holes may already exist.
-
Install Remaining Fasteners:
- Secure the hitch using the provided hardware. For vehicles with a step bumper, place the 3/16" x 1" x 2" block between the frame and the side brackets at the forward attachment point.
-
Tighten Fasteners:
- Tighten all 1/2"-13 Grade 5 fasteners to 75 lb-ft (102 N*m).
Torque Specifications:
- 1/2"-13 GR5: 75 lb-ft (102 N*m)
Hardware List:
- (4) 1/2"-13 x 1-3/4" Carriage Bolts
- (4) 1/4" x 1" x 2" Blocks
- (2) 3/16" x 1" x 2" Blocks
- (4) 1/2" Lock Washers
- (4) 1/2"-13 Hex Nuts
Safety Notes:
- Regularly inspect the hitch to ensure all fasteners and the ball are securely tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug all holes in the frame or body panels to prevent water or exhaust fumes from entering.
- Always wear safety glasses and observe proper safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 4,000 lb (1,816 kg)
- Max Tongue Weight: 400 lb (182 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 6,000 lb (2,724 kg)
- Max Tongue Weight: 750 lb (340.5 kg)
Additional Notes:
- A 19mm open-end wrench must be purchased to allow removal of the spare tire after hitch installation.
- This product complies with SAE J684 safety standards and V.E.S.C. Regulation V-5.
- Ensure all fasteners are properly torqued before towing.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty:
The product comes with a standard warranty. For complete warranty instructions, please download the full installation PDF.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118344
Wiring Access Location:
- Tail light assemblies on both sides of the vehicle.
Tools Required:
- None specified.
Step-by-Step Instructions:
- Remove both tail light assemblies and locate the vehicle’s wiring harness.
- The harness will have connection points on each side matching the ends of the T-Connector adapter.
Step 2: Vehicle-Specific Instructions
2A. Vans/Expedition/Navigator:
- Partially remove the rear interior plastic trim panels on the left (driver’s) side.
- Open the vehicle's jack storage compartment to expose the openings to the tail light assemblies.
- Remove the threshold cover plate between the rear doors.
2B. Escort/Tracer:
- Partially remove the trunk lining to expose the grommets accessing the tail lights.
- Remove and slit the grommets to allow wires to pass into the tail light openings.
2C. F-150 Pickups (Flareside Only):
- From underneath the vehicle, locate the access holes into the tail light openings.
- There will be an access hole on each side of the vehicle.
-
From the passenger side, route the T-Connector end containing the green wire out from inside the vehicle through the tail light opening.
-
Disconnect the vehicle’s center black wiring harness connector from the tail light assembly.
- Note: Be careful not to damage the locking tabs.
- Plug the T-Connector end containing the green wire between these separated halves.
-
Route the yellow wire across the vehicle under the threshold cover removed in step 2.
- Route the T-Connector ends containing the yellow wire out through the driver’s side tail light opening.
- Repeat step 4 using the T-Connector end containing the yellow wire.
-
Test the installation with a test light or trailer.
-
Secure the yellow wire under the threshold panel and reinstall all removed components:
-
Plastic trim panels.
-
Jack storage panel grommets.
-
Tail lights.
-
Specifications:
- This unit is rated for 7.5 amps per circuit.
-
Hardware List:
- T-Connector adapter.
Safety Notes:
- Handle all connectors with care to avoid damage.
- Ensure all connections are clean and securely fastened.
- Test the installation after completing all steps to verify functionality.
Manufacturer Notes:
- Follow all warnings and instructions provided with the product.
- Use a test light or trailer to confirm proper installation.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118344
Wiring Access Location:
- Tail light assemblies on both sides of the vehicle.
Tools Required:
- None specified.
Step-by-Step Instructions:
- Remove both tail light assemblies and locate the vehicle’s wiring harness.
- The harness will have connection points on each side matching the ends of the T-Connector adapter.
Step 2: Vehicle-Specific Instructions
2A. Vans/Expedition/Navigator:
- Partially remove the rear interior plastic trim panels on the left (driver’s) side.
- Open the vehicle's jack storage compartment to expose the openings to the tail light assemblies.
- Remove the threshold cover plate between the rear doors.
2B. Escort/Tracer:
- Partially remove the trunk lining to expose the grommets accessing the tail lights.
- Remove and slit the grommets to allow wires to pass into the tail light openings.
2C. F-150 Pickups (Flareside Only):
- From underneath the vehicle, locate the access holes into the tail light openings.
- There will be an access hole on each side of the vehicle.
-
From the passenger side, route the T-Connector end containing the green wire out from inside the vehicle through the tail light opening.
-
Disconnect the vehicle’s center black wiring harness connector from the tail light assembly.
- Note: Be careful not to damage the locking tabs.
- Plug the T-Connector end containing the green wire between these separated halves.
-
Route the yellow wire across the vehicle under the threshold cover removed in step 2.
- Route the T-Connector ends containing the yellow wire out through the driver’s side tail light opening.
- Repeat step 4 using the T-Connector end containing the yellow wire.
-
Test the installation with a test light or trailer.
-
Secure the yellow wire under the threshold panel and reinstall all removed components:
-
Plastic trim panels.
-
Jack storage panel grommets.
-
Tail lights.
-
Specifications:
- This unit is rated for 7.5 amps per circuit.
-
Hardware List:
- T-Connector adapter.
Safety Notes:
- Handle all connectors with care to avoid damage.
- Ensure all connections are clean and securely fastened.
- Test the installation after completing all steps to verify functionality.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
This product comes with a limited warranty for [insert duration here] covering [insert coverage details]. For complete warranty instructions, please download the full installation PDF.
