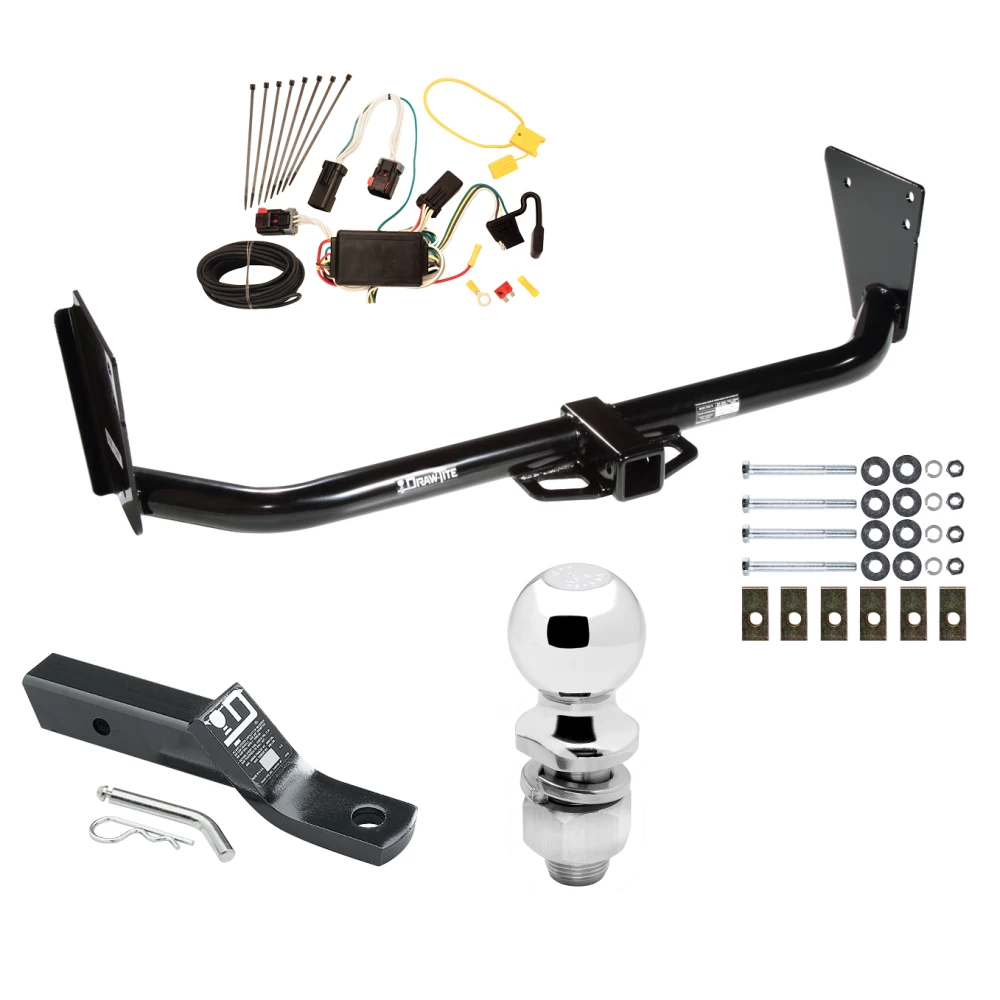

- Includes: Class 4 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball
Compatibility Chart
Get Expert Help
Trailer Tow Hitch For 04-06 Dodge Durango Complete Package w/ Wiring and 2" Ball Install Notes
Installation Instructions for Dodge Durango
Part Numbers:
- 75292
- 44175
- 70751
Tools Required:
- Wrenches: 3/4", 7/8", 18mm, 21mm (Deep Well Socket)
- Drill Bits: None
Wiring Access Location:
- SUV1, SUV2
Step-by-Step Instructions:
-
Loosen and Remove Fasteners:
- Loosen (6) bumper bracket nuts (3 on each side).
- Remove the (4) rearmost bolts (2 on each side).
- Remove the remaining flange nuts.
- Do not remove the forward bolts. Return the (4) bolts and flange nuts to the vehicle owner.
-
Replace Rearmost Bolts:
- Replace the (4) rearmost bolts with the new bolts supplied in the fastener kit.
-
Insert Spacer Blocks:
- Place one (1) spacer block flush on each bolt.
-
Raise Hitch Into Position:
- Lift the hitch into place over the exhaust pipe, being careful not to drop the spacer blocks.
-
Install Fasteners:
- Push the bolts with flat washers through the frame rail, blocks, and brackets.
- Attach flat washers, lock washers, and nuts to the (4) rearmost bolts.
-
Reinstall Forward Flange Nuts:
- Replace the flange nuts on the forward existing bolts.
-
Tighten Fasteners:
- Tighten all M14 CL10.9 fasteners to 148 lb-ft (201 N·m).
- Tighten all 1/2-13 GR5 fasteners to 75 lb-ft (102 N·m).
Hardware List:
- (4) 1/2-13 x 5” GR5 Hex Bolts
- (4) 1/2” Lock Washers
- (8) 1/2” Flat Washers
- (6) 1/2” x 1-1/8” x 2-1/2” Spacer Blocks
- (4) 1/2-13 Hex Nuts
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 9,000 lbs (4,086 kg), Max Tongue Weight 900 lbs (409 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 6,000 lbs (2,724 kg), Max Tongue Weight 600 lbs (272 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for Dodge Durango
Part Numbers:
- 75292
- 44175
- 70751
Tools Required:
- Wrenches: 3/4", 7/8", 18mm, 21mm (Deep Well Socket)
- Drill Bits: None
Wiring Access Location:
- SUV1, SUV2
Step-by-Step Instructions:
-
Loosen and Remove Fasteners:
- Loosen (6) bumper bracket nuts (3 on each side).
- Remove the (4) rearmost bolts (2 on each side).
- Remove the remaining flange nuts.
- Do not remove the forward bolts. Return the (4) bolts and flange nuts to the vehicle owner.
-
Replace Rearmost Bolts:
- Replace the (4) rearmost bolts with the new bolts supplied in the fastener kit.
-
Insert Spacer Blocks:
- Place one (1) spacer block flush on each bolt.
-
Raise Hitch Into Position:
- Lift the hitch into place over the exhaust pipe, being careful not to drop the spacer blocks.
-
Install Fasteners:
- Push the bolts with flat washers through the frame rail, blocks, and brackets.
- Attach flat washers, lock washers, and nuts to the (4) rearmost bolts.
-
Reinstall Forward Flange Nuts:
- Replace the flange nuts on the forward existing bolts.
-
Tighten Fasteners:
- Tighten all M14 CL10.9 fasteners to 148 lb-ft (201 N·m).
- Tighten all 1/2-13 GR5 fasteners to 75 lb-ft (102 N·m).
Hardware List:
- (4) 1/2-13 x 5” GR5 Hex Bolts
- (4) 1/2” Lock Washers
- (8) 1/2” Flat Washers
- (6) 1/2” x 1-1/8” x 2-1/2” Spacer Blocks
- (4) 1/2-13 Hex Nuts
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 9,000 lbs (4,086 kg), Max Tongue Weight 900 lbs (409 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 6,000 lbs (2,724 kg), Max Tongue Weight 600 lbs (272 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118390
Wiring Access Location:
- Rear taillight assemblies and under the vehicle near the bumper.
Tools Required:
- Trim panel remover.
- Wire crimpers.
- Wire cutters.
- Pliers.
Step-by-Step Instructions:
-
Access Taillight Wiring:
- Open the tailgate and remove the vehicle’s right-side taillight assembly by removing the two clips holding it in place.
- Carefully pry the housing away from the vehicle, ensuring the alignment tabs are not broken.
- Repeat the process for the left-side taillight assembly.
-
Disconnect Wiring Harness:
- Slide the red locking tab on the vehicle wiring harness connectors to the unlocked position.
- Disconnect the wiring harness from both taillight sockets.
-
Install T-Connector:
- Plug the T-Connector end with the yellow wire between the driver’s side taillight socket and the vehicle wiring harness.
- Ensure the connectors are fully inserted with locking tabs secure.
-
Route the Wiring:
- Route the T-Connector end with the green wire and the 4-flat connector down through the opening between the vehicle bumper and body.
- Route the green wire across to the passenger side and up through the opening, avoiding hot pipes, heat shields, or any other areas that could pinch or damage the wire.
- Repeat step 3 for the passenger’s side using the green wire.
-
Power Connection:
- Disconnect the vehicle’s negative (-) battery cable.
- Cut the yellow fuse holder wire and attach the ring terminal. Secure it to the vehicle’s positive (+) battery cable.
- Connect the other end of the fuse holder to the black 12-gauge wire using the supplied yellow butt connector.
-
Route Power Wire:
- Route the black 12-gauge wire from the front of the vehicle along the frame rail to the rear driver’s side, avoiding hot pipes, heat shields, and other potential hazards.
-
Connect Power Wire:
- Locate the opening between the rear bumper and body. Route the black wire through the opening and attach it to the red wire from the T-Connector black box using the supplied yellow butt connector.
-
Finalize Power:
- Reconnect the vehicle’s negative (-) battery cable.
- Install the 10-amp fuse into the fuse holder.
-
Secure Wiring and Black Box:
- Secure all loose wiring. Clean a flat surface behind the driver’s side taillight assembly using a mixture of rubbing alcohol and water.
- Mount the T-Connector black box using the provided double-sided tape.
-
Reinstall Components:
- Reinstall the taillight housing assemblies, positioning the wiring harness between the housing and the vehicle body.
- Secure the remainder of the T-Connector harness under the bumper with the provided cable ties.
-
Testing and Final Steps:
- Test the installation with a test light or trailer.
- Mount the 4-flat connector in a suitable location under the vehicle. Bracket not included.
Specifications:
- Max. stop/turn light: 1 per side (2.1 amps).
- Max. tail lights: (4.2 amps).
Hardware List:
- T-Connector adapter.
- Yellow fuse holder with 10-amp fuse.
- Eyelet and screw.
- Double-sided tape.
- Cable ties.
Safety Notes:
- Ensure all connections are secure to avoid circuit overload.
- Test thoroughly after installation to confirm functionality.
Manufacturer Notes:
- Follow all warnings and installation instructions provided.
- Use a test light or trailer to confirm proper installation.
- Refer to the vehicle owner’s manual for additional details.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118390
Wiring Access Location:
- Rear taillight assemblies and under the vehicle near the bumper.
Tools Required:
- Trim panel remover
- Wire crimpers
- Wire cutters
- Pliers
Step-by-Step Instructions:
-
Access Taillight Wiring:
- Open the tailgate and remove the vehicle’s right-side taillight assembly by removing the two clips holding it in place.
- Carefully pry the housing away from the vehicle, ensuring the alignment tabs are not broken.
- Repeat the process for the left-side taillight assembly.
-
Disconnect Wiring Harness:
- Slide the red locking tab on the vehicle wiring harness connectors to the unlocked position.
- Disconnect the wiring harness from both taillight sockets.
-
Install T-Connector:
- Plug the T-Connector end with the yellow wire between the driver’s side taillight socket and the vehicle wiring harness.
- Ensure the connectors are fully inserted with locking tabs secure.
-
Route the Wiring:
- Route the T-Connector end with the green wire and the 4-flat connector down through the opening between the vehicle bumper and body.
- Route the green wire across to the passenger side and up through the opening, avoiding hot pipes, heat shields, or any other areas that could pinch or damage the wire.
- Repeat step 3 for the passenger’s side using the green wire.
-
Power Connection:
- Disconnect the vehicle’s negative (-) battery cable.
- Cut the yellow fuse holder wire and attach the ring terminal. Secure it to the vehicle’s positive (+) battery cable.
- Connect the other end of the fuse holder to the black 12-gauge wire using the supplied yellow butt connector.
-
Route Power Wire:
- Route the black 12-gauge wire from the front of the vehicle along the frame rail to the rear driver’s side, avoiding hot pipes, heat shields, and other potential hazards.
-
Connect Power Wire:
- Locate the opening between the rear bumper and body. Route the black wire through the opening and attach it to the red wire from the T-Connector black box using the supplied yellow butt connector.
-
Finalize Power:
- Reconnect the vehicle’s negative (-) battery cable.
- Install the 10-amp fuse into the fuse holder.
-
Secure Wiring and Black Box:
- Secure all loose wiring. Clean a flat surface behind the driver’s side taillight assembly using a mixture of rubbing alcohol and water.
- Mount the T-Connector black box using the provided double-sided tape.
-
Reinstall Components:
- Reinstall the taillight housing assemblies, positioning the wiring harness between the housing and the vehicle body.
- Secure the remainder of the T-Connector harness under the bumper with the provided cable ties.
-
Testing and Final Steps:
- Test the installation with a test light or trailer to verify:
- Left Turn Signal
- Right Turn Signal
- Brake Lights
- Running Lights
- Mount the 4-flat connector in a suitable location under the vehicle. (Bracket not included.)
- Test the installation with a test light or trailer to verify:
Specifications:
- Max Stop/Turn Light: 2.1 amps per side
- Max Tail Lights: 4.2 amps
Hardware List:
- T-Connector adapter
- Yellow fuse holder with 10-amp fuse
- Eyelet and screw
- Double-sided tape
- Cable ties
Safety Notes:
- Ensure all connections are secure to avoid circuit overload.
- Test thoroughly after installation to confirm functionality.
- Periodically inspect the wiring harness for wear or damage.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
