Trailer Wiring and Bracket w/ Light Tester For 07‑09 Chrysler Aspen 04‑09 Dodge Durango Plug & Play 4‑Flat Harness
Model: 118390 118144 20114Plug and Play T-One Wiring Harness Connector
4-Flat Mounting Bracket
4-Flat Car End Tester w/ LED Display
Fits The Following Vehicles:
2007 - 2009 Chrysler, Aspen, All Styles
2004 - 2009 Dodge, Durango, All Styles
Wiring Kit Specs:
| Part Number | 118390 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions |  |
| Part Number | 118144 |
| Fits | 4 Flat Connectors |
| Brand | Tow Ready |
| Mounts electrical connector to attachment bracket Includes screws and nuts Attractive point-of-purchase packaging |
|
| Warranty | 1 Year |
| Part Number | 20114 |
| Fits | 4 Flat Connectors |
| Brand | Tow Ready |
| 4-Flat Car End Tester w/LED Display Plug these testers into any car connector and you will have an instant test of running light circuits. |
|
| Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Thank you for choosing Tekonsha, the most powerful name in trailer light wiring and brake control system. Our trailer wiring harness is vehicle specific, requires no splicing or cutting of the wires. Simply plug & play and your vehicle will be able to control trailers brake, turn and running lights. Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. T-One connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our T One connectors offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years:
04 05 06 07 08 09 2004 2005 2006 2007 2008 2009
$86 34 $117.37 26% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$117.37 $86 34
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $21.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Tekonsha
- Model: 118390 118144 20114

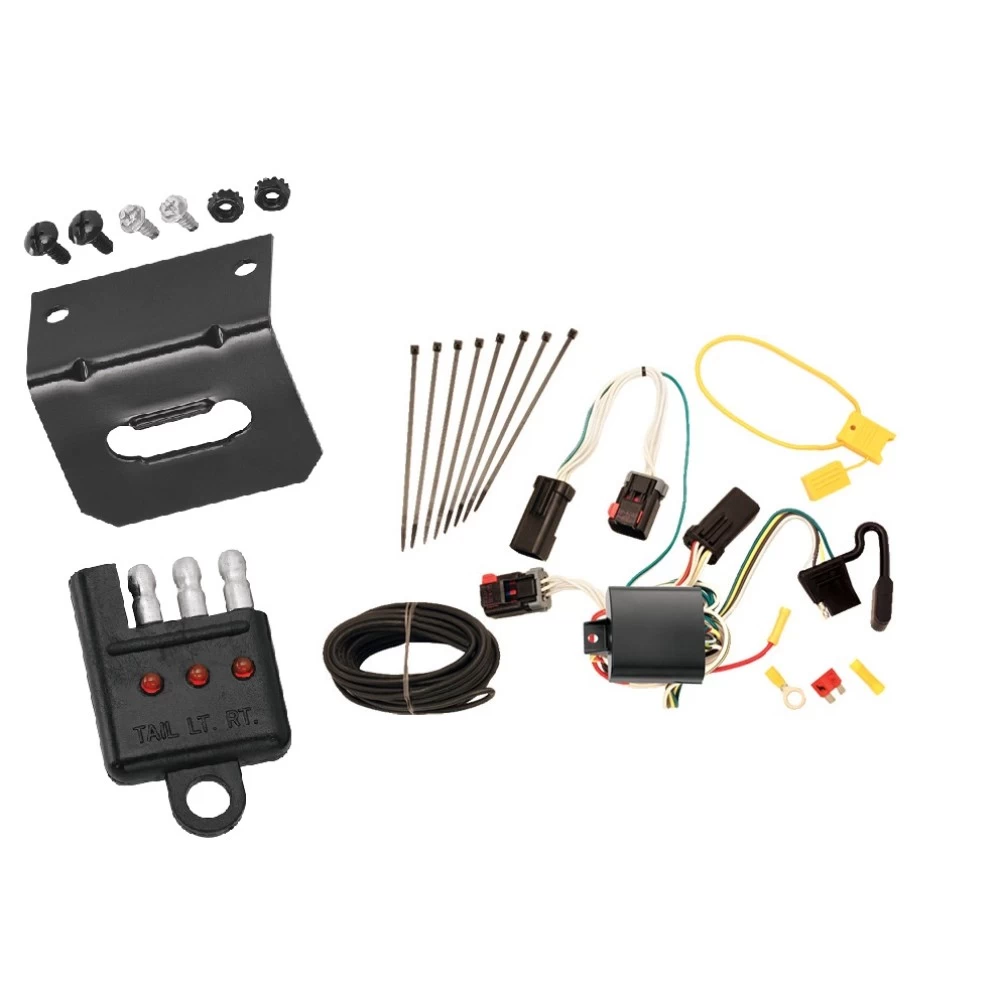

- Includes: T-One T-Connector Custom Harness, Mounting Bracket, 4-Flat Car End Tester
Compatibility Chart
Description
Plug and Play T-One Wiring Harness Connector
4-Flat Mounting Bracket
4-Flat Car End Tester w/ LED Display
Fits The Following Vehicles:
2007 - 2009 Chrysler, Aspen, All Styles
2004 - 2009 Dodge, Durango, All Styles
Wiring Kit Specs:
| Part Number | 118390 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
| Part Number | 118144 |
| Fits | 4 Flat Connectors |
| Brand | Tow Ready |
| Mounts electrical connector to attachment bracket Includes screws and nuts Attractive point-of-purchase packaging |
|
| Warranty | 1 Year |
| Part Number | 20114 |
| Fits | 4 Flat Connectors |
| Brand | Tow Ready |
| 4-Flat Car End Tester w/LED Display Plug these testers into any car connector and you will have an instant test of running light circuits. |
|
| Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Thank you for choosing Tekonsha, the most powerful name in trailer light wiring and brake control system. Our trailer wiring harness is vehicle specific, requires no splicing or cutting of the wires. Simply plug & play and your vehicle will be able to control trailers brake, turn and running lights. Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. T-One connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our T One connectors offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years:
04 05 06 07 08 09 2004 2005 2006 2007 2008 2009
Get Expert Help
Trailer Wiring and Bracket w/ Light Tester For 07-09 Chrysler Aspen 04-09 Dodge Durango Plug & Play 4-Flat Harness Install Notes
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118390
Wiring Access Location:
- Rear taillight assemblies and under the vehicle near the bumper.
Tools Required:
- Trim panel remover.
- Wire crimpers.
- Wire cutters.
- Pliers.
Step-by-Step Instructions:
-
Access Taillight Wiring:
- Open the tailgate and remove the vehicle’s right-side taillight assembly by removing the two clips holding it in place.
- Carefully pry the housing away from the vehicle, ensuring the alignment tabs are not broken.
- Repeat the process for the left-side taillight assembly.
-
Disconnect Wiring Harness:
- Slide the red locking tab on the vehicle wiring harness connectors to the unlocked position.
- Disconnect the wiring harness from both taillight sockets.
-
Install T-Connector:
- Plug the T-Connector end with the yellow wire between the driver’s side taillight socket and the vehicle wiring harness.
- Ensure the connectors are fully inserted with locking tabs secure.
-
Route the Wiring:
- Route the T-Connector end with the green wire and the 4-flat connector down through the opening between the vehicle bumper and body.
- Route the green wire across to the passenger side and up through the opening, avoiding hot pipes, heat shields, or any other areas that could pinch or damage the wire.
- Repeat step 3 for the passenger’s side using the green wire.
-
Power Connection:
- Disconnect the vehicle’s negative (-) battery cable.
- Cut the yellow fuse holder wire and attach the ring terminal. Secure it to the vehicle’s positive (+) battery cable.
- Connect the other end of the fuse holder to the black 12-gauge wire using the supplied yellow butt connector.
-
Route Power Wire:
- Route the black 12-gauge wire from the front of the vehicle along the frame rail to the rear driver’s side, avoiding hot pipes, heat shields, and other potential hazards.
-
Connect Power Wire:
- Locate the opening between the rear bumper and body. Route the black wire through the opening and attach it to the red wire from the T-Connector black box using the supplied yellow butt connector.
-
Finalize Power:
- Reconnect the vehicle’s negative (-) battery cable.
- Install the 10-amp fuse into the fuse holder.
-
Secure Wiring and Black Box:
- Secure all loose wiring. Clean a flat surface behind the driver’s side taillight assembly using a mixture of rubbing alcohol and water.
- Mount the T-Connector black box using the provided double-sided tape.
-
Reinstall Components:
- Reinstall the taillight housing assemblies, positioning the wiring harness between the housing and the vehicle body.
- Secure the remainder of the T-Connector harness under the bumper with the provided cable ties.
-
Testing and Final Steps:
- Test the installation with a test light or trailer.
- Mount the 4-flat connector in a suitable location under the vehicle. Bracket not included.
Specifications:
- Max. stop/turn light: 1 per side (2.1 amps).
- Max. tail lights: (4.2 amps).
Hardware List:

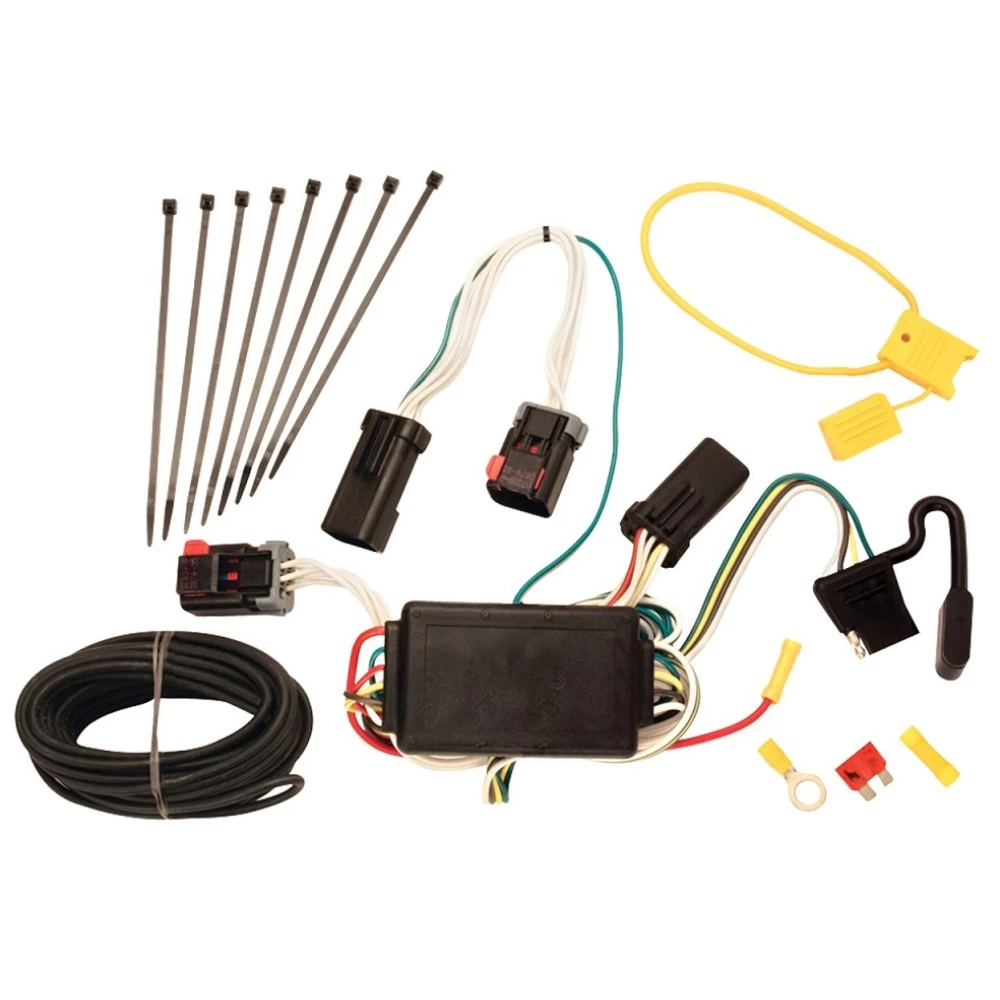

- T-Connector adapter.
- Yellow fuse holder with 10-amp fuse.
- Eyelet and screw.
- Double-sided tape.
- Cable ties.
Safety Notes:
- Ensure all connections are secure to avoid circuit overload.
- Test thoroughly after installation to confirm functionality.
Manufacturer Notes:
- Follow all warnings and installation instructions provided.
- Use a test light or trailer to confirm proper installation.
- Refer to the vehicle owner’s manual for additional details.
