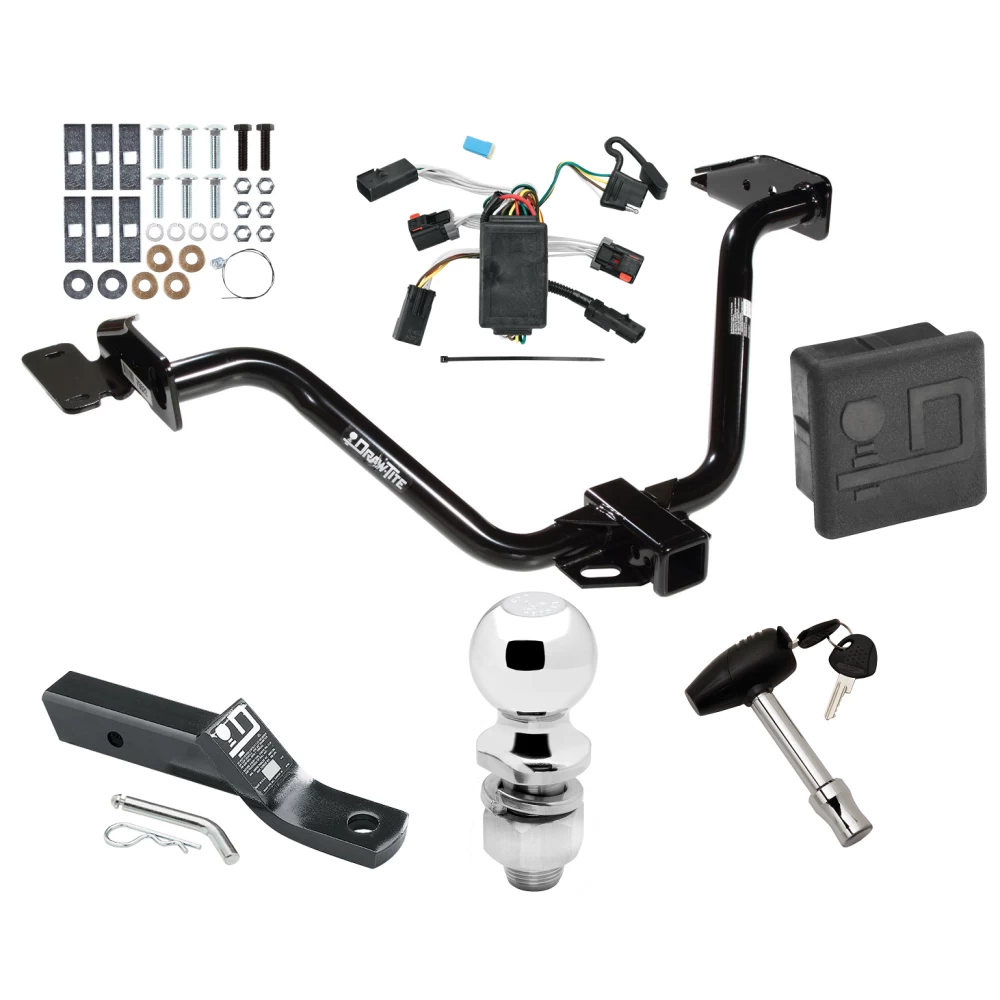

Trailer Tow Hitch For 04-08 Chrysler Pacifica Deluxe Package Wiring 2" Ball and Lock Install Notes
Installation Instructions for Chrysler Pacifica
Part Numbers:
- 44566
- 75522
- 87432
- 78261 (U-Haul)
Tools Required:
- Wrenches: 3/4", 18mm, 19mm
- Drill Bits: None
- Pull Wire (provided)
Wiring Access Location:
- SUV1, SUV2
Step-by-Step Instructions:
-
Lower Exhaust:
- Detach the rubber exhaust hangers from the exhaust hanger brackets to lower the exhaust.
- On models with dual exhaust, perform this step on both sides of the vehicle.
-
Remove Forward Bolt:
- Remove the forwardmost M12 bolt attaching the bumper bracket to the vehicle frame (one per side) and discard.
-
Detach Wiring Harness (if present):
- Carefully pull the wiring harness from the driver’s side frame rail if present. It will be relocated after hitch installation.
-
Install Carriage Bolts and Blocks:
- Use the provided pull wire to fish the 1/2" carriage bolts and blocks through the access slot in the frame rail and down through the square hole on both sides of the vehicle.
- Refer to Figure 2 for proper pull wire technique.
-
Position Hitch:
- Raise the hitch into position, ensuring not to push the bolts back into the frame.
- Place a flat washer between the hitch side bracket and the frame at the attachment point (both sides).
- Loosely install conical washers and nuts to hold the hitch in place.
-
Install Additional Bolts:
- Loosely install conical washers and M12 bolts into existing weldnuts in the frame. These replace the bolts removed in Step 2.
-
Secure Remaining Fasteners:
- Use the pull wire to fish the additional 1/2" carriage bolts and blocks through the frame rail access hole and into the holes on the side of the frame rail (two per side).
- Install lock washers and nuts (two per side) as shown in Figure 1.
-
Torque Fasteners:
- Tighten all 1/2"-13 GR5 fasteners to 75 lb-ft (102 N·m).
- Tighten all M12 CL10.9 fasteners to 92 lb-ft (125 N·m).
-
Reinstall Exhaust:
- Raise the exhaust back into position and reattach the hangers.
-
Raise Spare Tire (if applicable):
- If the spare tire was lowered, return it to its original position.
-
Relocate Wiring Harness:
- Relocate the wiring harness as shown in Figure 3.
Hardware List:
- (6) 1/2"-13 x 1.75" GR5 Carriage Bolts
- (6) 1/4" x 1" x 3" Spacer Blocks
- (4) 1/2" Conical Washers
- (4) 1/2" Lock Washers
- (2) 1/2" Flat Washers
- (4) 1/2"-13 Hex Nuts
- (2) M12 x 1.75 x 45mm CL10.9 Hex Bolts
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 500 lbs (227 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 3,500 lbs (1,589 kg), Max Tongue Weight 350 lbs (159 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for Vehicles (Generic)
Part Numbers:
- 44566
- 75522
- 87432
- 78261 (U-Haul)
Tools Required:
- Wrenches: 3/4", 18mm, 19mm
- Drill Bits: None
- Pull Wire (provided)
Wiring Access Location:
- SUV1, SUV2
Step-by-Step Instructions:
-
Lower Exhaust:
- Detach the rubber exhaust hangers from the exhaust hanger brackets to lower the exhaust.
- On models with dual exhaust, perform this step on both sides of the vehicle.
-
Remove Forward Bolt:
- Remove the forwardmost M12 bolt attaching the bumper bracket to the vehicle frame (one per side) and discard.
-
Detach Wiring Harness (if present):
- Carefully pull the wiring harness from the driver’s side frame rail if present. It will be relocated after hitch installation.
-
Install Carriage Bolts and Blocks:
- Use the provided pull wire to fish the 1/2" carriage bolts and blocks through the access slot in the frame rail and down through the square hole on both sides of the vehicle.
- Refer to the diagram for proper pull wire technique.
-
Position Hitch:
- Raise the hitch into position, ensuring not to push the bolts back into the frame.
- Place a flat washer between the hitch side bracket and the frame at the attachment point (both sides).
- Loosely install conical washers and nuts to hold the hitch in place.
-
Install Additional Bolts:
- Loosely install conical washers and M12 bolts into existing weldnuts in the frame. These replace the bolts removed in Step 2.
-
Secure Remaining Fasteners:
- Use the pull wire to fish the additional 1/2" carriage bolts and blocks through the frame rail access hole and into the holes on the side of the frame rail (two per side).
- Install lock washers and nuts (two per side) as shown in the diagram.
-
Torque Fasteners:
- Tighten all 1/2"-13 GR5 fasteners to 75 lb-ft (102 N·m).
- Tighten all M12 CL10.9 fasteners to 92 lb-ft (125 N·m).
-
Reinstall Exhaust:
- Raise the exhaust back into position and reattach the hangers.
-
Raise Spare Tire (if applicable):
- If the spare tire was lowered, return it to its original position.
-
Relocate Wiring Harness:
- Relocate the wiring harness as shown in the diagram.
Hardware List:
- (6) 1/2"-13 x 1.75" GR5 Carriage Bolts
- (6) 1/4" x 1" x 3" Spacer Blocks
- (4) 1/2" Conical Washers
- (4) 1/2" Lock Washers
- (2) 1/2" Flat Washers
- (4) 1/2"-13 Hex Nuts
- (2) M12 x 1.75 x 45mm CL10.9 Hex Bolts
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 500 lbs (227 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 3,500 lbs (1,589 kg), Max Tongue Weight 350 lbs (159 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Installation Instructions for T-Connector Trailer Wiring Harness
Product Information:
- Part Number: N118303
- Application: Compatible Vehicles
Tools Required:
- 10mm Socket or Wrench
- Utility Knife
- Phillips Head Screwdriver
- Trim Panel Tool
Step-by-Step Instructions:
-
Remove the Taillight Assemblies:
- Open the tailgate.
- Remove the two 10mm hex head bolts securing the taillight assemblies on both sides.
- Carefully pry the housings away from the vehicle, avoiding damage to the alignment tabs.
-
Expose the Grommet and Wiring:
- Locate the vehicle wiring and grommet on the driver’s side.
- Use a utility knife to slit the grommet from the hole where the wiring passes through to the edge.
- Remove any tape or tabs securing the grommet to the wires.
-
Connect the T-Connector:
- Find the 2-pin housing on the driver’s side.
- Plug the T-Connector end into the vehicle’s harness.
- Route the remaining T-Connector wiring through the grommet hole.
-
Install the Driver-Side T-Connector:
- Slide the red locking tab on the vehicle connectors to the unlocked position.
- Disconnect the wiring harness from the taillight socket.
- Plug the T-Connector with the yellow wire between the taillight socket and vehicle harness.
-
Route the Green Wire and 4-Flat Harness:
- Route the T-Connector with the green wire and the 4-flat connector:
- Down through the bumper opening between the vehicle body and bumper.
- Run the green wire across to the passenger side.
- Carefully route it up through the passenger-side taillight opening.
- Repeat the process to connect the green wire T-Connector to the passenger-side harness.
- Route the T-Connector with the green wire and the 4-flat connector:
-
Optional Interior Routing:
- To route wiring inside the vehicle:
- Use a trim panel tool to pry off the threshold plate.
- Remove clips on the driver and passenger sides to access trim panels.
- Partially remove the lower interior trim panels.
- Route the wiring along the threshold plate and up through the passenger-side trim panel.
- Follow steps 3-5 to complete the connections.
- To route wiring inside the vehicle:
-
Seat the Grommet:
- Push all vehicle wiring back through the grommet hole.
- Reseat the grommet securely in the hole.
- Leave only the connector plugging into the taillight outside the grommet.
-
Secure the Black Box:
- Clean a flat area near the driver’s side taillight using a mixture of rubbing alcohol and water.
- Mount the black box module using the provided double-sided tape.
-
Reassemble the Vehicle:
- Replace any trim panels or air baffles removed during the installation.
- Reinstall the taillight assemblies.
- Position the wiring harness securely between the taillight housing and the vehicle body.
- Secure the 4-flat connector wiring under the bumper with cable ties provided.
-
Install the Fuse (2004-2006 Models Only):
- Open the vehicle’s hood and locate the fuse box near the front driver’s side.
- Remove the fuse box cover.
- Locate position #10 labeled "Trailer Tow/Spare".
- Insert the provided 20-amp fuse.
Note: For 2007-current models, the tow fuse is factory-equipped at position #11 labeled "Headlight Washer/Power Liftgate".
-
Test the Installation:
- Verify all connections are secure.
- Use a test light or connect a trailer to check the functionality of:
- Left Turn Signal
- Right Turn Signal
- Brake Lights
- Running Lights
Specifications:
- Max Stop/Turn Light: 2.1 amps per side
- Max Taillights: 4.2 amps total
Safety Notes:
- Do not exceed the vehicle manufacturer’s towing ratings.
- Inspect all wiring periodically for damage or wear.
- Properly test the system before towing.
Warnings:
- Overloaded circuits can cause fires. Ensure amperage ratings are not exceeded.
- Secure all wiring away from sharp edges, hot surfaces, and moving parts.
- Improper installation can lead to electrical failure or damage.
Technical Support:
For further assistance, contact the manufacturer’s support team.
Note: Store the 4-flat connector safely when not in use to prevent damage.
Installation Instructions for T-Connector Trailer Wiring Harness
Product Information:
- Part Number: N118303
- Application: Compatible Vehicles
Tools Required:
- 10mm Socket or Wrench
- Utility Knife
- Phillips Head Screwdriver
- Trim Panel Tool
Step-by-Step Instructions:
-
Remove the Taillight Assemblies:
- Open the tailgate.
- Remove the two 10mm hex head bolts securing the taillight assemblies on both sides.
- Carefully pry the housings away from the vehicle, avoiding damage to the alignment tabs.
-
Expose the Grommet and Wiring:
- Locate the vehicle wiring and grommet on the driver’s side.
- Use a utility knife to slit the grommet from the hole where the wiring passes through to the edge.
- Remove any tape or tabs securing the grommet to the wires.
-
Connect the T-Connector:
- Find the 2-pin housing on the driver’s side.
- Plug the T-Connector end into the vehicle’s harness.
- Route the remaining T-Connector wiring through the grommet hole.
-
Install the Driver-Side T-Connector:
- Slide the red locking tab on the vehicle connectors to the unlocked position.
- Disconnect the wiring harness from the taillight socket.
- Plug the T-Connector with the yellow wire between the taillight socket and vehicle harness.
-
Route the Green Wire and 4-Flat Harness:
- Route the T-Connector with the green wire and the 4-flat connector:
- Down through the bumper opening between the vehicle body and bumper.
- Run the green wire across to the passenger side.
- Carefully route it up through the passenger-side taillight opening.
- Repeat the process to connect the green wire T-Connector to the passenger-side harness.
- Route the T-Connector with the green wire and the 4-flat connector:
-
Optional Interior Routing:
- To route wiring inside the vehicle:
- Use a trim panel tool to pry off the threshold plate.
- Remove clips on the driver and passenger sides to access trim panels.
- Partially remove the lower interior trim panels.
- Route the wiring along the threshold plate and up through the passenger-side trim panel.
- Follow steps 3-5 to complete the connections.
- To route wiring inside the vehicle:
-
Seat the Grommet:
- Push all vehicle wiring back through the grommet hole.
- Reseat the grommet securely in the hole.
- Leave only the connector plugging into the taillight outside the grommet.
-
Secure the Black Box:
- Clean a flat area near the driver’s side taillight using a mixture of rubbing alcohol and water.
- Mount the black box module using the provided double-sided tape.
-
Reassemble the Vehicle:
- Replace any trim panels or air baffles removed during the installation.
- Reinstall the taillight assemblies.
- Position the wiring harness securely between the taillight housing and the vehicle body.
- Secure the 4-flat connector wiring under the bumper with cable ties provided.
-
Install the Fuse (2004-2006 Models Only):
- Open the vehicle’s hood and locate the fuse box near the front driver’s side.
- Remove the fuse box cover.
- Locate position #10 labeled "Trailer Tow/Spare".
- Insert the provided 20-amp fuse.
Note: For 2007-current models, the tow fuse is factory-equipped at position #11 labeled "Headlight Washer/Power Liftgate".
-
Test the Installation:
- Verify all connections are secure.
- Use a test light or connect a trailer to check the functionality of:
- Left Turn Signal
- Right Turn Signal
- Brake Lights
- Running Lights
Specifications:
- Max Stop/Turn Light: 2.1 amps per side
- Max Taillights: 4.2 amps total
Safety Notes:
- Do not exceed the vehicle manufacturer’s towing ratings.
- Inspect all wiring periodically for damage or wear.
- Properly test the system before towing.
Warnings:
- Overloaded circuits can cause fires. Ensure amperage ratings are not exceeded.
- Secure all wiring away from sharp edges, hot surfaces, and moving parts.
- Improper installation can lead to electrical failure or damage.
Additional Information:
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Note: Store the 4-flat connector safely when not in use to prevent damage.
