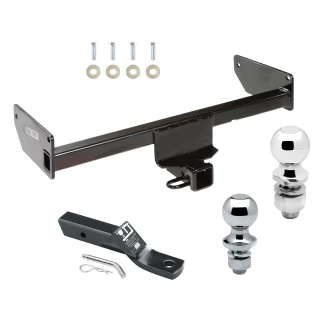

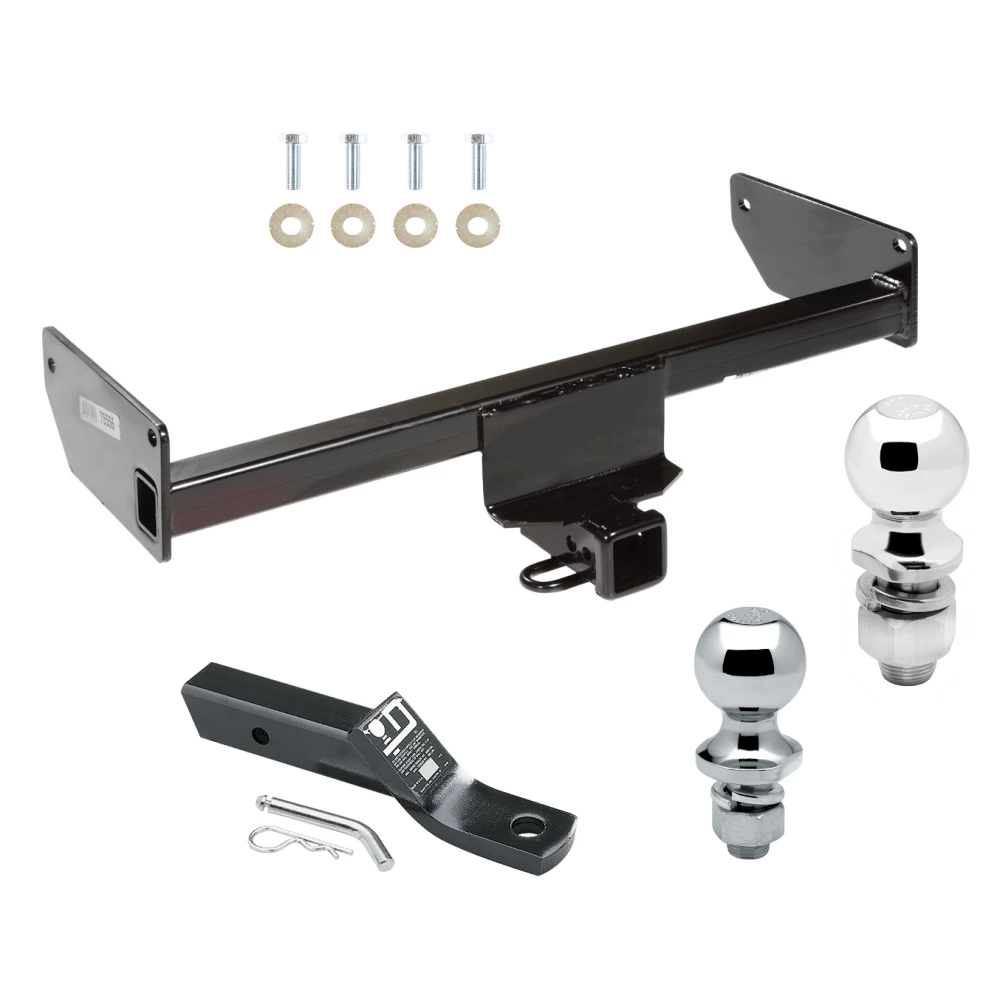

Trailer Tow Hitch For 12‑15 Chevy Captiva Sport 08‑09 Saturn Vue Receiver w/ 1‑7/8" and 2" Ball
Model: 75556 23 63845 63816Custom Fit Trailer Hitch
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" and 2" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2008 - 2009 Saturn, Vue, All Styles
2012 - 2015 Chevrolet, Captiva Sport, All Styles
Trailer Hitch Specs:
| Part Number | 75556 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,000 lbs |
| Max GTW w/ weight distribution | 4,000 lbs |
| Max Tongue Weight | 400 / 400 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63816 |
| Brand | Draw-Tite |
| Size | 1-7/8" x 1" x 2-1/8" |
| Towing Capacity | 2,000 lbs. GTW |
| Material | Chrome |
| Torque | torgue to 160 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63845 |
| Brand | Draw-Tite |
| Size | 2" x 1" x 2-1/8" |
| Towing Capacity | 7,500 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 250 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Partial list of fitment years: 08 09 10 11 12 13 14 15 2008 2009 2010 2011 2012 2013 2014 2015
$242 72 $377.52 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$377.52 $242 72
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $60.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75556 23 63845 63816
- Includes: Class 3 Trailer Tow Hitch, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball, Trailer Tow Hitch Ball
Compatibility Chart
Custom Fit Trailer Hitch
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" and 2" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2008 - 2009 Saturn, Vue, All Styles
2012 - 2015 Chevrolet, Captiva Sport, All Styles
Trailer Hitch Specs:
| Part Number | 75556 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,000 lbs |
| Max GTW w/ weight distribution | 4,000 lbs |
| Max Tongue Weight | 400 / 400 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63816 |
| Brand | Draw-Tite |
| Size | 1-7/8" x 1" x 2-1/8" |
| Towing Capacity | 2,000 lbs. GTW |
| Material | Chrome |
| Torque | torgue to 160 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63845 |
| Brand | Draw-Tite |
| Size | 2" x 1" x 2-1/8" |
| Towing Capacity | 7,500 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 250 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Partial list of fitment years: 08 09 10 11 12 13 14 15 2008 2009 2010 2011 2012 2013 2014 2015
Get Expert Help
Trailer Tow Hitch For 12-15 Chevy Captiva Sport 08-09 Saturn Vue Receiver w/ 1-7/8" and 2" Ball Install Notes
Installation Instructions for Saturn Vue
Part Numbers:
- 87445
- 75556
- 44580
Tools Required:
- Wrenches: 18mm
- Drill Bits: None
Wiring Access Location:
- SUV3 & SUV4
Step-by-Step Instructions:
-
Lower Exhaust (if needed):
- To allow easier access for installing frame bolts, temporarily lower the exhaust system by removing the two rearward rubber isolator hangers on each side.
- Spray lubricant on the isolators to aid in removal.
-
Install the Hitch:
- Raise the hitch into position.
- Install the supplied M12 bolts and conical washers into the existing weldnuts in the vehicle frame.
-
Reinstall Exhaust:
- If the exhaust was lowered, reinstall the exhaust hangers.
-
Tighten Fasteners:
- Use a torque wrench to tighten all M12 fasteners to 92 lb-ft (125 N·m).
Hardware List:
- (4) 1/2” Conical Washers
- (4) M12-1.75 x 35mm CL10.9 Hex Head Bolts
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 4,000 lbs (1,816 kg), Max Tongue Weight 400 lbs (182 kg).
- Weight Distributing: Max Trailer Weight 4,000 lbs (1,816 kg), Max Tongue Weight 400 lbs (182 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for Vehicles (Generic)
Part Numbers:
- 87445
- 75556
- 44580
Tools Required:
- Wrenches: 18mm
- Drill Bits: None
Wiring Access Location:
- SUV3 & SUV4
Step-by-Step Instructions:
-
Lower Exhaust (if needed):
- To allow easier access for installing frame bolts, temporarily lower the exhaust system by removing the two rearward rubber isolator hangers on each side.
- Spray lubricant on the isolators to aid in removal.
-
Install the Hitch:
- Raise the hitch into position.
- Install the supplied M12 bolts and conical washers into the existing weldnuts in the vehicle frame.
-
Reinstall Exhaust:
- If the exhaust was lowered, reinstall the exhaust hangers.
-
Tighten Fasteners:
- Use a torque wrench to tighten all M12 fasteners to 92 lb-ft (125 N·m).
Hardware List:
- (4) 1/2” Conical Washers
- (4) M12-1.75 x 35mm CL10.9 Hex Head Bolts
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 4,000 lbs (1,816 kg), Max Tongue Weight 400 lbs (182 kg).
- Weight Distributing: Max Trailer Weight 4,000 lbs (1,816 kg), Max Tongue Weight 400 lbs (182 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
