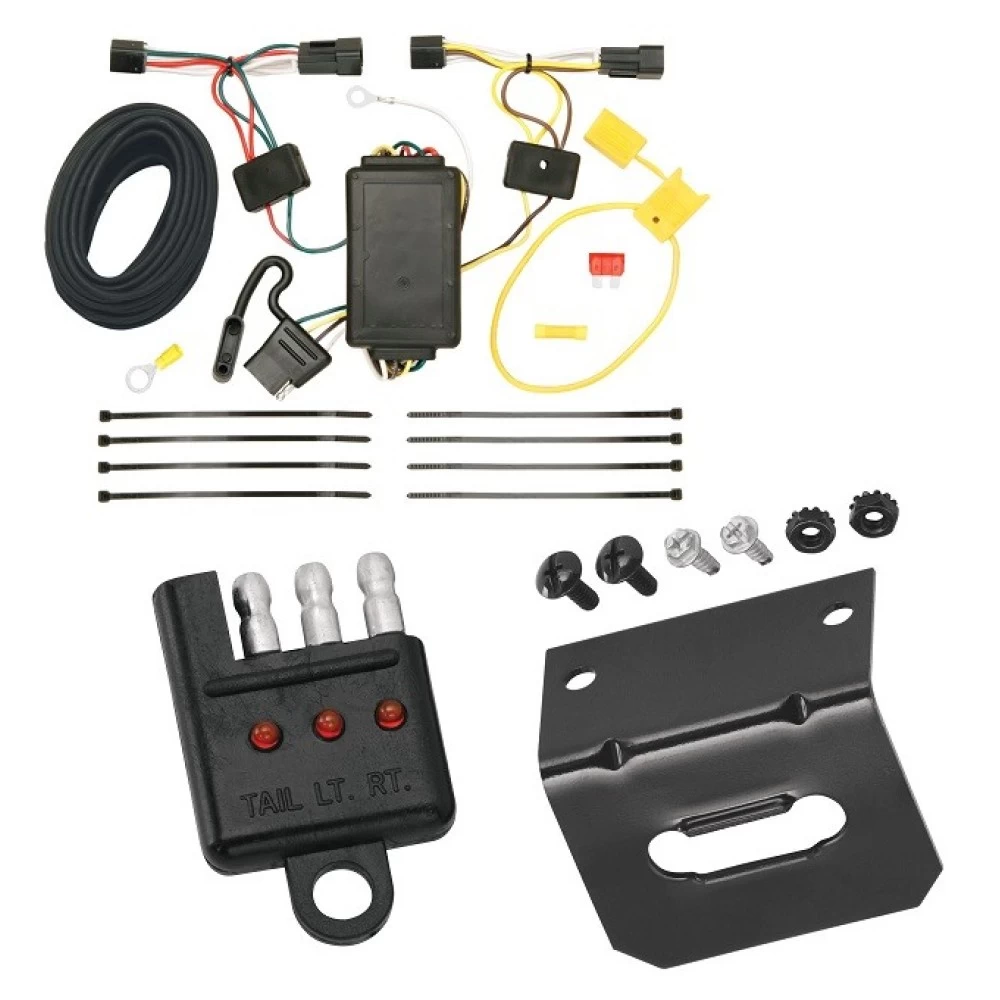

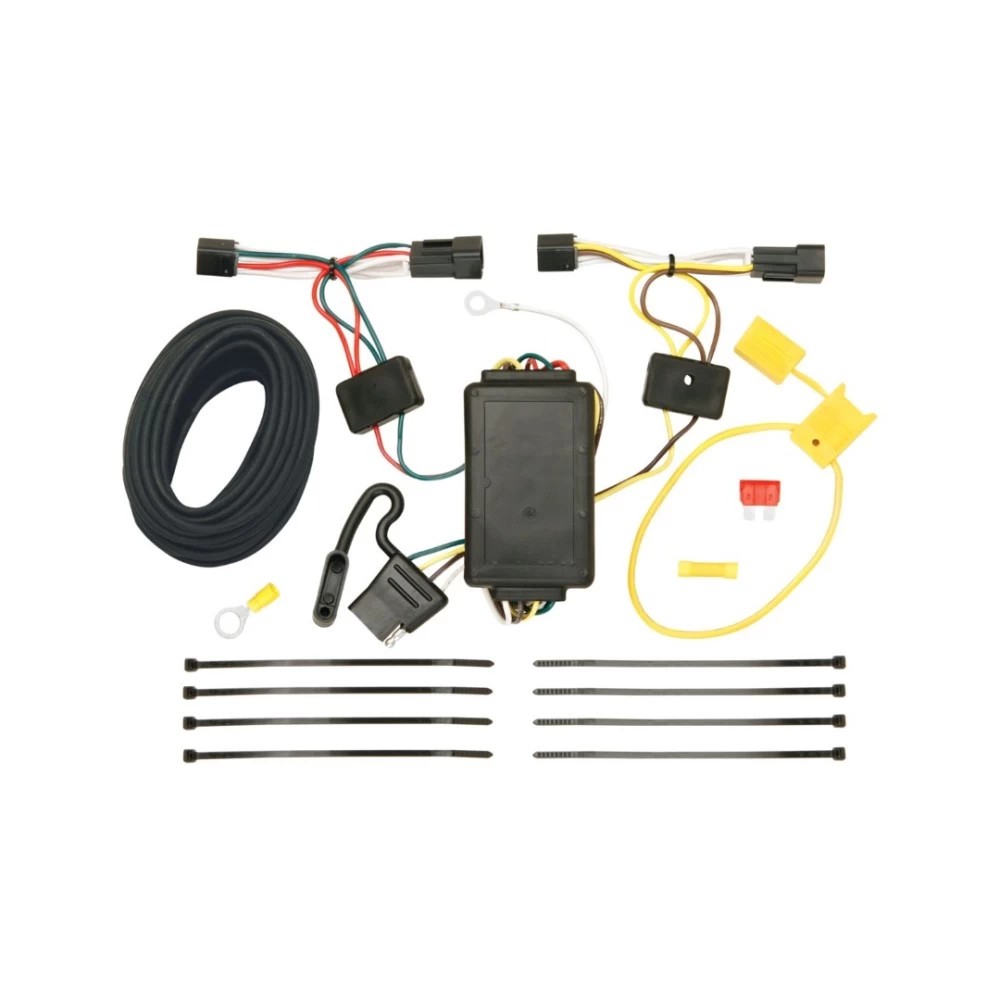

Installation Instructions for T-Connector Adapter

Part Numbers:

• 118443

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or Wrench
• Drill (3/32” Drill Bit)
• 1/4” Socket
• Torx-45
• Torx-30
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Prepare the Rear Cargo Area:

   • Open the rear liftgate.
   • Remove the threshold plate, trunk floor panels, and spare tire tray from the vehicle.
   • Remove the cargo loops, Phillips head screws, sliders, and screws from the side rails.
   • Pull the driver’s side trim panel away from the vehicle.

2. Remove the Styrofoam Tray:

   • On the driver’s side, remove the fasteners holding the black Styrofoam tray and carefully pry it out.

3. Access the Side Pockets:

   • On both the driver’s and passenger’s sides, locate and pry out the plastic side pockets inside the trim panels.

4. Locate the Vehicle’s Taillight Wiring Harness:

   • On both sides, locate the taillight wiring harness inside the panel where the plastic trays were removed.
   • Separate the connectors carefully, ensuring not to break the locking tabs. Clean all connector surfaces to remove dirt.

5. Install the Passenger-Side T-Connector:

   • Insert the T-Connector end with the green wire between the vehicle’s wiring connectors and lock it into place.
   • Ensure the connectors are fully inserted with locking tabs secure.

6. Route and Install the Driver-Side T-Connector:

   • Route the T-Connector end with the yellow wire across the threshold and into the driver’s side trim panel.
   • Repeat Step 5 for the driver’s side using the T-Connector with the yellow wire.

7. Ground the White Wire:

   • On the passenger side, locate an existing ground stud inside the trim panel.
   • Loosen the nut, place the white wire’s ring terminal on the stud, and retighten the nut. Ensure all existing ground connections remain attached.

8. Route the Power Wire:

   • Route the black power wire into the engine compartment and up to the battery.
   • Warning: Avoid routing near hot pipes, heat shields, or areas that could pinch or break the wire.

9. Connect the Power Wire:

   • Disconnect the vehicle’s negative (-) battery cable.
   • Remove the fuse from the yellow fuse holder.
   • Attach the fuse holder’s ring terminal to the positive (+) battery cable.
   • Connect the other end of the fuse holder to the black 12-gauge wire using the yellow butt connector.

10. Reconnect the Battery:

    • Reconnect the vehicle’s negative (-) battery cable.
    • Insert the 10-amp fuse into the fuse holder.

11. Mount the Black Box:

    • Mount the T-Connector’s black box using the provided double-sided tape.
    • Secure the remaining T-Connector harness with cable ties to prevent damage or rattling.

12. Reassemble the Vehicle:

    • Reposition the passenger side panels, trays, and trunk floor panels.
    • Reattach the threshold and any other items removed during installation.

13. Test the Installation:

    • Test and verify the installation with a test light or trailer.
    • Ensure all connections are complete for the T-Connector to function properly.

    Specifications:

    • Max. stop/turn light: 1 per side (2.1 amps)
    • Max. tail lights: (4.2 amps)

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s rating or the unit specifications.
• Always follow vehicle warnings and installation instructions.

Manufacturer Notes:

• Store the 4-flat connector in the rear cargo area when not in use.
• Refer to the vehicle owner’s manual for additional details.

Installation Instructions for T-Connector Adapter

Part Numbers:

• 118443

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or Wrench
• Drill (3/32” Drill Bit)
• 1/4” Socket
• Torx-45
• Torx-30
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Prepare the Rear Cargo Area:

   • Open the rear liftgate.
   • Remove the threshold plate, trunk floor panels, and spare tire tray from the vehicle.
   • Remove the cargo loops, Phillips head screws, sliders, and screws from the side rails.
   • Pull the driver’s side trim panel away from the vehicle.

2. Remove the Styrofoam Tray:

   • On the driver’s side, remove the fasteners holding the black Styrofoam tray and carefully pry it out.

3. Access the Side Pockets:

   • On both the driver’s and passenger’s sides, locate and pry out the plastic side pockets inside the trim panels.

4. Locate the Vehicle’s Taillight Wiring Harness:

   • On both sides, locate the taillight wiring harness inside the panel where the plastic trays were removed.
   • Separate the connectors carefully, ensuring not to break the locking tabs. Clean all connector surfaces to remove dirt.

5. Install the Passenger-Side T-Connector:

   • Insert the T-Connector end with the green wire between the vehicle’s wiring connectors and lock it into place.
   • Ensure the connectors are fully inserted with locking tabs secure.

6. Route and Install the Driver-Side T-Connector:

   • Route the T-Connector end with the yellow wire across the threshold and into the driver’s side trim panel.
   • Repeat Step 5 for the driver’s side using the T-Connector with the yellow wire.

7. Ground the White Wire:

   • On the passenger side, locate an existing ground stud inside the trim panel.
   • Loosen the nut, place the white wire’s ring terminal on the stud, and retighten the nut. Ensure all existing ground connections remain attached.

8. Route the Power Wire:

   • Route the black power wire into the engine compartment and up to the battery.
   • Warning: Avoid routing near hot pipes, heat shields, or areas that could pinch or break the wire.

9. Connect the Power Wire:

   • Disconnect the vehicle’s negative (-) battery cable.
   • Remove the fuse from the yellow fuse holder.
   • Attach the fuse holder’s ring terminal to the positive (+) battery cable.
   • Connect the other end of the fuse holder to the black 12-gauge wire using the yellow butt connector.

10. Reconnect the Battery:

    • Reconnect the vehicle’s negative (-) battery cable.
    • Insert the 10-amp fuse into the fuse holder.

11. Mount the Black Box:

    • Mount the T-Connector’s black box using the provided double-sided tape.
    • Secure the remaining T-Connector harness with cable ties to prevent damage or rattling.

12. Reassemble the Vehicle:

    • Reposition the passenger side panels, trays, and trunk floor panels.
    • Reattach the threshold and any other items removed during installation.

13. Test the Installation:

    • Test and verify the installation with a test light or trailer.
    • Ensure all connections are complete for the T-Connector to function properly.

Specifications:

• Max. Stop/Turn Light: 1 per side (2.1 amps)
• Max. Tail Lights: (4.2 amps)

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s rating or the unit specifications.
• Always follow vehicle warnings and installation instructions.

Manufacturer Notes:

• Store the 4-flat connector in the rear cargo area when not in use.
• Refer to the vehicle owner’s manual for additional details.
• For technical support and assistance, visit www.trailerjacks.com or call 877-869-6690.
• For complete warranty instructions, please download the full installation PDF.
