Product Details
- Brand: Draw-Tite
- Model: 75561 118401 23 63845

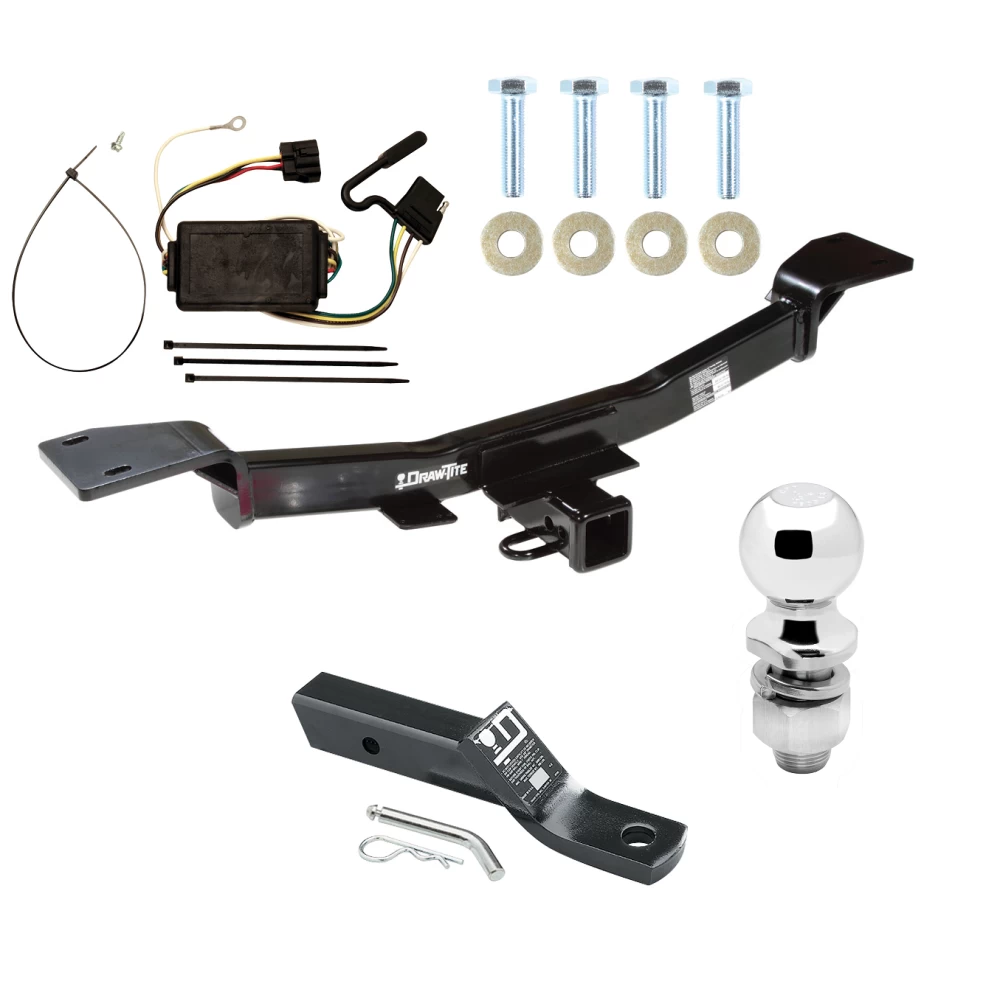

- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball
Compatibility Chart
Description
Get Expert Help
Trailer Tow Hitch For 05-10 KIA Sportage 6 Cyl Complete Package w/ Wiring and 2" Ball Install Notes
Installation Instructions for Hyundai Tucson and Kia Sportage
Part Numbers:
- 75561
- 87447
- 44582
Tools Required:
- Wrenches: 13mm, 14mm, 17mm
- Drill Bits: None
Wiring Access Location:
- Kia Sportage (4 Cyl. Models): SUV1, SUV2
- Kia Sportage (6 Cyl. Models): SUV5
- Hyundai Tucson: SUV1, SUV2
Step-by-Step Instructions:
-
Lower the Exhaust:
- Remove two (2) rubber exhaust hangers on the driver’s side and one (1) on the passenger’s side of the vehicle.
-
Remove Tow Hook Bracket:
- Remove the tow hook bracket by detaching five (5) M10 bolts.
- Return the bracket and fasteners to the vehicle owner.
-

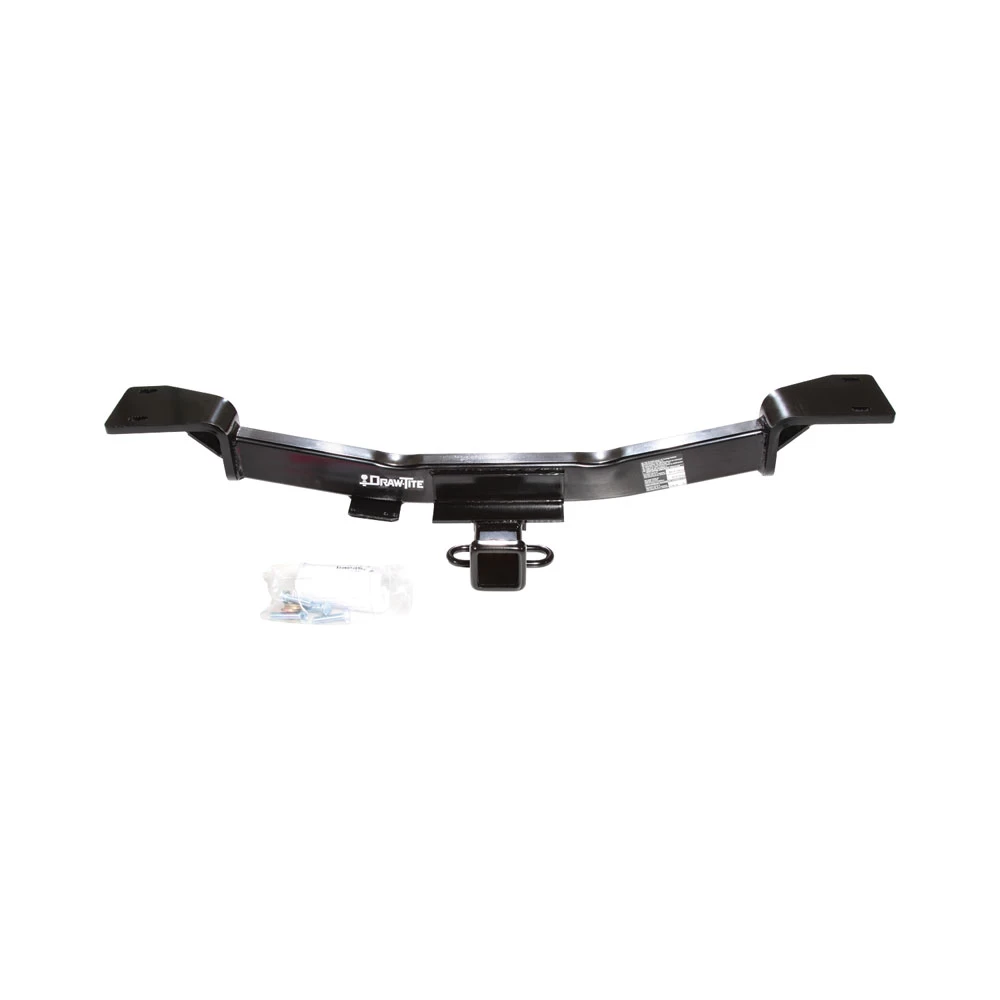

Install the Hitch:
- Raise the hitch into position.
- Secure it with four (4) M10 x 1.25 x 40mm bolts and conical toothed washers, two (2) per side.
-
Tighten Fasteners:
- Use a torque wrench to tighten all M10 CL8.8 fasteners to 42 lb-ft (57 N·m).
-
Reinstall Exhaust:
- Raise the exhaust back into position and reinstall the rubber isolators.

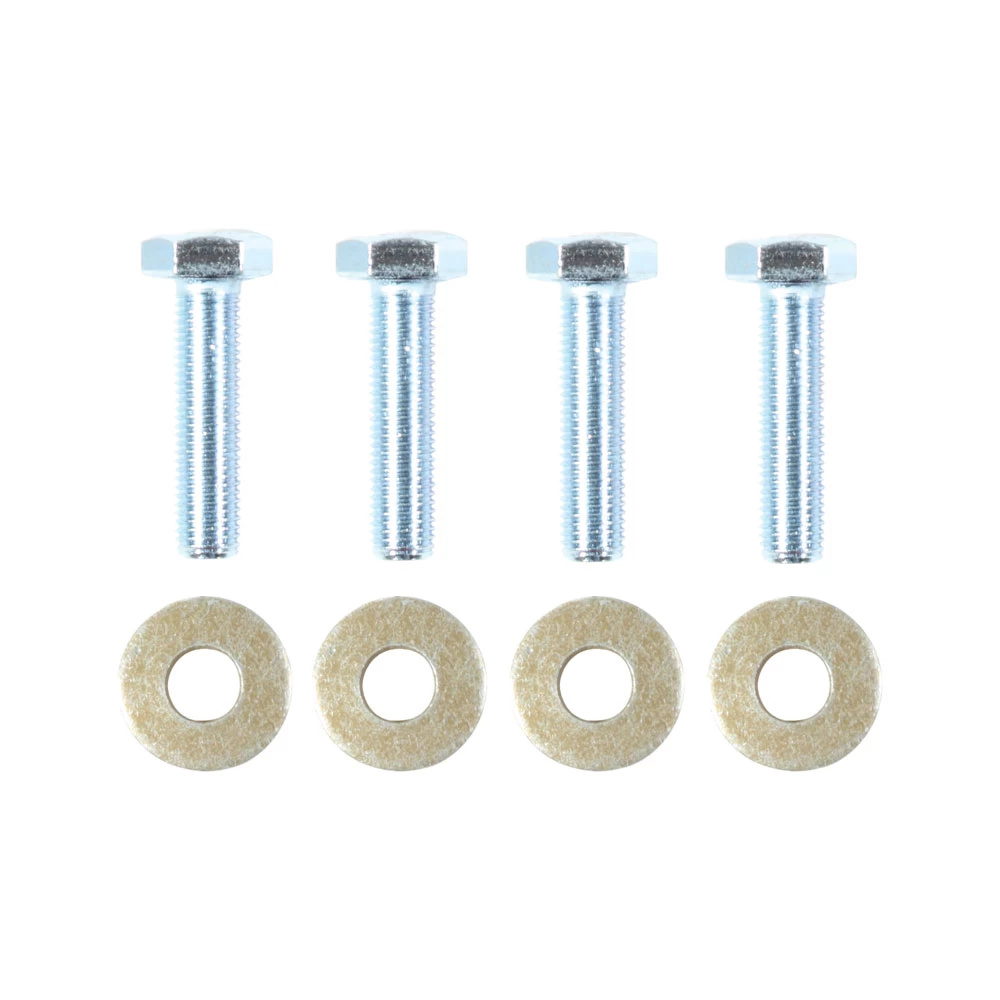

Hardware List:
- (4) M10 x 1.25 x 40mm CL8.8 Hex Bolts
- (4) 3/8" Conical Toothed Washers
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 3,500 lbs (1,589 kg), Max Tongue Weight 350 lbs (159 kg).
- Weight Distributing: Not for use with spring bars.
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for Vehicles (Generic)
Part Numbers:
- 75561
- 87447
- 44582
Tools Required:
- Wrenches: 13mm, 14mm, 17mm
- Drill Bits: None
Wiring Access Location:
- Kia Sportage (4 Cyl. Models): SUV1, SUV2
- Kia Sportage (6 Cyl. Models): SUV5
- Hyundai Tucson: SUV1, SUV2
Step-by-Step Instructions:
-
Lower the Exhaust:
- Remove two (2) rubber exhaust hangers on the driver’s side and one (1) on the passenger’s side of the vehicle.
-
Remove Tow Hook Bracket:
- Remove the tow hook bracket by detaching five (5) M10 bolts.
- Return the bracket and fasteners to the vehicle owner.
-
Install the Hitch:
- Raise the hitch into position.
- Secure it with four (4) M10 x 1.25 x 40mm bolts and conical toothed washers, two (2) per side.
-
Tighten Fasteners:
- Use a torque wrench to tighten all M10 CL8.8 fasteners to 42 lb-ft (57 N·m).
-
Reinstall Exhaust:
- Raise the exhaust back into position and reinstall the rubber isolators.
Hardware List:
- (4) M10 x 1.25 x 40mm CL8.8 Hex Bolts
- (4) 3/8" Conical Toothed Washers
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 3,500 lbs (1,589 kg), Max Tongue Weight 350 lbs (159 kg).
- Weight Distributing: Not for use with spring bars.
- Complies with safety specifications and requirements for connecting devices and towing systems.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118401
Tools Required:
- Phillips Head Screwdriver
- Drill with 3/32" Drill Bit
Step-by-Step Instructions:
-
Locate the Tow-Plug Harness:
- Underneath the vehicle on the passenger’s side, between the bumper and rear tire, locate the vehicle Tow-Plug harness.
- Remove the protective cap, ensuring not to break the locking tabs. Ensure all connector surfaces are clean and free of dirt.
-
Connect the T-Connector:
- Insert the T-Connector harness into the vehicle’s Tow-Plug harness and lock it into place.
- Be careful not to damage the locking tabs and ensure the connectors are fully inserted with the locking tabs secured.
-
Route the T-Connector Harness:
- Route the T-Connector harness rearward along the fascia of the bumper.
- Continue routing it along the inside of the bumper toward the center of the vehicle.
Warning:
- Avoid routing the wire near hot pipes, heat shields, the fuel tank, or any other points that may pinch or break the wire.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as the vehicle frame or cross member. Avoid drilling into the vehicle floor or bed.
- Clean dirt and rustproofing from the area. Drill a 3/32" hole and secure the white wire using the provided eyelet and screw.
Caution:
- Verify what is behind any surface before drilling to avoid vehicle damage or personal injury. Do not drill into exposed surfaces.
-
Mount the Black Box:
- Mount the T-Connector black box using the provided double-sided tape.
- Secure the remainder of the T-Connector harness with the provided cable ties to prevent damage or rattling, ensuring it avoids areas that could pinch, cut, or melt the wire.
-
Test the Installation:
- Verify the T-Connector installation with a test light or trailer.
- Ensure all connections are complete for the T-Connector to function properly.
Specifications:
- Max. stop/turn light: 1 per side (2.1 amps).
- Max. tail lights: (5 amps).
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s rating or the unit specifications.
- Follow all warnings and installation instructions provided.
Manufacturer Notes:
- Read the vehicle owner’s manual and instruction sheet for additional information.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118401
Tools Required:
- Phillips Head Screwdriver
- Drill with 3/32" Drill Bit
Step-by-Step Instructions:
-
Locate the Tow-Plug Harness:
- Underneath the vehicle on the passenger’s side, between the bumper and rear tire, locate the vehicle Tow-Plug harness.
- Remove the protective cap, ensuring not to break the locking tabs. Ensure all connector surfaces are clean and free of dirt.
-
Connect the T-Connector:
- Insert the T-Connector harness into the vehicle’s Tow-Plug harness and lock it into place.
- Be careful not to damage the locking tabs and ensure the connectors are fully inserted with the locking tabs secured.
-
Route the T-Connector Harness:
- Route the T-Connector harness rearward along the fascia of the bumper.
- Continue routing it along the inside of the bumper toward the center of the vehicle.
Warning:
- Avoid routing the wire near hot pipes, heat shields, the fuel tank, or any other points that may pinch or break the wire.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as the vehicle frame or cross member. Avoid drilling into the vehicle floor or bed.
- Clean dirt and rustproofing from the area. Drill a 3/32" hole and secure the white wire using the provided eyelet and screw.
Caution:
- Verify what is behind any surface before drilling to avoid vehicle damage or personal injury. Do not drill into exposed surfaces.
-
Mount the Black Box:
- Mount the T-Connector black box using the provided double-sided tape.
- Secure the remainder of the T-Connector harness with the provided cable ties to prevent damage or rattling, ensuring it avoids areas that could pinch, cut, or melt the wire.
-
Test the Installation:
- Verify the T-Connector installation with a test light or trailer.
- Ensure all connections are complete for the T-Connector to function properly.
Specifications:
- Max. Stop/Turn Light: 1 per side (2.1 amps)
- Max. Tail Lights: (5 amps)
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s rating or the unit specifications.
- Follow all warnings and installation instructions provided.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
