Trailer Wiring and Bracket w/ Light Tester For 05‑10 KIA Sportage 6 Cyl. Plug & Play 4‑Flat Harness
Model: 118401 118144 20114Plug and Play T-One Wiring Harness Connector
4-Flat Mounting Bracket
4-Flat Car End Tester w/ LED Display
Fits The Following Vehicles:
2005 - 2010 KIA, Sportage, 6 Cyl.
Wiring Kit Specs:
| Part Number | 118401 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions |  |
| Part Number | 118144 |
| Fits | 4 Flat Connectors |
| Brand | Tow Ready |
| Mounts electrical connector to attachment bracket Includes screws and nuts Attractive point-of-purchase packaging |
|
| Warranty | 1 Year |
| Part Number | 118144 |
| Fits | 4 Flat Connectors |
| Brand | Tow Ready |
| Mounts electrical connector to attachment bracket Includes screws and nuts Attractive point-of-purchase packaging |
|
| Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Thank you for choosing Tekonsha, the most powerful name in trailer light wiring and brake control system. Our trailer wiring harness is vehicle specific, requires no splicing or cutting of the wires. Simply plug & play and your vehicle will be able to control trailers brake, turn and running lights. Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. T-One connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our T One connectors offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years:
05 06 07 08 09 10 2005 2006 2007 2008 2009 2010
$60 28 $71.28 15% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$71.28 $60 28
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $15.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Tekonsha
- Model: 118401 118144 20114

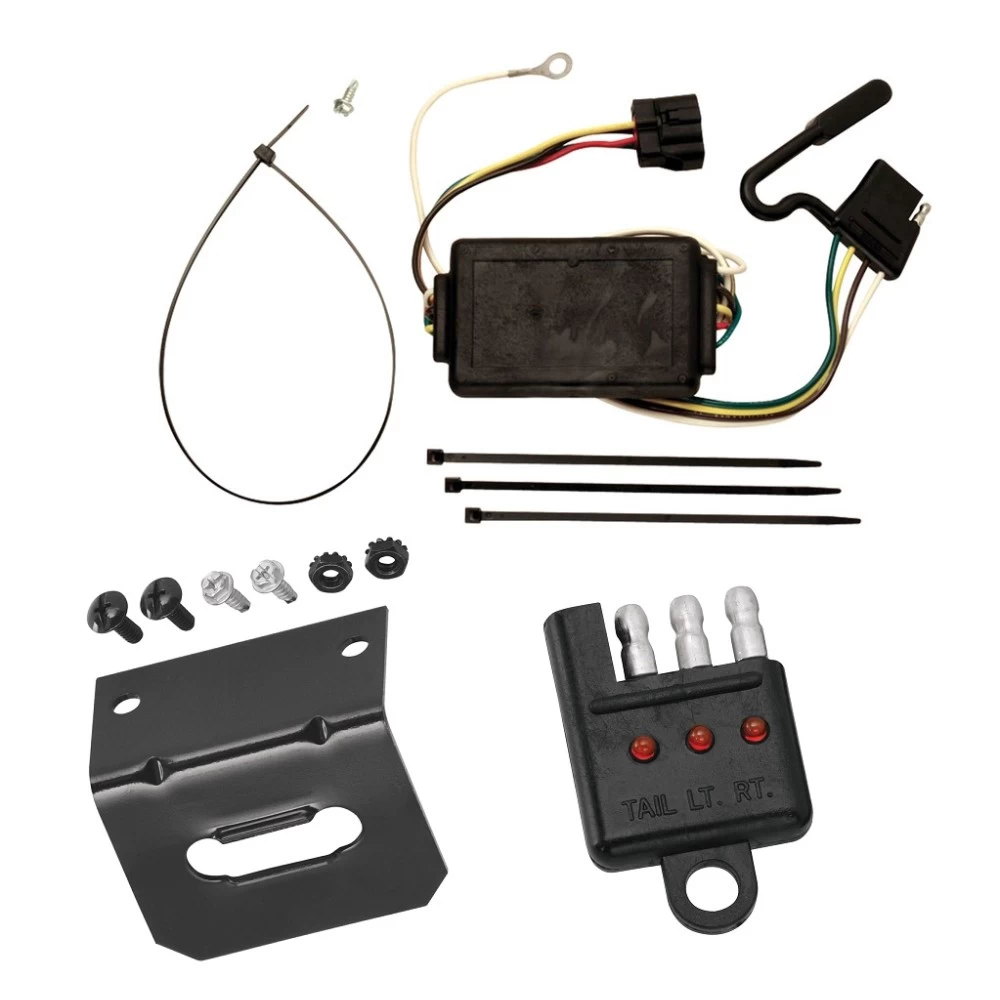

- Includes: T-One T-Connector Custom Harness, Mounting Bracket, 4-Flat Car End Tester
Compatibility Chart
Description

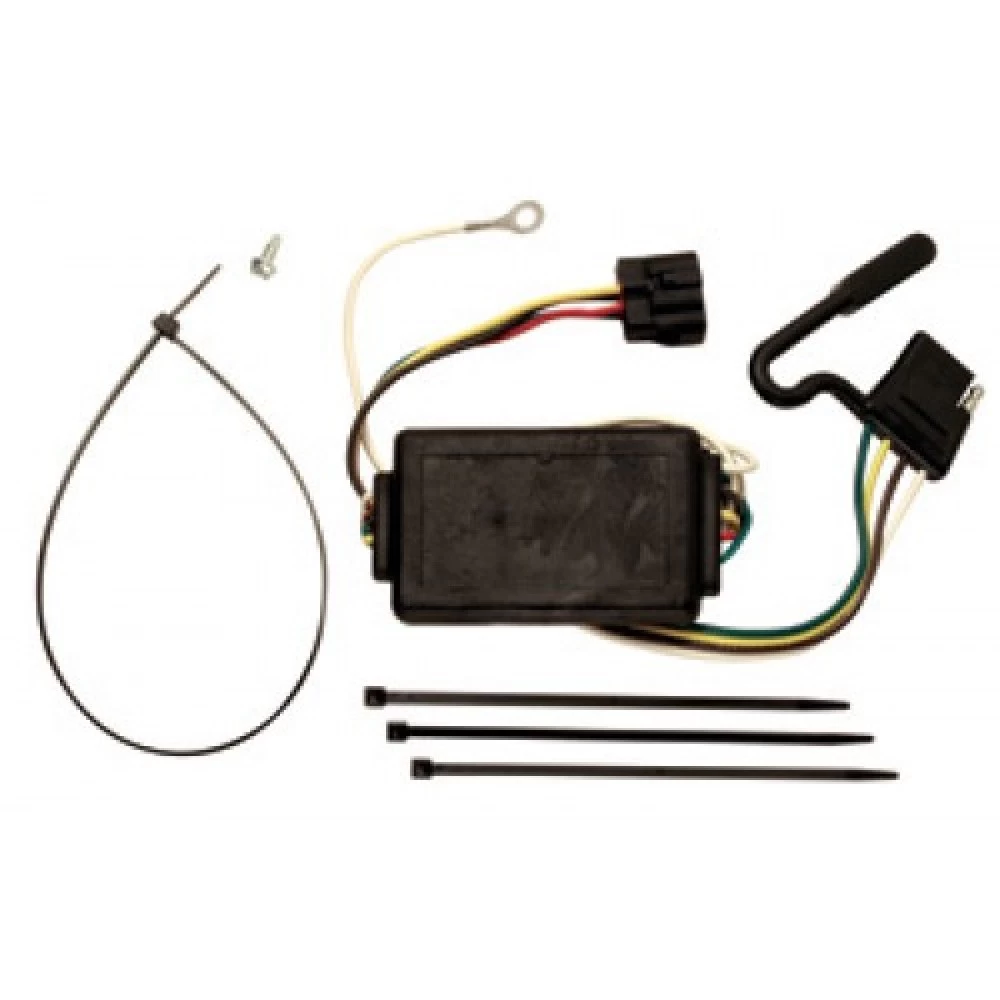

Plug and Play T-One Wiring Harness Connector
4-Flat Mounting Bracket
4-Flat Car End Tester w/ LED Display
Fits The Following Vehicles:
2005 - 2010 KIA, Sportage, 6 Cyl.
Wiring Kit Specs:
| Part Number | 118401 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
| Part Number | 118144 |
| Fits | 4 Flat Connectors |
| Brand | Tow Ready |
| Mounts electrical connector to attachment bracket Includes screws and nuts Attractive point-of-purchase packaging |
|
| Warranty | 1 Year |
| Part Number | 118144 |
| Fits | 4 Flat Connectors |
| Brand | Tow Ready |
| Mounts electrical connector to attachment bracket Includes screws and nuts Attractive point-of-purchase packaging |
|
| Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Thank you for choosing Tekonsha, the most powerful name in trailer light wiring and brake control system. Our trailer wiring harness is vehicle specific, requires no splicing or cutting of the wires. Simply plug & play and your vehicle will be able to control trailers brake, turn and running lights. Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. T-One connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our T One connectors offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years:
05 06 07 08 09 10 2005 2006 2007 2008 2009 2010
Get Expert Help
Trailer Wiring and Bracket w/ Light Tester For 05-10 KIA Sportage 6 Cyl. Plug & Play 4-Flat Harness Install Notes
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118401
Tools Required:
- Phillips Head Screwdriver
- Drill with 3/32" Drill Bit
Step-by-Step Instructions:
-
Locate the Tow-Plug Harness:
- Underneath the vehicle on the passenger’s side, between the bumper and rear tire, locate the vehicle Tow-Plug harness.
- Remove the protective cap, ensuring not to break the locking tabs. Ensure all connector surfaces are clean and free of dirt.
-
Connect the T-Connector:
- Insert the T-Connector harness into the vehicle’s Tow-Plug harness and lock it into place.
- Be careful not to damage the locking tabs and ensure the connectors are fully inserted with the locking tabs secured.
-
Route the T-Connector Harness:
- Route the T-Connector harness rearward along the fascia of the bumper.
- Continue routing it along the inside of the bumper toward the center of the vehicle.
Warning:
- Avoid routing the wire near hot pipes, heat shields, the fuel tank, or any other points that may pinch or break the wire.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as the vehicle frame or cross member. Avoid drilling into the vehicle floor or bed.
- Clean dirt and rustproofing from the area. Drill a 3/32" hole and secure the white wire using the provided eyelet and screw.
Caution:
- Verify what is behind any surface before drilling to avoid vehicle damage or personal injury. Do not drill into exposed surfaces.
-
Mount the Black Box:
- Mount the T-Connector black box using the provided double-sided tape.
- Secure the remainder of the T-Connector harness with the provided cable ties to prevent damage or rattling, ensuring it avoids areas that could pinch, cut, or melt the wire.
-
Test the Installation:
- Verify the T-Connector installation with a test light or trailer.
- Ensure all connections are complete for the T-Connector to function properly.
Specifications:
- Max. stop/turn light: 1 per side (2.1 amps).
- Max. tail lights: (5 amps).
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s rating or the unit specifications.
- Follow all warnings and installation instructions provided.
Manufacturer Notes:
- Read the vehicle owner’s manual and instruction sheet for additional information.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118401
Tools Required:
- Phillips Head Screwdriver
- Drill with 3/32" Drill Bit
Step-by-Step Instructions:
-
Locate the Tow-Plug Harness:
- Underneath the vehicle on the passenger’s side, between the bumper and rear tire, locate the vehicle Tow-Plug harness.
- Remove the protective cap, ensuring not to break the locking tabs. Ensure all connector surfaces are clean and free of dirt.
-
Connect the T-Connector:
- Insert the T-Connector harness into the vehicle’s Tow-Plug harness and lock it into place.
- Be careful not to damage the locking tabs and ensure the connectors are fully inserted with the locking tabs secured.
-
Route the T-Connector Harness:
- Route the T-Connector harness rearward along the fascia of the bumper.
- Continue routing it along the inside of the bumper toward the center of the vehicle.
Warning:
- Avoid routing the wire near hot pipes, heat shields, the fuel tank, or any other points that may pinch or break the wire.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as the vehicle frame or cross member. Avoid drilling into the vehicle floor or bed.
- Clean dirt and rustproofing from the area. Drill a 3/32" hole and secure the white wire using the provided eyelet and screw.
Caution:
- Verify what is behind any surface before drilling to avoid vehicle damage or personal injury. Do not drill into exposed surfaces.
-
Mount the Black Box:
- Mount the T-Connector black box using the provided double-sided tape.
- Secure the remainder of the T-Connector harness with the provided cable ties to prevent damage or rattling, ensuring it avoids areas that could pinch, cut, or melt the wire.
-
Test the Installation:
- Verify the T-Connector installation with a test light or trailer.
- Ensure all connections are complete for the T-Connector to function properly.
Specifications:
- Max. Stop/Turn Light: 1 per side (2.1 amps)
- Max. Tail Lights: (5 amps)
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s rating or the unit specifications.
- Follow all warnings and installation instructions provided.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
