Product Details
- Brand: Draw-Tite
- Model: 75561 119178 23 63845 580407 7010

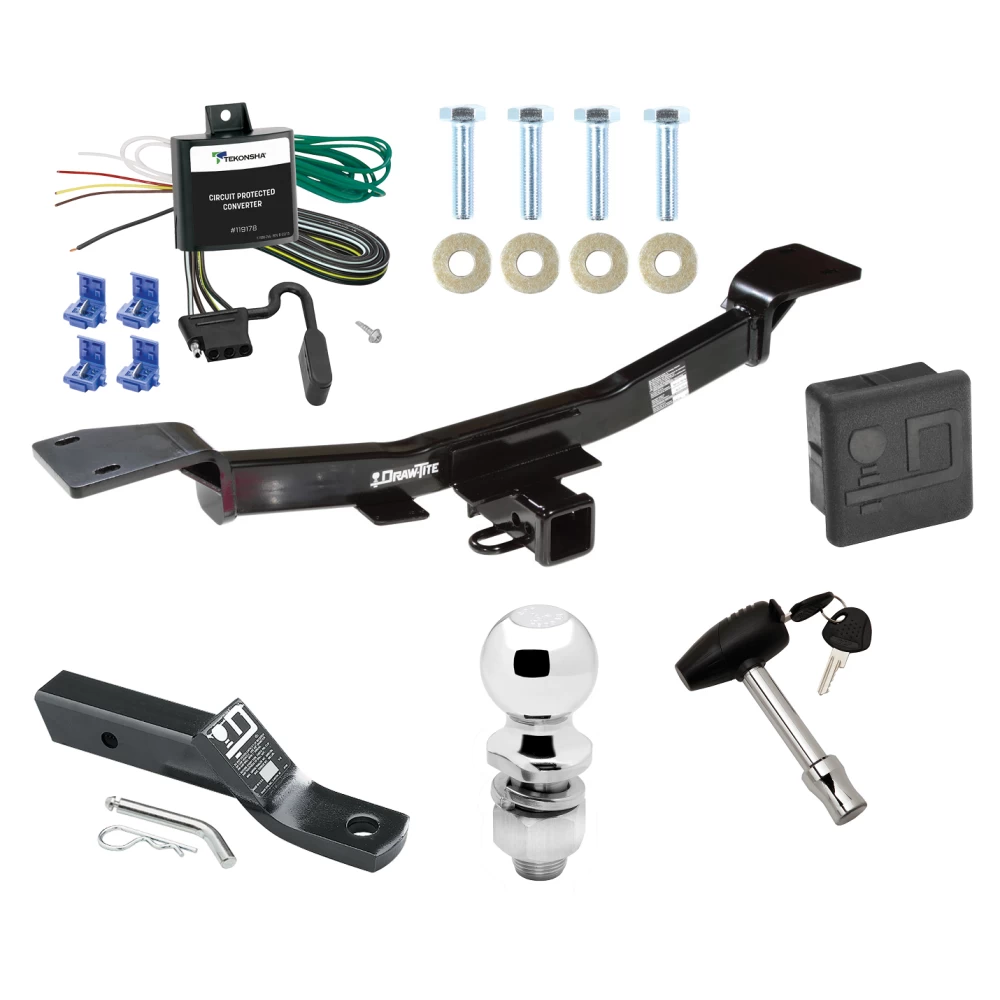

- Includes: Class 3 Trailer Tow Hitch, Taillight Converter with Integrated Circuit Protection, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover
Compatibility Chart
Description
Get Expert Help
Trailer Tow Hitch For 05-10 KIA Sportage 4 Cyl Deluxe Package Wiring 2" Ball and Lock Install Notes
Installation Instructions for Hyundai Tucson and Kia Sportage
Part Numbers:
- 75561
- 87447
- 44582
Tools Required:
- Wrenches: 13mm, 14mm, 17mm
- Drill Bits: None
Wiring Access Location:
- Kia Sportage (4 Cyl. Models): SUV1, SUV2
- Kia Sportage (6 Cyl. Models): SUV5
- Hyundai Tucson: SUV1, SUV2
Step-by-Step Instructions:
-
Lower the Exhaust:
- Remove two (2) rubber exhaust hangers on the driver’s side and one (1) on the passenger’s side of the vehicle.
-
Remove Tow Hook Bracket:
- Remove the tow hook bracket by detaching five (5) M10 bolts.
- Return the bracket and fasteners to the vehicle owner.
-
Install the Hitch:
- Raise the hitch into position.
- Secure it with four (4) M10 x 1.25 x 40mm bolts and conical toothed washers, two (2) per side.
-
Tighten Fasteners:
- Use a torque wrench to tighten all M10 CL8.8 fasteners to 42 lb-ft (57 N·m).
-
Reinstall Exhaust:
- Raise the exhaust back into position and reinstall the rubber isolators.
Hardware List:
- (4) M10 x 1.25 x 40mm CL8.8 Hex Bolts
- (4) 3/8" Conical Toothed Washers
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 3,500 lbs (1,589 kg), Max Tongue Weight 350 lbs (159 kg).
- Weight Distributing: Not for use with spring bars.
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for Vehicles (Generic)
Part Numbers:
- 75561
- 87447
- 44582
Tools Required:
- Wrenches: 13mm, 14mm, 17mm
- Drill Bits: None
Wiring Access Location:
- Kia Sportage (4 Cyl. Models): SUV1, SUV2
- Kia Sportage (6 Cyl. Models): SUV5
- Hyundai Tucson: SUV1, SUV2
Step-by-Step Instructions:
-
Lower the Exhaust:
- Remove two (2) rubber exhaust hangers on the driver’s side and one (1) on the passenger’s side of the vehicle.
-
Remove Tow Hook Bracket:
- Remove the tow hook bracket by detaching five (5) M10 bolts.
- Return the bracket and fasteners to the vehicle owner.
-
Install the Hitch:
- Raise the hitch into position.
- Secure it with four (4) M10 x 1.25 x 40mm bolts and conical toothed washers, two (2) per side.
-
Tighten Fasteners:
- Use a torque wrench to tighten all M10 CL8.8 fasteners to 42 lb-ft (57 N·m).
-
Reinstall Exhaust:
- Raise the exhaust back into position and reinstall the rubber isolators.
Hardware List:
- (4) M10 x 1.25 x 40mm CL8.8 Hex Bolts
- (4) 3/8" Conical Toothed Washers
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 3,500 lbs (1,589 kg), Max Tongue Weight 350 lbs (159 kg).
- Weight Distributing: Not for use with spring bars.
- Complies with safety specifications and requirements for connecting devices and towing systems.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Installation Instructions for Circuit Protected Converter
Part Numbers:
- 119178
Wiring Access Location:
- Not specified in the document.
Tools Required:
- Drill (3/32” Drill Bit)
- Wire Crimpers
- Philips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Using a circuit tester, carefully probe one wire at a time to determine vehicle functions.
- Caution: Do not probe across two wires or across a wire and vehicle structure to avoid damaging electronic components.
-
Disconnect and isolate the vehicle's negative (-) battery terminal.
- Warning: Follow all warnings and precautions printed on the tow vehicle’s battery.
-
Attach the trailer wiring to the vehicle as shown in the illustration using splices.
-
Locate a suitable grounding point.
- Caution: Verify what is behind any surface before drilling to avoid damage or injury. Do not drill into exposed surfaces.
-
Mount the circuit-protected converter near the left tail light in the trunk or on the frame rail under the vehicle.
- Mount with the wiring directed downward or sideways if downward is not possible.
-
Reconnect the vehicle's negative (-) battery terminal.
-
Testing Procedure:
- Attach the ground lead of a circuit tester to the exposed ground terminal of the 4-flat end.
- Activate the tow vehicle’s left turn, right turn, tail, and stop lights one at a time. Test each to confirm proper functionality.
- Warning: Ensure all connections are complete for proper function. Test installation with a trailer or test light.
-
Secure all loose wires with cable ties.
- Warning: Do not overload circuits to prevent fires. Adhere to these limits:
- Max stop/turn light: 1 per side (2.1 amps)
- Max tail lights: (7.5 amps)
- Warning: Do not overload circuits to prevent fires. Adhere to these limits:
Hardware List:
- Not detailed in the document.
Safety Notes:
- Wear safety glasses and follow safety precautions.
- Disconnect the negative (-) cable before wiring.
- Securely ground to the vehicle chassis or an existing ground stud.
- Use on 12-volt negative ground systems only.
Specifications:
- Max stop/turn light: 1 per side (2.1 amps)
- Max tail lights: (7.5 amps)
- Secure wiring with cable ties after installation.
Manufacturer Notes:
- Read and follow all vehicle warnings and instructions.
- Refer to the vehicle's owner manual and manufacturer materials for additional guidance.
Installation Instructions for Circuit Protected Converter
Part Numbers:
- 119178
Wiring Access Location:
- Not specified in the document.
Tools Required:
- Drill (3/32” Drill Bit)
- Wire Crimpers
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Using a circuit tester, carefully probe one wire at a time to determine vehicle functions.
- Caution: Do not probe across two wires or across a wire and vehicle structure to avoid damaging electronic components.
-
Disconnect and isolate the vehicle's negative (-) battery terminal.
- Warning: Follow all warnings and precautions printed on the tow vehicle’s battery.
-
Attach the trailer wiring to the vehicle as shown in the illustration using splices.
-
Locate a suitable grounding point.
- Caution: Verify what is behind any surface before drilling to avoid damage or injury. Do not drill into exposed surfaces.
-
Mount the circuit-protected converter near the left tail light in the trunk or on the frame rail under the vehicle.
- Mount with the wiring directed downward or sideways if downward is not possible.
-
Reconnect the vehicle's negative (-) battery terminal.
-
Testing Procedure:
- Attach the ground lead of a circuit tester to the exposed ground terminal of the 4-flat end.
- Activate the tow vehicle’s left turn, right turn, tail, and stop lights one at a time. Test each to confirm proper functionality.
- Warning: Ensure all connections are complete for proper function. Test installation with a trailer or test light.
-
Secure all loose wires with cable ties.
- Warning: Do not overload circuits to prevent fires. Adhere to these limits:
- Max stop/turn light: 1 per side (2.1 amps)
- Max tail lights: (7.5 amps)
- Warning: Do not overload circuits to prevent fires. Adhere to these limits:
Hardware List:
- Not detailed in the document.
Safety Notes:
- Wear safety glasses and follow safety precautions.
- Disconnect the negative (-) cable before wiring.
- Securely ground to the vehicle chassis or an existing ground stud.
- Use on 12-volt negative ground systems only.
Specifications:
- Max stop/turn light: 1 per side (2.1 amps)
- Max tail lights: (7.5 amps)
- Secure wiring with cable ties after installation.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Manufacturer Notes:
- Read and follow all vehicle warnings and instructions.
- Refer to the vehicle's owner manual and manufacturer materials for additional guidance.
