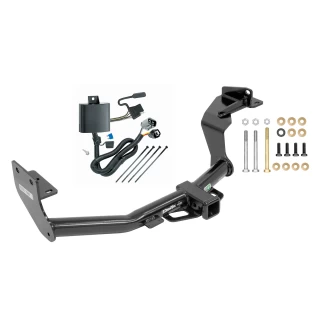

Installation Instructions for Kia Sorento (2016–Current)

Part Numbers:

• 75908
• 87665
• 44750

Wiring Access Location:

• SUV3, SUV4

Tools Required:

• Wrenches: 3/4", 14mm, 16mm, 17mm, 18mm, 19mm
• Socket Extension: 6"
• Philips Screwdriver
• Lubricant or Soapy Water

Step-by-Step Instructions:

1. Lower and Remove Spare Tire:

   • The tire release is located underneath the storage compartment in the back of the vehicle.

2. Remove Driver Side Rear Plastic Cover:

   • Use a small Phillips screwdriver to remove fasteners.
   • Remove (5) plastic push pins and (2) nuts.

3. Lower Exhaust:

   • Remove the rear and side hangers, supporting the exhaust to prevent damage.
   • Spray lubricant or soapy water on the metal hanger rod and the rubber isolator for easier removal.
   • Remove rubber plugs from the bottom of the frame rail on both sides.

4. Prepare Weldnuts:

   • Run M10 bolts into the existing weldnuts in the frame rail to clean out debris, then remove them.

5. Position Hitch:

   • Raise the hitch into position.
   • Insert (items 1 & 2) on the driver’s side and (items 4 & 5) on the passenger’s side.
   • Insert bolts through the bracket and frame as shown in Figure 1 for support.
   • Note: If the bumper locator pin interferes with the hitch hardware, trim the pin with an angle grinder at the shoulder.

6. Secure Bolts:

   • Insert M10 bolts (items 8 & 7) through the bracket into the frame and hand-tighten.

7. Install Washers and Nuts:

   • Attach the remaining conical washers and hex nuts to the bolts.

8. Torque Fasteners:

   • Tighten fasteners to the specified torque values:
     • M10 CL10.9 bolts: 40 lb-ft (54 N*m)
     • 1/2 GR5 bolts: 75 lb-ft (102 N*m)
     • M12 GR8.8 bolts: 68 lb-ft (92 N*m)

9. Reattach Exhaust:

   • Raise the exhaust back into position.

10. Reinstall Plastic Cover:

    • Reinstall the plastic cover removed in Step 2.

11. Reinstall Spare Tire:

    • Ensure the spare tire is seated properly.

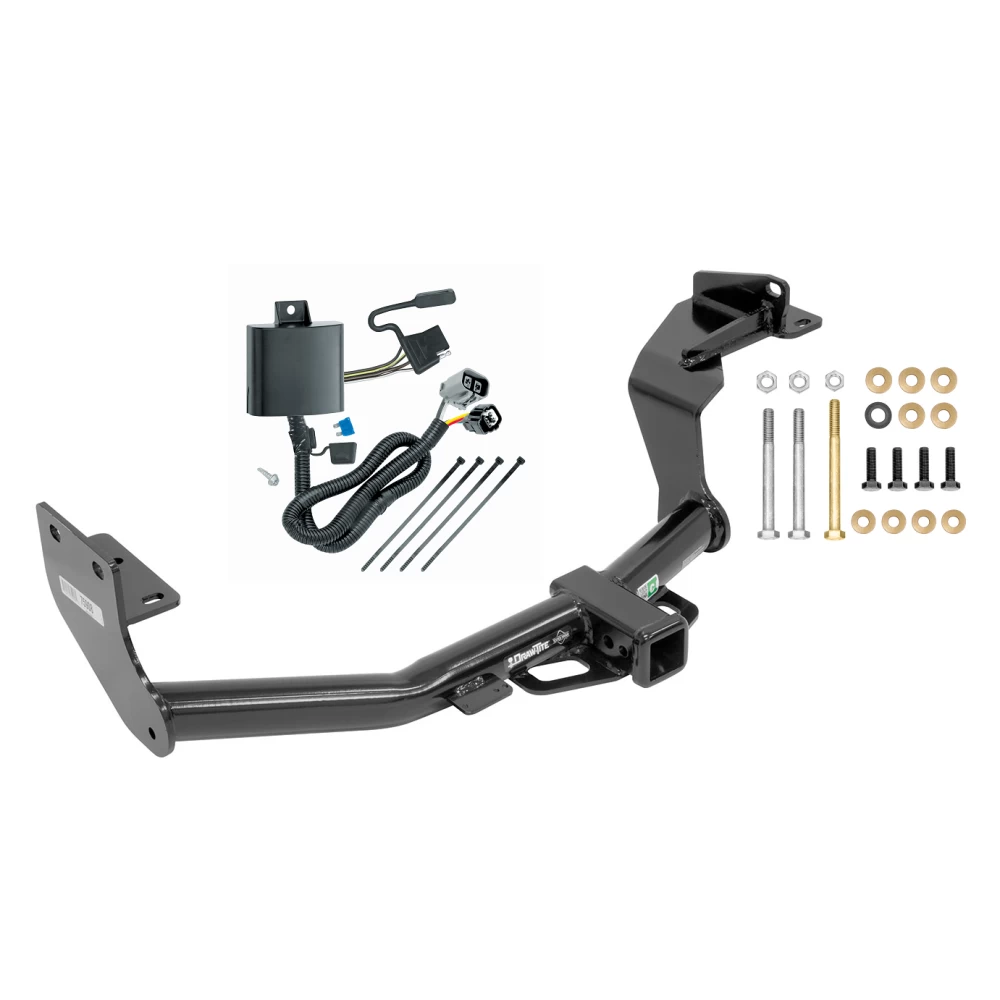

Hardware List:

• Qty (2): Hex Bolt – 1/2-13 x 4.50 GR5
• Qty (5): Conical Washer – 1/2"
• Qty (2): Hex Nut – 1/2-13
• Qty (1): Hex Bolt – M12 x 1.75 x 120mm CL8.8
• Qty (1): Flat Washer – 1/2" Hardened
• Qty (1): Hex Nut – M12 x 1.75 CL8
• Qty (4): Hex Bolt – M10 x 1.25 x 30mm CL10.9
• Qty (4): Conical Washer – 7/16"

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Observe safety precautions when working beneath the vehicle and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type: Weight Carrying (Ball Mount)
  • Max Gross Trailer Weight: 5,000 lbs (2,270 kg)
  • Max Tongue Weight: 500 lbs (227 kg)
• Weight Distributing: Not compatible with spring bars.

Manufacturer Notes:

• Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.

Installation Instructions for Vehicle (2016–Current)

Part Numbers:

• 75908
• 87665
• 44750

Wiring Access Location:

• SUV3, SUV4

Tools Required:

• Wrenches: 3/4", 14mm, 16mm, 17mm, 18mm, 19mm
• Socket Extension: 6"
• Philips Screwdriver
• Lubricant or Soapy Water

Step-by-Step Instructions:

1. Lower and Remove Spare Tire:

   • The tire release is located underneath the storage compartment in the back of the vehicle.

2. Remove Driver Side Rear Plastic Cover:

   • Use a small Phillips screwdriver to remove fasteners.
   • Remove (5) plastic push pins and (2) nuts.

3. Lower Exhaust:

   • Remove the rear and side hangers, supporting the exhaust to prevent damage.
   • Spray lubricant or soapy water on the metal hanger rod and the rubber isolator for easier removal.
   • Remove rubber plugs from the bottom of the frame rail on both sides.

4. Prepare Weldnuts:

   • Run M10 bolts into the existing weldnuts in the frame rail to clean out debris, then remove them.

5. Position Hitch:

   • Raise the hitch into position.
   • Insert (items 1 & 2) on the driver’s side and (items 4 & 5) on the passenger’s side.
   • Insert bolts through the bracket and frame as shown in Figure 1 for support.
   • Note: If the bumper locator pin interferes with the hitch hardware, trim the pin with an angle grinder at the shoulder.

6. Secure Bolts:

   • Insert M10 bolts (items 8 & 7) through the bracket into the frame and hand-tighten.

7. Install Washers and Nuts:

   • Attach the remaining conical washers and hex nuts to the bolts.

8. Torque Fasteners:

   • Tighten fasteners to the specified torque values:
     • M10 CL10.9 bolts: 40 lb-ft (54 N*m)
     • 1/2 GR5 bolts: 75 lb-ft (102 N*m)
     • M12 GR8.8 bolts: 68 lb-ft (92 N*m)

9. Reattach Exhaust:

   • Raise the exhaust back into position.

10. Reinstall Plastic Cover:

    • Reinstall the plastic cover removed in Step 2.

11. Reinstall Spare Tire:

    • Ensure the spare tire is seated properly.

Hardware List:

• Qty (2): Hex Bolt – 1/2-13 x 4.50 GR5
• Qty (5): Conical Washer – 1/2"
• Qty (2): Hex Nut – 1/2-13
• Qty (1): Hex Bolt – M12 x 1.75 x 120mm CL8.8
• Qty (1): Flat Washer – 1/2" Hardened
• Qty (1): Hex Nut – M12 x 1.75 CL8
• Qty (4): Hex Bolt – M10 x 1.25 x 30mm CL10.9
• Qty (4): Conical Washer – 7/16"

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Observe safety precautions when working beneath the vehicle and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type: Weight Carrying (Ball Mount)
  • Max Gross Trailer Weight: 5,000 lbs (2,270 kg)
  • Max Tongue Weight: 500 lbs (227 kg)
• Weight Distributing: Not compatible with spring bars.

Manufacturer Notes:

• Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.
