• ModuLiteProtector w/Integrated Circuit Protection

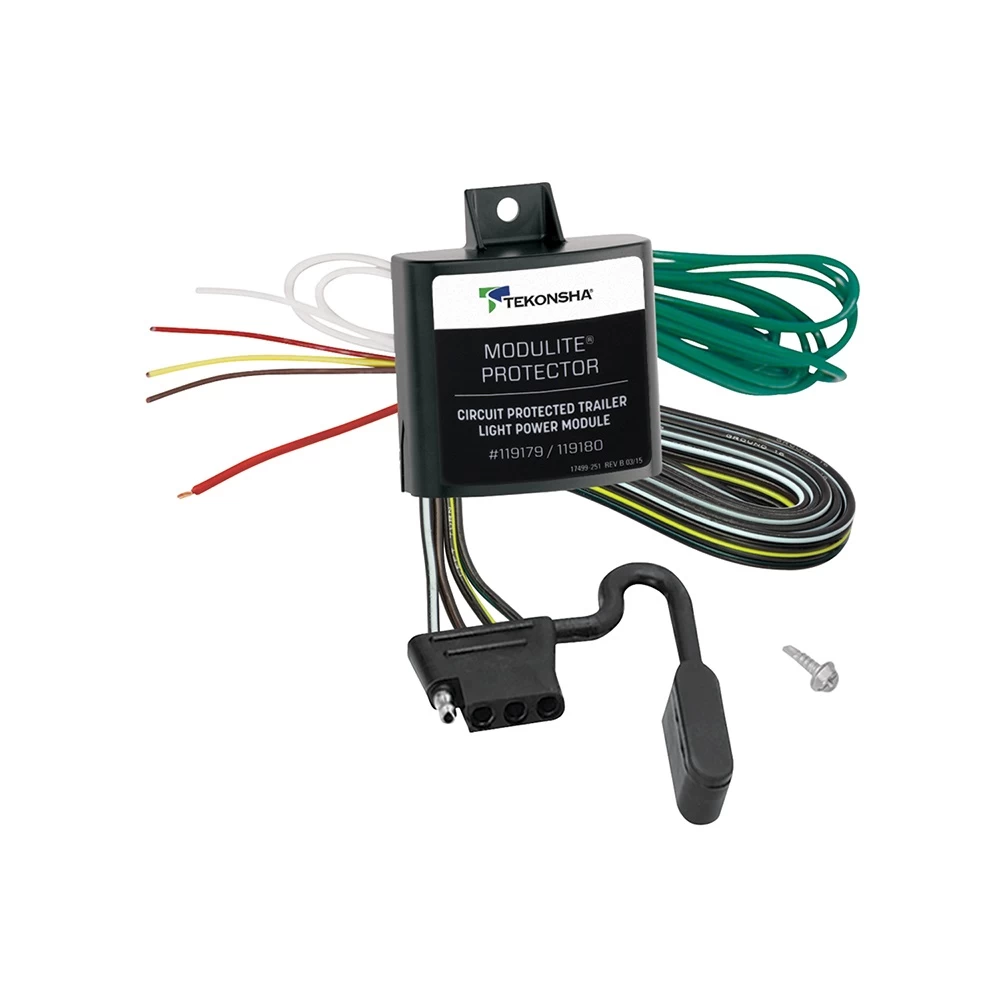

ModuLiteProtector w/Integrated Circuit Protection
  • The unit is rated for up to 2.1 amps for Turns/Stops circuits and 5.6 amps for the Taillight circuit
  • Draws power directly from the vehicle battery and uses less than 5mA of the vehicle circuit for sensing to turn the trailer functions on and off
  • Will work with either LED/Incandescent bulbs (vehicle & trailer)
  • Has integrated re-settable Short Circuit and Overload protection, to safeguard itself and the tow vehicle from shorts and installation wiring mishaps
  • Designed not to send feedback thru the vehicle circuits
  • The trailer brakes will override the hazard lamps when the brake is activated
  • The taillight circuit has been upgraded to work with vehicles that use a pulse width modulation (PWM), this will allow the converter to turn on fully and gives the trailer lights full brightness during activation
  • Will work with most vehicles that have a multiplex system for lighting
  • Will not work with vehicles with low-side switch
  • Can be used on a 2 wire or 3 wire system
  • All solid-state components in potted encapsulation
  • Includes integrated protective cover

Write a review

Note: HTML is not translated!

ModuLiteProtector w/Integrated Circuit Protection

  • Brand: Tekonsha
  • Product Code: 119179
  • Availability: In Stock

  • $39.00 - ON SALE TODAY!

Tags: Electrical Wiring, Power Converters, 119179, , Tekonsha, , , 1 Year
