Product Details
- Brand: Draw-Tite
- Model: 249390

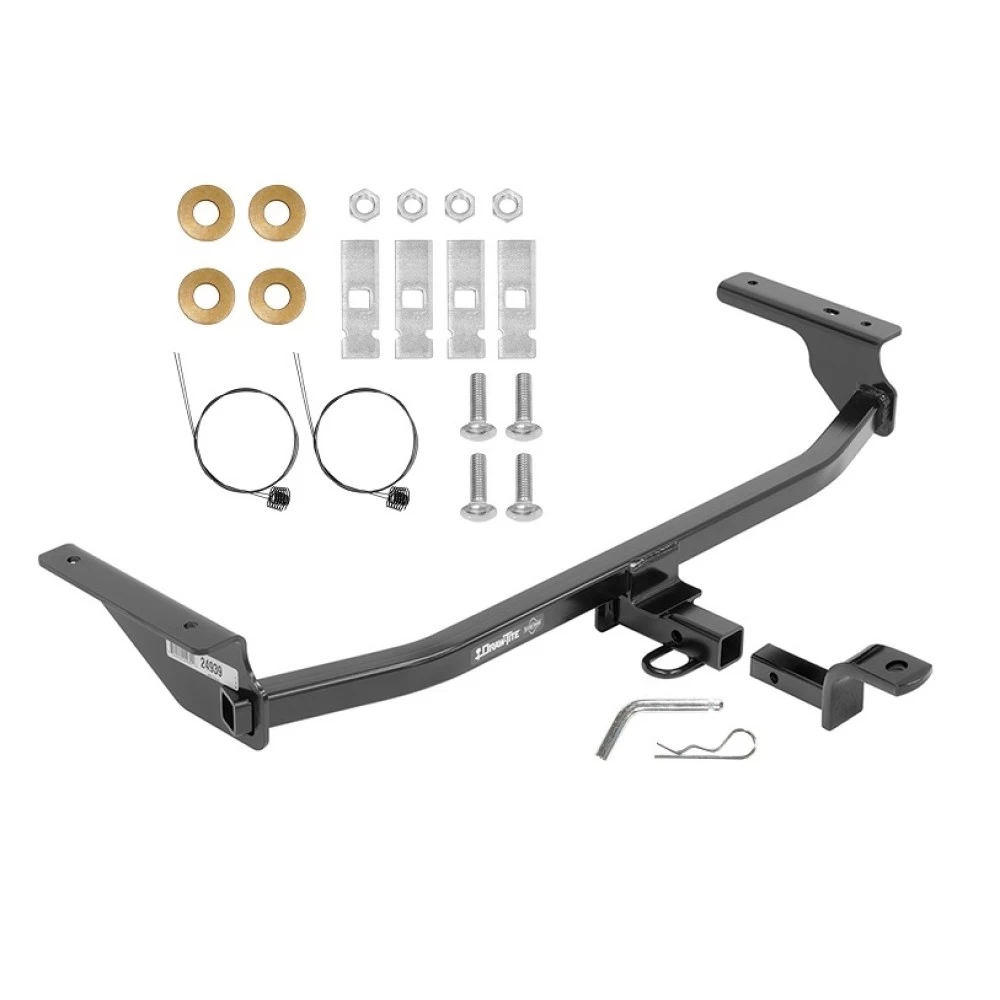

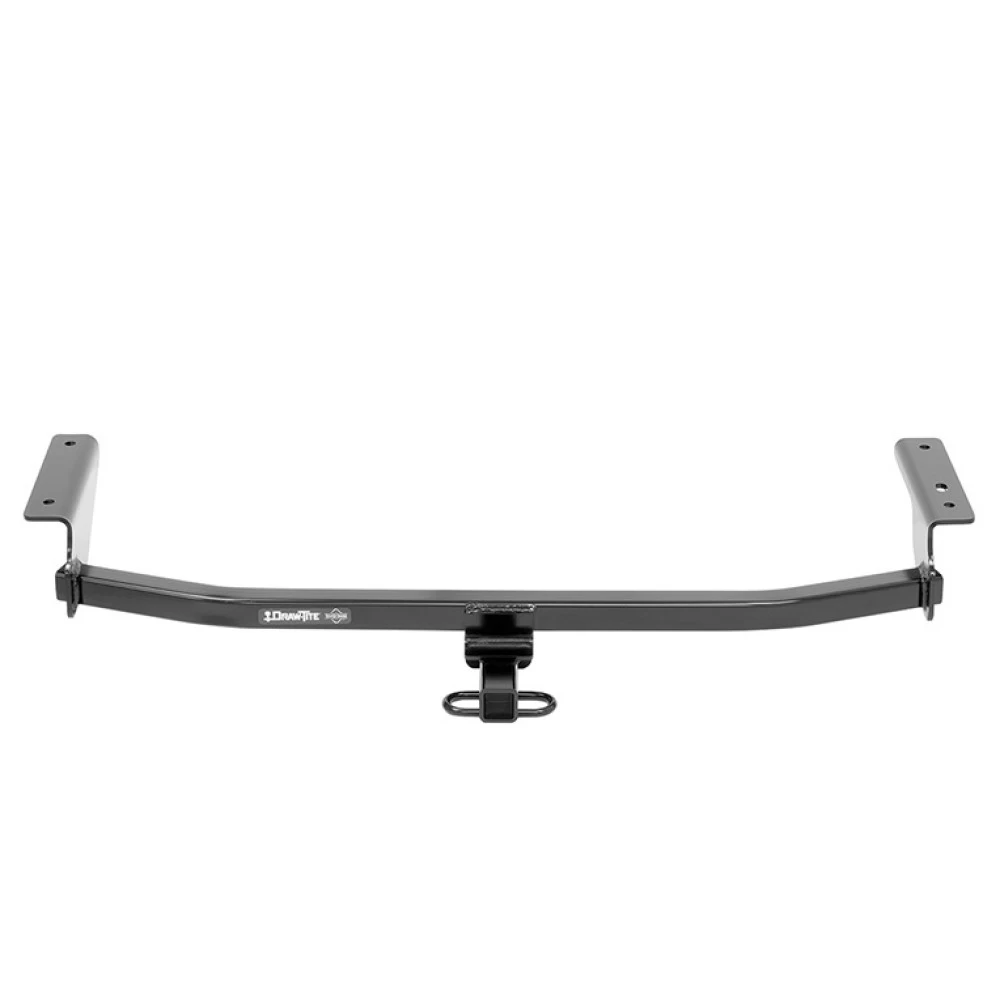

- Includes: Class 1 Trailer Tow Hitch, Trailer Tow Hitch Ball Mount
Compatibility Chart
Year Range | Make | Model | Style |
---|
Description
Get Expert Help
Trailer Tow Hitch For 17-20 Hyundai Elantra Except Sport Receiver w/ Draw Bar Kit Install Notes
Installation Instructions for Hyundai Elantra (2017-Current)
Part Numbers:
- 24939
- 77939
- CQT24939
Wiring Access Location:
- PC3, PC4
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Utility Knife
- Sockets: 10mm, 11/16"
- Flat-Head Screwdriver
- Tape Measure
- Tape
- Phillips Screwdriver
- Tin Snips
- Lubricant or Soapy Water
- Marker
- Drill with 1/2" Drill Bit
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90 kg)
- Note: Do not exceed the towing vehicle manufacturer’s rating.
Installation Time:
- Approx. 50 minutes (Professional Installer)
Step-by-Step Instructions:
-
Remove Appearance Panel:
- Detach the driver-side appearance panel by removing 10mm hex nuts and plastic rivets. Remove rubber plugs from the frame rail, if present, and return them to the vehicle owner.
-
Lower Muffler and Remove Heat Shield:
- Detach two rubber isolator hangers (one on the side and rear of the muffler). Spray lubricant or soapy water on the hanger rods for easier removal.
- Remove the heat shield using a 10mm socket. Trim as shown in the instructions.
-
Remove Lower Fascia Trim:
- Mark the center of the lower fascia. Remove one plastic rivet from the bottom and one screw on each side using a Phillips screwdriver. Carefully separate the lower fascia trim and remove the remaining plastic tabs.
-
Raise Hitch as Template:
- Use the reverse pullwire method to insert a 7/16"-14 x 1.75” carriage bolt and spacer into the frame rail through the access hole. Feed the pull wire through the forward hitch holes. Hand-tighten the hitch in place and ensure it is level and centered. Mark or center-punch the two rearward holes on each side.
-
Drill Holes:
- Lower the hitch carefully, ensuring forward bolts do not fall into the frame rail. Drill the marked holes and remove burrs.
-
Install Rear Fasteners:
- Use the pull wire to guide the rear fasteners through the drilled holes and secure them. Leave the pull wires attached.
-
Reinstall Heat Shield:
- Reattach the trimmed heat shield, sandwiching it between the frame rail and hitch.
-
Install Hitch:
- Raise the hitch into position, threading the pull wires through the corresponding holes. Remove the pull wires and secure the fasteners with conical washers and hex nuts.
-
Tighten Fasteners:
- Torque all 7/16"-14 GR5 fasteners to 50 Lb.-Ft. (68 N*M).
-
Trim Lower Fascia:
- Trim the lower fascia as shown, ensuring smooth edges with rounded corners.
-
Reinstall Fascia:
- Reattach the outer plastic tabs and reinstall the lower fascia, ensuring all tabs fit securely. Replace screws and plastic rivets.
-
Raise Exhaust:
- Reattach the exhaust hangers and raise the exhaust into position. Lubricant helps with reinstallation.
-
Reinstall Appearance Panel:
- Secure the driver-side appearance panel removed earlier.

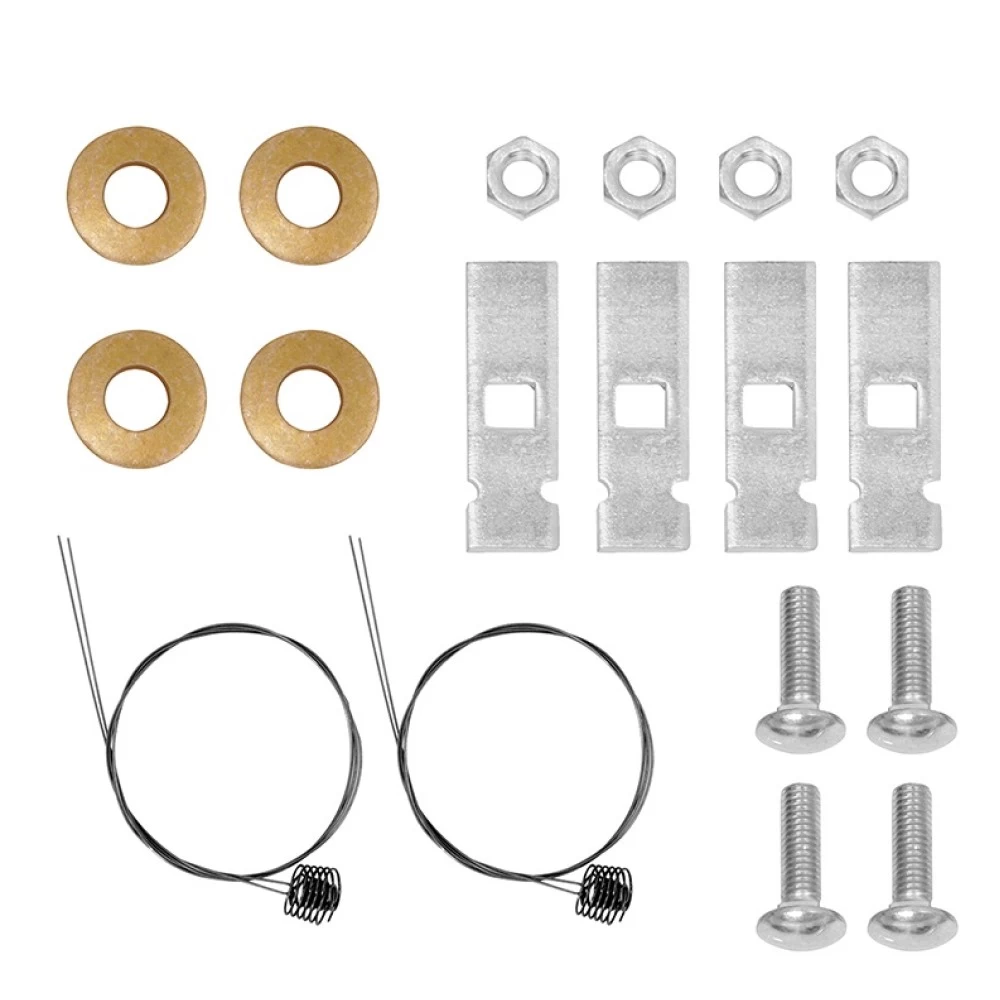

Hardware List:
- (4) Carriage Bolts: 7/16"-14 x 1.75" GR5
- (4) Spacers: 0.25" x 0.875" x 3"
- (4) Conical Washers: 7/16"
- (4) Hex Nuts: 7/16"-14 GR2
- (4) Fish Wires: 7/16"
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure they remain securely tightened.
- Plug any holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always wear eye protection and observe safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Drawbar Kit: 3593
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Frequently check the hitch to ensure all fasteners remain tight.
Installation Instructions for Hyundai Elantra (2017-Current)
Part Numbers:
- 24939
- 77939
- CQT24939
Wiring Access Location:
- PC3, PC4
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Utility Knife
- Sockets: 10mm, 11/16"
- Flat-Head Screwdriver
- Tape Measure
- Tape
- Phillips Screwdriver
- Tin Snips
- Lubricant or Soapy Water
- Marker
- Drill with 1/2" Drill Bit
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90 kg)
- Note: Do not exceed the towing vehicle manufacturer’s rating.
Installation Time:
- Approx. 50 minutes (Professional Installer)
Step-by-Step Instructions:
-
Remove Appearance Panel:
- Detach the driver-side appearance panel by removing 10mm hex nuts and plastic rivets. Remove rubber plugs from the frame rail, if present, and return them to the vehicle owner.
-
Lower Muffler and Remove Heat Shield:
- Detach two rubber isolator hangers (one on the side and rear of the muffler). Spray lubricant or soapy water on the hanger rods for easier removal.
- Remove the heat shield using a 10mm socket. Trim as shown in the instructions.
-
Remove Lower Fascia Trim:
- Mark the center of the lower fascia. Remove one plastic rivet from the bottom and one screw on each side using a Phillips screwdriver. Carefully separate the lower fascia trim and remove the remaining plastic tabs.
-
Raise Hitch as Template:
- Use the reverse pullwire method to insert a 7/16"-14 x 1.75” carriage bolt and spacer into the frame rail through the access hole. Feed the pull wire through the forward hitch holes. Hand-tighten the hitch in place and ensure it is level and centered. Mark or center-punch the two rearward holes on each side.
-
Drill Holes:
- Lower the hitch carefully, ensuring forward bolts do not fall into the frame rail. Drill the marked holes and remove burrs.
-
Install Rear Fasteners:
- Use the pull wire to guide the rear fasteners through the drilled holes and secure them. Leave the pull wires attached.
-
Reinstall Heat Shield:
- Reattach the trimmed heat shield, sandwiching it between the frame rail and hitch.
-
Install Hitch:
- Raise the hitch into position, threading the pull wires through the corresponding holes. Remove the pull wires and secure the fasteners with conical washers and hex nuts.
-
Tighten Fasteners:
- Torque all 7/16"-14 GR5 fasteners to 50 Lb.-Ft. (68 N*M).
-
Trim Lower Fascia:
- Trim the lower fascia as shown, ensuring smooth edges with rounded corners.
-
Reinstall Fascia:
- Reattach the outer plastic tabs and reinstall the lower fascia, ensuring all tabs fit securely. Replace screws and plastic rivets.
-
Raise Exhaust:
- Reattach the exhaust hangers and raise the exhaust into position. Lubricant helps with reinstallation.
-
Reinstall Appearance Panel:
- Secure the driver-side appearance panel removed earlier.
Hardware List:
- (4) Carriage Bolts: 7/16"-14 x 1.75" GR5
- (4) Spacers: 0.25" x 0.875" x 3"
- (4) Conical Washers: 7/16"
- (4) Hex Nuts: 7/16"-14 GR2
- (4) Fish Wires: 7/16"
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure they remain securely tightened.
- Plug any holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always wear eye protection and observe safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Drawbar Kit: 3593
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Frequently check the hitch to ensure all fasteners remain tight.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
