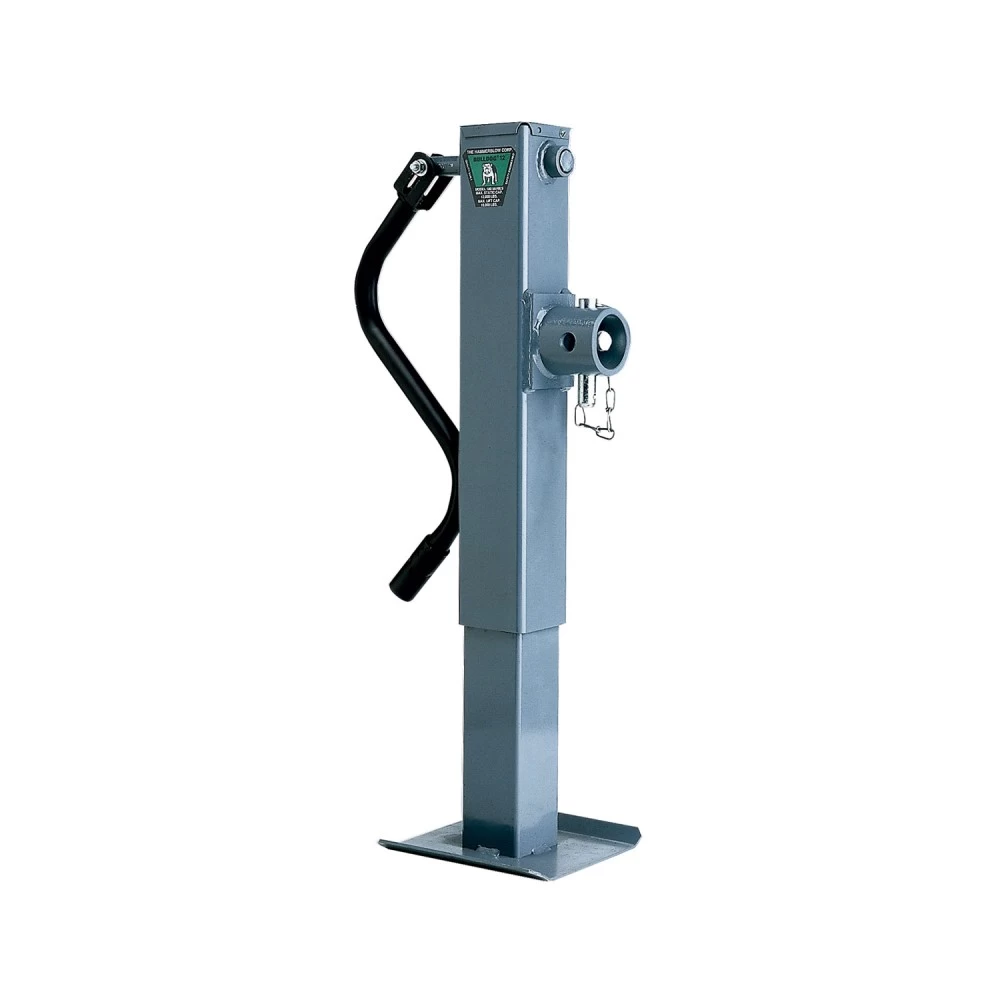

Bulldog 12,000 lbs Square Trailer Jack w/ Round Tubular Swivel Mount Sidewind - 26" Lift
Model: 182524Strong, durable, and sturdy, the BULLDOG 12,000 lbs. support capacity square jack is the BIG reason why BULLDOG has carried the load in agricultural, construction, heavy-duty utility, and horse/livestock trailer industries since 1923. All BULLDOG 4" square jacks are rated for 12,000 lbs. support capacity and 10,000 lbs. lift capacity. The strength of the product, plus the wide variety of styles, makes this jack the best choice in its product class.
-
4" square tubing, 7-gauge superior alloy steel
-
Painted outer tube, inner tube, and drop leg
-
Easy-access gear box with grease fitting for routine maintenance
-
12.5" screw travel
-
Painted (with or without labels) or powder paint optional
-
Limited 5-year warranty
-
ASABE Compliant
Specifications:
-
Support Capacity: 12,000 lbs.
-
Lift Capacity: 10,000 lbs.
-
Retracted Bracket Height: 17" from bracket to bottom
-
Extended Bracket Height: 29.6"
-
Travel/Lift: 12.5"
-
Clearance: 10.01" from bracket to top
-
Fixed leg with heavy duty base
-
Round tubular swivel mount welded to outer tube (includes pin and chain)
-
Does not include mating mount (005122)
-
Crank Included
-
Sidewind model - 1:1.5 gear ratio
-
4" Tubing width
