Bulldog Electric Powered Drive Motor For 12K Single Speed Trailer Jack Includes Replacement Gear Kit
Model: 1824200100 500212Bulldog Powered Drive Kit for Single Speed Jacks
Designed for use with BULLDOG 12,000 lbs. and Twin Cam jacks. Lifts 50% more than competition
-
Lifts 50% more than competition
-
Lifts 3" per minute at typical working loads
-
Can be manually cranked in the event of power loss
-
Can be used in tandem applications
-
5-year warranty
State of the art 12VDC electric motor
-
Quiet operation - 50% quieter than competitive units
-
Efficient use of electrical power - 60% more efficient than competitive units
-
Permanently lubricated to provide years of maintenance free use
-
Power drive dimensions are 8" length x 3-9/16" width x 6-3/16" height
Custom designed wiring harness & rocker switch enclosed in a weather proof box
-
Utilizes a 25 amp circuit breaker with push button reset feature

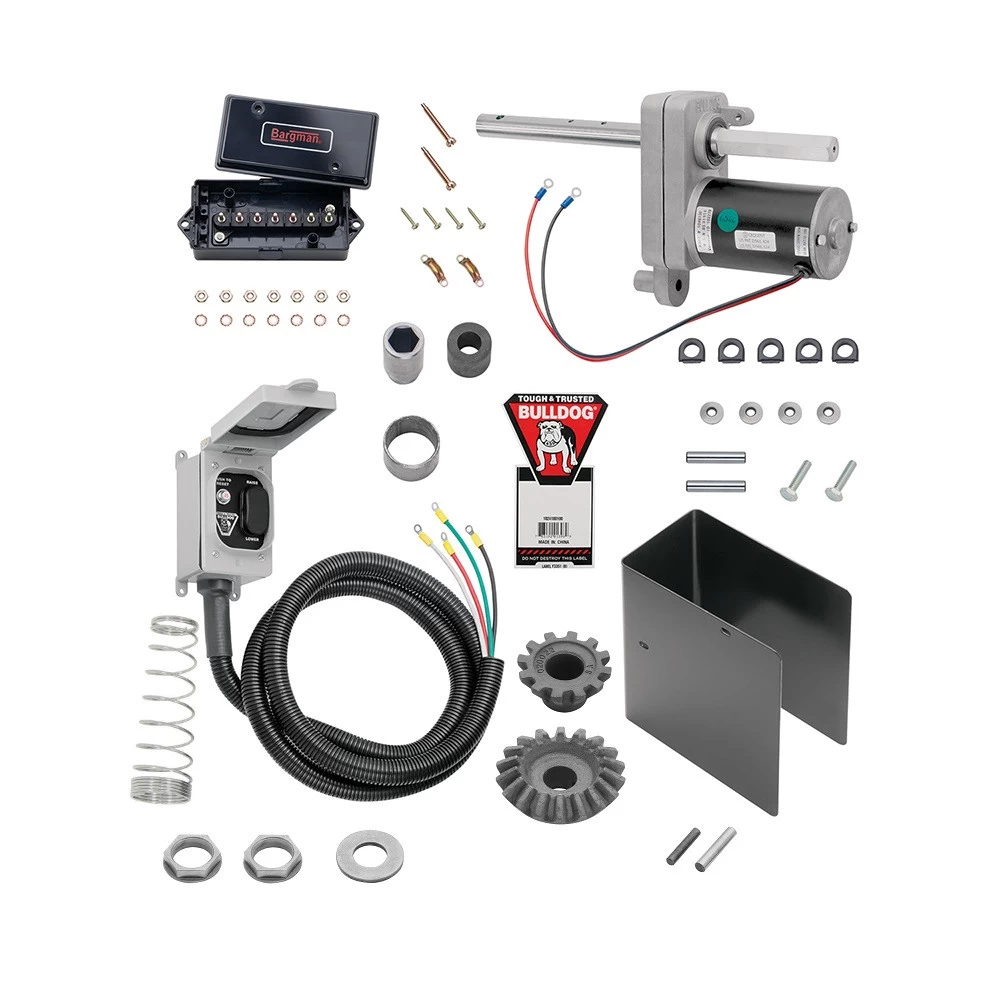

Can be used in both single & tandem jack applications Kit includes all necessary components for ease of installation
-
Powered drive assembly
-
Torque stop tube with energy absorption device
-
Replacement bevel gear & dowel pin
-
Terminal box
-
Wiring harness & switch box
-
Hex coupling (not shown, required when using in a tandem jack application)
-
Weather resistant cover (not shown)
Replacement Bevel Gear Kit for Bulldog Sidewind 12K Trailer Jack
$729 99 $1,226.49 40% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$1,226.49 $729 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $182.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Bulldog
- Model: 1824200100 500212
- Includes: Electric Drive Motor For 12K Jacks
Description
Get Expert Help
Bulldog Electric Powered Drive Motor For 12K Single Speed Trailer Jack Includes Replacement Gear Kit Install Notes
Installation Instructions for Powered Drive for Jacks
Tools Required:
- Welding equipment (performed by an AWS-certified welder)
- Standard tools for bolts, nuts, and wiring
Safety Instructions:
- Never position any part of the body under the jack or supported load.
- Fully retract and/or rotate the jack before towing.
- Ensure the drop leg pin is fully inserted before using the jack.
- Avoid excessive side forces to prevent jack failure.
- Disconnect the battery ground cable before installation to prevent electrical shock.
- Replace bent, broken, or worn parts before use.
Installation Instructions:
Step 1: Remove the Jack Cross Shaft
- If the jack has non-welded hex bushings, consult the manufacturer's service bulletin for instructions.
- For planetary two-speed jacks, refer to the manufacturer's guidelines or specific service bulletins.
Step 2: Install the Powered Drive
- Temporarily replace the jack cross shaft with the powered drive/shaft assembly.
- Install the shaft on the non-geared side of the jack, ensuring the motor is facing downward and within the jack's profile.
Step 3: Position the Torque Stop Tube
- With the powered drive temporarily installed, use it to locate the torque stop tube on the jack's outer tube.
- Mark the location of the torque stop tube and weld it to the jack's outer tube using AWS-certified welding procedures.
Step 4: Final Assembly
- Reinstall the powered drive/shaft and place the energy-absorbing rubber bumper into the torque stop tube to prevent motor rotation.
- Attach the powered drive cover using 1/4” x 1” bolts and rubber-bonded washers. Torque bolts to 6 ft-lbs.
- Optionally, apply thread lock to the bolts.
Step 5: Tandem Jack Systems
- Use the included hex coupling to connect tandem jacks.
- Weld the coupling to a 1” Schedule 40 pipe and cross-drill a 3/8” hole to secure the second jack's cross shaft with a bolt and locknut.
Wiring Instructions:
- Disconnect the battery ground cable.
- Attach the terminal box to the trailer for connection of powered drive and harness leads.
- Route and secure all leads using non-split tubing or loom.
- Mount the switch box at a convenient location on the trailer.
- Reconnect the battery ground cable and test the powered drive operation.
- Seal all terminal box entrances with sealant to protect the wiring.
Operation:
- Raising the Trailer: Extend the drop leg and fully engage the pin. Press the "RAISE" switch until the trailer is fully lifted.
- Lowering the Trailer: Press the "LOWER" switch until the trailer rests on the ball and the jack is no longer under load.
- In the event of power loss, reset the breaker or manually crank the jack using the powered drive assembly.
Maintenance:
- The powered drive is sealed and maintenance-free.
- Regularly maintain the jack and battery system. Ensure all connections are tight and free of corrosion.
- Fully charge the battery before use.
Limited Warranty:
- 5-Year Limited Warranty: Covers material and workmanship defects under normal use.
- Excludes normal wear, misuse, or improper installation.
Technical Support:
For technical support and assistance, visit www.trailerjacks.com or call 877-869-6690.
WARNING: Failure to follow instructions may result in property damage, serious injury, or death.
