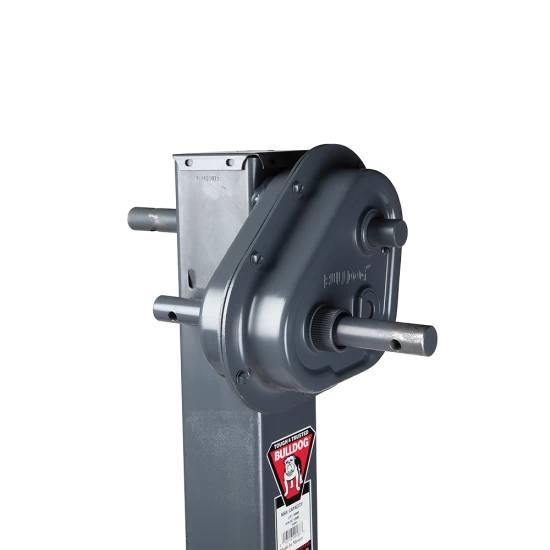

Bulldog 24K 2 Speed Landing Gear Set Two Speed Trailer Jack Traditional Gearbox and Companion Jack Non Spring Return Drop Leg Front Plunger Pin, Cross Shaft Tube w/ Slotted Ends and Hardware, Manual Override Crank
Model: 183901 182415 CS730300 1400920383Bulldog Tandem 2-Speed Teardrop Traditional Gearbox 24K Dual Trailer Jacks Landing Gear and Companion Jack with Crosshaft
The Bulldog 2-Speed Landing Gear 2-Pack - Model 183901 revolutionizes trailering with front-facing plunger pins and Model 182415, both featuring Non-Spring Return Drop Legs. The robust crossdrive crosshaft (Model CS730300) ensures a seamless lifting experience across various trailer types.

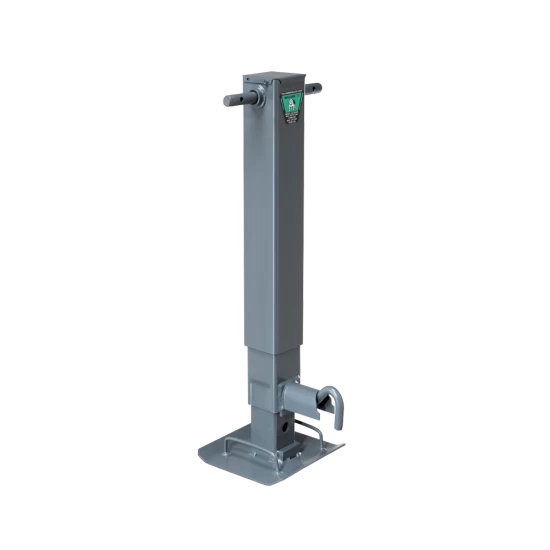

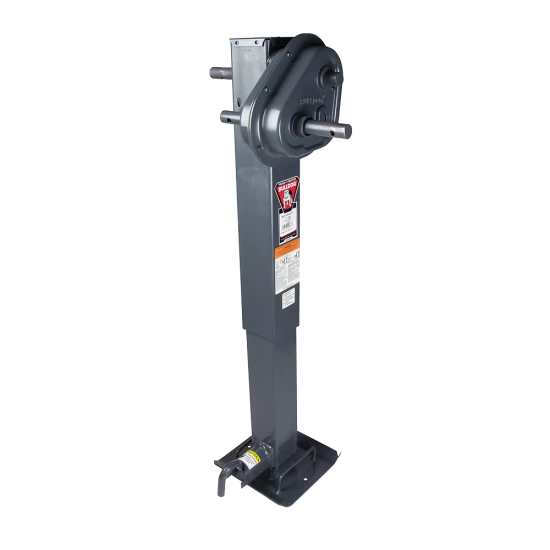

The Bulldog 2-Speed Trailer Jack (Model 183901) and Model 182415 are engineered from durable steel with a weather-resistant finish, providing reliable lifting and support for heavy-duty trailers with front-facing drop legs.
Landing Gear Key Features:
- 4" Square Tubing: 7-gauge alloy steel construction designed for heavy-duty tasks.
- Corrosion-Resistant Paint: Coating on the outer tube and drop leg for long-term durability.
- Drop Leg Adjustability: Five positioning holes for flexible setup options.
- Unified Tandem Operation: Single-handle control via crosshaft connection.

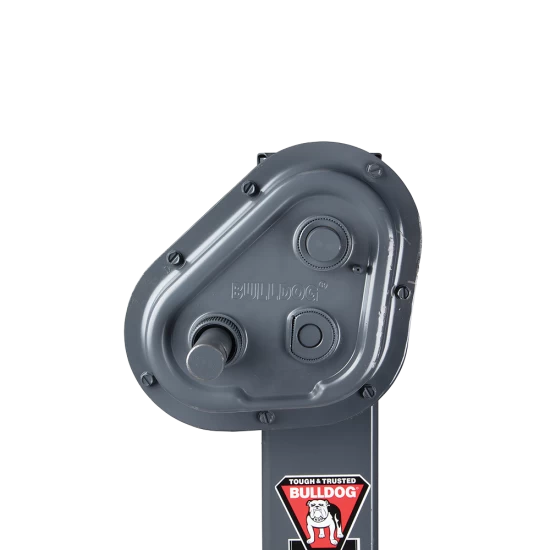

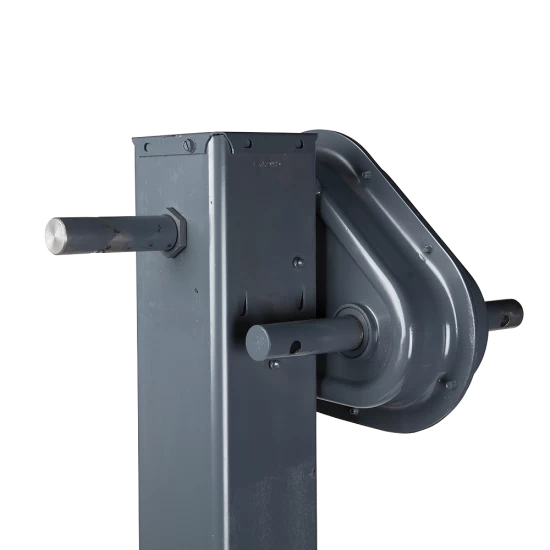

- 2-Speed Traditional Gearbox: Efficient cranking with two-speed settings, the fastest in its class.
- Easy Gear Transition: Traditional teardrop design for smooth gear shifting.
- Enhanced Alloy Strength: Provides increased stability and sideload capacity.
- Springless Drop Leg Functionality: Features 12.5" of screw travel and 13.5" additional adjustment.
- Front-Facing Plunger Pins: Convenient placement on both jacks.
- Protective Powder Coat Finish: Ensures durability and longevity of the jacks.

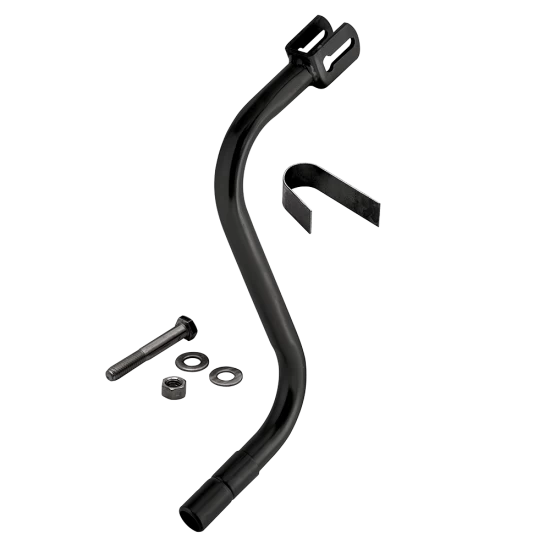

- Sidewind Cranking: Smooth operation with a 1:1.5 gear ratio, crank included.

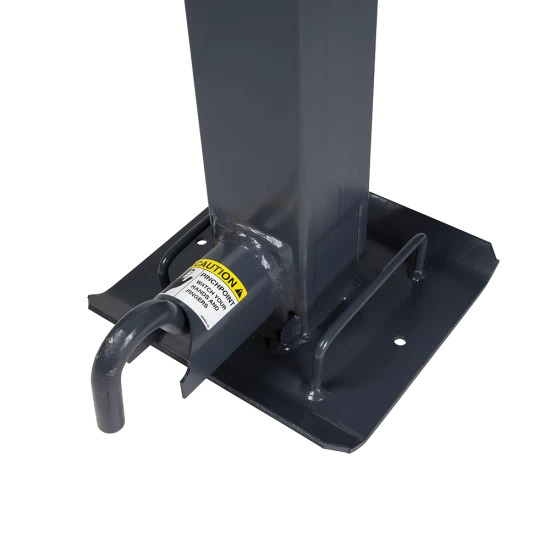

Efficient Drop Leg Deployment:
Drop legs lower effortlessly without manual effort, thanks to the front-facing pin design.
ASABE S485 Compliant:
Reliability guaranteed with BULLDOG products meeting ASABE S485 certification for top-tier quality.
Landing Gear Technical Specifications:
- Total Travel: 26"
- Screw Travel: 12-1/2"
- Drop Leg Travel: 13-1/2"
- Maximum Height: 55"
- Manual Lift Capacity: 20,000 lbs
- Static Support Capacity: 24,000 lbs
- 2-Speed Gearbox Ratios: Low Gear at 29 turns per inch, High Gear at 9 turns per inch.
- Overall Height: Retracted 28-1/2", Extended 41"
- Outer Tube: 4" width, 7-gauge steel material
- 5-year warranty for customer assurance.
Crosshaft Specifications:

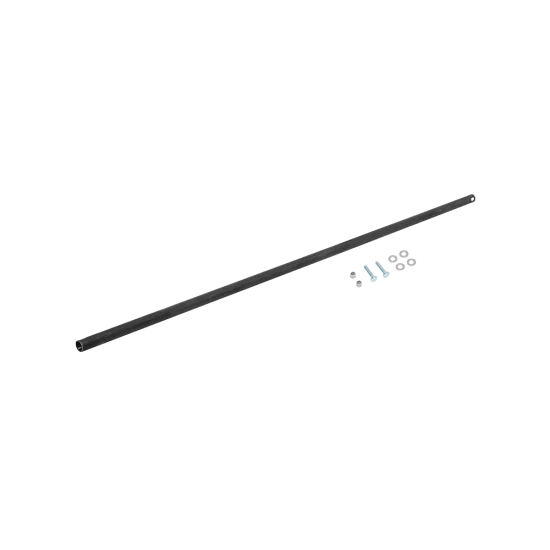

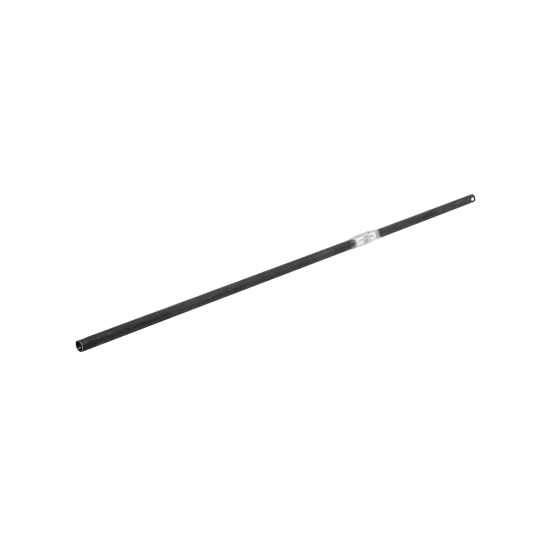

The Trailer Jack Cross Shaft Tube (72-3/4" long) with Slotted Ends and Hardware facilitates tandem operation, customizable to your trailer's requirements.
Trust in the BULLDOG 2-Speed Traditional Gearbox Trailer Jacks (Model 183901 and Model 182415) for unbeatable performance and durability, backed by a 5-year warranty. Call us at 877-869-6690 for industry-leading trailer equipment. With ASABE S485 certification, rest assured in the strength and longevity of your landing gear upgrade.
