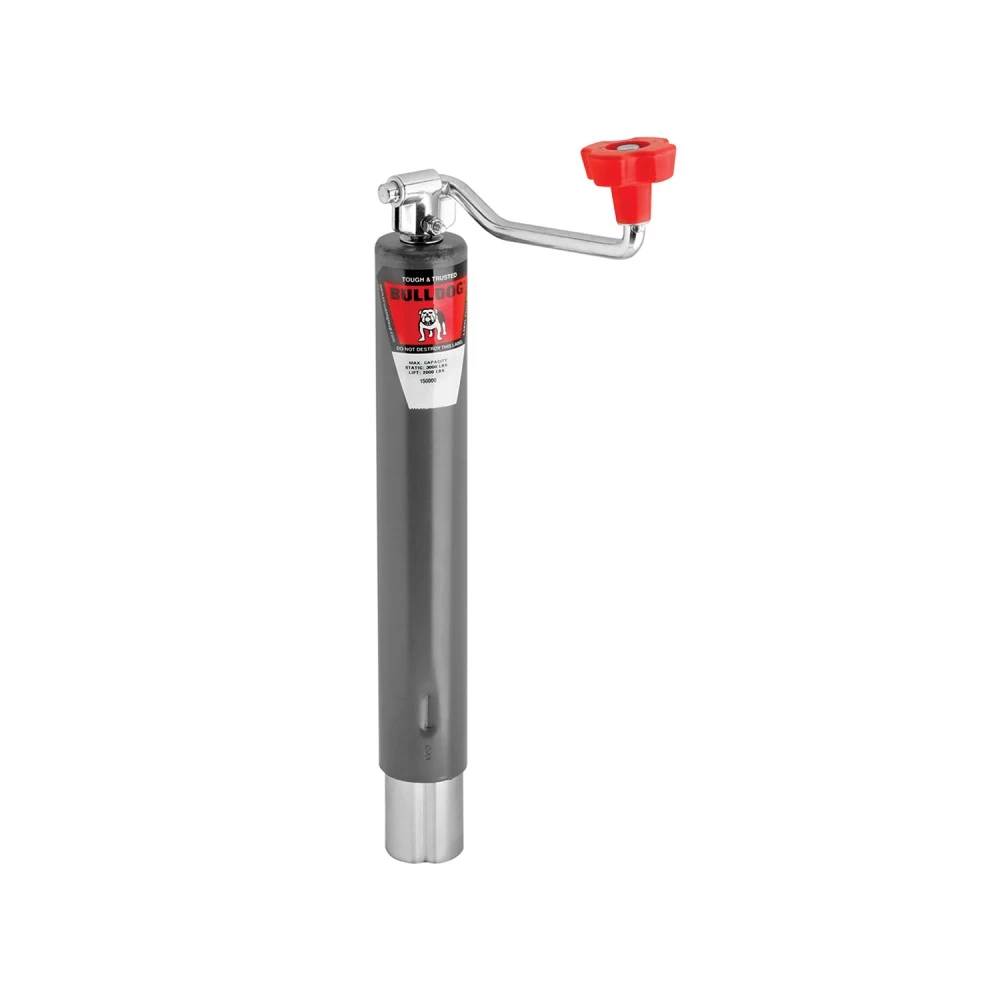

Bulldog 5,000 lbs. Round Trailer Jack Topwind 15" Lift - No Foot - No Mount
Model: 1701480317BULLDOG round jacks are recognized as the industry standard by leading agricultural, commercial, horse, livestock, and other trailer manufacturers. For more than three quarters of a century, BULLDOG jacks have been demonstrated to be the most reliable, field-proven jacks on the market.
-
Smooth, comfortable, ergonomic design
-
Dependable vertical and side load capacity
-
Proven reliability for long term use at rated loads
-
Precision fitted parts for extra stability
-
Grey painted outer and zinc inner tubes
-
Limited 5-year warranty
Specifications:
-
Lift Capacity: 5,000 lbs.
-
Retracted Bracket Height: 21.00" from bracket to bottom
-
Extended Bracket Height: 36.00"
-
Travel/Lift: 15"
-
Clearance: N/A
-
Outer tube diameter: 2-1/4"
-
Inner tube diameter: 2"
-
Handle Radius: 6.65"
$84 99
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$84 99
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $21.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Bulldog
- Model: 1701480317
- UPC: 016118097757
- Includes: 5000 lbs Round Trailer Jack
Specification | |
Jack Style | A-Frame |
Finish | Gray |
Static Capacity | 5000 |
Lift Capacity | 5000 |
Lift Style | Topwind |
Travel | 15" |
Retracted | 21.00" |
Extended | 36.00" |
Clearance | Varies |
Inner tubing diameter | 2" |
Leg | Fixed Leg |
Outer tubing diameter | 2.25" |
Swivel | No |
Foot | Foot or Wheel Option |
Jack Shape | Round |
Description Facts | No foot, no mount, painted outer tube, zinc inner tube. |
Be the first to ask a question.
Description
BULLDOG round jacks are recognized as the industry standard by leading agricultural, commercial, horse, livestock, and other trailer manufacturers. For more than three quarters of a century, BULLDOG jacks have been demonstrated to be the most reliable, field-proven jacks on the market.
-
Smooth, comfortable, ergonomic design
-
Dependable vertical and side load capacity
-
Proven reliability for long term use at rated loads
-
Precision fitted parts for extra stability
-
Grey painted outer and zinc inner tubes
-
Limited 5-year warranty
Specifications:
-
Lift Capacity: 5,000 lbs.
-
Retracted Bracket Height: 21.00" from bracket to bottom
-
Extended Bracket Height: 36.00"
-
Travel/Lift: 15"
-
Clearance: N/A
-
Outer tube diameter: 2-1/4"
-
Inner tube diameter: 2"
-
Handle Radius: 6.65"
Get Expert Help
Bulldog 5,000 lbs. Round Trailer Jack Topwind 15" Lift - No Foot - No Mount Install Notes
Installation Instructions for Tongue Jacks
Part Numbers:
- Not specified in the provided text.
Tools Required:
- Torque wrench (set to 25 ft. lbs.)
Step-by-Step Instructions:
General Installation Guidelines:
- Ensure there is no interference with the tow vehicle, tongue, ground, or mounted accessories during use.
- Verify clearance for handle swing and swivel positions before and after installation.
Bolt-On Rack Jack Installation:
- Place the gear housing on the tongue and insert supplied bolts into the corresponding holes.
- Position the mounting bracket below the tongue, ensuring the flat surface is against it.
- Secure using locknuts and torque to 25 ft. lbs.
Snap Ring/Bolt-Thru Installation:
- For snap ring models, position the jack bracket over the mount and fully seat the snap ring in the groove.
- For bolt-thru models, insert the jack bracket into the recessed opening, align the bushing, and tighten the locknut until minimal movement remains.
A-Plate Mounting Instructions:
- Use an AWS-certified welder for all welding.
- Align the jack and coupler, then weld using a 3/16" fillet weld.
- Secure the A-plate to the coupler with 3/8-16 Grade 5 bolts torqued to 15–20 ft. lbs.
- Weld the recommended support plate to the trailer frame using a 3/16" fillet weld.
Direct Mount Instructions:
- Position the jack at the desired location.
- Weld 1" in two locations on each side using a 3/16" fillet weld.
Safety Notes:
- Fully retract and rotate the jack before towing.
- Remove the drop foot or caster before towing.
- Avoid exceeding the rated capacity marked on the product.
- Minimize side forces to prevent jack failure.
- Replace any worn or damaged parts before use.
Maintenance:
- Lubricate internal gears and bushings annually with automotive grease.
- Apply lightweight oil to handle units and moving parts.
- For marine use, flush the jack with fresh water and reapply lubricants.
Technical Support:
For technical support and assistance, visit www.trailerjacks.com or call 877-869-6690.
