Installation Instructions for 4-Way to 5-Way Adapter

Tools Required:

• Wire Crimpers
• Wire Cutters
• Test Light or Multimeter

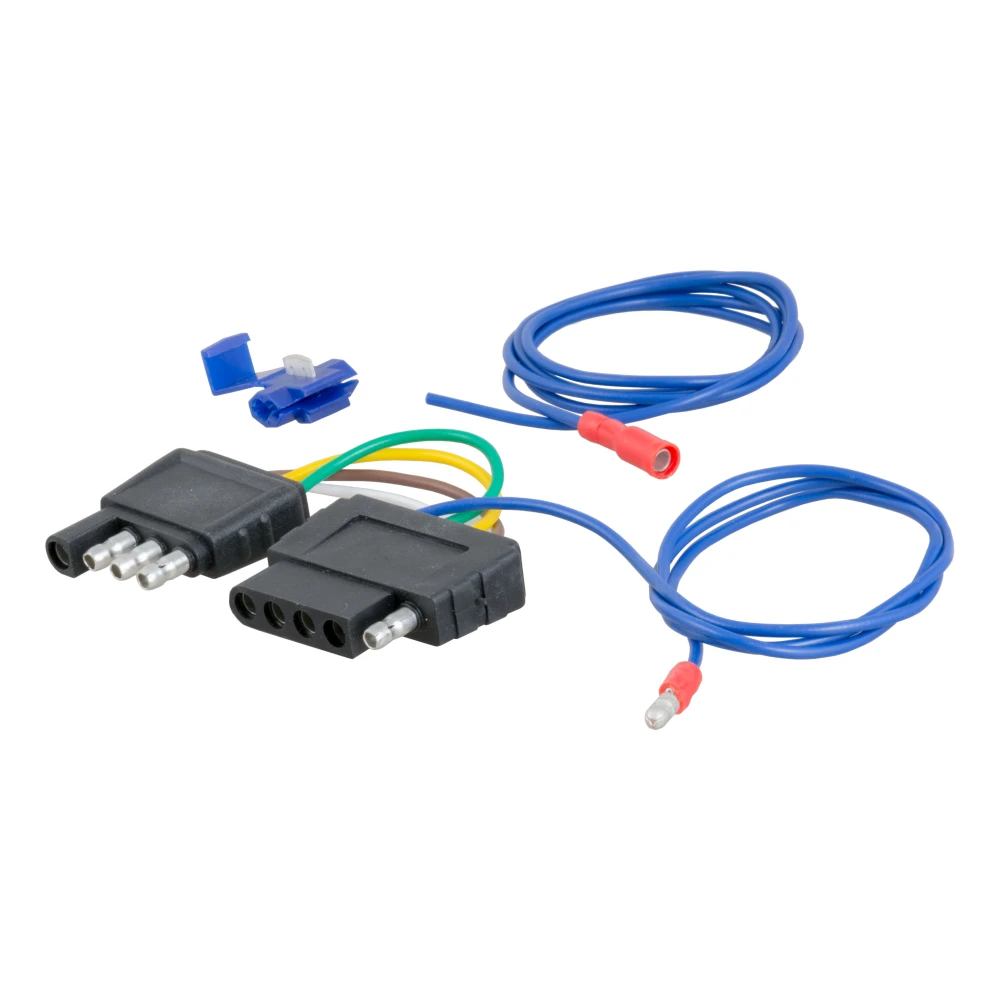

• Quick Splice Connector (provided)
• Additional Wire (if needed for reverse light connection)
• Cable Ties (optional)
• Silicone Sealant (optional)

Overview:

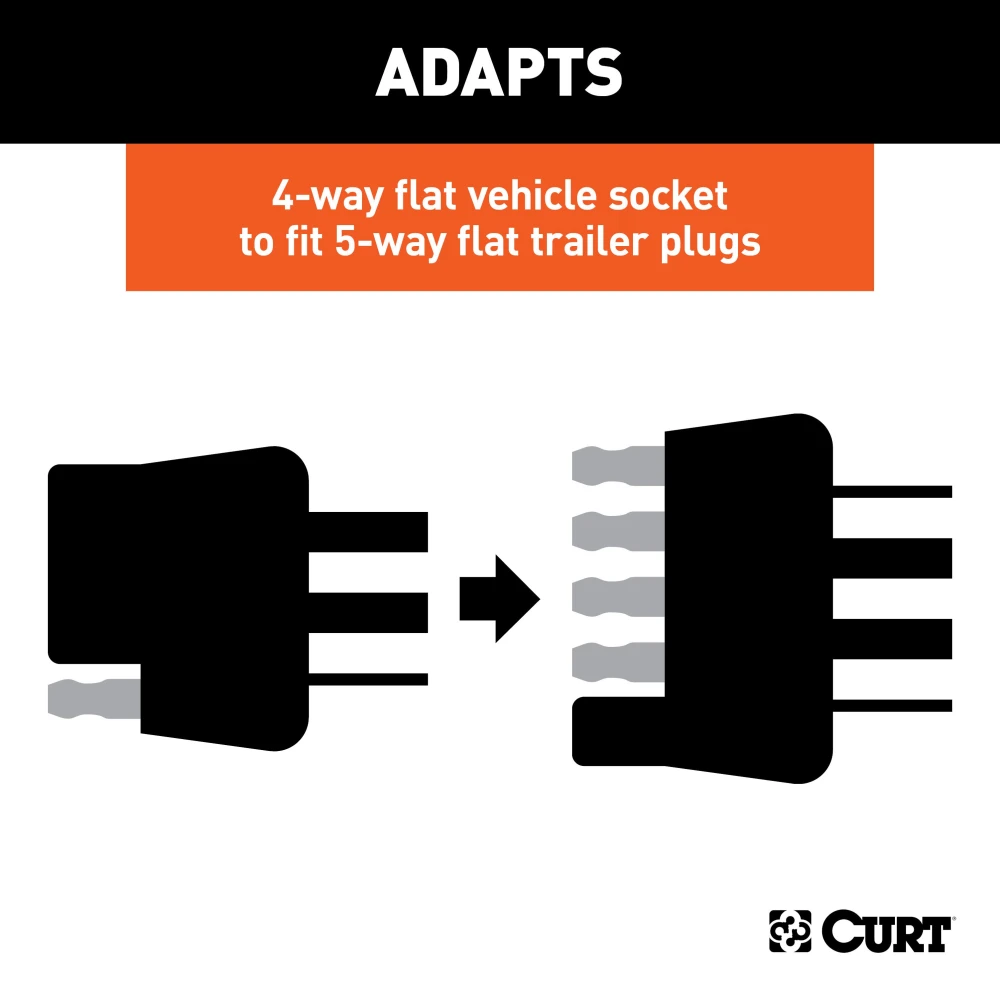

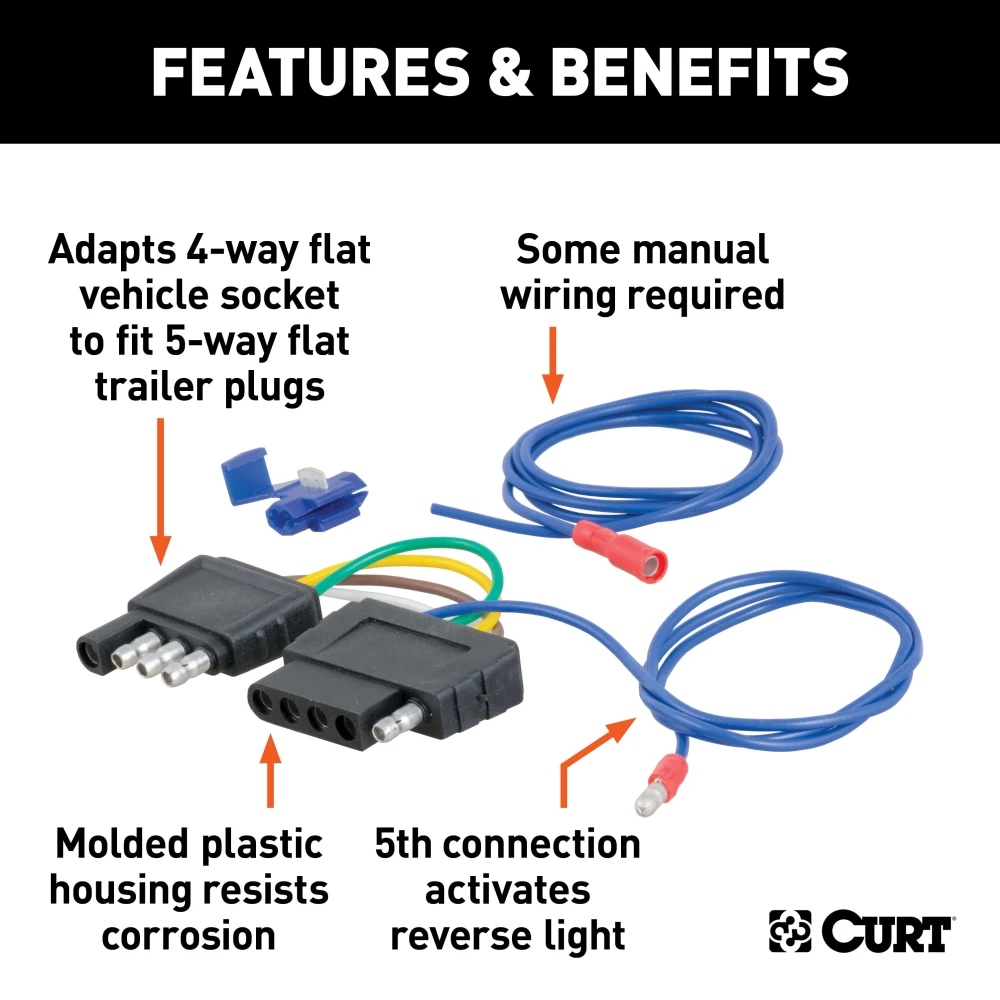

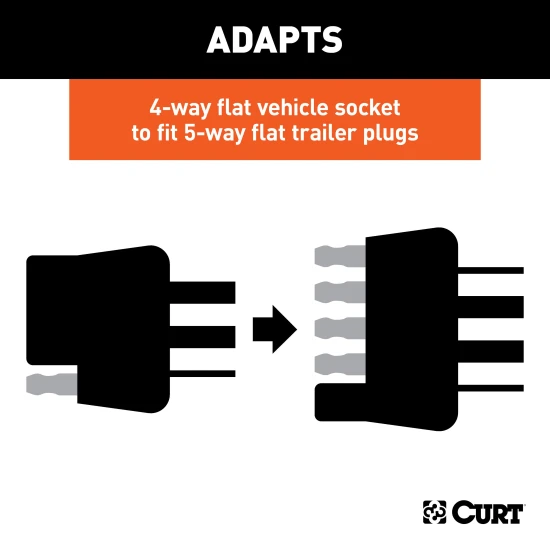

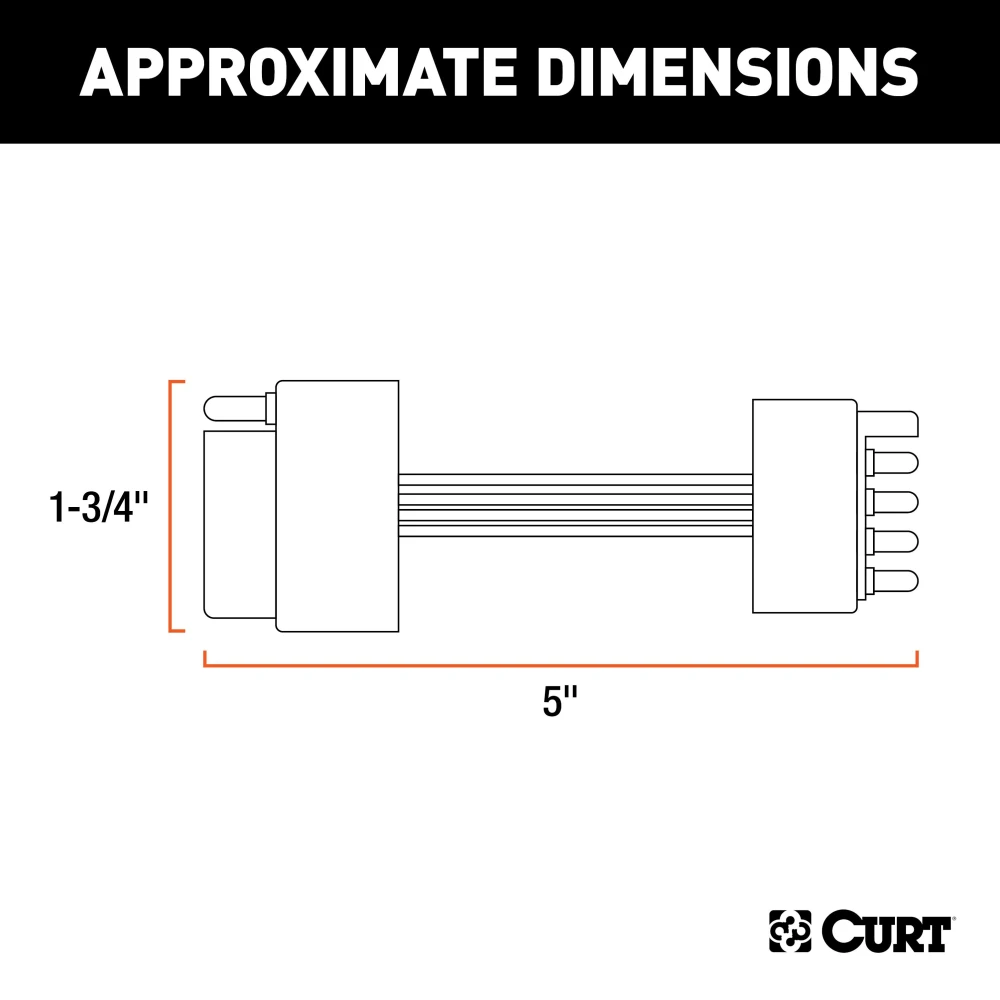

This adapter converts your 4-way flat trailer connector to a 5-way flat, adding reverse light functionality for trailers with reverse lights or surge brake lockout systems.

Step-by-Step Instructions:

1. Mount the Adapter:

• Select a suitable mounting location near the hitch and securely install the adapter.

2. Connect the 4-Way Plug:

• Plug the 4-way flat connector from the adapter into the existing 4-way flat connector on your vehicle.
• This connection provides tail lights, left turn, right turn, and brake light functions.

3. Ground the Adapter:

• Locate a solid ground point near the adapter, such as the vehicle frame.
• Clean the surface to ensure proper contact.
• Secure the white ground wire from the adapter using the provided eyelet and a self-tapping screw.

4. Connect the Reverse Light Circuit:

• Locate the Reverse Light Wire:

  • Identify the reverse light circuit on your vehicle, typically found near the tail light assembly.
  • Use the provided quick splice connector to attach the adapter's blue wire to the vehicle’s reverse light circuit.

• Extend the Blue Wire (If Needed):

  • If the adapter's blue wire is too short, splice in additional wire to reach the reverse light circuit.
  • Route the wire safely, avoiding hot or moving parts, and secure it with cable ties.

• Seal the Connection:

  • If routing the wire through a grommet, seal any openings with silicone to prevent water ingress.

5. Secure the Wiring:

• Use cable ties to secure all wires and prevent them from hanging loosely or contacting sharp edges.

6. Test the Adapter:

• Plug the adapter into your trailer’s 5-way flat connector or use a test light to verify functionality:
  • Brown Wire: Tail lights (solid when headlights are on).
  • Yellow Wire: Left turn signal and brake light (flashes with turn signal).
  • Green Wire: Right turn signal and brake light (flashes with turn signal).
  • Blue Wire: Reverse light (active when the vehicle is in reverse).
  • White Wire: Ground (continuity with the vehicle's ground).

Notes:

• This adapter is designed specifically for trailers requiring a reverse light or surge brake lockout circuit.
• Ensure all connections are secure to avoid intermittent functionality.
• Always follow safety guidelines during installation and verify all circuits before use.

Warning: Improper installation or overloaded circuits can result in damage or fire. Test all connections carefully.

Installation Instructions for 4-Way to 5-Way Adapter

Tools Required:

• Wire Crimpers
• Wire Cutters
• Test Light or Multimeter
• Quick Splice Connector (provided)
• Additional Wire (if needed for reverse light connection)
• Cable Ties (optional)
• Silicone Sealant (optional)

Overview:

This adapter converts your 4-way flat trailer connector to a 5-way flat, adding reverse light functionality for trailers with reverse lights or surge brake lockout systems.

Step-by-Step Instructions:

1. Mount the Adapter:

• Select a suitable mounting location near the hitch and securely install the adapter.

2. Connect the 4-Way Plug:

• Plug the 4-way flat connector from the adapter into the existing 4-way flat connector on your vehicle.
• This connection provides tail lights, left turn, right turn, and brake light functions.

3. Ground the Adapter:

• Locate a solid ground point near the adapter, such as the vehicle frame.
• Clean the surface to ensure proper contact.
• Secure the white ground wire from the adapter using the provided eyelet and a self-tapping screw.

4. Connect the Reverse Light Circuit:

• Locate the Reverse Light Wire:

  • Identify the reverse light circuit on your vehicle, typically found near the tail light assembly.
  • Use the provided quick splice connector to attach the adapter's blue wire to the vehicle’s reverse light circuit.

• Extend the Blue Wire (If Needed):

  • If the adapter's blue wire is too short, splice in additional wire to reach the reverse light circuit.
  • Route the wire safely, avoiding hot or moving parts, and secure it with cable ties.

• Seal the Connection:

  • If routing the wire through a grommet, seal any openings with silicone to prevent water ingress.

5. Secure the Wiring:

• Use cable ties to secure all wires and prevent them from hanging loosely or contacting sharp edges.

6. Test the Adapter:

• Plug the adapter into your trailer’s 5-way flat connector or use a test light to verify functionality:
  • Brown Wire: Tail lights (solid when headlights are on).
  • Yellow Wire: Left turn signal and brake light (flashes with turn signal).
  • Green Wire: Right turn signal and brake light (flashes with turn signal).
  • Blue Wire: Reverse light (active when the vehicle is in reverse).
  • White Wire: Ground (continuity with the vehicle's ground).

Notes:

• This adapter is designed specifically for trailers requiring a reverse light or surge brake lockout circuit.
• Ensure all connections are secure to avoid intermittent functionality.
• Always follow safety guidelines during installation and verify all circuits before use.

Warning: Improper installation or overloaded circuits can result in damage or fire. Test all connections carefully.
