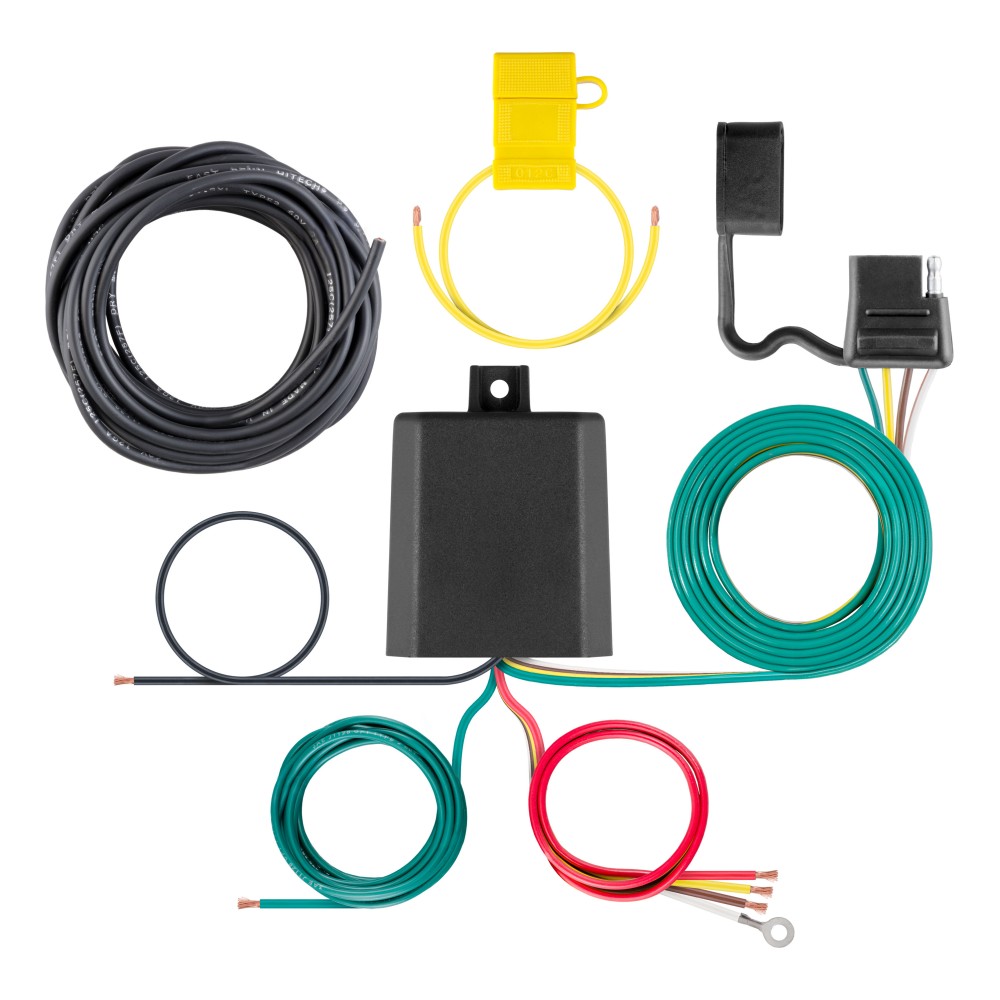

CURT 59236 Weather-Resistant Multi-Function Splice-in Trailer Tail Light Converter Kit, 4-Pin Wiring Harness (QTY 1)

Manufactured by: Curt

Rain, road grime and salt can deal a vicious blow to your trailer wiring, and it takes electrical components with an extra-thick shell to stand up to the elements The CURT multi-function electrical converter is an advanced taillight converter that offers the ultimate in vehicle compatibility and weather resistance, giving you a reliable wiring connection any season of the year The potted design seals the internal electrical components in a watertight enclosure and is filled with a solid compound to protect against impacts, vibrations and moisture for long-lasting use, even on the exterior of the vehicle.

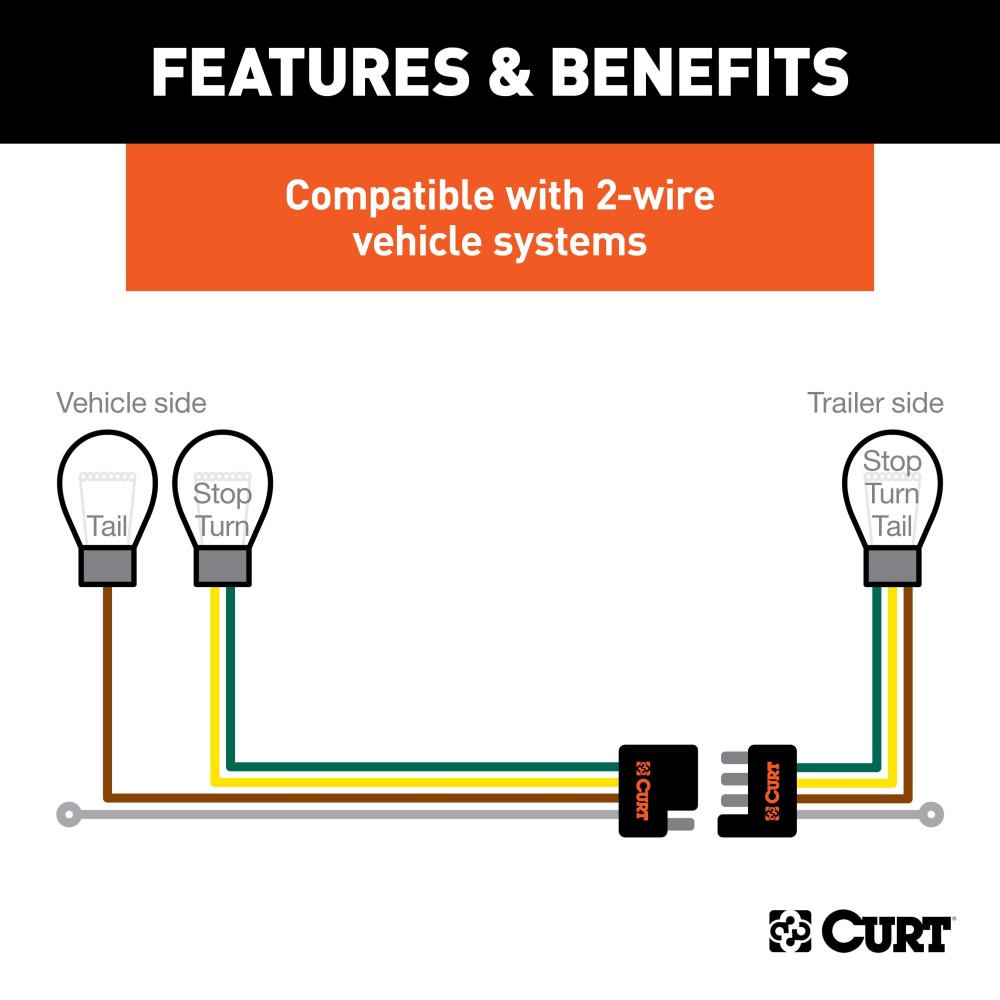

The converter also features our advanced surface mount technology (SMT), using smaller components mounted directly to the surface of the circuit board This produces lower resistance, reduced heat generation, longer life cycles and higher reliability The CURT multi-function electrical converter comes with pigtail wires that are able to be spliced into two-wire, three-wire or PWM wiring system with combined stop and taillights.

It converts any of these systems to a simple two-wire system, using a standard 4-way flat output, to be compatible with most trailer wiring The converter is controlled using a microprocessor that is able to sense the current passing through it, allowing for quick reaction to dangerous conditions such as overload and short circuits It also filters unwanted input signals to protect your wiring systems and uses a mere seven volts for low-voltage operation.

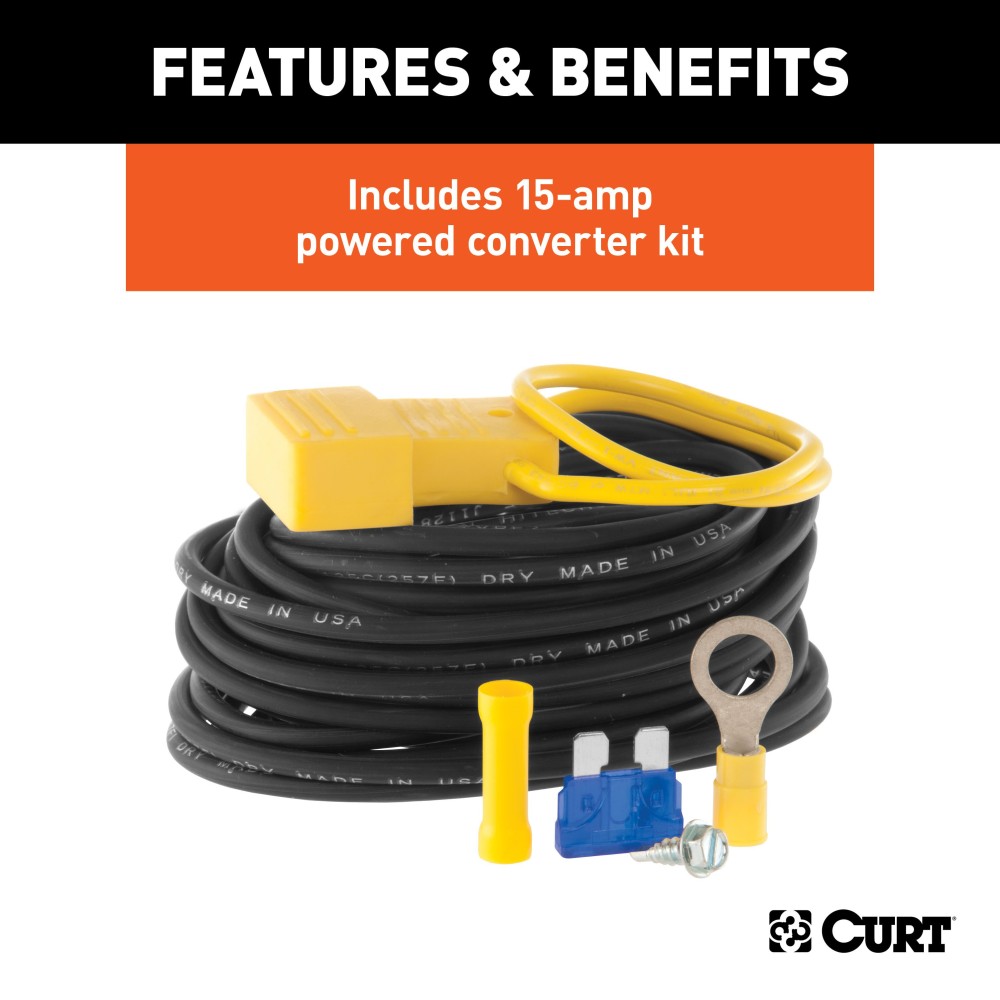

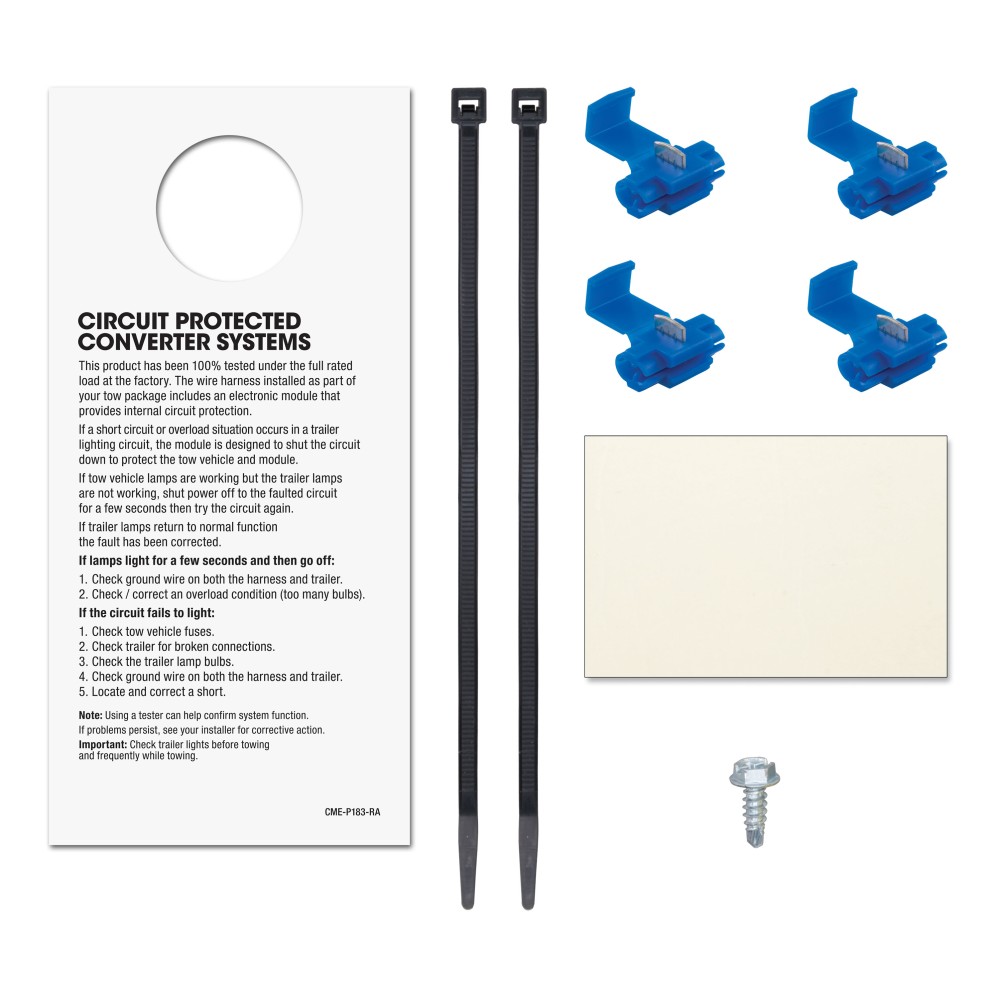

The CURT multi-function taillight converter is a heavy-duty electrical converter for virtually any vehicle-trailer combination It comes with color-coded wires and an easy-to-read wiring guide, as well as a dust cover to protect the 4-way flat connector This package includes a powered converter wiring kit #55152 and four snap locks for faster, more secure splicing..

Features:

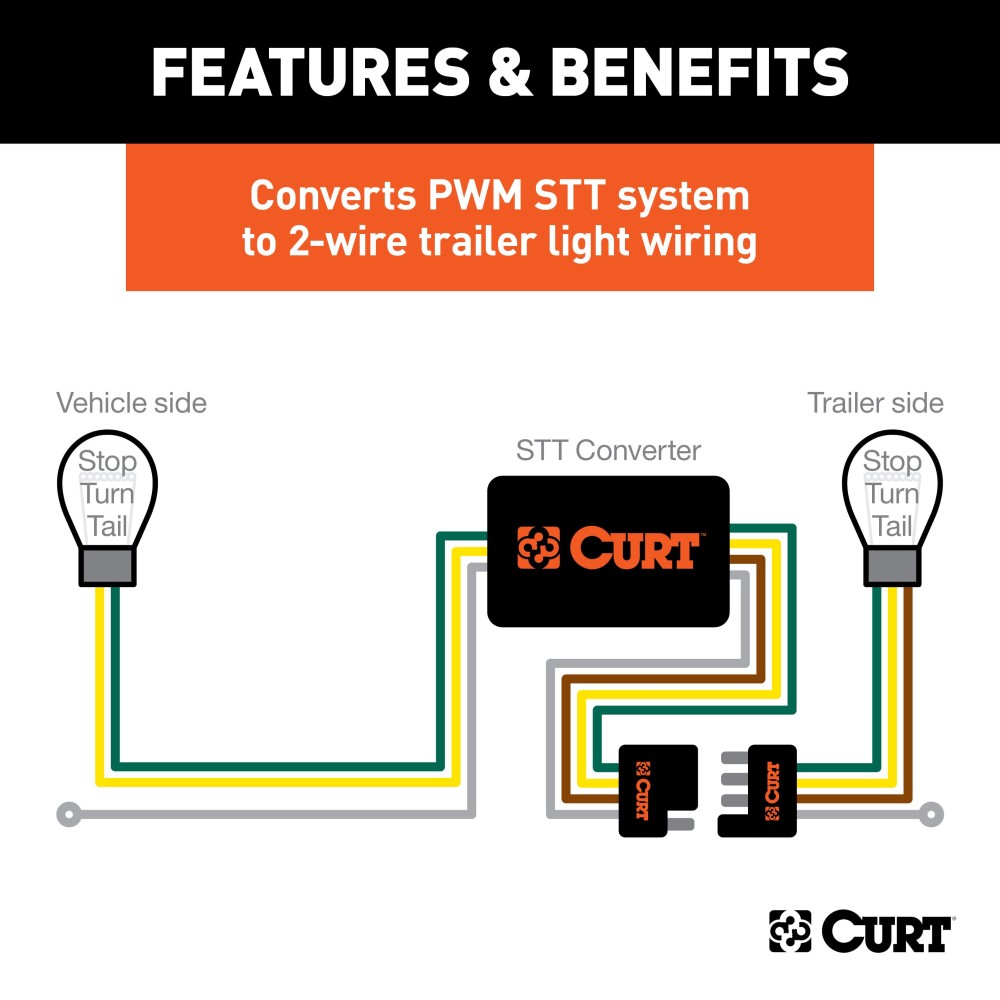

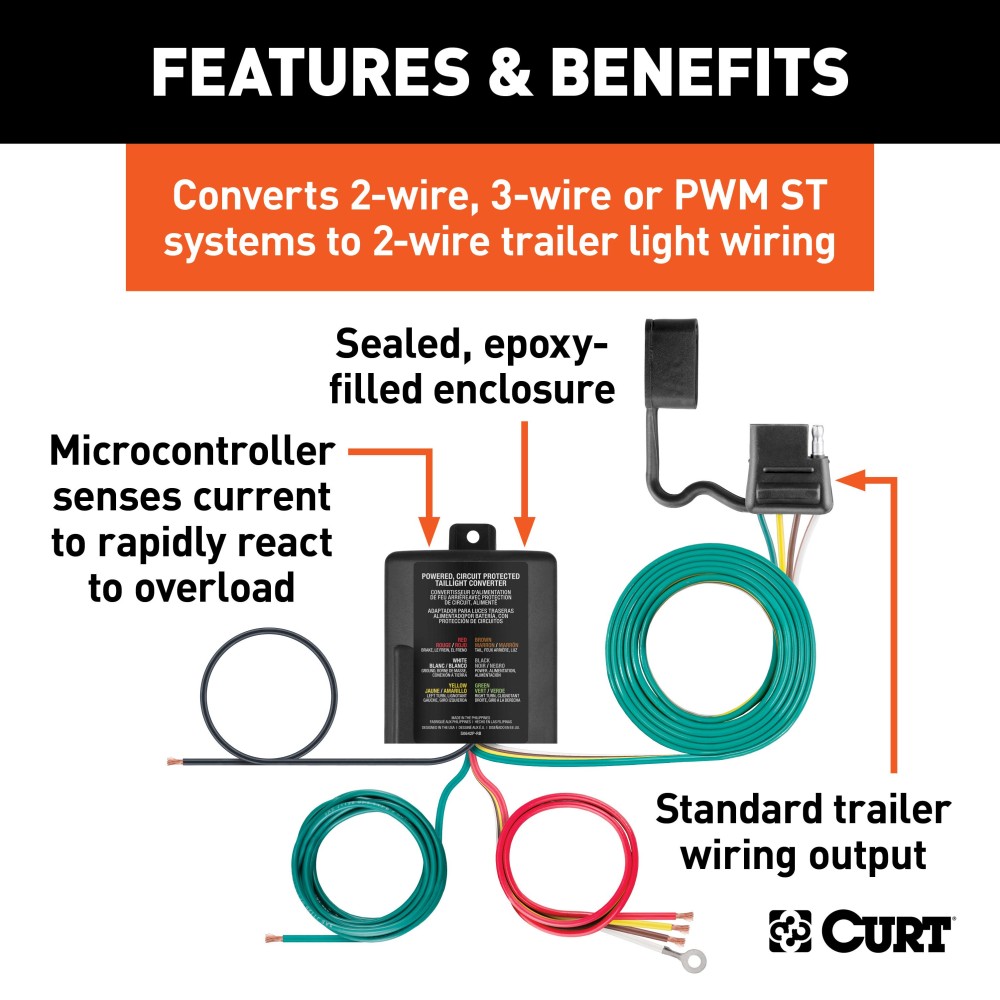

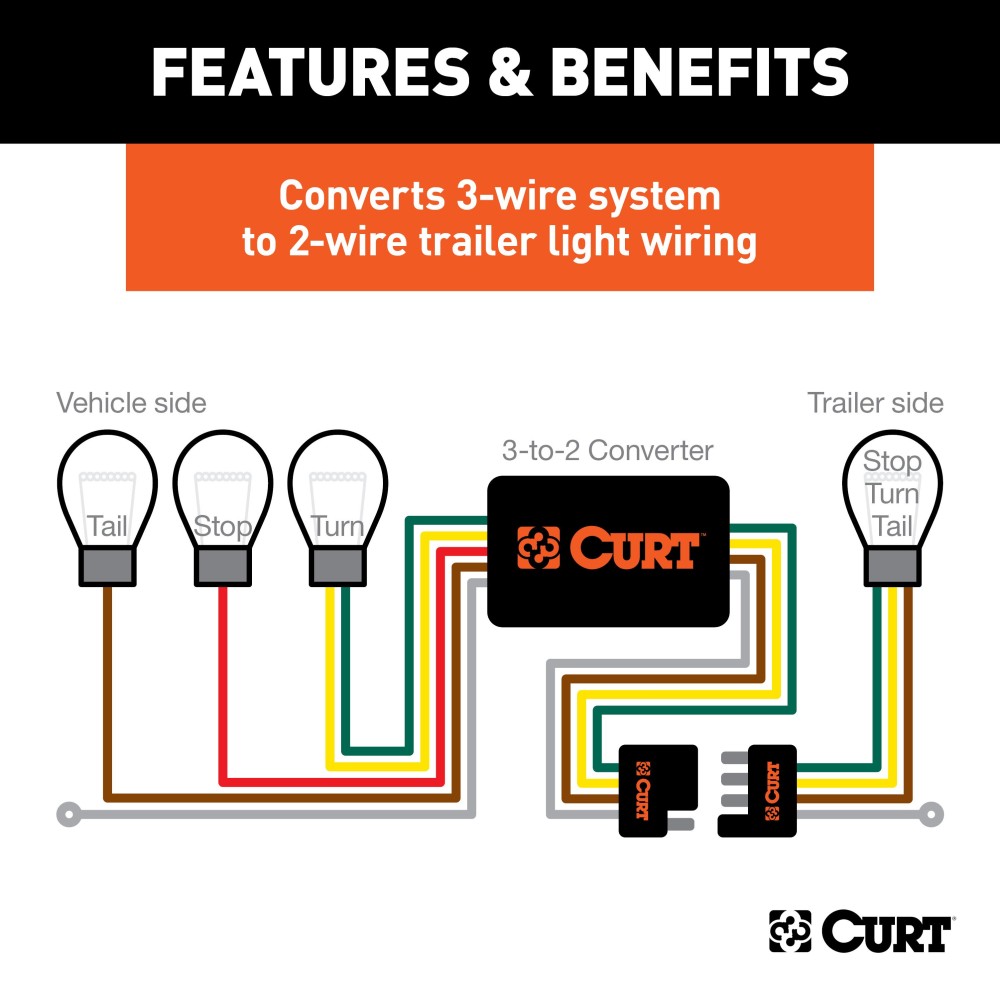

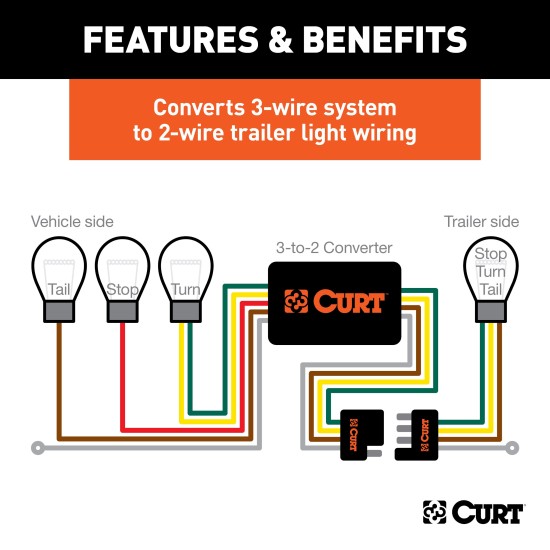

• Converts 2-wire, 3-wire or PWM ST system to 2-wire trailer light wiring
• Potted enclosure significantly increases water and vibration resistance

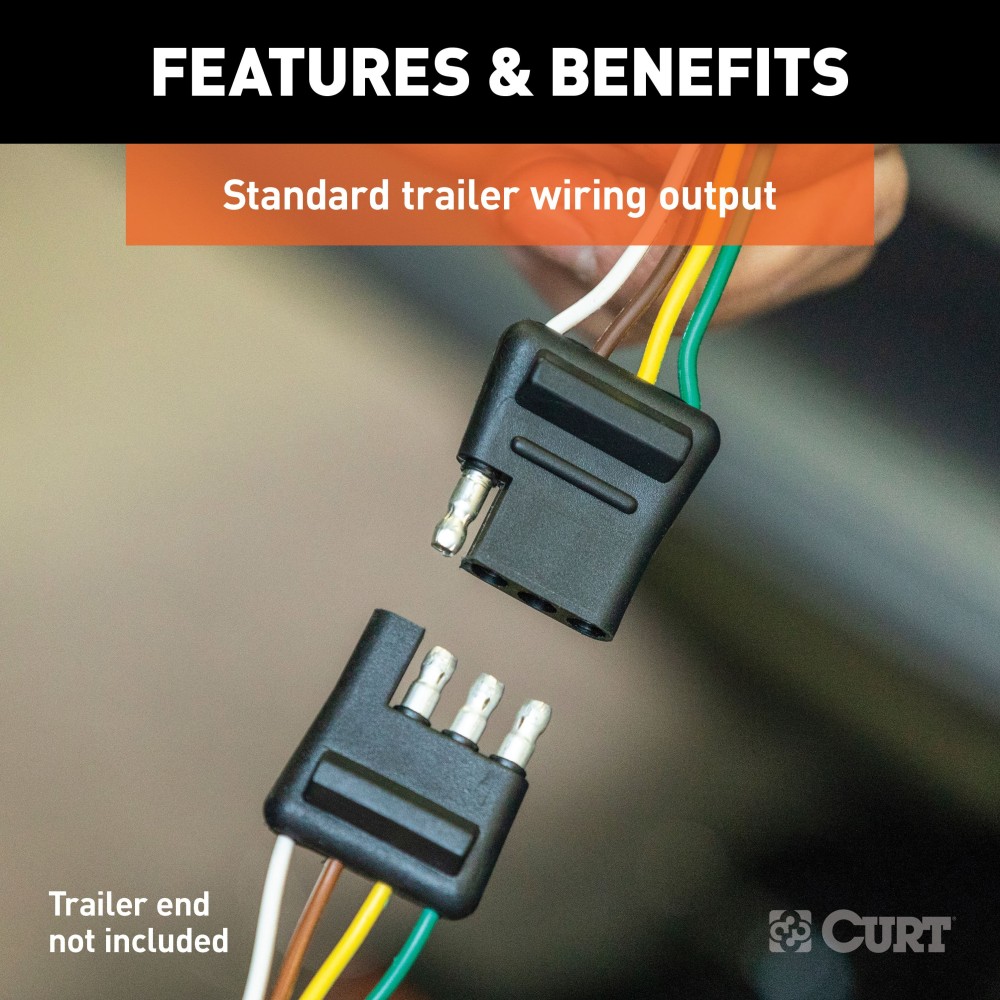

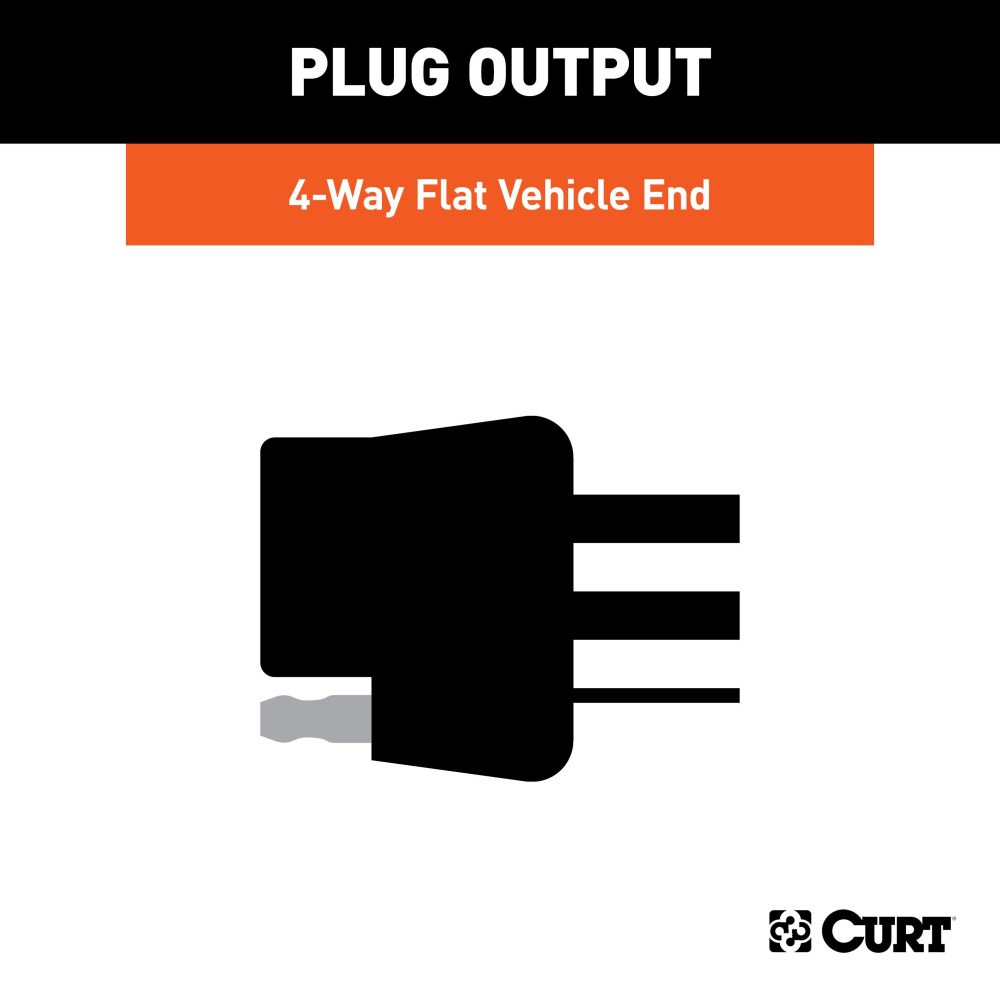

• 4-way flat output connects tail lights, brake lights and turn signals
• Constructed with SMT circuitry for better performance and durability
• Microcontroller senses current to rapidly react to overload
• Provides improved overload, short-circuit and thermal protection
• Low-voltage operation allows function down to seven volts
• Color-coded wires with wiring guide for easier installation

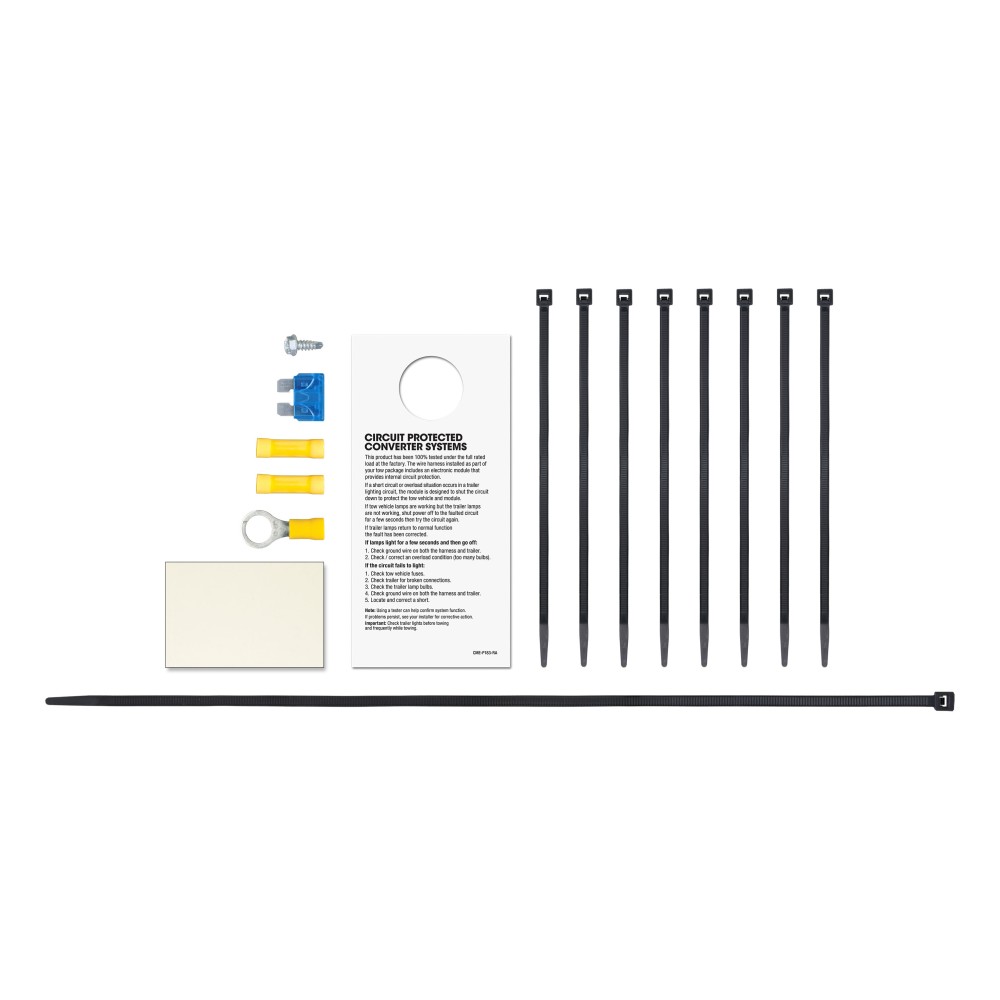

• Included wiring kit allows for a convenient connection to the vehicle battery
• Snap locks included for fast, secure splicing

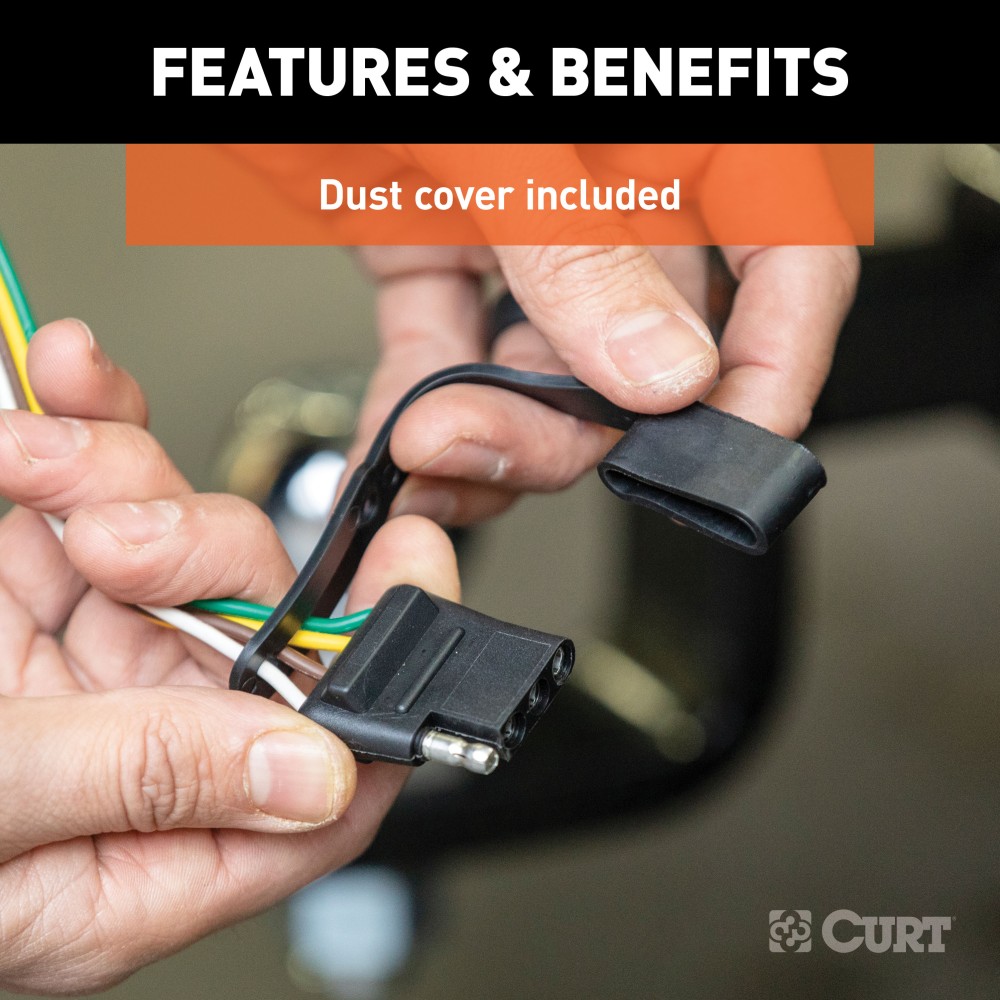

• Dust cover included to keep connector clean when not in use

CURT 57672 Dual-Output 4-Way Flat Vehicle-Side to 7-Way RV Blade Trailer Wiring Adapter (QTY 1)

Manufactured by: Curt

There are several different types of connectors used to supply power from a tow vehicle's electrical system to a trailer's wiring system Some trailers only need the bare essentials -- running lights, brake lights and turn signals -- while others require a connection for reverse lights, electric brakes and auxiliary power With connectors ranging from simple to complex, it may be the case that the connection between your vehicle and your trailer is not a perfect match.

For example, your truck may be equipped with a 6-way round socket, but your trailer may have a 4-way flat plug For this very common problem, CURT offers a quick and simple solution in the form of an electrical adapter An adapter is an electrical device that allows a connection to be made between a mismatched trailer plug and vehicle socket.

It easily plugs in your vehicle's electrical socket and usually requires no additional wiring CURT offers an array of adapters to accommodate most types of plugs and sockets, including 4-way flat, 4-way round, 5-way flat, 6-way round, 7-way RV blades and more This special dual-output electrical adapter is actually designed to adapt a 4-way flat vehicle socket to fit multiple trailer plugs, including a 4-way flat and a 7-way RV blade connector.

Some manual wiring is required This multipurpose socket also comes with dust covers, a mounting bracket and all necessary mounting hardware for a complete installation All CURT wiring and electrical products come with a one-year limited warranty to give you the assurance you need to tow with confidence..

Features:

• Adapts a 4-way flat socket to fit 4-way flat and 7-way RV blade trailer plugs
• 4-way flat output connects tail lights, brake lights and turn signals
• 7-way connects tail, brake, reverse, turn signals, brakes and auxiliary power
• Dust covers included to keep connectors clean when not in use
• Slit loom keeps wires contained and well protected
• Metal bracket securely mounts wiring to the vehicle or trailer hitch

CURT 51500 Electric Trailer Brake Controller Wiring Kit (QTY 1)

Manufactured by: Curt

It takes a lot of power to stop a moving trailer, especially when that trailer is hauling livestock, construction materials, industrial equipment or other heavy-duty cargo Play it safe when you tow and give your trailer brakes the control they need with a CURT trailer brake controller and brake controller harness This brake controller wiring kit is designed for vehicles that do not have an included towing prep package.

It includes cables, ring terminals, cable ties and a circuit breaker to splice into your vehicle's wiring system and allow installation of a CURT trailer brake controller This wiring kit is compatible with systems with up to eight brakes..

Features:

• For tow vehicles not equipped with factory tow package wiring
• Compatible with 2, 4, 6 or 8-brake systems (1-4 axles)
• Designed for use with CURT quick plugs #51515 or #51516
• Brake controller and trailer connector are not included

CURT 58361 30-Amp Universal Circuit Breaker (QTY 1)

Manufactured by: Curt

Whether you're a contractor on your way to the jobsite or just a casual fisherman heading to the boat landing, you need working trailer lights to tow safely and legally For any towing setup, CURT offers quality wiring components, including complete wiring kits, circuit breakers, wiring connectors and more This universal circuit breaker is rated for 30 amps and recommended for applications where over-current protection is required..

Features:

• Recommended for applications where over-current protection is required

CURT 51126 Discovery NEXT Electric Trailer Brake Controller, Time-Delay, Fully Adjustable, Low Profile, 2-4 Axles, Plug-and-Play (QTY 1)

Manufactured by: Curt

Introducing the CURT Discovery NEXT, a powerful, compact, and user-friendly brake controller designed to ensure reliable operation of your electric trailer brakes right from the comfort of your vehicle's cabin With its sleek and modern design, as well as a low-profile bracket for improved clearance, this controller delivers exceptional control Manage the braking system of 2-8 trailers at a time, accommodating 1-4 axles, with ease thanks to its fully adjustable settings that seamlessly adapt to your specific vehicle-trailer configuration.

The Discovery NEXT represents an upgraded and enhanced iteration of our highly regarded Discovery brake controller It boasts compatibility with a wide range of brake systems, including low-volt, PWM, ABS, cruise control, and electric over hydraulic brakes Its slim profile strikes a balance between functionality and modern aesthetics, ensuring powerful brake control is right at your fingertips without overwhelming your vehicle's dashboard.

Stay informed about your brake settings at a glance, courtesy of the LED display that showcases power adjustments in precise 0.5 increments The display also provides comprehensive full-text diagnostics, simplifying troubleshooting, while the adjustable brightness guarantees optimal visibility for towing during any time of the day or night Moreover, the included unique mounting bracket further enhances clearance, allowing for an unobtrusive installation.

Equipped with a time-delay feature, the Discovery NEXT brake controller offers fully adjustable power and ramp time to achieve precise control With a selection of 10 gain settings and nine load settings, you can finely calibrate the controller to align perfectly with your specific towing requirements The ramp-up progress is clearly indicated through LED indicators, and the brightness is adjustable to suit the conditions of daytime or nighttime towing..

Features:

• Slim, low-profile design for a functional, modern aesthetic
• Unique bracket system for improved dash clearance
• Fully adjustable power and ramp time
• Operates 2-8 trailer brakes at a time (1-4 axles)
• No internal moving parts and no leveling required
• 10 gain settings and 9 load settings to adapt to various driving conditions
• LED display shows power adjustments in 0.5 increments
• Day-night mode and adjustable brightness for optimal visibility
• Mounts anywhere in the vehicle, at any angle
• Full-text diagnostics for easier troubleshooting
• Compatible with low-volt, PWM, ABS, cruise control and electric over hydraulic
• Auto-sleep mode prevents battery drain after five minutes of idle time
• Plug-and-play install with vehicle-specific quick plug harness (sold separately)

CURT 51515 Quick Plug Universal Electric Trailer Brake Controller Wiring Harness (QTY 1)

Manufactured by: Curt

It takes a lot of power to stop a moving trailer, especially when that trailer is hauling livestock, construction materials, industrial equipment or other heavy-duty cargo Play it safe when you tow and give your trailer brakes the control they need with a CURT trailer brake controller and brake controller harness CURT quick plug brake controller harnesses make the installation of your brake controller easy.

This brake controller harness comes with pigtails to splice into your vehicle's electrical system When a CURT quick plug harness is not a compatible option for your vehicle, a quick plug with pigtails is the next best thing These harnesses feature a quick plug end to easily snap into your CURT brake control and colored wires to coordinate with the appropriate electrical function.

This universal splice-in harness comes with a protective slit loom sleeve and can easily be installed using the CURT universal wiring kit #51500 It is designed to be compatible with a variety of vehicles that are not equipped with a factory plug for a brake control..

Features:

• Splices into a vehicle for a quick plug brake controller connection
• Compatible with any CURT brake control
• Wire colors match standard brake controller harnesses
• Includes 24" of 12 gauge wire for flexible installation
• Slit-loom sleeve keeps wires contained and protected
