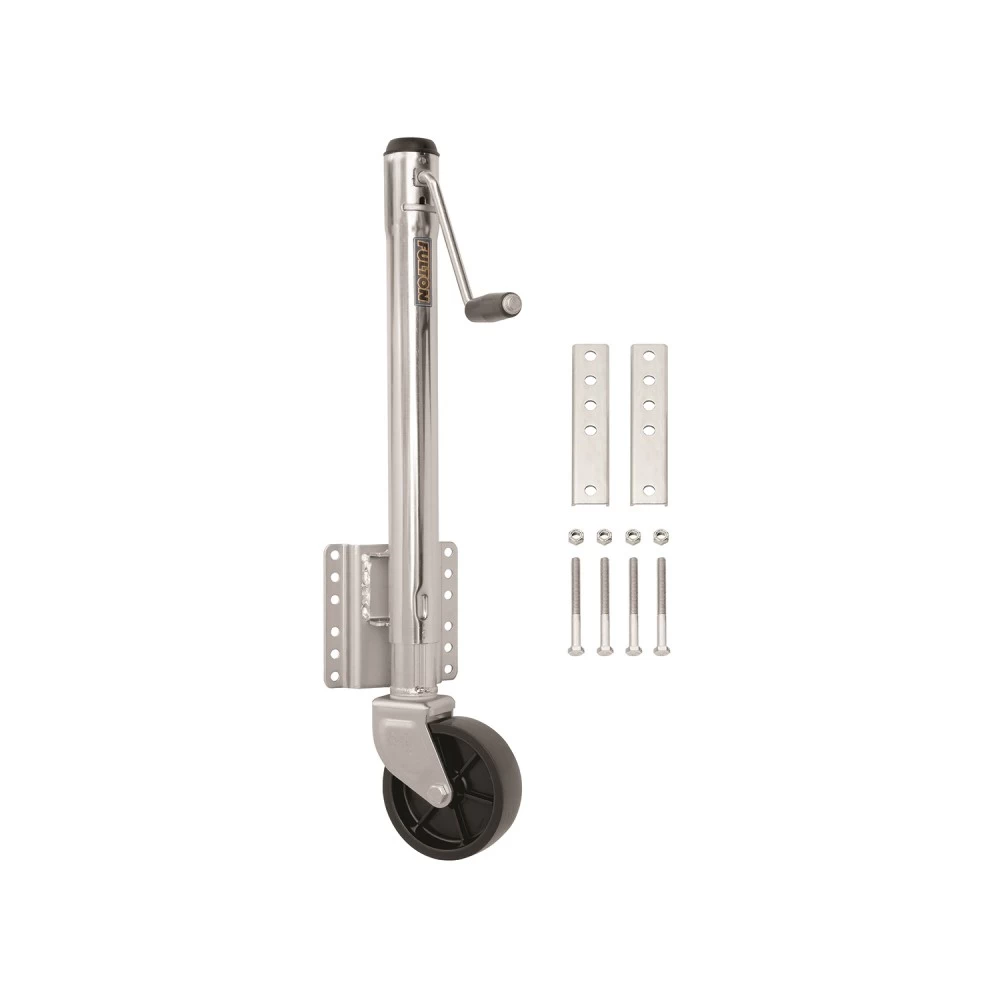

Fulton Fixed Mount Trailer Jack 1,200 lbs w/ 6" Caster Wheel 15" Lift Bolt‑On
Model: TJ12220301Designed for use with marine and utility trailers, Fulton brand tongue jacks are time-tested and application-proven. Our bolt-on versions include all necessary mounting hardware. All mounts fit up to a 3" x 5" trailer frame.
- Fits: 3"x3", 3"x4", and 3"x5" trailer frames
- Lift Capacity 1,200 lbs
- Retracted Bracket Height: 9.3" from bracket to bottom
- Travel/Lift: 15"
- Extended Bracket Height: 24.3"
- Clearance: 19.5" from bracket to top
- Overall Height: 29"
- Wheel size: 6" diameter
- Inner tube 2"
- Outer Tube 2-1/4"
- Finish: Z-Max 600 zinc
- 5-Year limited warranty
Popular Tongue Jack applications include: Eagle Magic-Tilt Ranger Sea Ray Maverick Master Angler Continental trailer Tow Dolly + many others
$107 01 $129.58 17% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$129.58 $107 01
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $26.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Fulton
- Model: TJ12220301
- UPC: 783192025777
- Includes: Fixed Mount Jack
Get Expert Help
Fulton Fixed Mount Trailer Jack 1,200 lbs w/ 6" Caster Wheel 15" Lift Bolt-On Install Notes
Installation Instructions for Tongue Jacks
General Installation Notes:
- Before mounting the jack, confirm no interference from the tow vehicle, tongue, ground, or other mounted accessories while stationary or in motion.
- Verify proper clearance in all positions, including handle swing and swivel positions, before and after installation.
Tools Required:
- Torque wrench
- Ratchet set
Step-by-Step Instructions:
Bolt-On Rack Jack Installation:
- Place the gear housing on the tongue and insert the supplied bolts into the corresponding holes for the tongue width.
- Position the mounting bracket below the tongue, ensuring the flat surface is against the tongue.
- Secure the bolts with locknuts and torque to 25 ft-lbs.
Bolt-On Mounting Bracket Instructions:
- Ensure the correct mounting hole pattern for the tongue size. The gap between the mounting bolts and the tongue must not exceed 1/16".
- Place the jack against the tongue and position the mounting straps on the opposite side of the tongue.
- Insert four bolts through the mounting bracket and straps, ensuring the upper bolts rest on the tongue top and the lower bolts are less than 1/16" from the bottom.
- Secure with locknuts and torque to 25 ft-lbs.
Snap Ring/Bolt-Through Instructions:
- Snap Ring Models: Place the jack bracket over the mount and fully seat the snap ring into the groove.
- Bolt-Through Models: Insert the jack bracket into the recessed opening on the mount. Tighten the locknut until there is minimal movement in the bushing.
A-Plate Mounting Instructions (Bolt-On or Weld-On):
- All welding must be performed by an AWS-certified welder.
- Align the jack and foot with the coupler and weld using a 3/16" fillet weld.
- Use three 3/8"-16 grade-5 bolts with washers for bolt-on applications and torque to 15-20 ft-lbs.
- Weld a support plate to the trailer frame with a 3/16" fillet weld if recommended.
Direct-Mount Instructions:
- Position the jack at the desired location and weld 1" at two points on both sides using a 3/16" fillet weld.
Maintenance:
- Lubricate internal gearing and bushings with automotive grease annually.
- Apply lightweight oil to all moving components such as handles and screw stems.
- In marine environments, flush the jack assembly with fresh water and apply fresh lubricant.
Safety Notes:
- Fully retract and rotate the jack before towing.
- Do not exceed the rated capacity of the jack, footplate, or caster wheel.
- Avoid side forces, which may cause jack failure.
- Replace damaged or worn parts before use.
- Do not adjust the drop foot or leg while under load.
Warranty Information:
- Coverage: 5 years for supported products; 1 year for select products.
- Exclusions: Normal wear, misuse, overloading, improper installation, and modifications.
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. Visit www.trailerjacks.com or call 877-869-6690.
