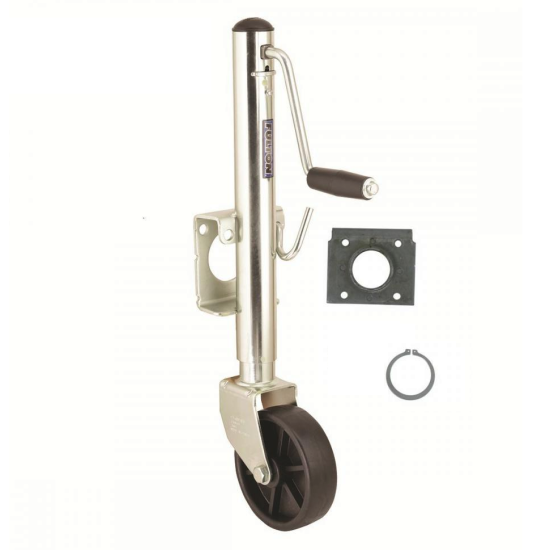

Fulton Retaining Ring Swivel Trailer Jack 1,200 lbs w/ 6" Caster Wheel 10" Lift Weld-On
Model: TJ120W0301Fulton Marine and Recreational Trailer Jack (Weld-On Bracket Included)
Designed for use with marine and utility trailers, Fulton brand tongue jacks are time-tested and application-proven. For weld-on applications we offer 3/8" pull pin models. The Fulton brand boltthru swivel mounts use 3-D formed heavy-gauge steel stampings and a proprietary bushing material for a mount with minimal deflection and maximum support. All mounts fit up to a 3" x 5" trailer frame.
- Fits: 3"x3", 3"x4", and 3"x5" trailer frames
- Lift capacity: 1,200 lbs
- Retracted Bracket Height: 12.7" from bracket to bottom
- Travel/Lift: 10"
- Extended Bracket Height: 22.7"
- Clearance: 11.4" from bracket to top
- Snap Ring Hole Diameter: 2.313"
- Wheel size: 6" diameter
- Spring loaded Pull pin diameter: 3/8"
- Finish: Z-Max 600 zinc
- 5-Year limited warranty
Popular Tongue Jack applications include: Eagle Magic-Tilt Ranger Sea Ray Maverick Master Angler Continental trailer Tow Dolly + many others
$83 99 $87.50 4% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Pre-Order
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$87.50 $83 99
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
You are in!
We will alert you the moment it is back.
Don't Miss the Next Restock!
We are working hard to bring this back. Join our VIP list to get an instant alert the second it is available.
Product Details
- Brand: Fulton
- Model: TJ120W0301
- UPC: 016118098150
- Includes: Retaining Ring Swivel Jack
Fulton Marine and Recreational Trailer Jack (Weld-On Bracket Included)
Designed for use with marine and utility trailers, Fulton brand tongue jacks are time-tested and application-proven. For weld-on applications we offer 3/8" pull pin models. The Fulton brand boltthru swivel mounts use 3-D formed heavy-gauge steel stampings and a proprietary bushing material for a mount with minimal deflection and maximum support. All mounts fit up to a 3" x 5" trailer frame.
- Fits: 3"x3", 3"x4", and 3"x5" trailer frames
- Lift capacity: 1,200 lbs
- Retracted Bracket Height: 12.7" from bracket to bottom
- Travel/Lift: 10"
- Extended Bracket Height: 22.7"
- Clearance: 11.4" from bracket to top
- Snap Ring Hole Diameter: 2.313"
- Wheel size: 6" diameter
- Spring loaded Pull pin diameter: 3/8"
- Finish: Z-Max 600 zinc
- 5-Year limited warranty
Popular Tongue Jack applications include: Eagle Magic-Tilt Ranger Sea Ray Maverick Master Angler Continental trailer Tow Dolly + many others
| Default | |
| Brand | Fulton |
| Jack Mounting Style | Bolt-On Jack Side Mount |
| Jack Style | Bolt-On/Weld-On |
| Lift Mechanism | Sidewind Handle Crank |
| Jack Travel Range | 10 Inch Lift |
| Jack Finish | Silver Zinc Plated |
| Jack Static Load Capacity | 1200 LB Static Capacity |
| Jack Lifting Load Capacity | 1200 LB Lift Capacity |
| Jack Foot Type | 6 Inch Wheel |
| Jack Leg Style | Fixed Leg |
| Jack Swivel Type | Swivel |
| Jack Outer Tube Diameter | 2.25 Inch Outer Tube |
| Jack Shape | Round Jack |
| Approx Bracket-to-Bottom Clearance (Retracted) | 13 Inch Bracket-to-Bottom Retracted |
| Approx Bracket-to-Bottom Clearance (Extended) | 23 Inch Bracket-to-Bottom Extended |
| Approx Bracket-to-Top Clearance | 11 Inch Bracket-to-Top Clearance |
| Electric Lift | Non Electric |
| Custom Bundle | No |
| Exact Bracket-to-Bottom Clearance (Retracted) | 12.7 Inch |
| Exact Bracket-to-Bottom Clearance (Extended) | 22.7 Inch |
| Exact Bracket-to-Top Clearance | 11.4 Inch |
| Pull Pin Diameter | 3/8" |
| Inner Tubing Diameter | 2 Inch Inner Tube |
