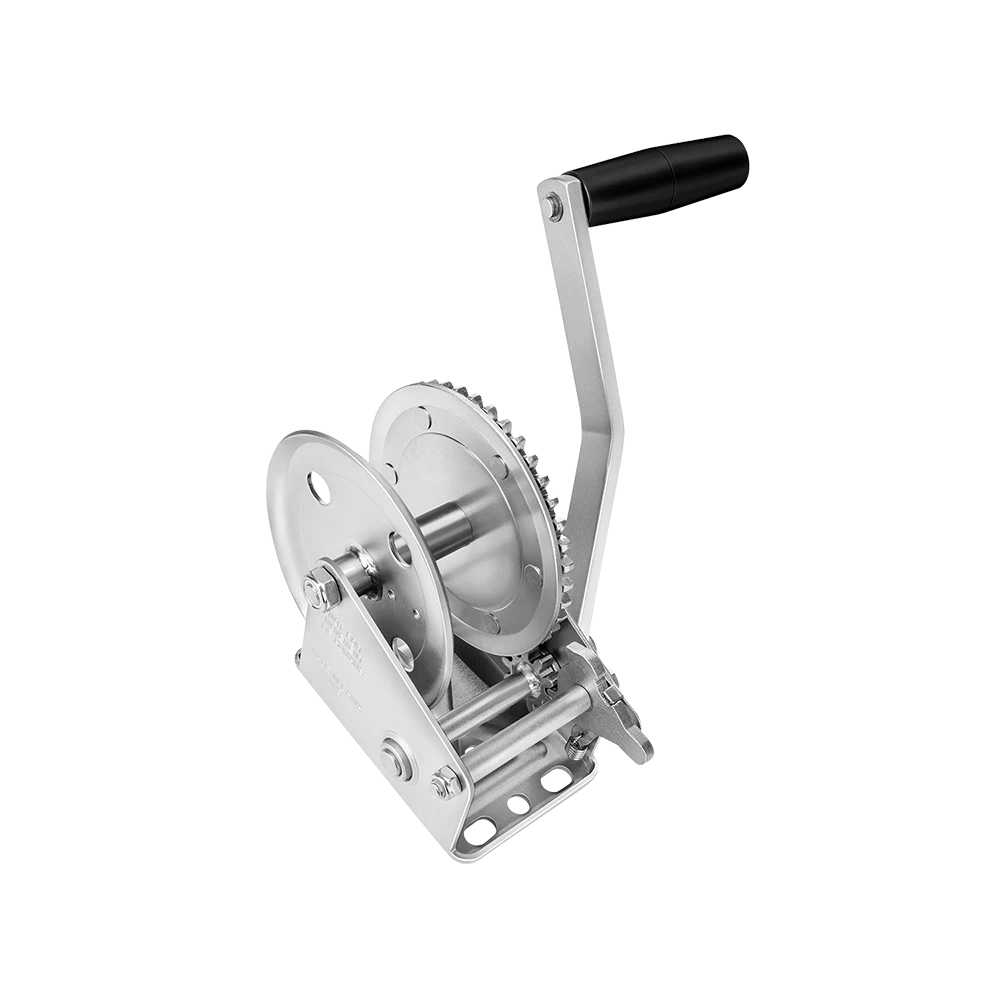

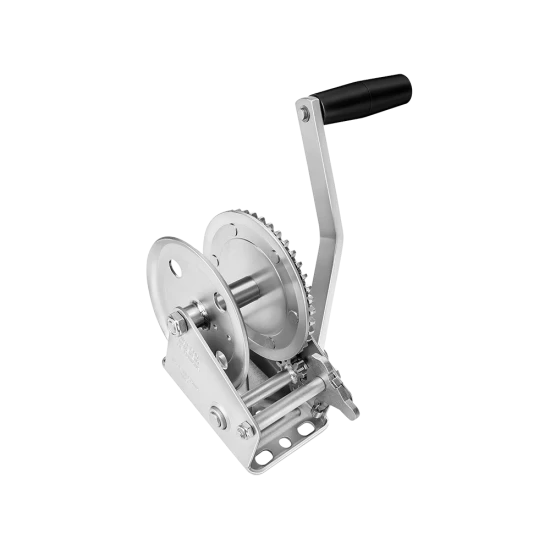

Fulton Trailer Winch 1,500 lbs Capacity No Strap Clear Zinc 5 Year Warranty - 142200 Boat Winch
Model: 142200Fulton® Winch - Part Number: 142200
You shouldn’t have to struggle to get your boat or jet ski on or off the water. Your days should be easy, relaxed, thrilling, fun, whatever you want them to be. With Fulton ®, you can spend less time working to launch your watercraft - or pull it back onto your trailer - with our complete line of winches. From one and two-speed manual winches, to brake winches and electric winches, Fulton ® offers styles and capacities to meet virtually every need. Created by some of the most innovative engineers in the industry today, Fulton’s extensive line of marine winches uses superior materials and rugged manufacturing, offering attractive designs and sleek, contemporary exteriors to work hard while complimenting even high-end boat and trailer combinations.
Key Features
The Fulton® 142200 Winch is part of the SINGLE SPEED TRAILER WINCHES series, known for their durability and convenience:
- Capacity: 1500 lbs
- Handle Length (in.): 8
- Max Mechanical Advance: 49:1
- Rope (ft. x in.): 20 x 5/16
- Strap (ft. x in.): 20 x 2
- Recommended Strap Bolt Sizes (in.): 1/4 x 2-1/2 Grade 5
- Finish: Clear Zinc
- Strap Included: No
- Packaging: Litho Box
How to Select
To select the right winch capacity:
- Minimum Winch Capacity = Maximum Weight of Boat, Including Motor, Fuel, Gear ÷ 2
- If shallow water or steep inclined launches are expected, divide the maximum weight by 1.5
Example Calculation:
- Boat, Motor, Fuel, Gear Weight = 3000 lbs
- Minimum Winch Capacity = 3000 ÷ 2 = 1500 lbs
This calculation aligns with the capacity of the Fulton® 142200 Winch, ensuring optimal performance and safety for your boating activities.
$55 09 $68.75 20% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$68.75 $55 09
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $13.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Fulton
- Model: 142200
- Includes: Trailer Winch
Get Expert Help
Fulton Trailer Winch 1,500 lbs Capacity No Strap Clear Zinc 5 Year Warranty - 142200 Boat Winch Install Notes
Installation Instructions for Trailer Winches
Part Numbers:
- N142200
Tools Required:
- None specified
Step-by-Step Instructions:
Mounting the Winch:
- The winch stand must support at least five times the rated capacity of the winch.
- Ensure the mounting surface equals or exceeds the winch frame footprint.
- Use three (3) 3/8” diameter grade-5 bolts, torqued to 28-30 ft-lbs.
- Confirm that the winch is securely mounted to the structure.
Attaching the Winch Line:
- Rope:
- Weave the rope through the drum's outer wall and secure it beneath itself.
- Strap:
- Use a grade-5 bolt of the largest possible diameter for strap mounting.
- Tighten the locknut until bolt end play is eliminated, avoiding over-tightening to prevent drum deformation.
- For straps without a strap anchor, remove the drum bolt, install the strap, and reassemble the drum. Torque the drum locknut to 9-10 ft-lbs for single-speed winches and 24 ft-lbs for two-speed winches.
- Steel Cable:
- Pass the cable from the inside of the drum through a dimpled hole in the outer plate.
- Loop the cable around the drum bearing and under itself, leaving 1” of cable extending past the clamp.
- Tighten clamp nuts to approximately 2 ft-lbs.
Operation:
- Letting Out Line/Load:
- Firmly grip the handle and disengage the ratchet pawl.
- Slowly let out the line, ensuring the ratchet pawl engages when paused.
- Taking In Line/Load:
- Engage the ratchet pawl in the forward/loading position.
- Turn the handle to wind the line properly onto the drum.
- Using Optional Hand Brake:
- Apply the brake to control the load by pressing down on the hand brake lever.
Maintenance:
- Inspect the rope, strap, or cable for damage and replace if necessary.
- Apply a few drops of #30 weight engine oil to bushings and ratchet pawl pivot points.
- Maintain a thin layer of grease on gear teeth.
Safety Notes:
- Never exceed the rated capacity stamped on the winch.
- Always maintain a minimum of three wraps of line on the drum.
- Inspect the cable or strap before use, replacing if worn or damaged.
- Ensure a loud clicking sound from the ratchet when lifting the load.
- This winch is designed for manual operation only.
Specifications:
- Capacity: Rated based on direct line pull on the first drum layer.
- Handle Force: Maximum of 45 lbs required to pull the rated load.
Warranty Information:
- Coverage: Limited 5-year warranty against defects in material and workmanship.
- Exclusions: Normal wear, misuse, and improper installation.
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
