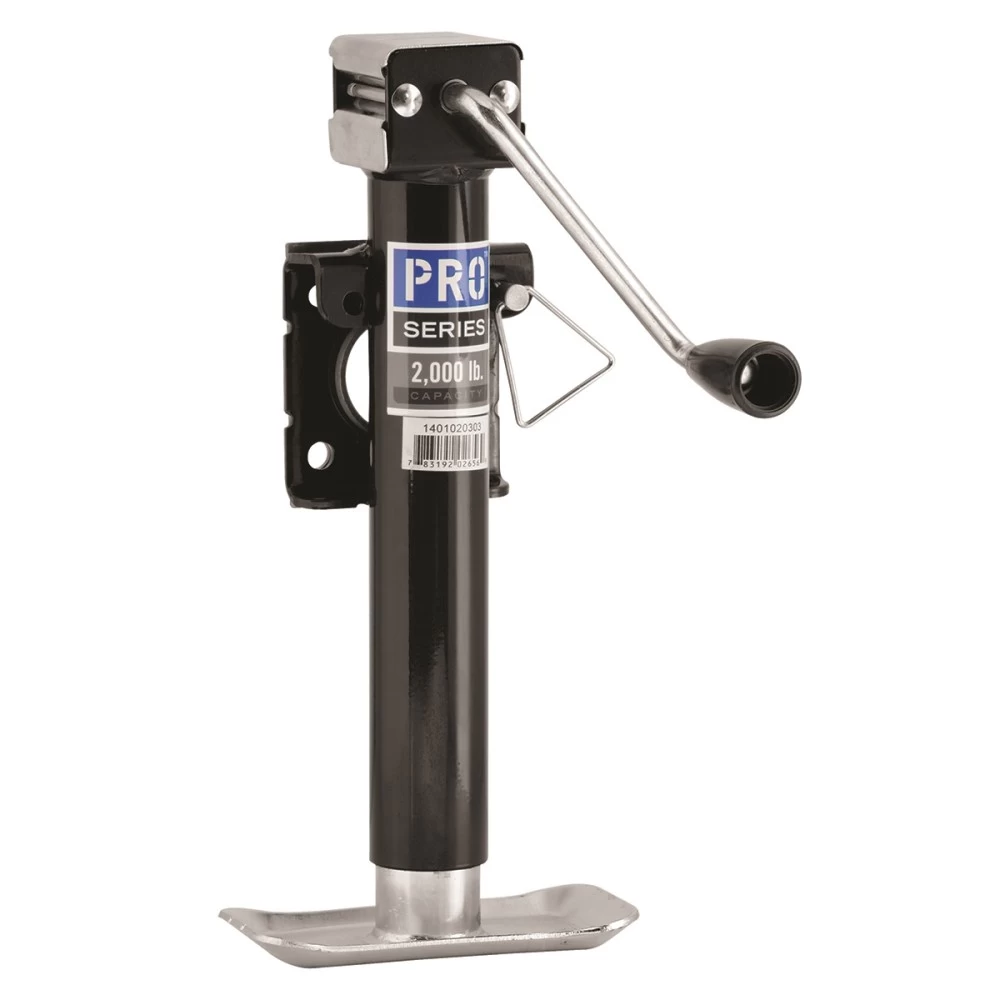

Pro Series 2,000 lbs. Round Snap-Ring Swivel Trailer Jack Weld-on Sidewind 10" Lift
Model: 1401020303PRO SERIES round jacks are used by leading agricultural, commercial, horse, livestock, and other trailer manufacturers. PRO SERIES jacks have been demonstrated to be reliable, field-proven jacks on the market.
-
Smooth, comfortable, ergonomic design
-
Dependable vertical and side load capacity
-
Proven reliability for long term use at rated loads
-
Precision fitted parts for extra stability
-
Black painted outer and clear zinc inner tube
-
Limited 1-year warranty
Specifications:
-
Lift Capacity: 2,000 lbs.
-
Retracted Bracket Height: 10.40" from bracket to bottom
-
Extended Bracket Height: 20.40"
-
Travel/Lift: 10"
-
Clearance: 6.29" from bracket to top
-
Inner tube diameter: 2"
-
Outer tube diameter: 2-1/4"
-
Footplate included
-
Weld-on, L-bend mounting bracket assembled
$64 99 $78.75 17% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$78.75 $64 99
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Pro Series
- Model: 1401020303
- UPC: 783192026569
- Includes: Weld-On Snap-Ring Swivel Jack
| Default | |
| Brand | Pro Series |
| Jack Mounting Style | Bolt-On Jack Side Mount |
| Jack Style | Snap Ring |
| Lift Mechanism | Sidewind Handle Crank |
| Jack Travel Range | 10 Inch Lift |
| Jack Finish | Black Powdercoat |
| Jack Static Load Capacity | 2000 LB Static Capacity |
| Jack Lifting Load Capacity | 2000 LB Lift Capacity |
| Jack Foot Type | Footplate |
| Jack Leg Style | Fixed Leg |
| Jack Swivel Type | Swivel |
| Jack Outer Tube Diameter | 2.25 Inch Outer Tube |
| Jack Shape | Round Jack |
| Approx Bracket-to-Bottom Clearance (Retracted) | 10 Inch Bracket-to-Bottom Retracted |
| Approx Bracket-to-Bottom Clearance (Extended) | 20 Inch Bracket-to-Bottom Extended |
| Approx Bracket-to-Top Clearance | 6 Inch Bracket-to-Top Clearance |
| Electric Lift | Non Electric |
| Custom Bundle | No |
| Exact Bracket-to-Bottom Clearance (Retracted) | 10.40 Inch |
| Exact Bracket-to-Bottom Clearance (Extended) | 20.40 Inch |
| Exact Bracket-to-Top Clearance | 6.29 Inch |
| Inner Tubing Diameter | 2 Inch Inner Tube |
Ask a Question about Pro Series 2,000 lbs. Round Snap-Ring Swivel Trailer Jack Weld-on Sidewind 10" Lift
Be the first to ask a question.
Description
PRO SERIES round jacks are used by leading agricultural, commercial, horse, livestock, and other trailer manufacturers. PRO SERIES jacks have been demonstrated to be reliable, field-proven jacks on the market.
-
Smooth, comfortable, ergonomic design
-
Dependable vertical and side load capacity
-
Proven reliability for long term use at rated loads
-
Precision fitted parts for extra stability
-
Black painted outer and clear zinc inner tube
-
Limited 1-year warranty
Specifications:
-
Lift Capacity: 2,000 lbs.
-
Retracted Bracket Height: 10.40" from bracket to bottom
-
Extended Bracket Height: 20.40"
-
Travel/Lift: 10"
-
Clearance: 6.29" from bracket to top
-
Inner tube diameter: 2"
-
Outer tube diameter: 2-1/4"
-
Footplate included
-
Weld-on, L-bend mounting bracket assembled
