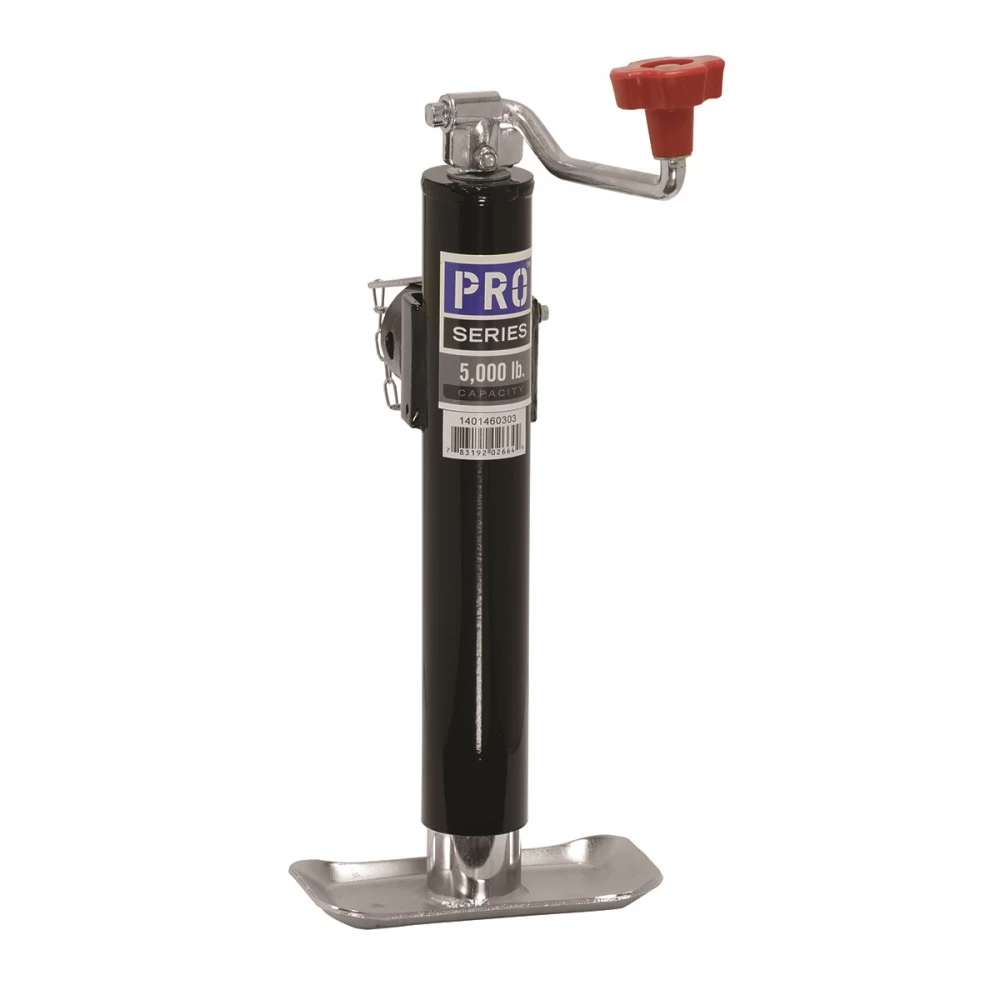

Pro Series 5,000 lbs. Round Pipe Mount Swivel Trailer Jack Topwind 10" Lift w/ Pull Pin
Model: 1401460303PRO SERIES round jacks are used by leading agricultural, commercial, horse, livestock, and other trailer manufacturers. PRO SERIES jacks have been demonstrated to be reliable, field-proven jacks on the market.
Smooth, comfortable, ergonomic design
Dependable vertical and side load capacity
Proven reliability for long term use at rated loads
Precision fitted parts for extra stability
Black painted outer and clear zinc inner tube
Limited 1-year warranty
Specifications:
Lift Capacity: 5,000 lbs.
Retracted Bracket Height: 11.20" from bracket to bottom
Extended Bracket Height: 21.20"
Travel/Lift: 10"
Clearance: 4" from bracket to top
Weld-On Tubular Mount
Male Mount Included
Foot plate included
Pull pin included to hold Jack in place
$49 77 $65.00 23% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$65.00 $49 77
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $12.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Pro Series
- Model: 1401460303
- UPC: 783192026644
- Includes: Round Pipe Mount Swivel Jack
Get Expert Help
Pro Series 5,000 lbs. Round Pipe Mount Swivel Trailer Jack Topwind 10" Lift w/ Pull Pin Install Notes
Installation Instructions for Tongue Jacks
Part Numbers:
- Not specified in the provided text.
Tools Required:
- Torque wrench (25 ft. lbs.)
Step-by-Step Instructions:
General Instructions:
- Confirm there is no interference from the tow vehicle, tongue, ground, or mounted accessories.
- Check for interference in all positions, including handle swing and swivel positions.
Bolt-On Rack Jack Instructions:
- Place the gear housing on the tongue and insert the supplied bolts into the holes corresponding to the tongue width.
- Place the mounting bracket below the tongue with the flat surface against the tongue.
- Secure with locknuts and torque to 25 ft. lbs.
Snap Ring/Bolt-Thru Instructions:
- For a snap ring model, place the jack bracket over the mount and fully seat the snap ring into the groove.
- For a bolt-thru model, position the jack bracket into the recessed opening, place the bushing onto the bolt, and tighten the locknut.
A-Plate Mounting Instructions:
- All welding must be performed by an AWS-certified welder.
- Align the jack and coupler with the desired location before welding, using a 3/16" fillet weld.
- Secure with 3/8-16 Grade 5 bolts and torque to 15-20 ft. lbs.
- Weld the recommended support plate to the trailer frame.
Direct-Mount Instructions:
- Place the jack at the desired location and weld 1" in two locations on both sides using a 3/16" fillet weld.
Safety Notes:
- Fully retract and rotate the jack before towing.
- Remove drop foot or caster before towing.
- Do not exceed the maximum rated capacity.
- Avoid excessive side forces to prevent jack failure.
Maintenance:
- Annually lubricate internal gearing and bushings with automotive grease.
- Flush with fresh water if used in marine environments and reapply lubricants.
Technical Support:
For technical support or replacement parts, please visit www.trailerjacks.com or call 877-869-6690.
Additional Information:
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed manufacturer information, please download the full installation PDF.
