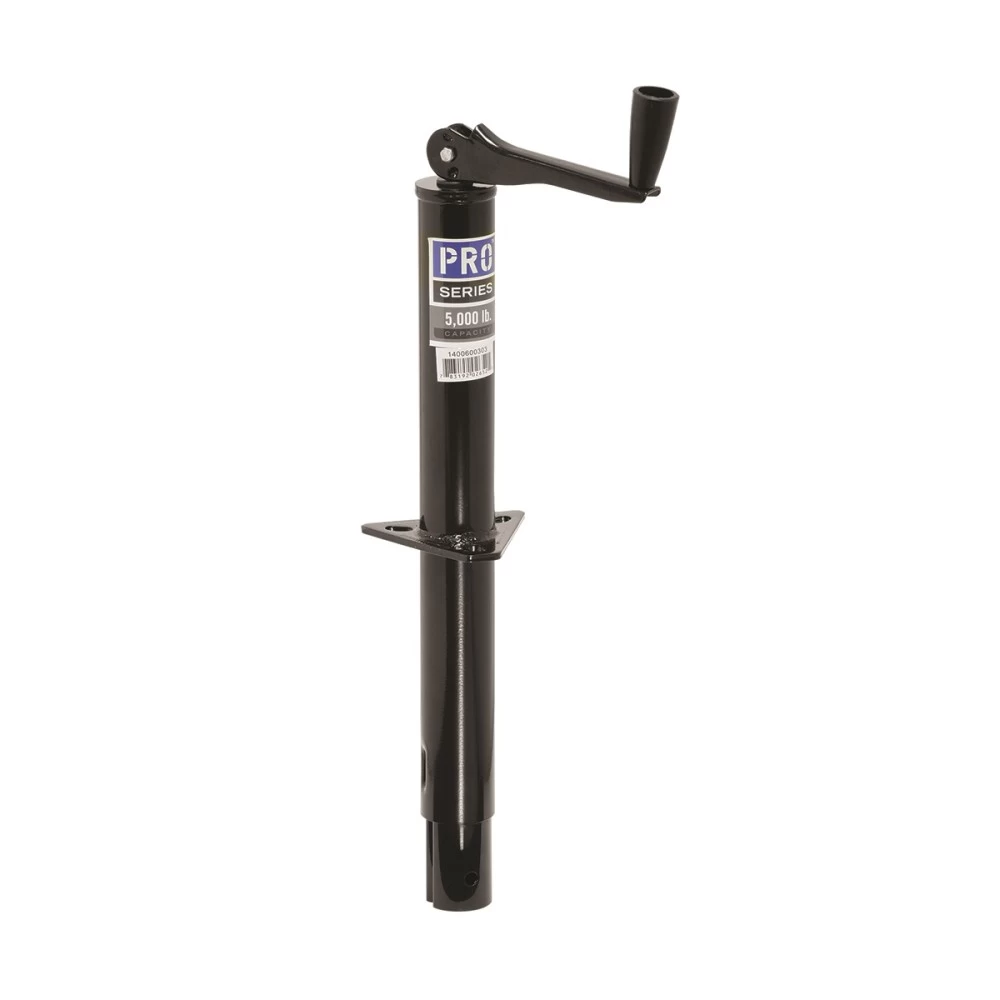

Pro Series Round 5,000 lbs. A-Frame Trailer Jack Topwind 15" Lift
Pro Series Round 5,000 lbs. A-Frame Trailer Jack Topwind 15" Lift

Pro Series Round 5,000 lbs. A-Frame Trailer Jack Topwind 15" Lift

Model: 1400600303

PRO SERIES round jacks are used by leading agricultural, commercial, horse, livestock, and other trailer manufacturers. PRO SERIES jacks have been demonstrated to be reliable, field-proven jacks on the market.

  • Smooth, comfortable, ergonomic design

  • Dependable vertical and side load capacity

  • Proven reliability for long term use at rated loads

  • Precision fitted parts for extra stability

  • Black painted outer and inner tube

  • Limited 1-year warranty



Specifications:

  • Lift Capacity: 5,000 lbs.

  • Retracted Bracket Height: 10.80" from bracket to bottom

  • Extended Bracket Height: 25.80"

  • Travel/Lift: 15"

  • Clearance: 14.55" from bracket to top

  • Works with any standard A-Frame mount

  • Inner tube diameter: 2"

  • Outer tube diameter: 2-1/4"

  • Wheel or base sold separately

$42 77 $52.50 19% OFF

  • Best Price on Web Guarantee
  • Fastest Shipping
  • FREE Shipping
  • In Stock
Best Price on Web Guarantee
Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Applies to this product only

$52.50 $42 77

Pay in 4 interest-free installments of with Pay with Affirm Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.

  • No fees, ever.
  • No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

  • Brand: Pro Series
  • Model: 1400600303
  • Includes: 5000 lbs A-Frame Jack

PRO SERIES round jacks are used by leading agricultural, commercial, horse, livestock, and other trailer manufacturers. PRO SERIES jacks have been demonstrated to be reliable, field-proven jacks on the market.

  • Smooth, comfortable, ergonomic design

  • Dependable vertical and side load capacity

  • Proven reliability for long term use at rated loads

  • Precision fitted parts for extra stability

  • Black painted outer and inner tube

  • Limited 1-year warranty



Specifications:

  • Lift Capacity: 5,000 lbs.

  • Retracted Bracket Height: 10.80" from bracket to bottom

  • Extended Bracket Height: 25.80"

  • Travel/Lift: 15"

  • Clearance: 14.55" from bracket to top

  • Works with any standard A-Frame mount

  • Inner tube diameter: 2"

  • Outer tube diameter: 2-1/4"

  • Wheel or base sold separately

Default
Brand Pro Series
Jack Mounting Style A-Frame Triangular Center Mount
Jack Style A-Frame
Lift Mechanism Topwind Handle Crank
Jack Travel Range 15 Inch Lift
Jack Finish Black Powdercoat
Jack Static Load Capacity 5000 LB Static Capacity
Jack Lifting Load Capacity 5000 LB Lift Capacity
Jack Foot Type Foot or Wheel Option
Jack Leg Style Fixed Leg
Jack Swivel Type Non Swivel
Jack Outer Tube Diameter 2.25 Inch Outer Tube
Jack Shape Round Jack
Approx Bracket-to-Bottom Clearance (Retracted) 11 Inch Bracket-to-Bottom Retracted
Approx Bracket-to-Bottom Clearance (Extended) 26 Inch Bracket-to-Bottom Extended
Approx Bracket-to-Top Clearance 15 Inch Bracket-to-Top Clearance
Electric Lift Non Electric
Custom Bundle No
Exact Bracket-to-Bottom Clearance (Retracted) 10.80 Inch
Exact Bracket-to-Bottom Clearance (Extended) 25.80 Inch
Exact Bracket-to-Top Clearance 14.55 Inch
Inner Tubing Diameter 2 Inch Inner Tube
