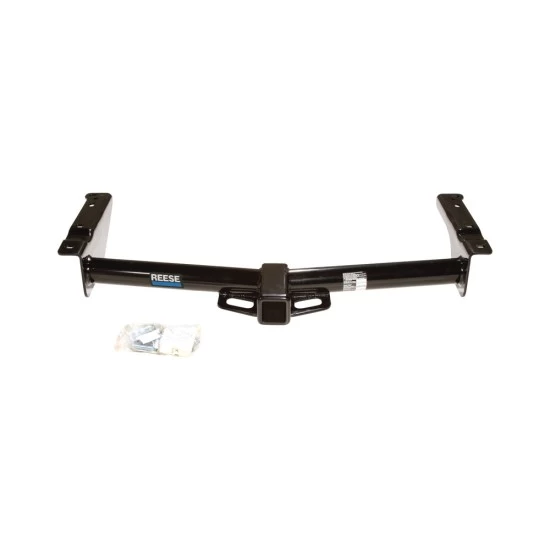

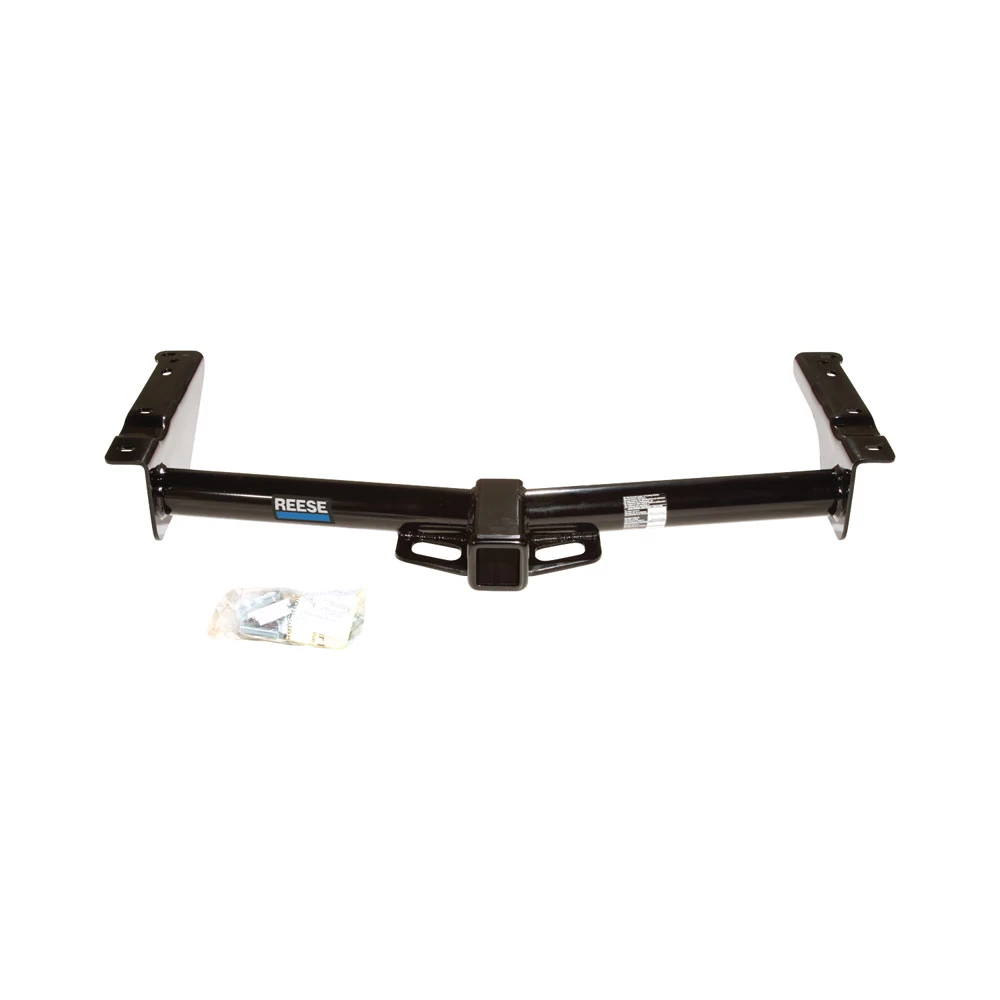

Reese Trailer Tow Hitch For 75‑14 Ford E150 E250 E350 Van Class 3 2" Towing Receiver
Model: 446521975 - 2014 Ford Van Full Size
Trailer Hitch Specs:
Questions or Comments? Call 702-374-8999
Partial list of fitment years: 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 1975 1976 1977 1978 1979 1980 1981 1982 1983 1984 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014
$225 91 $352.79 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$352.79 $225 91
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $56.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 44652
- UPC: 016118106015
- Includes: Class 4 Trailer Tow Hitch
Compatibility Chart
Year Range | Make | Model | Style |
---|---|---|---|
Loading... |
Specification | |
Attachment Location | Rear |
Ball Mount Included | No |
Color | Black |
Drilling Required | Yes |
Gross Towing Weight | 6,000 lbs. |
Gross Towing Weight w/ Weight Distribution Kit | 10,000 lbs. |
Hitch Class | IV |
Material | Steel |
Maximum Tongue Weight | 600 lbs. |
Maximum Tongue Weight w/ Weight Distribution Kit | 1,000 lbs. |
Mounting Hardware Included | Yes |
Mounting Type | Vehicle Frame |
Receiver Size | 2 in. |
Receiver Type | Round Tube |
Be the first to ask a question.
Description
1975 - 2014 Ford Van Full Size
Trailer Hitch Specs:
Questions or Comments? Call 702-374-8999
Partial list of fitment years: 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 1975 1976 1977 1978 1979 1980 1981 1982 1983 1984 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014
Get Expert Help
Reese Trailer Tow Hitch For 75-14 Ford E150 E250 E350 Van Class 3 2" Towing Receiver Install Notes
Installation Instructions for Ford Van (Full Size)
(Includes E-150, E-250, and E-350 Models with Factory Step Bumper)
Part Numbers:
- 75703
- 44652
- 87599
Tools Required:
- Wrenches: 3/4”, 7/8”
- Drill Bits: 1/2” (on some models)
Wiring Access Location:
- SUV1, SUV2
Step-by-Step Instructions:
1992 and Newer Models:
-
Prepare the Frame:
- Locate the existing holes in the vehicle frame. On some models, use the forward hole in the hitch that lines up with existing frame holes.
-
Install Hitch:
- Position the hitch on the vehicle, ensuring it lines up with the frame holes.
- Install carriage bolts, blocks, flat washers, and conical toothed washers as shown in Figure 1.
-
Secure Fasteners:
- Loosely install all bolts and blocks as necessary. Ensure proper alignment before tightening.
-
Tighten Bolts:
- Torque all 1/2” GR5 fasteners to 75 lb-ft (102 N·m).
-
Optional Steps for Exhaust Modifications:
- For vehicles with thin tip exhausts, modifications to the exhaust may be necessary.
Pre-1992 Models:
-
Install Adapter Kit (Part No. 2626, Sold Separately):
- For E-350 and 124” wheelbase models, the adapter kit is required.
-
Modify Carbon Canister:
- If present, relocate or modify the carbon canister to ensure clearance with the hitch bolts.
-
Install Hitch:
- Position the hitch on the frame, drill additional holes if required (refer to Figure 3 and Figure 4).
-
Tighten Fasteners:
- Torque all fasteners to the specified torque (75 lb-ft).

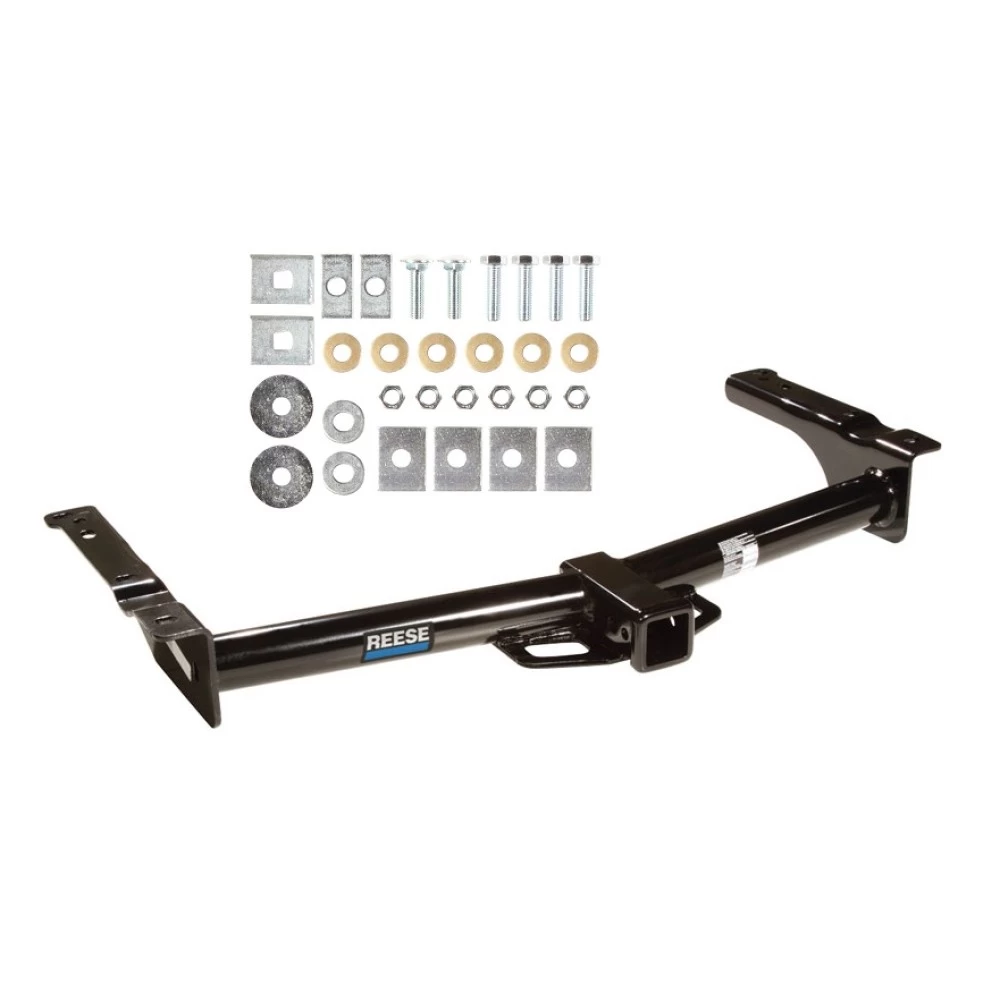

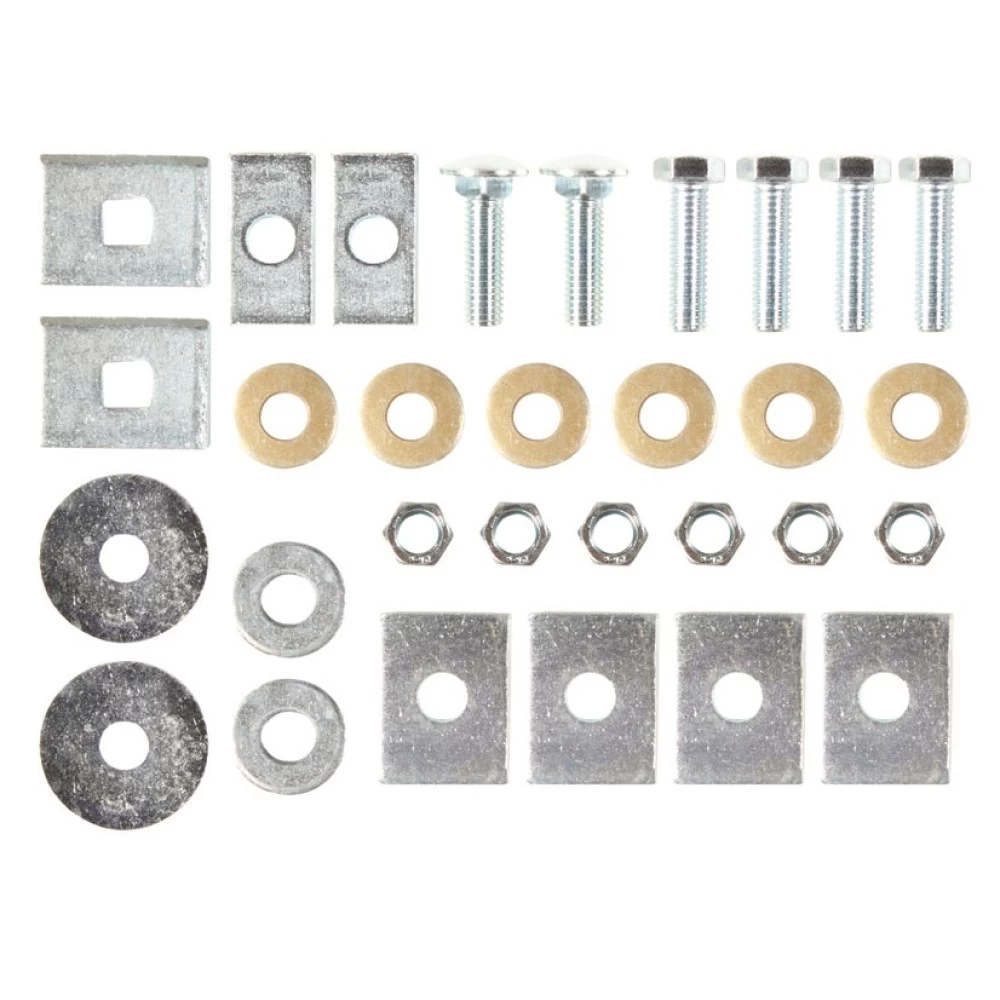

Hardware List:
- (6) 1/2”-13 x 1.75” GR5 Carriage Bolts
- (6) Blocks 1/4” x 1” x 2” (1097-002)
- (6) Conical Toothed Washers
- (6) 1/2”-13 Hex Nuts
- (4) Flat Washers (depending on configuration)
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 10,000 lbs (4,536 kg), Max Tongue Weight 1,000 lbs (454 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 6,000 lbs (2,721 kg), Max Tongue Weight 600 lbs (272 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Notes:
- Installation of the hitch may require relocation of the tailpipe or modifications to the carbon canister.
- Obtain approval before any drilling or cutting on the vehicle frame.
Installation Instructions
Part Numbers:
- 75703
- 44652
- 87599
Tools Required:
- Wrenches: 3/4”, 7/8”
- Drill Bits: 1/2” (on some models)
Wiring Access Location:
- SUV1, SUV2
Step-by-Step Instructions:
1992 and Newer Models:
-
Prepare the Frame:
- Locate the existing holes in the vehicle frame. On some models, use the forward hole in the hitch that lines up with existing frame holes.
-
Install Hitch:
- Position the hitch on the vehicle, ensuring it lines up with the frame holes.
- Install carriage bolts, blocks, flat washers, and conical toothed washers as shown in Figure 1.
-
Secure Fasteners:
- Loosely install all bolts and blocks as necessary. Ensure proper alignment before tightening.
-
Tighten Bolts:
- Torque all 1/2” GR5 fasteners to 75 lb-ft (102 N·m).
-
Optional Steps for Exhaust Modifications:
- For vehicles with thin tip exhausts, modifications to the exhaust may be necessary.
Pre-1992 Models:
-
Install Adapter Kit (Part No. 2626, Sold Separately):
- For E-350 and 124” wheelbase models, the adapter kit is required.
-
Modify Carbon Canister:
- If present, relocate or modify the carbon canister to ensure clearance with the hitch bolts.
-
Install Hitch:
- Position the hitch on the frame, drill additional holes if required (refer to Figure 3 and Figure 4).
-
Tighten Fasteners:
- Torque all fasteners to the specified torque (75 lb-ft).
Hardware List:
- (6) 1/2”-13 x 1.75” GR5 Carriage Bolts
- (6) Blocks 1/4” x 1” x 2” (1097-002)
- (6) Conical Toothed Washers
- (6) 1/2”-13 Hex Nuts
- (4) Flat Washers (depending on configuration)
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 10,000 lbs (4,536 kg), Max Tongue Weight 1,000 lbs (454 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 6,000 lbs (2,721 kg), Max Tongue Weight 600 lbs (272 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Notes:
- Installation of the hitch may require relocation of the tailpipe or modifications to the carbon canister.
- Obtain approval before any drilling or cutting on the vehicle frame.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
For complete warranty instructions, please download the full installation PDF.
