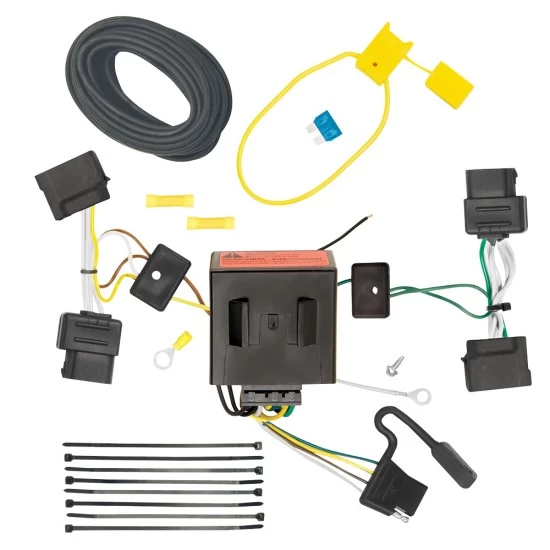

Installation Instructions for T-Connector Adapter for Ford (Edge, Escapte, Econoline), Lincoln MKX, Mercury Mariner and Mazda Tribute

Part Numbers:

• 118551

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or Wrench
• Drill (3/32” Drill Bit)
• 1/4” Socket
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

For Ford Edge and Lincoln MKX:

1. Remove Rear Taillight Assemblies:

   • Open the rear tailgate and remove two bolts securing each taillight.
   • Carefully pry the taillight housings rearward, ensuring the alignment tabs are not broken.

2. Access the Vehicle’s Wiring:

   • Pull the taillight wire harness out and unseat the grommet.
   • Temporarily remove the floor coverings, cargo trays, plastic threshold cover, and side trim panels inside the cargo area.

3. Install Driver-Side T-Connector:

   • Route the T-Connector with yellow and brown wires through the opening exposed in Step 2.
   • Separate the vehicle’s connectors on the driver’s side, ensuring the mating surfaces are clean.
   • Plug the T-Connector into the vehicle’s wiring harness.

4. Route the Passenger-Side Harness:

   • Route the T-Connector with the green wire under the threshold cover to the passenger-side taillight housing.
   • Repeat Step 3 for the passenger side using the T-Connector with the green wire.

5. Ground the White Wire:

   • Locate a suitable grounding point on the driver’s side.
   • Clean the area and secure the white wire using the provided eyelet and screw.

6. Connect the Power Wire:

   • Route the black 12-gauge power wire from the driver’s side taillight pocket to the T-Connector’s black box.
   • Use the supplied yellow butt connector to attach the power wire to the black wire from the black box.
   • Route the remaining power wire along the frame rail to the vehicle’s battery, avoiding hot or moving parts.

7. Battery Connection:

   • Disconnect the vehicle’s negative battery cable.
   • Cut the yellow fuse holder wire, attach the ring terminal, and secure it to the positive battery cable.
   • Connect the other end of the fuse holder to the black 12-gauge wire using a yellow butt connector.
   • Reconnect the negative battery cable and install the 15-amp fuse into the fuse holder.

8. Secure the Harness:

   • Use the provided cable ties to secure the T-Connector harness, ensuring wires do not pinch or rub.
   • Mount the T-Connector black box in a clean, flat area using the provided double-sided tape.

9. Reassemble the Vehicle:

   • Reinstall the taillight assemblies, wheel wells, and other components removed during installation.

10. Test the Installation:

    • Test the T-Connector with a test light or trailer to verify functionality.

    Specifications:

    • Max. stop/turn light: 1 per side (2.1 amps)
    • Max. tail lights: (5 amps)

Safety Notes:

• Do not exceed the towing manufacturer’s rating or the unit specifications.
• Overloading circuits can cause fires. Verify connections before use.

Manufacturer Notes:

• Store the 4-flat connector in the rear cargo area when not in use.
• Refer to the vehicle owner’s manual for additional guidance.

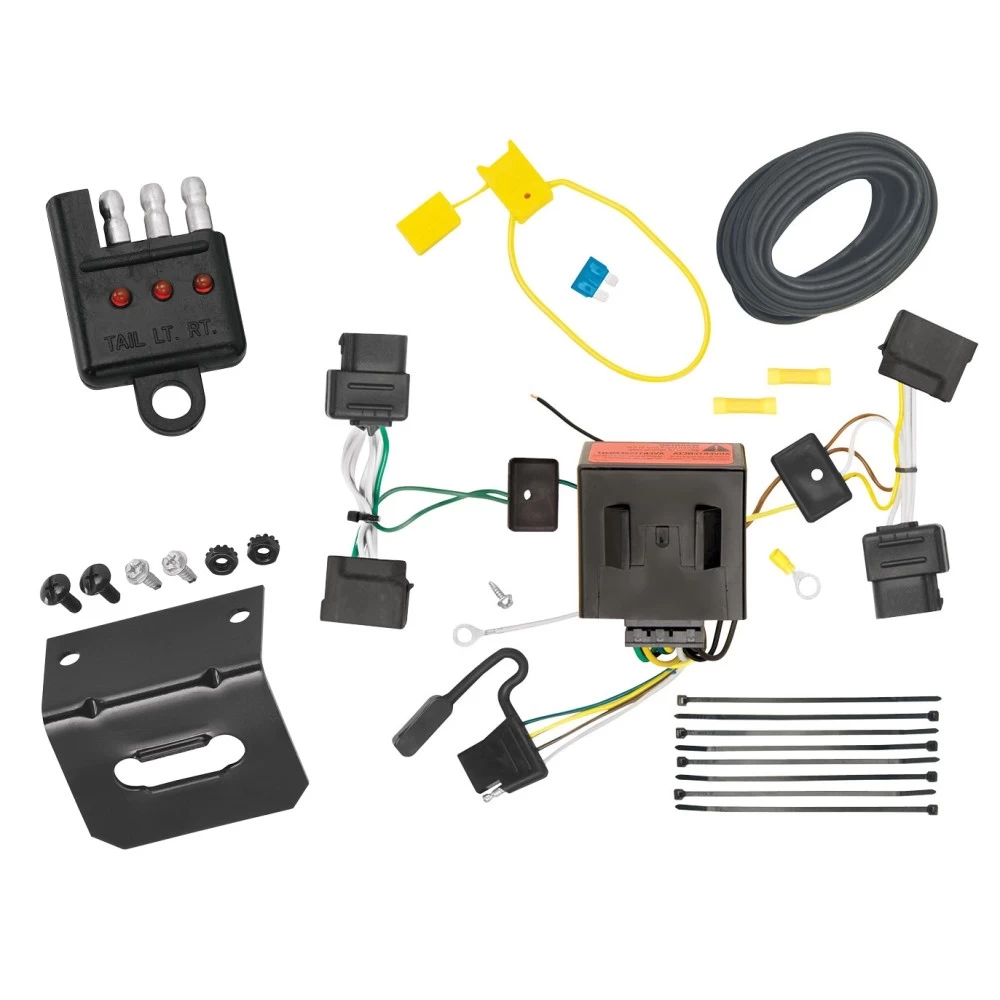

Installation Instructions for T-Connector Adapter for Ford (Edge, Escape, Econoline), Lincoln MKX, Mercury Mariner, and Mazda Tribute

Part Numbers:

• 118551

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or Wrench
• Drill (3/32” Drill Bit)
• 1/4” Socket
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

For Ford Edge and Lincoln MKX:

1. Remove Rear Taillight Assemblies:

   • Open the rear tailgate and remove two bolts securing each taillight.
   • Carefully pry the taillight housings rearward, ensuring the alignment tabs are not broken.

2. Access the Vehicle’s Wiring:

   • Pull the taillight wire harness out and unseat the grommet.
   • Temporarily remove the floor coverings, cargo trays, plastic threshold cover, and side trim panels inside the cargo area.

3. Install Driver-Side T-Connector:

   • Route the T-Connector with yellow and brown wires through the opening exposed in Step 2.
   • Separate the vehicle’s connectors on the driver’s side, ensuring the mating surfaces are clean.
   • Plug the T-Connector into the vehicle’s wiring harness.

4. Route the Passenger-Side Harness:

   • Route the T-Connector with the green wire under the threshold cover to the passenger-side taillight housing.
   • Repeat Step 3 for the passenger side using the T-Connector with the green wire.

5. Ground the White Wire:

   • Locate a suitable grounding point on the driver’s side.
   • Clean the area and secure the white wire using the provided eyelet and screw.

6. Connect the Power Wire:

   • Route the black 12-gauge power wire from the driver’s side taillight pocket to the T-Connector’s black box.
   • Use the supplied yellow butt connector to attach the power wire to the black wire from the black box.
   • Route the remaining power wire along the frame rail to the vehicle’s battery, avoiding hot or moving parts.

7. Battery Connection:

   • Disconnect the vehicle’s negative battery cable.
   • Cut the yellow fuse holder wire, attach the ring terminal, and secure it to the positive battery cable.
   • Connect the other end of the fuse holder to the black 12-gauge wire using a yellow butt connector.
   • Reconnect the negative battery cable and install the 15-amp fuse into the fuse holder.

8. Secure the Harness:

   • Use the provided cable ties to secure the T-Connector harness, ensuring wires do not pinch or rub.
   • Mount the T-Connector black box in a clean, flat area using the provided double-sided tape.

9. Reassemble the Vehicle:

   • Reinstall the taillight assemblies, wheel wells, and other components removed during installation.

10. Test the Installation:

    • Test the T-Connector with a test light or trailer to verify functionality.

Specifications:

• Max. stop/turn light: 1 per side (2.1 amps)
• Max. tail lights: (5 amps)

Safety Notes:

• Do not exceed the towing manufacturer’s rating or the unit specifications.
• Overloading circuits can cause fires. Verify connections before use.

Manufacturer Notes:

• Store the 4-flat connector in the rear cargo area when not in use.
• Refer to the vehicle owner’s manual for additional guidance.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Caution: Improper installation or circuit overloads can cause electrical failures. Always follow instructions carefully and test the installation thoroughly before use.
