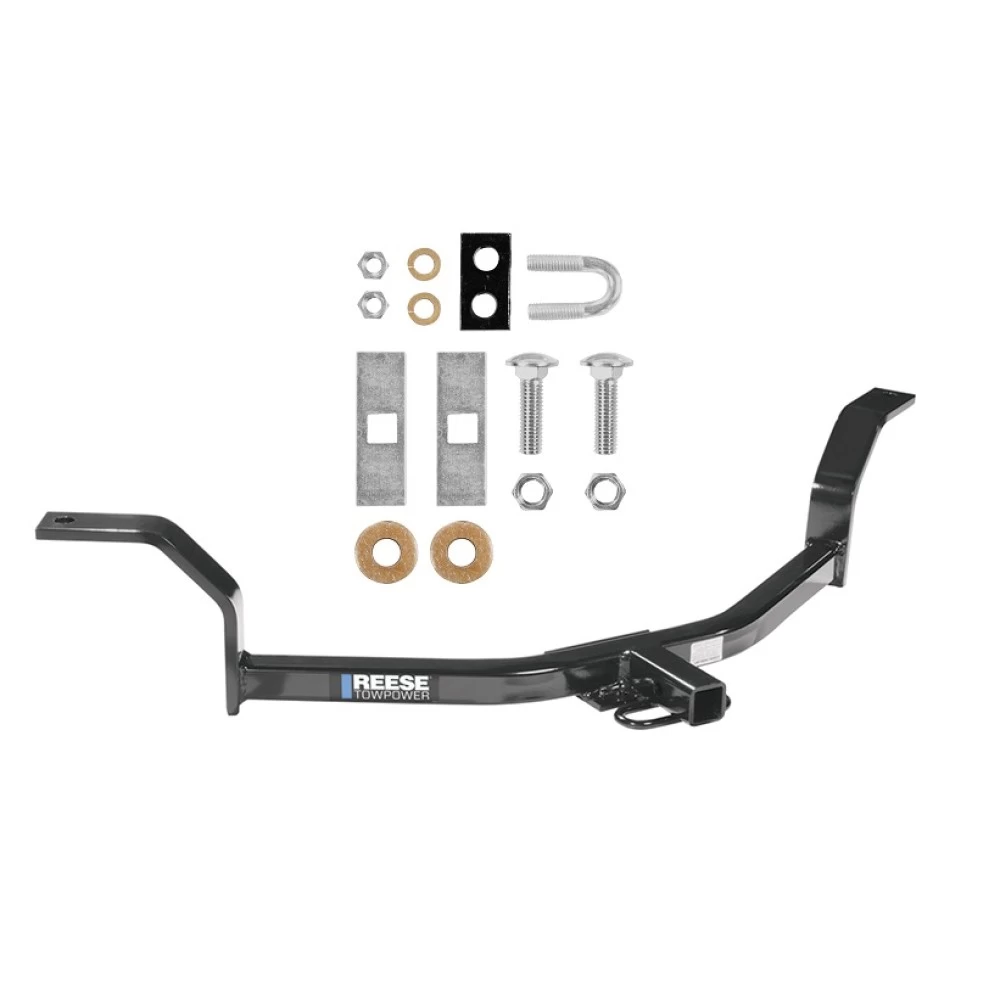

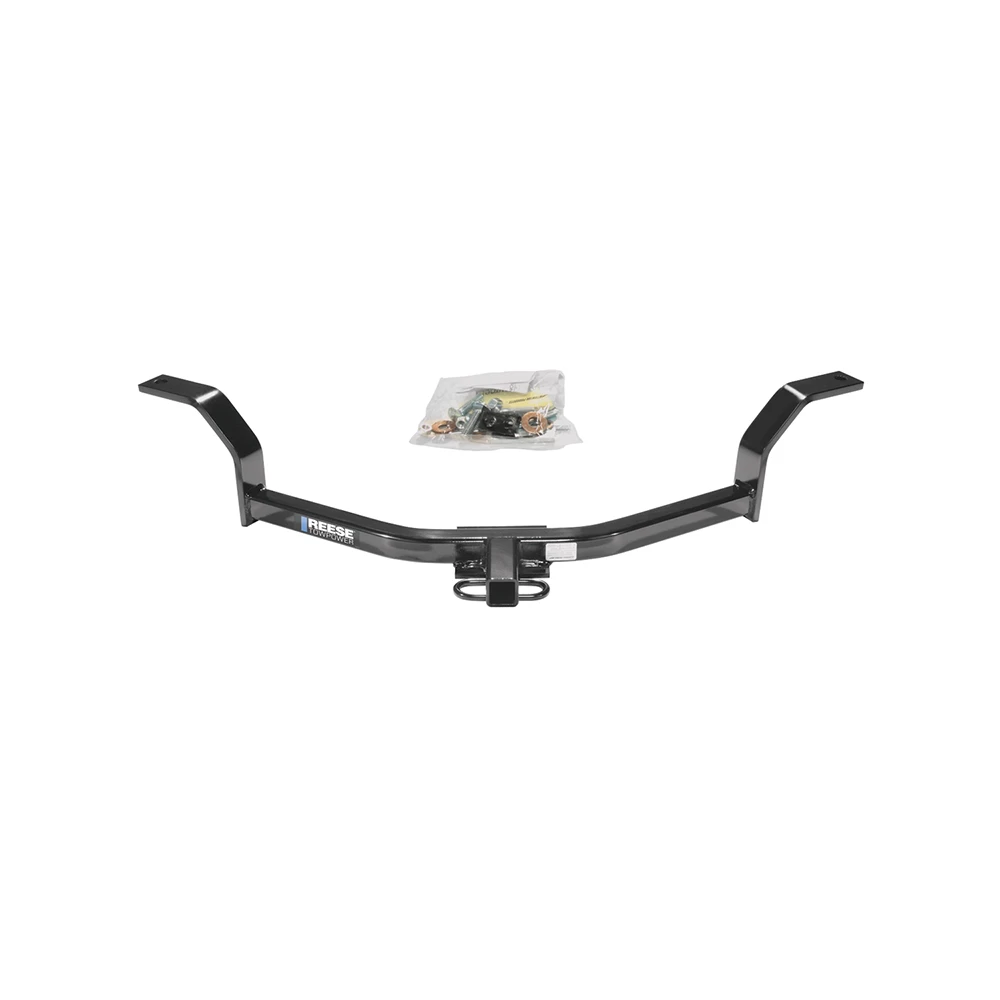

Reese Trailer Tow Hitch For 01‑05 Honda Civic 1‑1/4" Towing Receiver Class 1
Model: 771162001 - 2005 Honda, Civic, All Styles
Trailer Hitch Specs:
| Part Number | 77116 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 01 02 03 04 05 2001 2002 2003 2004 2005
$228 81 $334.61 32% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$334.61 $228 81
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $57.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 77116
- UPC: 016118051308
- Includes: Class 1 Trailer Tow Hitch
Compatibility Chart
| Year Range | Make | Model | Style |
|---|
2001 - 2005 Honda, Civic, All Styles
Trailer Hitch Specs:
| Part Number | 77116 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 01 02 03 04 05 2001 2002 2003 2004 2005
Get Expert Help
Reese Trailer Tow Hitch For 01-05 Honda Civic 1-1/4" Towing Receiver Class 1 Install Notes
Installation Instructions for Honda Civic
Part Numbers:
- 24706
- 77116
- 60867
Wiring Access Location:
- PC3
Tools Required:
- Drill Bits: 1-1/8" Diameter
- Wrenches: 9/16", 7/8"
Specifications:
- Max Gross Trailer Weight: 2,000 lb.
- Max Tongue Weight: 200 lb.
- Note: Do not exceed towing vehicle ratings.
Step-by-Step Instructions:
-
Enlarge Access Hole:
- Enlarge the existing 15/16” diameter access hole in the bottom of the frame rail to 1-1/8” diameter. This will allow for the installation of blocks into the frame.
-
Fishwire Carriage Bolt and Block:
- Use the fishwire method to feed the 1/2”-13 x 1.75” GR5 carriage bolts and 1/4” x 1 x 3” blocks (3022) through the access holes in the frame rail on both sides.
-
Position and Secure Hitch:
- Raise the hitch into position and loosely install the conical toothed washers and hex nuts on the forward attachments.
-
Install U-Bolt:
- Install the 3/8”-16 U-bolt through the tie-down hook and hitch bracket as shown in the diagram. Use the optional block (6484) if necessary to ensure the receiver tube is level or slightly tilted upward.
-
Paint Bare Metal:
- Paint any bare metal around the edge of the access hole to prevent rust or corrosion.
-
Tighten Fasteners:
- Torque all 3/8”-16 GR2 fasteners to 20 Lb.-Ft.
- Torque all 1/2”-13 GR5 fasteners to 75 Lb.-Ft.

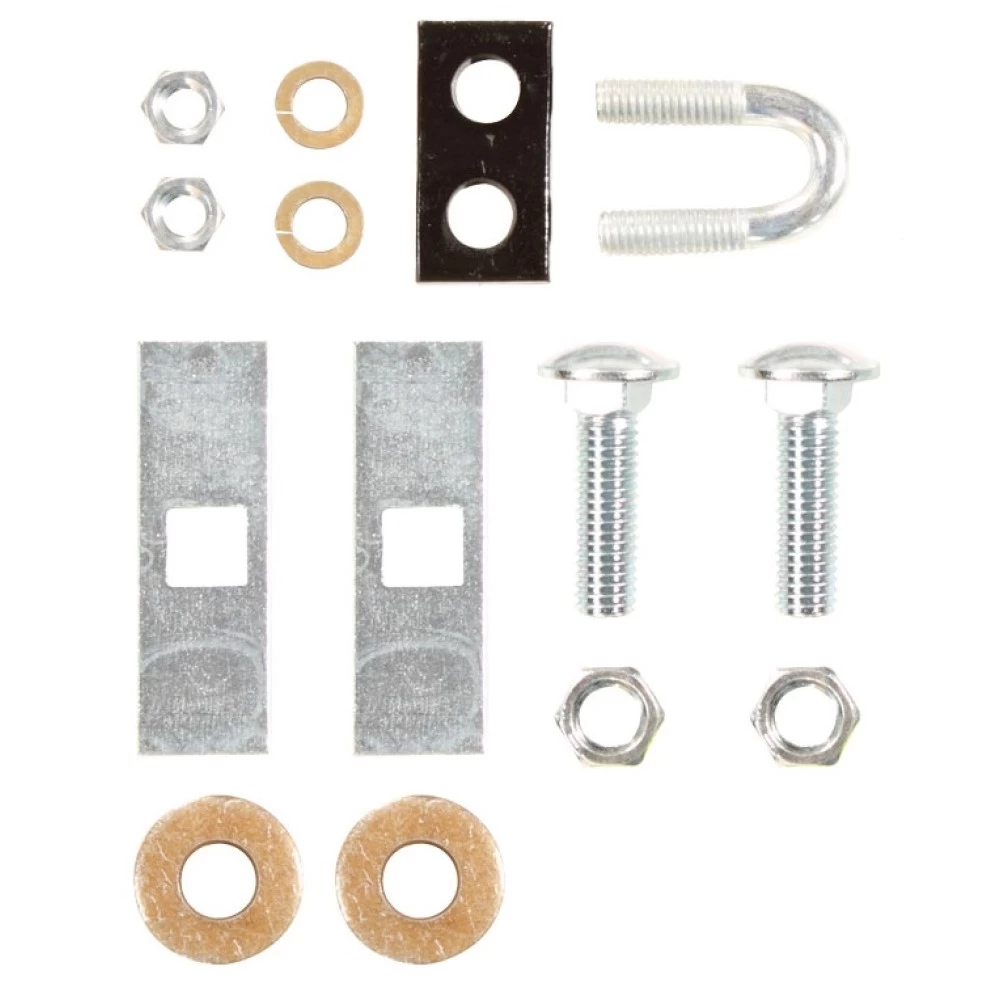

Hardware List:
- (2) 1/2”-13 x 1.75” GR5 Carriage Bolts
- (2) 1/4” x 1 x 3” Blocks (3022)
- (2) Conical Toothed Washers
- (2) Hex Nuts
- (1) 3/8”-16 U-Bolt GR2
- (2) Lock Washers
- (2) Locknuts
- (1) Optional Spacer Block (6484)
Drawbar:
- Standard Drawbar: 3593
- Length: 6.62”
- Rise: 2.75”
- Clip: 55515
- Important: Use only the specified drawbar for correct bumper clearance and height. The drawbar must be used in the rise position only.
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear safety glasses during installation.
- Do not cut access or attachment holes with a torch.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Installation Instructions for Honda Civic
Part Numbers:
- 24706
- 77116
- 60867
Wiring Access Location:
- PC3
Tools Required:
- Drill Bits: 1-1/8" Diameter
- Wrenches: 9/16", 7/8"
Specifications:
- Max Gross Trailer Weight: 2,000 lb.
- Max Tongue Weight: 200 lb.
- Note: Do not exceed towing vehicle ratings.
Step-by-Step Instructions:
-
Enlarge Access Hole:
- Enlarge the existing 15/16” diameter access hole in the bottom of the frame rail to 1-1/8” diameter. This will allow for the installation of blocks into the frame.
-
Fishwire Carriage Bolt and Block:
- Use the fishwire method to feed the 1/2”-13 x 1.75” GR5 carriage bolts and 1/4” x 1 x 3” blocks (3022) through the access holes in the frame rail on both sides.
-
Position and Secure Hitch:
- Raise the hitch into position and loosely install the conical toothed washers and hex nuts on the forward attachments.
-
Install U-Bolt:
- Install the 3/8”-16 U-bolt through the tie-down hook and hitch bracket as shown in the diagram. Use the optional block (6484) if necessary to ensure the receiver tube is level or slightly tilted upward.
-
Paint Bare Metal:
- Paint any bare metal around the edge of the access hole to prevent rust or corrosion.
-
Tighten Fasteners:
- Torque all 3/8”-16 GR2 fasteners to 20 Lb.-Ft.
- Torque all 1/2”-13 GR5 fasteners to 75 Lb.-Ft.
Hardware List:
- (2) 1/2”-13 x 1.75” GR5 Carriage Bolts
- (2) 1/4” x 1 x 3” Blocks (3022)
- (2) Conical Toothed Washers
- (2) Hex Nuts
- (1) 3/8”-16 U-Bolt GR2
- (2) Lock Washers
- (2) Locknuts
- (1) Optional Spacer Block (6484)
Drawbar:
- Standard Drawbar: 3593
- Length: 6.62”
- Rise: 2.75”
- Clip: 55515
- Important: Use only the specified drawbar for correct bumper clearance and height. The drawbar must be used in the rise position only.
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear safety glasses during installation.
- Do not cut access or attachment holes with a torch.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Revision:
24706 Rev. A 6/25/2014
