Reese Trailer Tow Hitch For 03-05 Honda Accord Coupe Complete Package w/ Wiring Draw Bar and 1-7/8" Ball

Reese Trailer Tow Hitch For 03‑05 Honda Accord Coupe Complete Package w/ Wiring Draw Bar and 1‑7/8" Ball

Model: 77161 118441 3592 63810

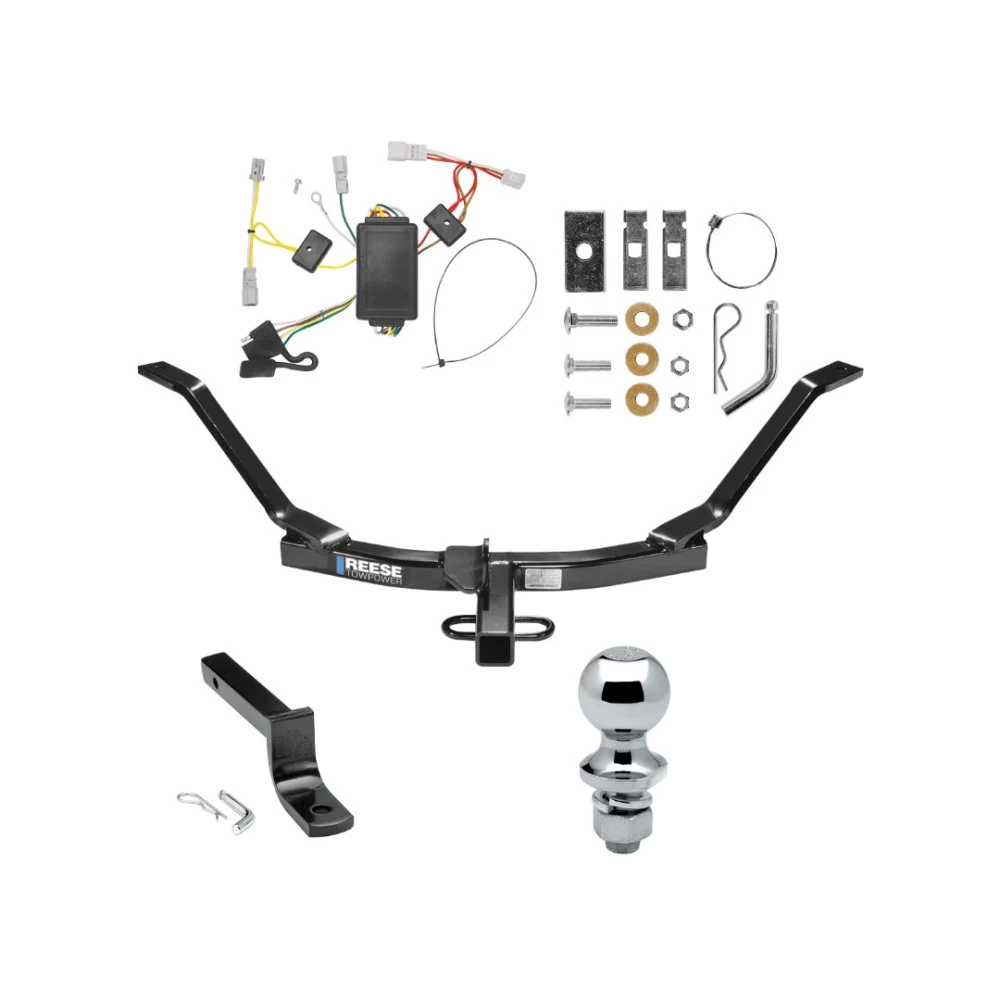

Includes Everything Pictured:
Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Wiring Harness (Plug & Play)
1-7/8" Chrome Ball
Installation Hardware
Installation Instructions

Fits The Following Vehicles

2003 - 2005 Honda, Accord, Coupe

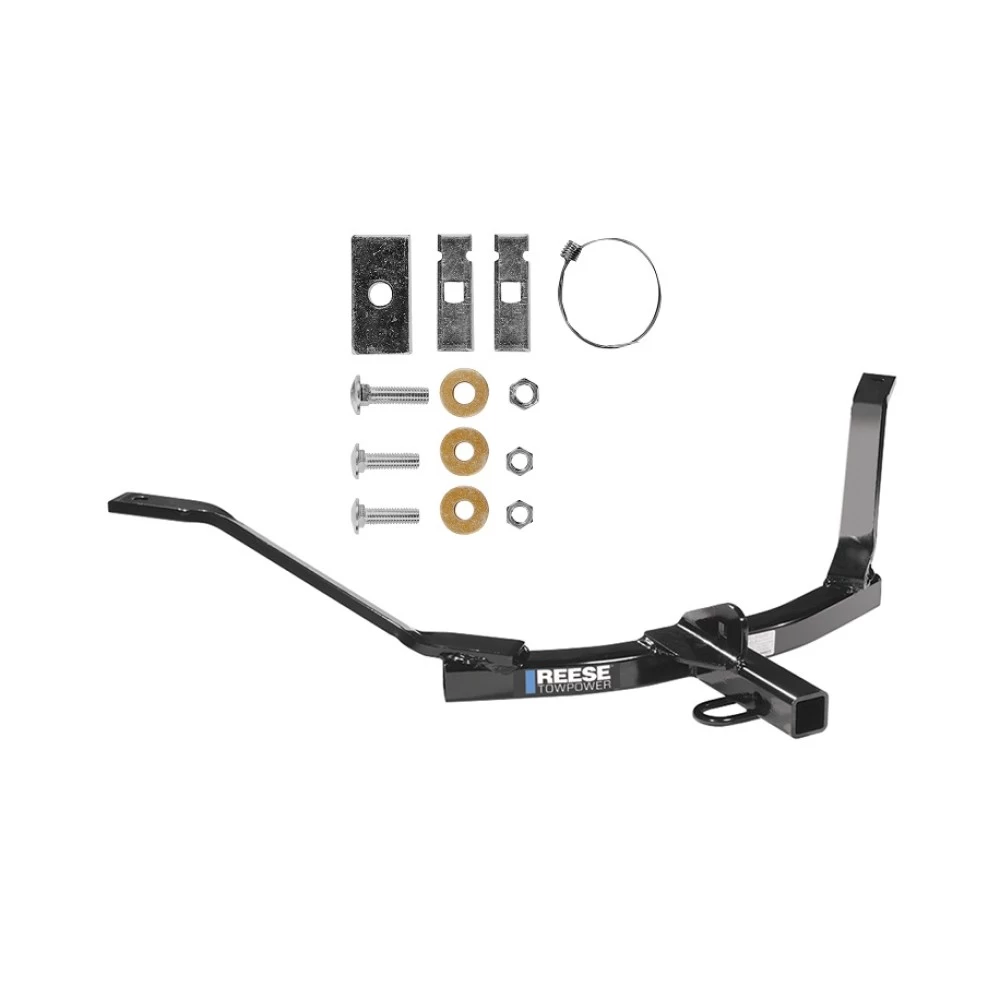

Trailer Hitch Specs:

Part Number	77161
Brand	Reese
Finish	Black Powdercoat
Class	1
Receiver size opening	1-1/4"
Max gross trailer weight	2,000 lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	200 lbs
Warranty	Lifetime
Installation Instructions

Wiring Kit Specs:

Part Number	118441
Brand	Tekonsha
Warranty	1 Year
Installation Instructions

Hitch Ball Specs:

Part Number	63810
Brand	Draw-Tite
Size	1-7/8" x 3/4" x 1-1/2"
Towing Capacity	2,000 lbs. GTW
Material	Chrome (Cold forged for superior strength)
Torque	torgue to 160 ft. lbs
Ball Hole Diameter	3/4"
Warranty	Lifetime

Questions or Comments? Call 702-374-8999

Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 03 04 05 06 07 2003 2004 2005 2006 2007

See Full Description

$326 ⁶⁴ $468.67 30% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$468.67 $326 ⁶⁴

Pay in 4 interest-free installments of $81.50 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $81.50 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Reese
Model: 77161 118441 3592 63810
SKU: 77161 118441 3592 63810
Includes: Class 1 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball

Compatibility Chart

Year Range	Make	Model	Style

Description

Part Number	77161
Brand	Reese
Finish	Black Powdercoat
Class	1
Receiver size opening	1-1/4"
Max gross trailer weight	2,000 lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	200 lbs
Warranty	Lifetime
Installation Instructions

Wiring Kit Specs:

Part Number	118441
Brand	Tekonsha
Warranty	1 Year
Installation Instructions

Hitch Ball Specs:

Part Number	63810
Brand	Draw-Tite
Size	1-7/8" x 3/4" x 1-1/2"
Towing Capacity	2,000 lbs. GTW
Material	Chrome (Cold forged for superior strength)
Torque	torgue to 160 ft. lbs
Ball Hole Diameter	3/4"
Warranty	Lifetime

Questions or Comments? Call 702-374-8999

Specifications

Specification
Attachment Location	Rear
Color	Black
Drawbar Included	No
Drilling Required	No
Gross Towing Weight	2,000 lbs.
Hitch Class	I
Material	Steel
Maximum Tongue Weight	200 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	1.25 in.
Receiver Type	Square Tube

Questions & Answers

Be the first to ask a question.

Reviews

Tags: 77161 , 118441 , 3592 , 63810 , Reese , Trailer , Tow , Hitch , 03-05 , Honda , Accord , Coupe , Complete , Package , Wiring , Draw , Bar , and , 2" , Ball , 03 , 04 , 05 , 2003 , 2004 , 2005

Get Expert Help

Reese Trailer Tow Hitch For 03-05 Honda Accord Coupe Complete Package w/ Wiring Draw Bar and 1-7/8" Ball Install Notes

Installation Instructions for Honda Accord (Includes Hybrid Models)

Part Numbers:

60953
24787
77161

Wiring Access Location:

Tools Required:

Wrenches: 11/16", 3/4"
Drill Bits: 9/16"

Specifications:

Max Gross Trailer Weight: 2,000 lb. (908 kg)
Max Tongue Weight: 200 lb. (90.8 kg)
Note: Do not exceed towing vehicle manufacturer’s rating.

Step-by-Step Instructions:

Lower Exhaust:
- Remove both rubber isolators from the muffler hangers to lower the exhaust.
- Be careful not to let the mufflers fall under their own weight.
Prepare Heat Shields:
- Mark and drill two holes, each 4 1/2” from the forward-most hole on the frame channel.
- Use the hitch as a template to ensure proper alignment.
- Remove the heat shield to drill the holes, then reinstall once complete.
Fishwire Carriage Bolts:
- Thread the bolt leader onto the carriage bolt and insert it through the reinforcing plate.
- Fishwire the bolt and plate through the access hole in the frame and pull them through the existing hole.
- Repeat on the other side and leave bolt leaders attached to prevent the hardware from falling back into the frame.
Install Clamping Block:
- Insert a 1-1/2” carriage bolt through the square hole in the hitch and the vehicle’s tie-down loop on the driver’s side.
- Attach the clamping block, conical toothed washer, and nut, then hand-tighten to hold the hitch in place.
Attach Hitch to Frame Straps:
- Fish the bolt leaders through the hitch’s frame strap holes.
- Carefully raise the hitch into position, remove the bolt leaders, and secure with conical toothed washers and nuts.
Tighten Fasteners:
- Use a torque wrench to tighten all:
  - 1/2” fasteners to 75 Lb.-Ft. (102 N*M).
  - 7/16” fasteners to 50 Lb.-Ft. (68 N*M).
Reinstall Exhaust:
- Raise the exhaust back into position and reattach the rubber isolators.

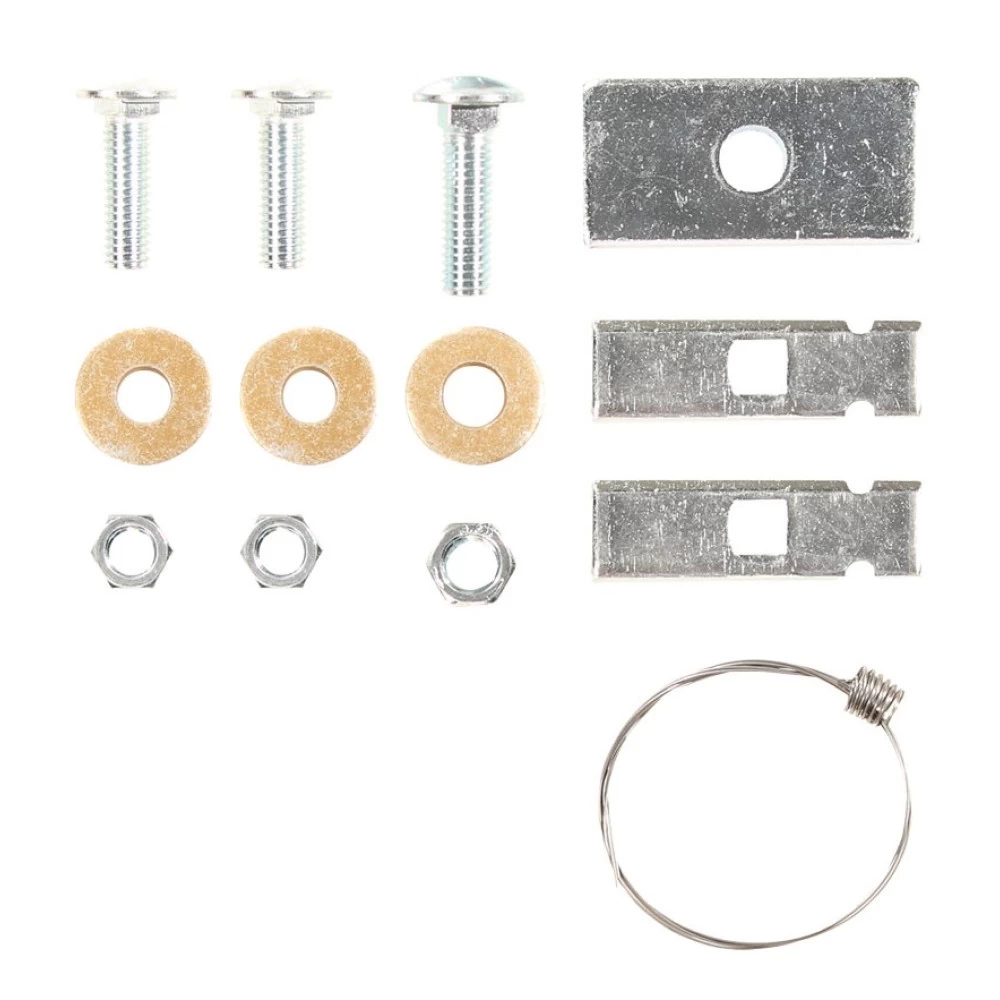

Hardware List:

(2) 7/16”-14 x 1-1/2” Carriage Bolts
(2) 1/2”-13 x 1-1/2” Carriage Bolts
(1) 1/2” Conical Toothed Washer
(2) 7/16” Conical Toothed Washers
(1) 1/2” Nut
(2) 7/16” Nuts
(2) Reinforcing Plates
(1) 1-1/2” x 3” Clamping Block
(2) Bolt Leaders

Safety Notes:

Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
Plug any holes in the trunk pan or body panels if the hitch is removed to prevent water and exhaust fumes from entering.
Replace any damaged hitch or ball immediately.
Always wear safety glasses when working beneath the vehicle.
Do not cut access or attachment holes with a torch.

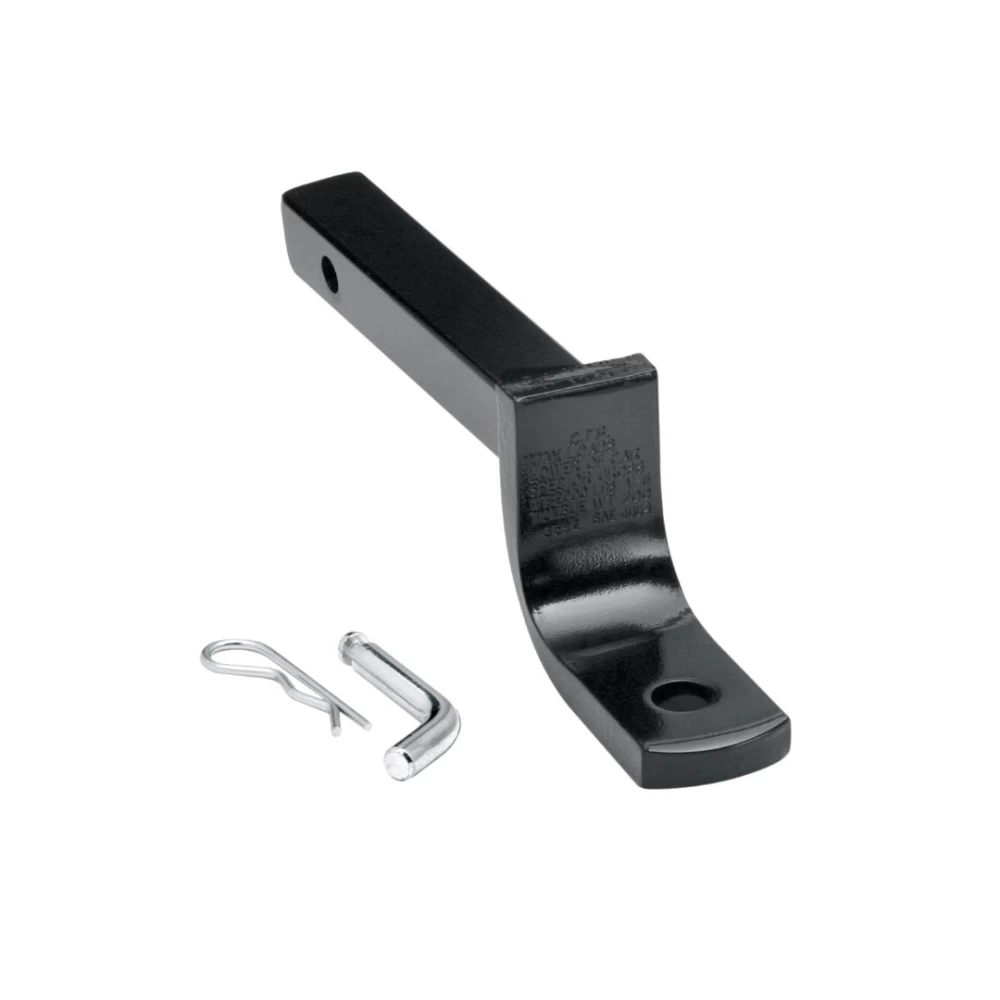

Drawbar:

Drawbar Kit: 3592
Important: The drawbar must be used in the rise position only.

Compliance:

This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.

Additional Notes:

For vehicles with an appearance panel, remove the panel covering the trunk pan before installation and return it to the vehicle owner.

Installation Instructions for Various Vehicles

Part Numbers:

60953
24787
77161

Wiring Access Location:

Tools Required:

Wrenches: 11/16", 3/4"
Drill Bits: 9/16"

Specifications:

Max Gross Trailer Weight: 2,000 lb. (908 kg)
Max Tongue Weight: 200 lb. (90.8 kg)
Note: Do not exceed towing vehicle manufacturer’s rating.

Step-by-Step Instructions:

Lower Exhaust:
- Remove both rubber isolators from the muffler hangers to lower the exhaust.
- Be careful not to let the mufflers fall under their own weight.
Prepare Heat Shields:
- Mark and drill two holes, each 4 1/2” from the forward-most hole on the frame channel.
- Use the hitch as a template to ensure proper alignment.
- Remove the heat shield to drill the holes, then reinstall once complete.
Fishwire Carriage Bolts:
- Thread the bolt leader onto the carriage bolt and insert it through the reinforcing plate.
- Fishwire the bolt and plate through the access hole in the frame and pull them through the existing hole.
- Repeat on the other side and leave bolt leaders attached to prevent the hardware from falling back into the frame.
Install Clamping Block:
- Insert a 1-1/2” carriage bolt through the square hole in the hitch and the vehicle’s tie-down loop on the driver’s side.
- Attach the clamping block, conical toothed washer, and nut, then hand-tighten to hold the hitch in place.
Attach Hitch to Frame Straps:
- Fish the bolt leaders through the hitch’s frame strap holes.
- Carefully raise the hitch into position, remove the bolt leaders, and secure with conical toothed washers and nuts.
Tighten Fasteners:
- Use a torque wrench to tighten all:
  - 1/2” fasteners to 75 Lb.-Ft. (102 N*M).
  - 7/16” fasteners to 50 Lb.-Ft. (68 N*M).
Reinstall Exhaust:
- Raise the exhaust back into position and reattach the rubber isolators.

Hardware List:

(2) 7/16”-14 x 1-1/2” Carriage Bolts
(2) 1/2”-13 x 1-1/2” Carriage Bolts
(1) 1/2” Conical Toothed Washer
(2) 7/16” Conical Toothed Washers
(1) 1/2” Nut
(2) 7/16” Nuts
(2) Reinforcing Plates
(1) 1-1/2” x 3” Clamping Block
(2) Bolt Leaders

Safety Notes:

Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
Plug any holes in the trunk pan or body panels if the hitch is removed to prevent water and exhaust fumes from entering.
Replace any damaged hitch or ball immediately.
Always wear safety glasses when working beneath the vehicle.
Do not cut access or attachment holes with a torch.

Drawbar:

Drawbar Kit: 3592
Important: The drawbar must be used in the rise position only.

Compliance:

This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.

Additional Notes:

For vehicles with an appearance panel, remove the panel covering the trunk pan before installation and return it to the vehicle owner.

Additional Information:

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty:

For complete warranty instructions, please download the full installation PDF.

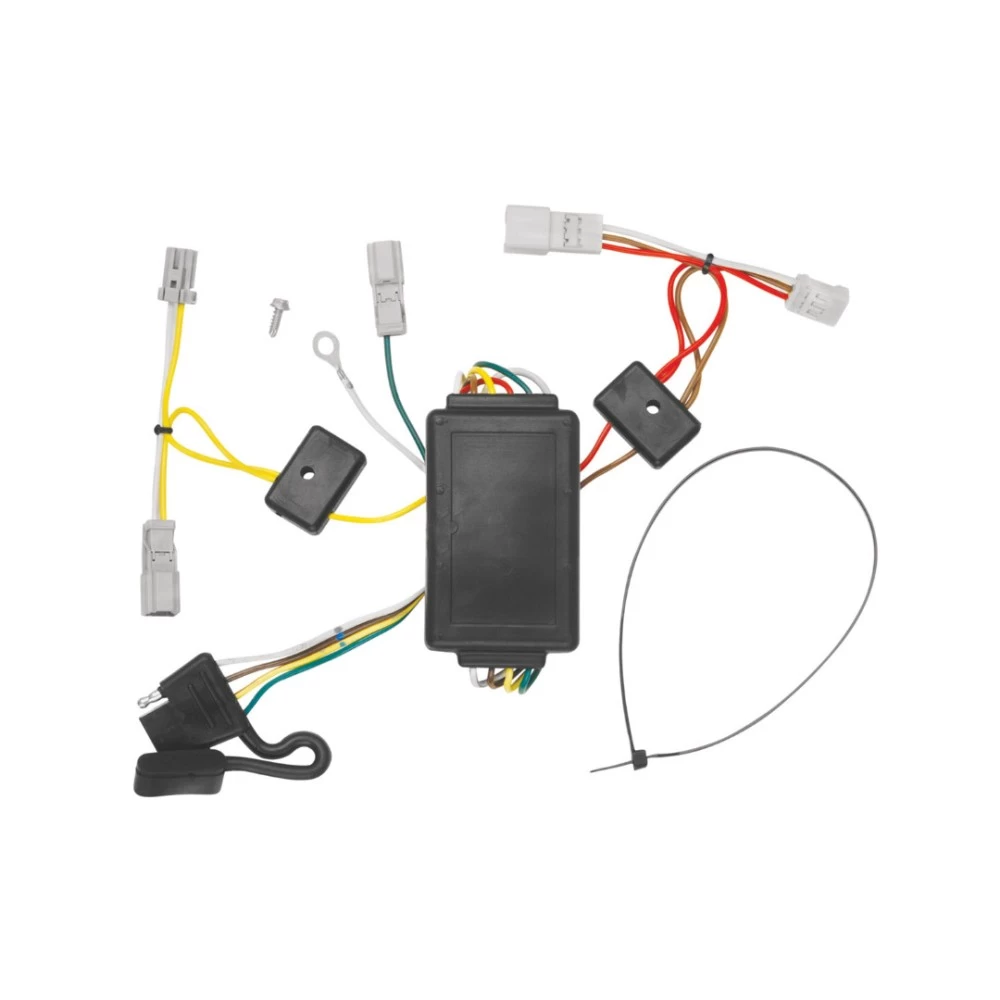

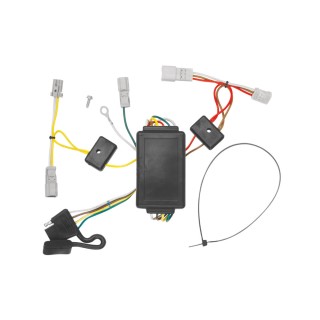

Installation Instructions for T-One® T-Connector

Part Numbers:

118441

Tools Required:

Trim Panel Remover
Screwdriver
Drill
Wrench

Step-by-Step Instructions:

Open the Trunk:
- Remove the threshold panel.
- Partially remove the felt trunk liner on the driver’s side to expose the taillight wiring harness.
Disconnect the Taillight Harness:
- Separate the harness connectors carefully, ensuring not to break the locking tabs.
Connect the T-Connector:
- Insert the T-Connector between the harness connectors and lock it into place.
- Note: The single plug-in for the right turn function is on the driver’s side.
- Ensure the connectors are fully inserted and the locking tabs are secured.
Ground the White Wire:
- Use the existing ground stud or locate a suitable grounding point.
- Drill a 3/32” hole if necessary, and secure the white wire with the provided eyelet and screw.
- Caution: Verify what is behind any surface before drilling to avoid vehicle damage or personal injury. Do not drill into exposed surfaces.
Mount the Black Converter Box:
- Locate a flat surface on the driver’s side in an out-of-the-way area.
- Mount the T-Connector’s black converter box with the provided double-sided tape.
Reposition the Trunk Liner:
- Reattach the threshold panel and reposition the trunk liner.
Store the 4-Flat Connector:
- Store the 4-flat connector in the trunk area when not in use.
Test the Installation:
- Ensure all connections are complete for the T-Connector to function properly.
- Test the installation with a test light or trailer.
Warning:
- Overloading circuits can cause fires. Do not exceed the following ratings:
  - Max. stop/turn light: 1 per side (2.1 amps)
  - Max. tail lights: 5 amps
- Refer to the vehicle owner’s manual and instruction sheet for additional information.

Safety Notes:

Always wear safety glasses and follow safety precautions during installation.
Avoid routing wires near sharp edges or hot components that may damage the harness.
Follow all vehicle warnings and installation instructions carefully.

Manufacturer Notes:

Store these instructions for future reference.
Refer to the vehicle owner’s manual for additional details.

Installation Instructions for T-One® T-Connector

Part Numbers:

118441

Tools Required:

Trim Panel Remover
Screwdriver
Drill
Wrench

Step-by-Step Instructions:

Open the Trunk:
- Remove the threshold panel.
- Partially remove the felt trunk liner on the driver’s side to expose the taillight wiring harness.
Disconnect the Taillight Harness:
- Separate the harness connectors carefully, ensuring not to break the locking tabs.
Connect the T-Connector:
- Insert the T-Connector between the harness connectors and lock it into place.
- Note: The single plug-in for the right turn function is on the driver’s side.
- Ensure the connectors are fully inserted and the locking tabs are secured.
Ground the White Wire:
- Use the existing ground stud or locate a suitable grounding point.
- Drill a 3/32” hole if necessary, and secure the white wire with the provided eyelet and screw.
- Caution: Verify what is behind any surface before drilling to avoid vehicle damage or personal injury. Do not drill into exposed surfaces.
Mount the Black Converter Box:
- Locate a flat surface on the driver’s side in an out-of-the-way area.
- Mount the T-Connector’s black converter box with the provided double-sided tape.
Reposition the Trunk Liner:
- Reattach the threshold panel and reposition the trunk liner.
Store the 4-Flat Connector:
- Store the 4-flat connector in the trunk area when not in use.
Test the Installation:
- Ensure all connections are complete for the T-Connector to function properly.
- Test the installation with a test light or trailer.
Warning:
- Overloading circuits can cause fires. Do not exceed the following ratings:
  - Max. stop/turn light: 1 per side (2.1 amps)
  - Max. tail lights: 5 amps
- Refer to the vehicle owner’s manual and instruction sheet for additional information.

Safety Notes:

Always wear safety glasses and follow safety precautions during installation.
Avoid routing wires near sharp edges or hot components that may damage the harness.
Follow all vehicle warnings and installation instructions carefully.

Manufacturer Notes:

Store these instructions for future reference.
Refer to the vehicle owner’s manual for additional details.
For technical support and assistance, visit www.trailerjacks.com or call 877-869-6690.
For complete warranty information, please download the full installation PDF.
