Reese Trailer Tow Hitch For 03-07 Cadillac CTS 04-07 V Deluxe Package Wiring 2" and 1-7/8" Ball and Lock

Reese Trailer Tow Hitch For 03‑07 Cadillac CTS 04‑07 V Deluxe Package Wiring 2" and 1‑7/8" Ball and Lock

Name: Reese Trailer Tow Hitch For 03-07 Cadillac CTS 04-07 V Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
Brand: Reese
Price: 389.12 USD
Availability: InStock

Model: 77143 118440 3594 63810 63820 580407 2211

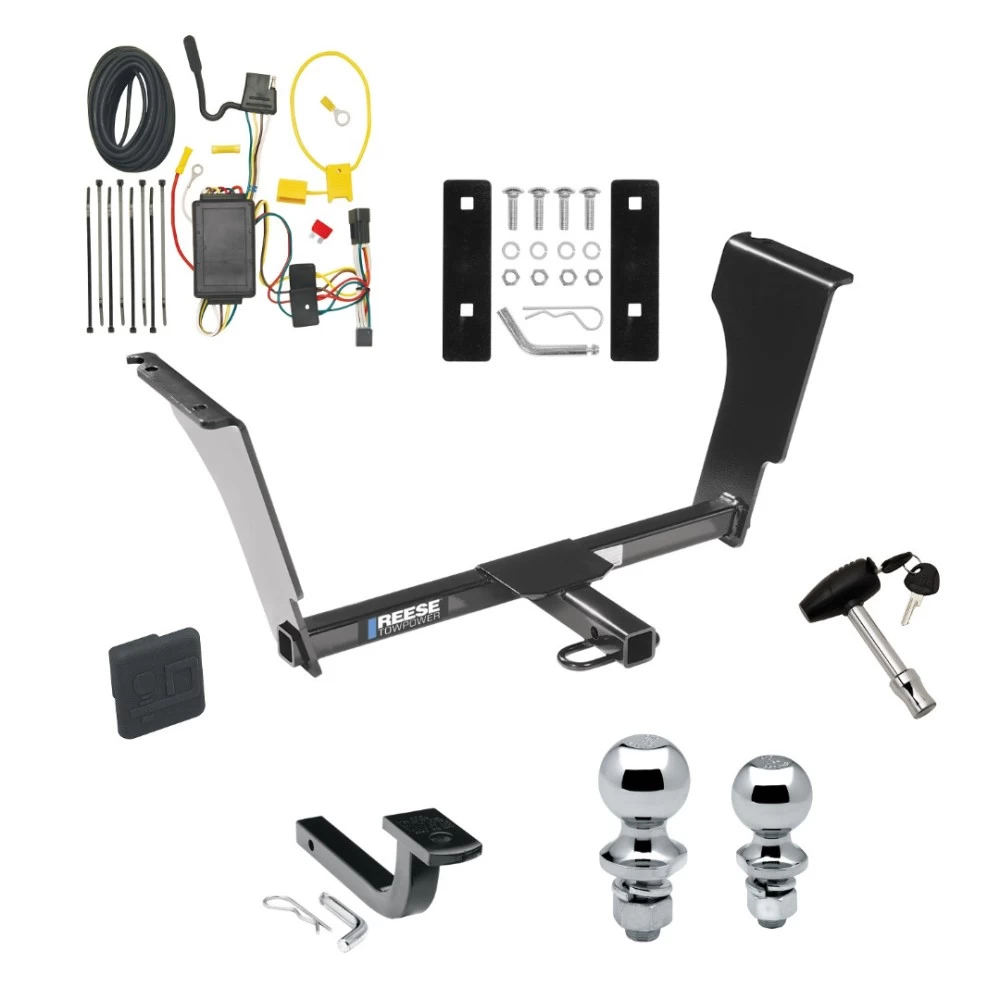

Includes Everything Pictured:
Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Wiring Harness (Plug & Play)
1-7/8" and 2" Chrome Ball
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions

Fits The Following Vehicles

2003 - 2007 Cadillac, CTS, All Styles
2004 - 2007 Cadillac, CTS V, All Styles

Trailer Hitch Specs:

Part Number	77143
Brand	Reese
Finish	Black Powdercoat
Class	1
Receiver size opening	1-1/4"
Max gross trailer weight	2,000 lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	200 lbs
Warranty	Lifetime
Installation Instructions

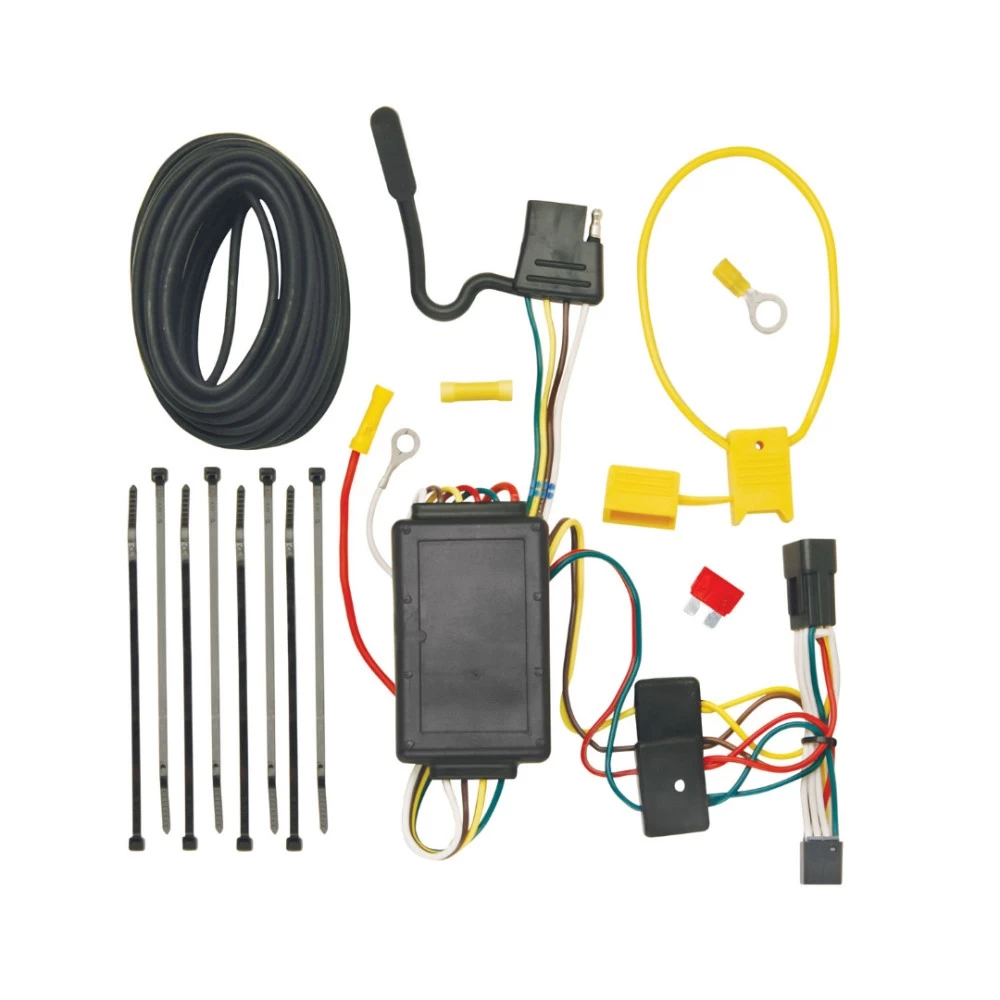

Wiring Kit Specs:

Part Number	118440
Brand	Tekonsha
Warranty	1 Year
Installation Instructions

Hitch Ball Specs:

Part Number	63820
Brand	Draw-Tite
Size	2" x 3/4" x 1-1/2"
Towing Capacity	3,500 lbs. GTW
Material	Chrome
Torque	Torque to 160 ft. lbs
Shank Diameter	3/4"
Warranty	Lifetime

Hitch Ball Specs:

Part Number	63810
Brand	Draw-Tite
Size	1-7/8" x 3/4" x 1-1/2"
Towing Capacity	2,000 lbs. GTW
Material	Chrome (Cold forged for superior strength)
Torque	torgue to 160 ft. lbs
Ball Hole Diameter	3/4"
Warranty	Lifetime

Security Lock Pin Specs:

Part Number	580407
Fits	2" and 1-7/8" Tow Receivers
Brand	Draw-Tite
Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap
Warranty	Lifetime

Rubber Hitch Plug Specs:

Part Number	2211
Fits	1-1/4" Receiver
Brand	Draw-Tite
Attaches to any 1-1/4" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 1-1/4" x 1-1/4" hitch opening Prevents any buildup of dirt and debris
Warranty	1 Year

Questions or Comments? Call 702-374-8999

Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 03 04 05 06 07 08 09 10 11 12 13 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013

See Full Description

$389 ¹² $550.66 29% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$550.66 $389 ¹²

Pay in 4 interest-free installments of $97.25 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $97.25 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Reese
Model: 77143 118440 3594 63810 63820 580407 2211
SKU: 77143 118440 3594 63810 63820 580407 2211
Includes: Class 1 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball, Trailer Tow Hitch Ball, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover

Compatibility Chart

Description

Trailer Hitch Specs:

Part Number	77143
Brand	Reese
Finish	Black Powdercoat
Class	1
Receiver size opening	1-1/4"
Max gross trailer weight	2,000 lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	200 lbs
Warranty	Lifetime
Installation Instructions

Wiring Kit Specs:

Part Number	118440
Brand	Tekonsha
Warranty	1 Year
Installation Instructions

Hitch Ball Specs:

Part Number	63820
Brand	Draw-Tite
Size	2" x 3/4" x 1-1/2"
Towing Capacity	3,500 lbs. GTW
Material	Chrome
Torque	Torque to 160 ft. lbs
Shank Diameter	3/4"
Warranty	Lifetime

Hitch Ball Specs:

Part Number	63810
Brand	Draw-Tite
Size	1-7/8" x 3/4" x 1-1/2"
Towing Capacity	2,000 lbs. GTW
Material	Chrome (Cold forged for superior strength)
Torque	torgue to 160 ft. lbs
Ball Hole Diameter	3/4"
Warranty	Lifetime

Security Lock Pin Specs:

Part Number	580407
Fits	2" and 1-7/8" Tow Receivers
Brand	Draw-Tite
Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap
Warranty	Lifetime

Rubber Hitch Plug Specs:

Part Number	2211
Fits	1-1/4" Receiver
Brand	Draw-Tite
Attaches to any 1-1/4" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 1-1/4" x 1-1/4" hitch opening Prevents any buildup of dirt and debris
Warranty	1 Year

Questions or Comments? Call 702-374-8999

Specifications

Specification
Attachment Location	Rear
Color	Black
Drawbar Included	No
Drilling Required	Yes
Gross Towing Weight	2,000 lbs.
Hitch Class	I
Material	Steel
Maximum Tongue Weight	200 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	1.25 in.
Receiver Type	Square Tube

Questions & Answers

Be the first to ask a question.

Reviews

Tags: 77143 , 118440 , 3594 , 63810 , 63820 , 580407 , 2211 , Trailer , Tow , Hitch , 03-07 , Cadillac , CTS , 04-07 , V , Complete , Package , Wiring , Draw , Bar , and , 2" , Ball , 03 , 04 , 05 , 06 , 07 , 2003 , 2004 , 2005 , 2006 , 2007

Get Expert Help

Reese Trailer Tow Hitch For 03-07 Cadillac CTS 04-07 V Deluxe Package Wiring 2" and 1-7/8" Ball and Lock Install Notes

Installation Instructions for Cadillac CTS, CTS-V, and STS

Part Numbers:

77143
24767
60830

Wiring Access Location:

2003-2004 CTS: PC3
2005-2006 CTS & CTS-V: PC3, PC4
2005-2006 STS: PC3, PC4

Tools Required:

Wrenches: 11/16"
Drill Bits: 1/8", 1/2"
Sealant

Specifications:

Max Gross Trailer Weight: 2,000 lb. (908 kg)
Max Tongue Weight: 200 lb. (90.8 kg)
Note: Do not exceed the towing vehicle manufacturer’s rating.

Step-by-Step Instructions:

Lower Muffler(s):
- Remove the two (2) rearmost exhaust hangers and one (1) forward exhaust hanger to lower the muffler(s).
Prepare the Trunk:
- Inside the trunk, remove the spare tire cover.
- Detach the plastic liner at the rear of the trunk by removing four (4) net tie-downs.
- Remove the spare tire or storage bin for better access to the trunk floor. Use a screwdriver to release the retainer washer and pull the bin upwards.
- Roll back the carpet and padding to expose the trunk pan.
Position Hitch:
- Carefully raise the hitch into position to avoid scratching the fascia.
- For dual exhaust models, raise one bracket between the trunk pan and exhaust, and slide the other bracket over the second exhaust.
- Align the rear edge of the hitch brackets flush with the frame end panel.
Mark and Drill Holes:
- Using the hitch as a template, mark and center punch two (2) holes on each side.
- Lower the hitch and drill 1/8” pilot holes through the trunk pan. Adjust alignment if needed, then enlarge the holes to 1/2".
Install Plates and Bolts:
- Place the mounting plates over the drilled holes inside the trunk.
- Insert carriage bolts through the plates and trunk pan. Trim the carpet padding underneath if needed for the plate to sit flat.
- Important: Seal all drilled holes to prevent exhaust fumes from entering the trunk.
Attach Hitch:
- Raise the hitch into position and secure it using lock washers and hex nuts on the carriage bolts.
- Torque all 7/16"-14 GR5 fasteners to 50 Lb.-Ft. (68 N*M).
Reassemble Trunk Components:
- Roll the carpet and padding back into place.
- Reinstall the spare tire or storage bin and retainer washer (use a deep socket for this step).
- Reattach the spare tire cover and the plastic liner.
Reinstall Exhaust:
- Reattach all exhaust hangers removed earlier.

Hardware List:

(4) Carriage Bolts: 7/16"-14 x 1.5"
(4) Lock Washers: 7/16"
(2) Plates
(4) Hex Nuts: 7/16"-14

Safety Notes:

Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
If the hitch is removed, plug any holes in the trunk pan to prevent water and exhaust fumes from entering.
Replace any damaged hitch or ball immediately.
Always observe safety precautions and wear eye protection when working beneath the vehicle.
Do not use a torch to cut access or attachment holes.

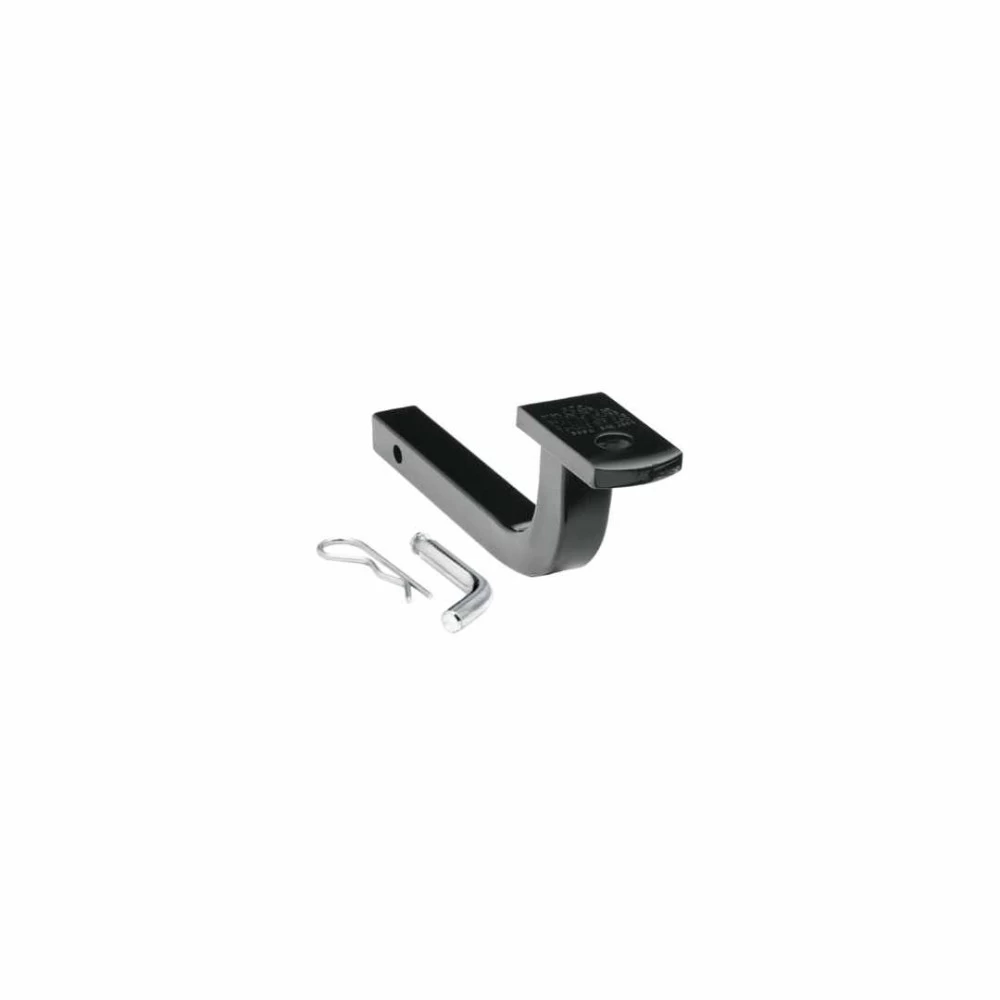

Drawbar:

Drawbar Kit: 3594
Important: The drawbar must be used in the rise position only.

Compliance:

This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.

Additional Notes:

Check the hitch frequently to ensure all fasteners remain tight.

Installation Instructions for Cadillac CTS, CTS-V, and STS

Part Numbers:

77143
24767
60830

Wiring Access Location:

2003-2004 CTS: PC3
2005-2006 CTS & CTS-V: PC3, PC4
2005-2006 STS: PC3, PC4

Tools Required:

Wrenches: 11/16"
Drill Bits: 1/8", 1/2"
Sealant

Specifications:

Max Gross Trailer Weight: 2,000 lb. (908 kg)
Max Tongue Weight: 200 lb. (90.8 kg)
Note: Do not exceed the towing vehicle manufacturer’s rating.

Step-by-Step Instructions:

Lower Muffler(s):
- Remove the two (2) rearmost exhaust hangers and one (1) forward exhaust hanger to lower the muffler(s).
Prepare the Trunk:
- Inside the trunk, remove the spare tire cover.
- Detach the plastic liner at the rear of the trunk by removing four (4) net tie-downs.
- Remove the spare tire or storage bin for better access to the trunk floor. Use a screwdriver to release the retainer washer and pull the bin upwards.
- Roll back the carpet and padding to expose the trunk pan.
Position Hitch:
- Carefully raise the hitch into position to avoid scratching the fascia.
- For dual exhaust models, raise one bracket between the trunk pan and exhaust, and slide the other bracket over the second exhaust.
- Align the rear edge of the hitch brackets flush with the frame end panel.
Mark and Drill Holes:
- Using the hitch as a template, mark and center punch two (2) holes on each side.
- Lower the hitch and drill 1/8” pilot holes through the trunk pan. Adjust alignment if needed, then enlarge the holes to 1/2".
Install Plates and Bolts:
- Place the mounting plates over the drilled holes inside the trunk.
- Insert carriage bolts through the plates and trunk pan. Trim the carpet padding underneath if needed for the plate to sit flat.
- Important: Seal all drilled holes to prevent exhaust fumes from entering the trunk.
Attach Hitch:
- Raise the hitch into position and secure it using lock washers and hex nuts on the carriage bolts.
- Torque all 7/16"-14 GR5 fasteners to 50 Lb.-Ft. (68 N*M).
Reassemble Trunk Components:
- Roll the carpet and padding back into place.
- Reinstall the spare tire or storage bin and retainer washer (use a deep socket for this step).
- Reattach the spare tire cover and the plastic liner.
Reinstall Exhaust:
- Reattach all exhaust hangers removed earlier.

Hardware List:

(4) Carriage Bolts: 7/16"-14 x 1.5"
(4) Lock Washers: 7/16"
(2) Plates
(4) Hex Nuts: 7/16"-14

Safety Notes:

Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
If the hitch is removed, plug any holes in the trunk pan to prevent water and exhaust fumes from entering.
Replace any damaged hitch or ball immediately.
Always observe safety precautions and wear eye protection when working beneath the vehicle.
Do not use a torch to cut access or attachment holes.

Drawbar:

Drawbar Kit: 3594
Important: The drawbar must be used in the rise position only.

Compliance:

This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.

Additional Notes:

Check the hitch frequently to ensure all fasteners remain tight.
Do not exceed the towing vehicle’s recommended capacities.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Revision:

24767 Rev. A 6/25/2014

Installation Instructions for T-One® T-Connector

Part Numbers:

118440

Tools Required:

Trim Panel Remover
10mm Socket & Ratchet or 10mm Wrench
Wire Crimpers
Wire Cutters
Test Probe

Step-by-Step Instructions:

Locate the Vehicle Wiring Harness:
- Partially remove the plastic threshold cover and felt trunk liner inside the rear cargo area to locate the vehicle’s wiring harness near each taillight housing.
Connect the Driver’s Side T-Connector:
- Locate the taillight wiring harness connection point near the driver’s side taillight housing.
- Plug the T-Connector with the yellow wire between the vehicle’s mating connectors.
- Ensure the connectors are fully inserted with the locking tabs in place.
Ground the White Wire:
- Locate the existing ground stud on the driver’s side.
- Loosen the bolt, place the eyelet on the stud, and re-tighten the bolt.
- Warning: Ensure all other ground connections remain secure when removing and reattaching the ground stud.
Route the Power Wire:
- Inside the trunk, connect the black 12-gauge wire to the red wire from the T-Connector black box using the supplied yellow butt connector.
- Route the black wire either through a grommet along the exterior frame or follow existing wiring along the thresholds to the engine compartment up to the battery, avoiding areas that may pinch or damage the wire.
Connect to the Battery:
- Disconnect the vehicle’s negative (-) battery cable.
- Remove the fuse from the yellow fuse holder (if not already removed).
- Cut the fuse holder wire and attach the ring terminal. Secure the ring terminal to the vehicle’s positive (+) battery cable.
- Connect the other end of the fuse holder to the black 12-gauge wire using the provided yellow butt connector.
Reconnect the Battery:
- Reconnect the vehicle’s negative (-) battery cable.
- Insert the 10-amp fuse into the fuse holder.
Secure the T-Connector Harness:
- Use the provided cable ties to secure the T-Connector harness, avoiding areas that could cut or pinch the wire.
- Clean a flat area on the floor of the rear cargo area on the driver’s side using a mixture of rubbing alcohol and water.
- Mount the T-Connector black box using the provided double-sided tape.
- Replace the trunk threshold and felt trunk liner.
Store the 4-Flat Connector:
- Store the 4-flat connector in the rear cargo area when not in use.
Test the Installation:
- Verify all connections are complete.
- Test the installation with a test light or trailer.
Warning:
- Overloading circuits can cause fires. Do not exceed the following ratings:
  - Max. stop/turn light: 1 per side (2.1 amps)
  - Max. tail lights: 4.2 amps
- Refer to the vehicle owner’s manual and instruction sheet for additional details.

Safety Notes:

Always wear safety glasses and use proper precautions during installation.
Avoid routing wires near sharp edges or hot components that may damage the harness.
Follow all vehicle warnings and installation instructions carefully.

Manufacturer Notes:

Store these instructions for future reference.
Refer to the vehicle owner’s manual for additional details.

Installation Instructions for T-One® T-Connector

Part Numbers:

118440

Tools Required:

Trim Panel Remover
10mm Socket & Ratchet or 10mm Wrench
Wire Crimpers
Wire Cutters
Test Probe

Step-by-Step Instructions:

Locate the Vehicle Wiring Harness:
- Partially remove the plastic threshold cover and felt trunk liner inside the rear cargo area to locate the vehicle’s wiring harness near each taillight housing.
Connect the Driver’s Side T-Connector:
- Locate the taillight wiring harness connection point near the driver’s side taillight housing.
- Plug the T-Connector with the yellow wire between the vehicle’s mating connectors.
- Ensure the connectors are fully inserted with the locking tabs in place.
Ground the White Wire:
- Locate the existing ground stud on the driver’s side.
- Loosen the bolt, place the eyelet on the stud, and re-tighten the bolt.
- Warning: Ensure all other ground connections remain secure when removing and reattaching the ground stud.
Route the Power Wire:
- Inside the trunk, connect the black 12-gauge wire to the red wire from the T-Connector black box using the supplied yellow butt connector.
- Route the black wire either through a grommet along the exterior frame or follow existing wiring along the thresholds to the engine compartment up to the battery, avoiding areas that may pinch or damage the wire.
Connect to the Battery:
- Disconnect the vehicle’s negative (-) battery cable.
- Remove the fuse from the yellow fuse holder (if not already removed).
- Cut the fuse holder wire and attach the ring terminal. Secure the ring terminal to the vehicle’s positive (+) battery cable.
- Connect the other end of the fuse holder to the black 12-gauge wire using the provided yellow butt connector.
Reconnect the Battery:
- Reconnect the vehicle’s negative (-) battery cable.
- Insert the 10-amp fuse into the fuse holder.
Secure the T-Connector Harness:
- Use the provided cable ties to secure the T-Connector harness, avoiding areas that could cut or pinch the wire.
- Clean a flat area on the floor of the rear cargo area on the driver’s side using a mixture of rubbing alcohol and water.
- Mount the T-Connector black box using the provided double-sided tape.
- Replace the trunk threshold and felt trunk liner.
Store the 4-Flat Connector:
- Store the 4-flat connector in the rear cargo area when not in use.
Test the Installation:
- Verify all connections are complete.
- Test the installation with a test light or trailer.
Warning:
- Overloading circuits can cause fires. Do not exceed the following ratings:
  - Max. stop/turn light: 1 per side (2.1 amps)
  - Max. tail lights: 4.2 amps
- Refer to the vehicle owner’s manual and instruction sheet for additional details.

Safety Notes:

Always wear safety glasses and use proper precautions during installation.
Avoid routing wires near sharp edges or hot components that may damage the harness.
Follow all vehicle warnings and installation instructions carefully.

Manufacturer Notes:

Store these instructions for future reference.
Refer to the vehicle owner’s manual for additional details.
For technical support and assistance, visit www.trailerjacks.com or call 877-869-6690.
For complete warranty instructions, please download the full installation PDF.
