Reese Trailer Tow Hitch For 05‑09 Buick LaCrosse Allure 97‑05 Century Intrigue w/ Draw Bar Kit

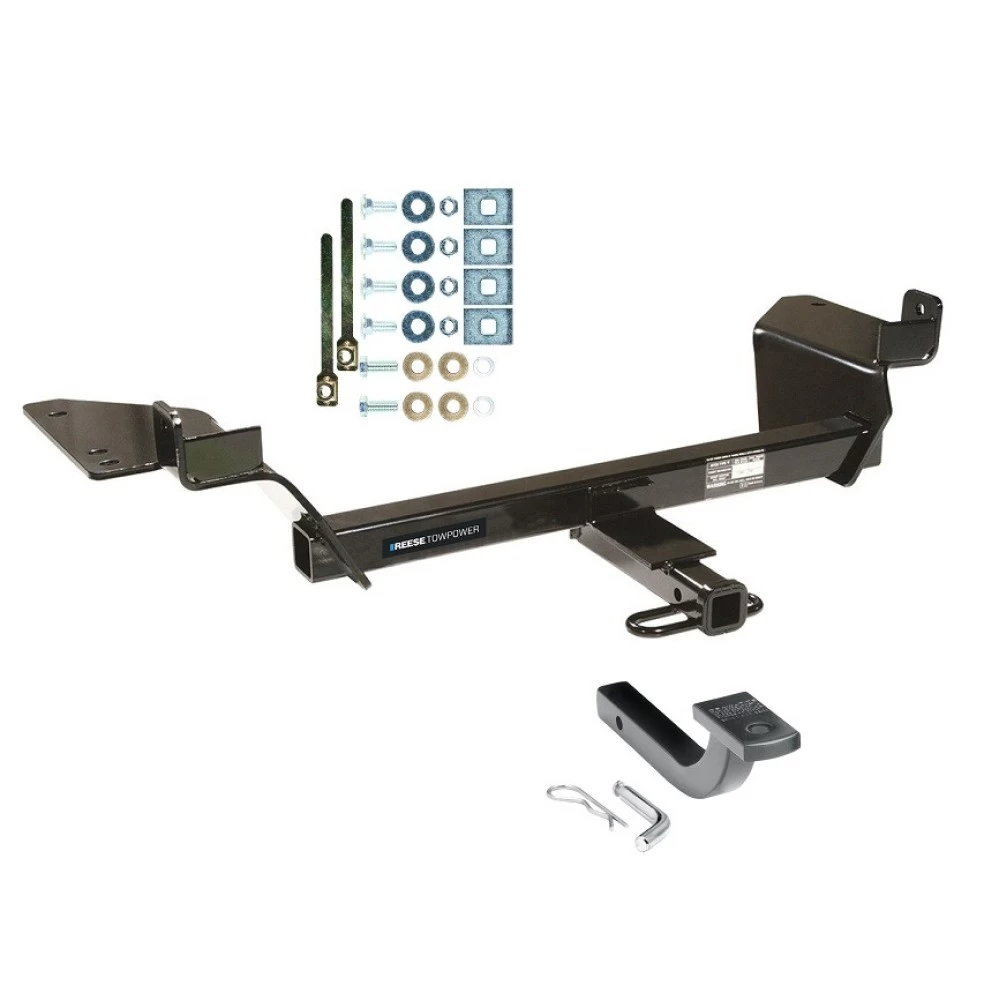

Model: 06384 36061Includes Everything Pictured:

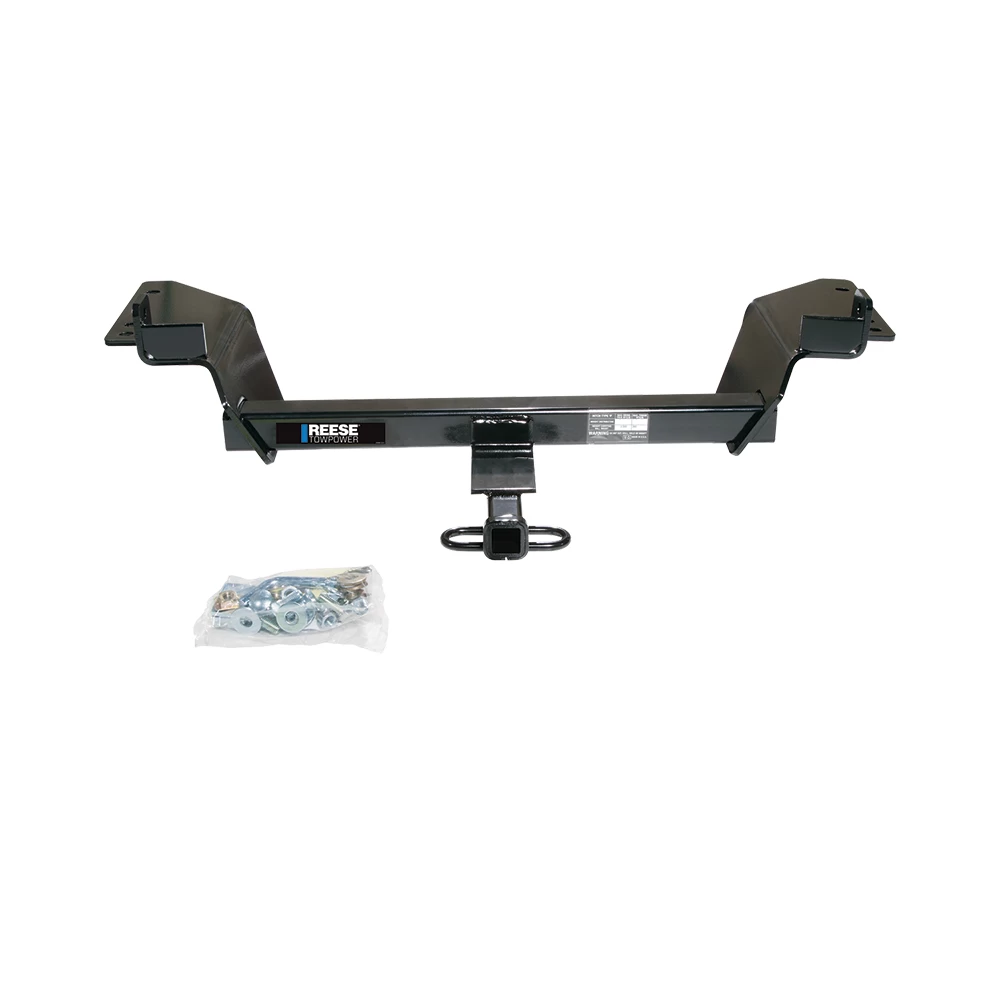

Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Installation Hardware
Installation Instructions
Fits The Following Vehicles:
1997 - 2005 Buick, Century, Sedan1998 - 2002 Oldsmobile, Intrigue, All Styles
2005 - 2009 Buick, Allure, (Canada Only)
2005 - 2009 Buick, LaCrosse, Except Super
Trailer Hitch Specs:
| Part Number | 06384 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 2 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 300 lbs |
| Warranty | Lifetime |

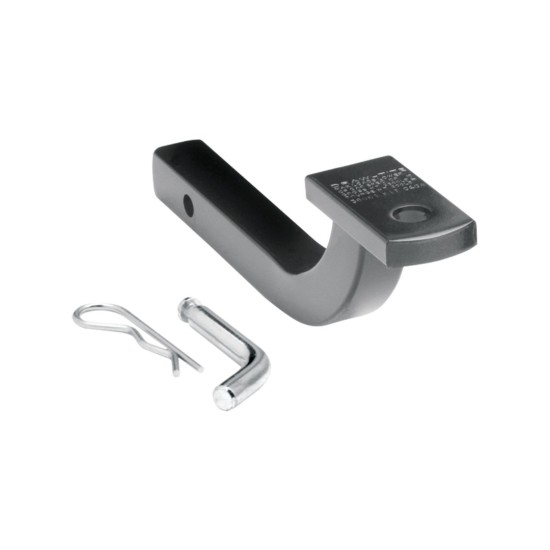

Draw-Tite Ball Mount made out of heavy duty steel can be used in either rise or drop position. Ball mount will allow you to hook up your trailer to your vehicle. Simply slide it inside of your hitch receiver opening and secure it with a pin/clip or lock (pin and clip included)
Specifications:
| Fits | 1-1/4" x 1-1/4" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9-3/4" From Center of Pin Hole to Center of Ball Hole |
| Rise | 3-1/8" From inside top of hitch opening |
| Towing Capacity in Rise Position | 3,500 lb Gross Towing Weight 300 lb Tongue Weight |
| Towing Capacity in Drop Position | 3,500 lb Gross Towing Weight 300 lb Tongue Weight |
| Ball Hole Diameter | 3/4" |
| Pin hole diameter | 1/2" |
| Warranty | Limited Lifetime |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 97 98 99 00 01 02 03 04 05 06 07 08 09 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009
$270 18 $428.36 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$428.36 $270 18
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $67.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 06384 36061
- Includes: Class 2 Trailer Tow Hitch, Trailer Tow Hitch Ball Mount
Compatibility Chart
Get Expert Help
Reese Trailer Tow Hitch For 05-09 Buick LaCrosse Allure 97-05 Century Intrigue w/ Draw Bar Kit Install Notes
Installation Instructions for Buick LaCrosse, Buick Allure (Canada Only), Buick Century, and Oldsmobile Intrigue
Part Numbers:
- 06384
- 36374
- 90981
Wiring Access Location:
- PC3, PC4
Tools Required:
- Wrenches: 3/4", 7/8"
- Drill Bits: 1/2"
Step-by-Step Instructions:
-
Lower Exhaust:
- Detach (5) rubber exhaust hangers and lower the rearward portion of the exhaust system.
-
Insert Fasteners into Frame Rails:
- Insert carriage bolts and blocks into the frame rails through the access holes shown in Figure 1.
-
Raise Hitch into Position:
- Raise the hitch into position and check side-to-side clearance with the frame.
- Tape 1/2" washers to the hitch as necessary to eliminate any gaps (see Figure 2).
-
Secure Hitch:
- Attach the hitch using the carriage bolts and secure it as shown in Figure 1.
-
Drill Holes:
- Using the hitch as a template, drill two (2) holes in the sides of the frame rails.
-
Install Side Fasteners:
- Insert hex bolts and lock washers through the side frame rails and secure with handle nuts inserted through the end of the frame rail.
-
Reinstall Exhaust System:
- Reattach the exhaust system using the original rubber hangers.

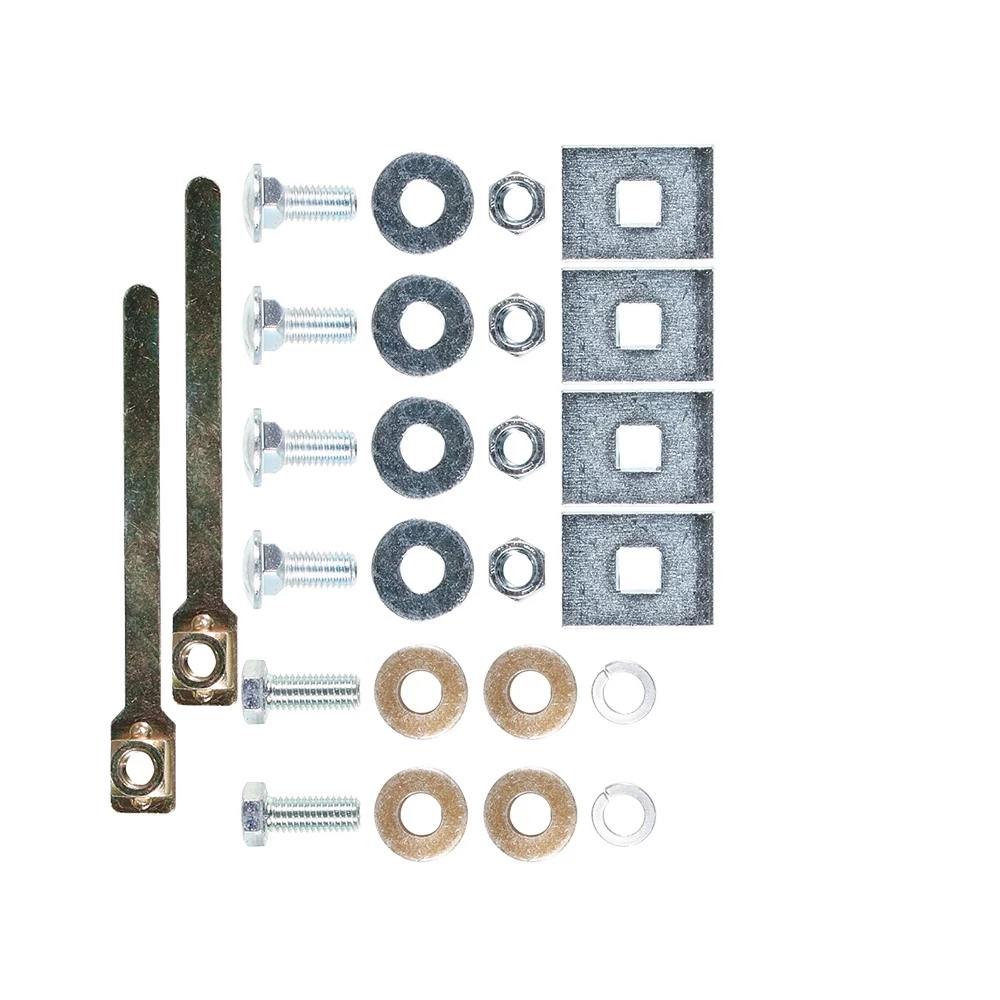

Hardware List:
- (4) Carriage Bolt, 1/2"-13 x 1 1/4"
- (2) Hex Bolt, 1/2"-13 x 1 1/4"
- (4) Spacer Block, 1/4" x 1 1/2" x 2"
- (4) Conical Toothed Washer, 1/2"
- (4) Flat Washer, 1/2"
- (4) Hex Nut, 1/2"-13
- (2) Handle Nut Assembly
- (2) Lock Washer, 1/2"
Torque Specifications:
- Tighten all 1/2"-13 GR5 fasteners to 75 lb-ft (102 N*m) using a torque wrench.
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath a vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight: 3,500 lb (1,589 kg)
- Max Tongue Weight: 300 lb (136 kg)
- Drawbar must be used in the RISE position only.
Additional Notes:
- Drawbar Kit: 36061 or 90005 (sold separately)
- Fastener Kit: 36374F or 90981F
- Complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Installation Instructions for Buick LaCrosse, Buick Allure (Canada Only), Buick Century, and Oldsmobile Intrigue
Part Numbers:
- 06384
- 36374
- 90981
Wiring Access Location:
- PC3, PC4
Tools Required:
- Wrenches: 3/4", 7/8"
- Drill Bits: 1/2"
Step-by-Step Instructions:
-
Lower Exhaust:
- Detach (5) rubber exhaust hangers and lower the rearward portion of the exhaust system.
-
Insert Fasteners into Frame Rails:
- Insert carriage bolts and blocks into the frame rails through the access holes shown in Figure 1.
-
Raise Hitch into Position:
- Raise the hitch into position and check side-to-side clearance with the frame.
- Tape 1/2" washers to the hitch as necessary to eliminate any gaps (see Figure 2).
-
Secure Hitch:
- Attach the hitch using the carriage bolts and secure it as shown in Figure 1.
-
Drill Holes:
- Using the hitch as a template, drill two (2) holes in the sides of the frame rails.
-
Install Side Fasteners:
- Insert hex bolts and lock washers through the side frame rails and secure with handle nuts inserted through the end of the frame rail.
-
Reinstall Exhaust System:
- Reattach the exhaust system using the original rubber hangers.
Hardware List:
- (4) Carriage Bolt, 1/2"-13 x 1 1/4"
- (2) Hex Bolt, 1/2"-13 x 1 1/4"
- (4) Spacer Block, 1/4" x 1 1/2" x 2"
- (4) Conical Toothed Washer, 1/2"
- (4) Flat Washer, 1/2"
- (4) Hex Nut, 1/2"-13
- (2) Handle Nut Assembly
- (2) Lock Washer, 1/2"
Torque Specifications:
- Tighten all 1/2"-13 GR5 fasteners to 75 lb-ft (102 N*m) using a torque wrench.
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath a vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight: 3,500 lb (1,589 kg)
- Max Tongue Weight: 300 lb (136 kg)
- Drawbar must be used in the RISE position only.
Additional Notes:
- Drawbar Kit: 36061 or 90005 (sold separately)
- Fastener Kit: 36374F or 90981F
- Complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
