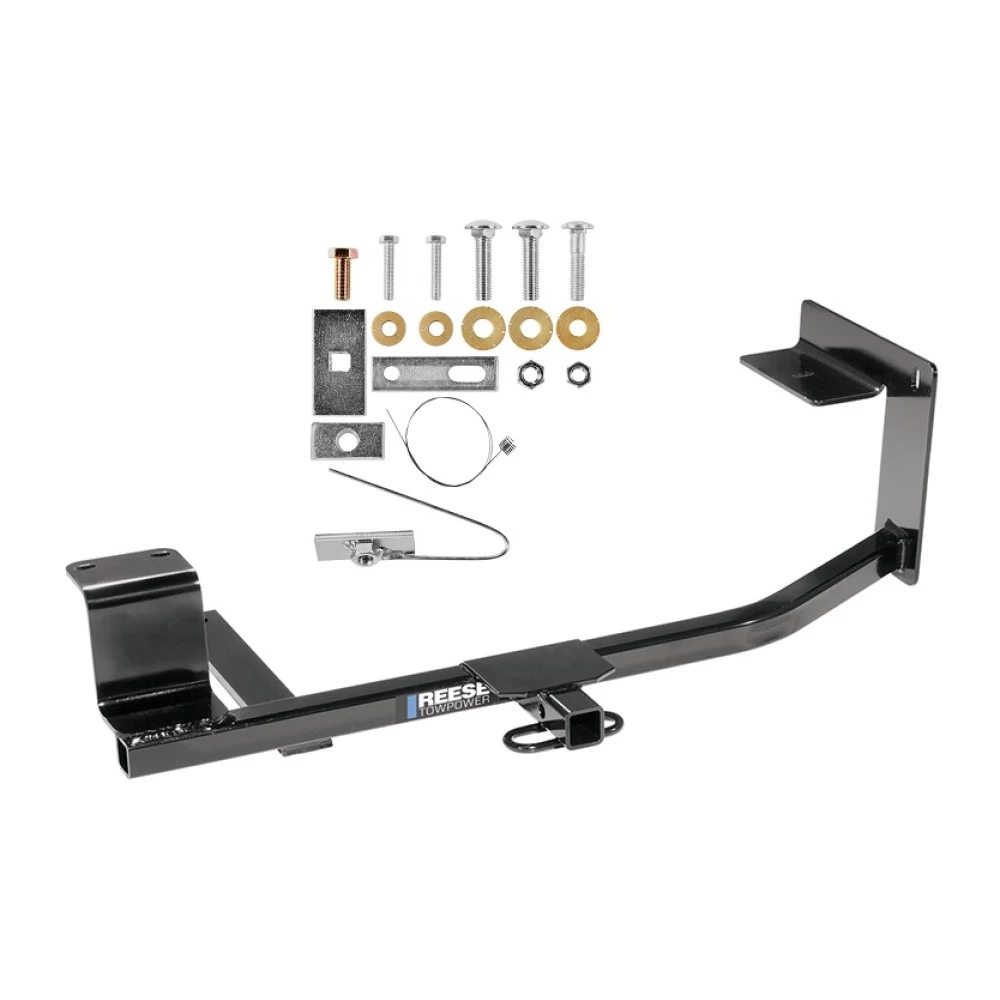

Installation Instructions for Volkswagen Jetta, Volkswagen Jetta Sportwagen, and Volkswagen Golf Wagon (Canada only)

Part Numbers:

• 24866
• 60283
• 77249

Wiring Access Location:

• Sedan: PC3, PC4
• Wagon: SUV3, SUV4

Tools Required:

• Pull Wire (7/16” provided)
• Tape
• Sealant
• Wrenches: Torx® 25, 10mm, 13mm, 11/16”, 3/4”

Specifications:

• Max Gross Trailer Weight: 2,000 lb. (908 kg)
• Max Tongue Weight: 200 lb. (91 kg)
• Note: Do not exceed towing vehicle manufacturer’s rating.

Step-by-Step Instructions:

1. Remove Plastic Fascia:

   • Remove the plastic fascia from underneath the passenger side by removing (2-3) Torx® 25 screws and (2) plastic hex nuts.
   • Return the fascia cover to the owner.

2. Remove Additional Screws:

   • Detach the remaining (2) Torx® 25 screws on the passenger side fascia. (Not present on 2011 sedan models.)

3. Lower Exhaust:

   • Detach the rubber exhaust isolator ahead of the axle and remove (2) bolts from the exhaust hanger bracket. Support the exhaust as needed.

4. Bend Exhaust Bracket Tabs:

   • Bend the two small tabs on the exhaust bracket upward as shown in Figure 2.

5. Lower Fuel Vapor Canister:

   • If present, lower the fuel vapor canister on the passenger side for access.

6. Fishwire Bolts and Spacers:

   • Use the pull wire to feed the 7/16” carriage bolt and spacer (Items 10 & 11) through the access slot in the passenger-side frame. Leave the pull wire attached.
   • Bend the handle nut (Item 3) and insert it into the frame over the center hole. Tape the spacer (Item 9) to the inside of the side bracket.

7. Raise Hitch into Position:

   • Rotate the exhaust bracket out of the way and raise the hitch into place. Thread the pull wire through the spacer and side bracket while lifting the hitch.

8. Install Fasteners:

   • Install the M12 bolt and washer (Items 1 & 2) as shown in the diagram. Rotate the exhaust bracket back into position and install (2) M8 bolts and washers (Items 12 & 13). Remove the 7/16” pull wire and install the 7/16” nut and washer (Items 7 & 8) as shown.

9. Install Spare Tire Well Fasteners:

   • Remove the spare tire and forward rubber plug from the spare tire well. Install the 1/2” bolt and spacer (Items 5 & 6) as shown, applying sealant (not provided) to prevent exhaust and water entry. Secure with the 1/2” nut and washer (Items 4 & 2).

10. Tighten Fasteners:

    • Torque all fasteners to the specified values:
      • 7/16” fasteners: 50 Lb.-Ft. (68 N*M)
      • 1/2” fasteners: 75 Lb.-Ft. (102 N*M)
      • M8 fasteners: 20 Lb.-Ft. (27 N*M)
      • M12 fasteners: 68 Lb.-Ft. (92 N*M)

11. Reinstall Components:

    • Reinstall the spare tire, fuel vapor canister, exhaust isolator, and all required fasteners for fascia attachment.

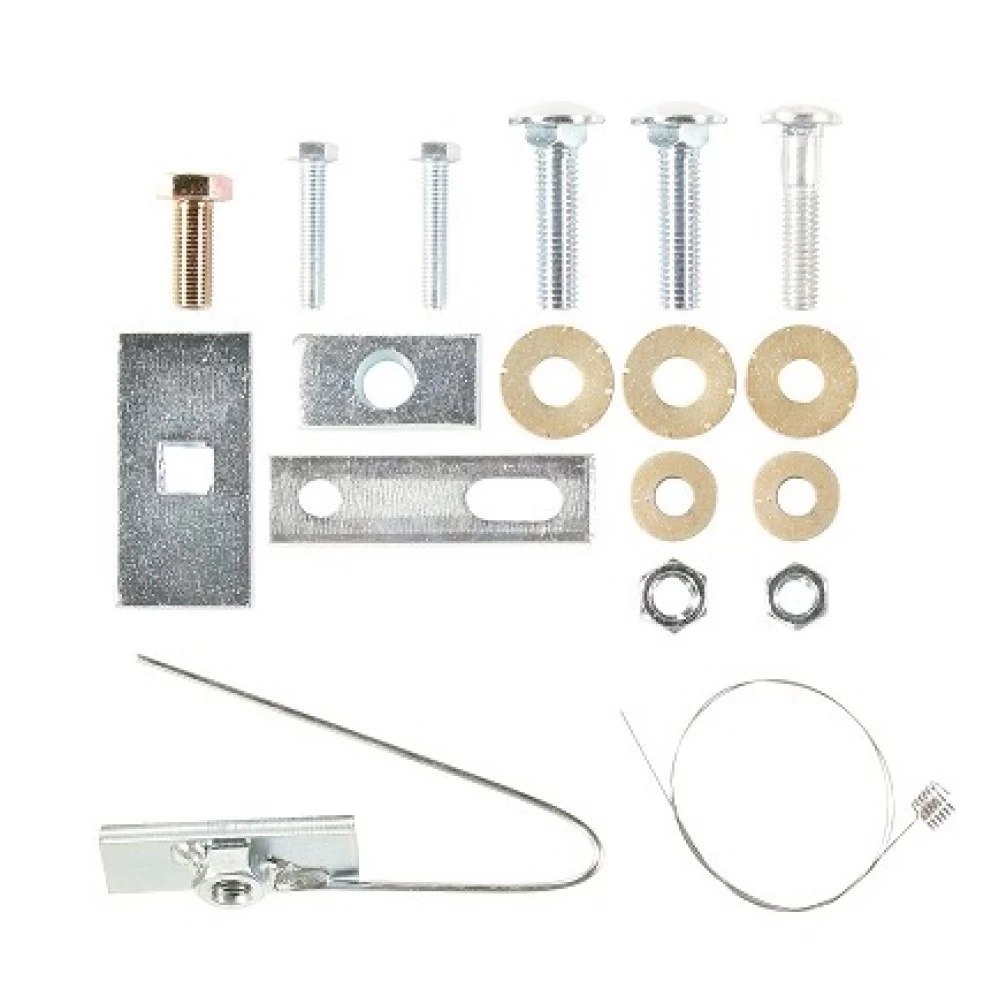

Hardware List:

• (1) M12 x 1.25 x 30mm Hex Bolt
• (1) 7/16” Conical Washer
• (2) 1/2” Conical Washers
• (1) M12 Handle Nut
• (1) 7/16”-14 x 2.00” Carriage Bolt
• (1) 1/2”-13 x 2.00” Carriage Bolt
• (1) 1/2” Hex Nut
• (2) M8 x 1.25 x 40mm Hex Bolts
• (1) Spacer: 0.438 x 1.00 x 2.00
• (1) Spacer: 0.188 x 1.00 x 3.50
• (1) Spacer: 0.25 x 1.50 x 3.00

Safety Notes:

• Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always observe safety precautions and wear eye protection when working beneath the vehicle.
• Do not cut access or attachment holes with a torch.

Drawbar:

• Drawbar Kit: 3593
• Important: The drawbar must be used in the rise position only.

Compliance:

• This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.

Additional Notes:

• Check the hitch frequently to ensure all fasteners remain tight.
• Ensure all components are properly aligned before final tightening.

Installation Instructions

Part Numbers:

• 24866
• 60283
• 77249

Wiring Access Location:

• Sedan: PC3, PC4
• Wagon: SUV3, SUV4

Tools Required:

• Pull Wire (7/16” provided)
• Tape
• Sealant
• Wrenches: Torx® 25, 10mm, 13mm, 11/16”, 3/4”

Specifications:

• Max Gross Trailer Weight: 2,000 lb. (908 kg)
• Max Tongue Weight: 200 lb. (91 kg)
• Note: Do not exceed towing vehicle manufacturer’s rating.

Step-by-Step Instructions:

1. Remove Plastic Fascia:

   • Remove the plastic fascia from underneath the passenger side by removing (2-3) Torx® 25 screws and (2) plastic hex nuts.
   • Return the fascia cover to the owner.

2. Remove Additional Screws:

   • Detach the remaining (2) Torx® 25 screws on the passenger side fascia. (Not present on 2011 sedan models.)

3. Lower Exhaust:

   • Detach the rubber exhaust isolator ahead of the axle and remove (2) bolts from the exhaust hanger bracket. Support the exhaust as needed.

4. Bend Exhaust Bracket Tabs:

   • Bend the two small tabs on the exhaust bracket upward as shown in Figure 2.

5. Lower Fuel Vapor Canister:

   • If present, lower the fuel vapor canister on the passenger side for access.

6. Fishwire Bolts and Spacers:

   • Use the pull wire to feed the 7/16” carriage bolt and spacer (Items 10 & 11) through the access slot in the passenger-side frame. Leave the pull wire attached.
   • Bend the handle nut (Item 3) and insert it into the frame over the center hole. Tape the spacer (Item 9) to the inside of the side bracket.

7. Raise Hitch into Position:

   • Rotate the exhaust bracket out of the way and raise the hitch into place. Thread the pull wire through the spacer and side bracket while lifting the hitch.

8. Install Fasteners:

   • Install the M12 bolt and washer (Items 1 & 2) as shown in the diagram. Rotate the exhaust bracket back into position and install (2) M8 bolts and washers (Items 12 & 13). Remove the 7/16” pull wire and install the 7/16” nut and washer (Items 7 & 8) as shown.

9. Install Spare Tire Well Fasteners:

   • Remove the spare tire and forward rubber plug from the spare tire well. Install the 1/2” bolt and spacer (Items 5 & 6) as shown, applying sealant (not provided) to prevent exhaust and water entry. Secure with the 1/2” nut and washer (Items 4 & 2).

10. Tighten Fasteners:

    • Torque all fasteners to the specified values:
      • 7/16” fasteners: 50 Lb.-Ft. (68 N*M)
      • 1/2” fasteners: 75 Lb.-Ft. (102 N*M)
      • M8 fasteners: 20 Lb.-Ft. (27 N*M)
      • M12 fasteners: 68 Lb.-Ft. (92 N*M)

11. Reinstall Components:

    • Reinstall the spare tire, fuel vapor canister, exhaust isolator, and all required fasteners for fascia attachment.

Hardware List:

• (1) M12 x 1.25 x 30mm Hex Bolt
• (1) 7/16” Conical Washer
• (2) 1/2” Conical Washers
• (1) M12 Handle Nut
• (1) 7/16”-14 x 2.00” Carriage Bolt
• (1) 1/2”-13 x 2.00” Carriage Bolt
• (1) 1/2” Hex Nut
• (2) M8 x 1.25 x 40mm Hex Bolts
• (1) Spacer: 0.438 x 1.00 x 2.00
• (1) Spacer: 0.188 x 1.00 x 3.50
• (1) Spacer: 0.25 x 1.50 x 3.00

Safety Notes:

• Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always observe safety precautions and wear eye protection when working beneath the vehicle.
• Do not cut access or attachment holes with a torch.

Drawbar:

• Drawbar Kit: 3593
• Important: The drawbar must be used in the rise position only.

Compliance:

• This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.

Additional Notes:

• Check the hitch frequently to ensure all fasteners remain tight.
• Ensure all components are properly aligned before final tightening.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
