Product Details
- Brand: Reese
- Model: 77191 118517 3593 63810

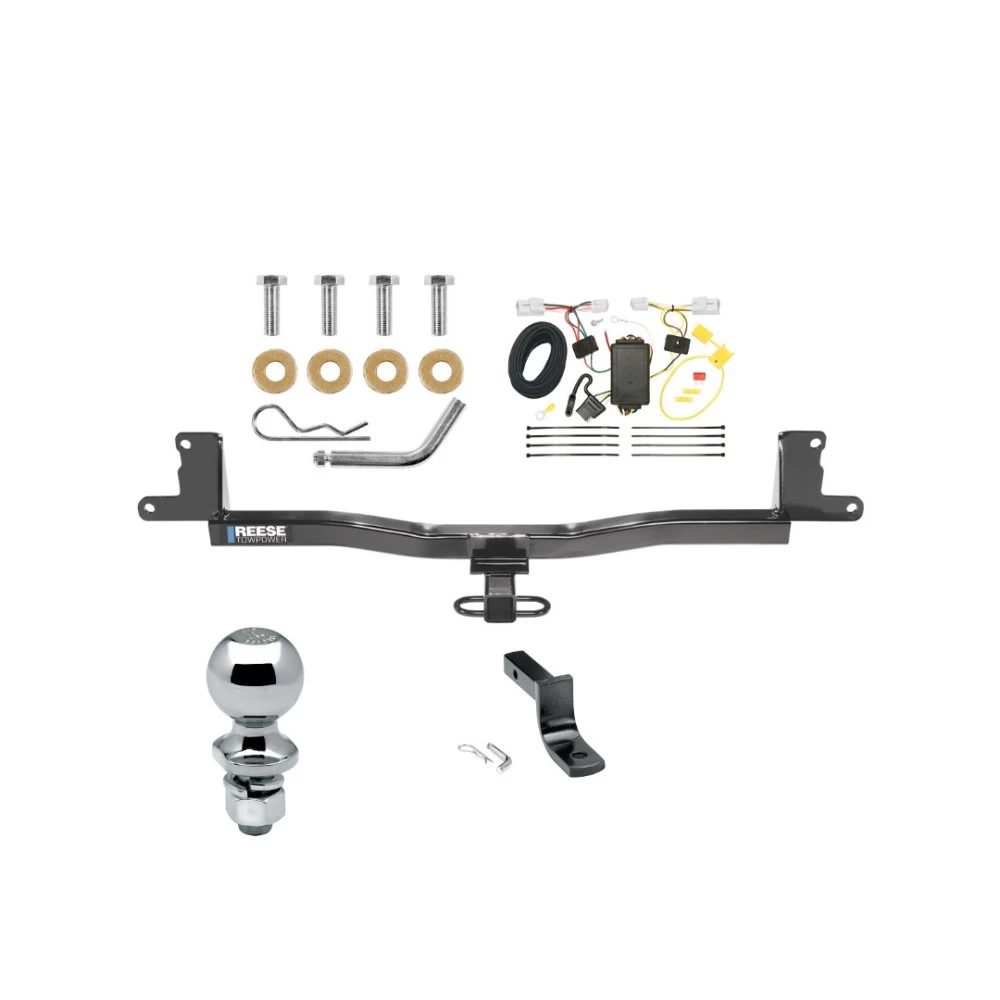

- Includes: Class 1 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball
Compatibility Chart
Description
Get Expert Help
Reese Trailer Tow Hitch For 07-11 Toyota Yaris 4 Dr. Sedan Complete Package w/ Wiring Draw Bar and 1-7/8" Ball Install Notes
Installation Instructions for Toyota Yaris
Part Numbers:
- 24819
- 60209
- 77191
- 24821 (U-Haul)
Wiring Access Location:
- PC3, PC4
Tools Required:
- Wrenches: 12mm, 13mm
- Drill Bits: None
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Remove Plastic Fascia Rivets:
- Detach the two plastic fascia rivets from the fascia tabs. Retain for reinstallation.
-
Remove Factory Bolts:
- Remove the inboard and lower bolts located on each side of the end panel.
-
Position Hitch:
- Raise the hitch into position against the frame.
-
Install Fasteners:
- Secure the hitch using the provided M8 x 1.25 x 30mm CL10.9 bolts and conical toothed washers. Hand-tighten to hold the hitch in place.
-
Reinstall Plastic Rivets:
- Replace the plastic fascia rivets removed in Step 1.
-
Tighten Fasteners:
- Torque all M8 CL10.9 fasteners to 27 Lb.-Ft. (37 N*M) using a torque wrench.

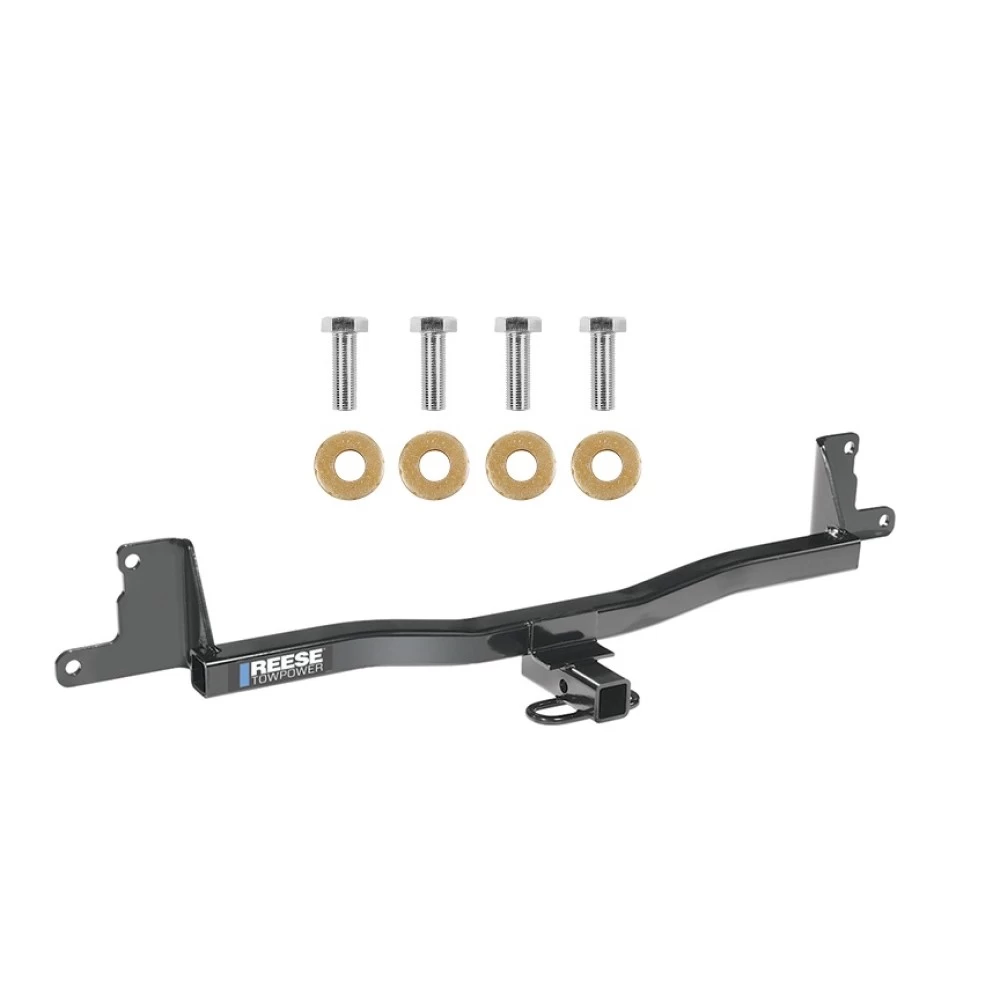

Hardware List:
- (4) M8 x 1.25 x 30mm CL10.9 Bolts
- (4) Conical Toothed Washers
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- If the hitch is removed, plug any holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always wear eye protection and follow safety precautions when working under the vehicle.
- Do not use a torch to cut access or attachment holes.
Drawbar:
- Drawbar Kit: 3593
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Rotate the hitch as necessary for easier installation.
- Check the hitch frequently to ensure all fasteners remain tight.
Installation Instructions
Part Numbers:
- 24819
- 60209
- 77191
- 24821 (U-Haul)
Wiring Access Location:
- PC3, PC4
Tools Required:
- Wrenches: 12mm, 13mm
- Drill Bits: None
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Remove Plastic Fascia Rivets:
- Detach the two plastic fascia rivets from the fascia tabs. Retain for reinstallation.
-
Remove Factory Bolts:
- Remove the inboard and lower bolts located on each side of the end panel.
-
Position Hitch:
- Raise the hitch into position against the frame.
-
Install Fasteners:
- Secure the hitch using the provided M8 x 1.25 x 30mm CL10.9 bolts and conical toothed washers. Hand-tighten to hold the hitch in place.
-
Reinstall Plastic Rivets:
- Replace the plastic fascia rivets removed in Step 1.
-
Tighten Fasteners:
- Torque all M8 CL10.9 fasteners to 27 Lb.-Ft. (37 N*M) using a torque wrench.
Hardware List:
- (4) M8 x 1.25 x 30mm CL10.9 Bolts
- (4) Conical Toothed Washers
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- If the hitch is removed, plug any holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always wear eye protection and follow safety precautions when working under the vehicle.
- Do not use a torch to cut access or attachment holes.
Drawbar:
- Drawbar Kit: 3593
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Rotate the hitch as necessary for easier installation.
- Check the hitch frequently to ensure all fasteners remain tight.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.

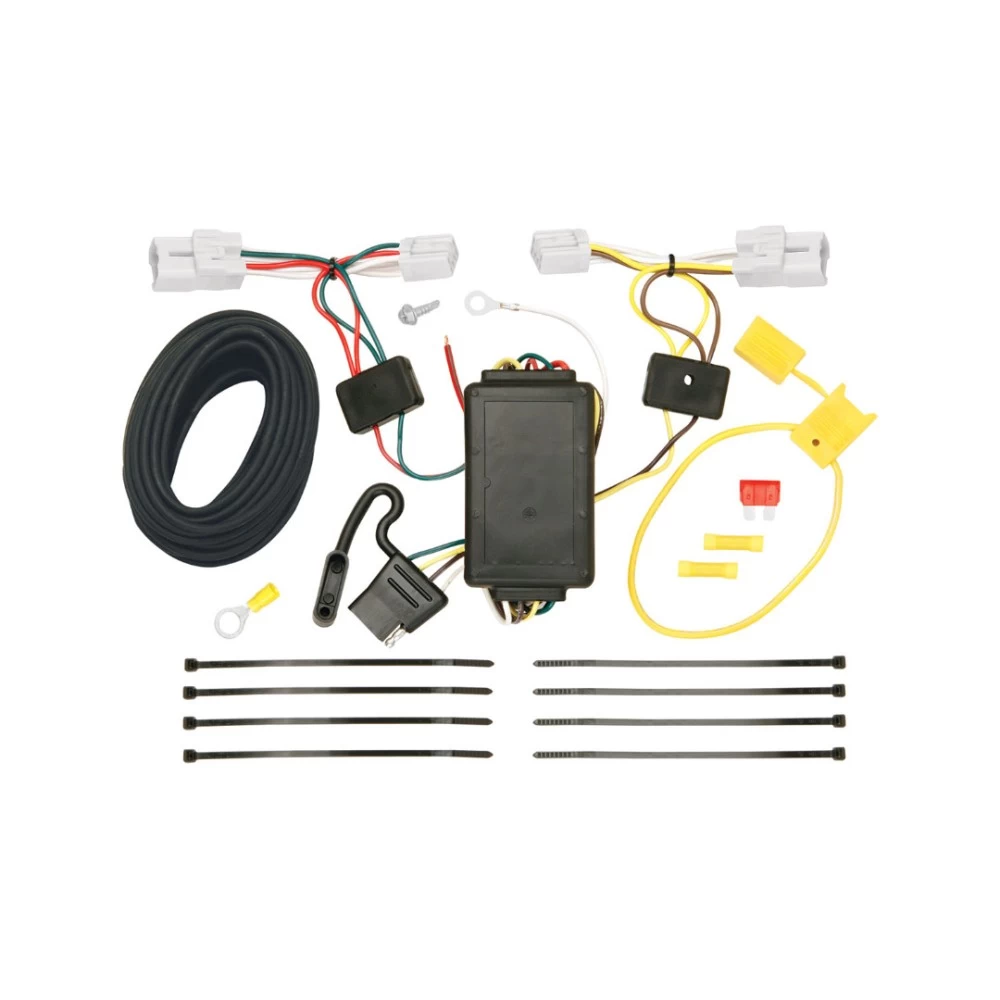

Installation Instructions for T-Connector Adapter for Toyota Yaris Sedan
Part Numbers:
- 118517
Tools Required:
- Trim Panel Remover
- 10mm Socket & Ratchet or Wrench
- Drill (3/32” Drill Bit)
- 1/4” Socket
- Wire Crimpers
- Wire Cutters
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Open the Trunk:
- Remove the threshold panel.
- Partially remove the felt trunk liner on both sides to expose the vehicle’s taillight wiring harness.
- Remove the plastic trim fasteners securing the protective cover to access the wiring harness.
-
Locate the Vehicle’s Wiring Harness:
- On the driver’s side, locate the taillight wiring harness.
- Separate the connectors carefully, ensuring not to break the locking tabs.
- Ensure all connector surfaces are clean and free of dirt.
-
Install the Driver-Side T-Connector:
- Insert the T-Connector end with the yellow wire between the vehicle’s connectors.
- Lock the connectors into place, ensuring they are fully inserted and the locking tabs are secure.
-
Route the Passenger-Side T-Connector:
- Route the T-Connector end with the green wire under the felt trunk liner to the passenger side.
- Repeat step 3 using the green wire for the passenger-side connectors.
-
Mount the Black Box:
- Find a flat surface on the driver’s side and mount the T-Connector’s black box using the provided double-sided tape.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as an existing ground stud or the vehicle frame.
- If necessary, drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
Caution:
- Verify what is behind the surface before drilling to avoid damage or injury.
-
Connect the Power Wire:
- Inside the vehicle, connect the red 12-gauge wire from the T-Connector box to the black 12-gauge wire using the yellow butt connector.
- Route the black wire through a grommet or along the vehicle’s existing wiring to the battery, avoiding areas that could pinch, cut, or melt the wire.
-
Connect to the Vehicle Battery:
- Disconnect the vehicle’s negative (-) battery cable.
- Attach the fuse holder to the positive (+) battery cable using the ring terminal.
- Connect the other end of the fuse holder to the black wire using the yellow butt connector.
- Reconnect the negative (-) battery cable and install the 10-amp fuse into the fuse holder.
-
Secure the Wiring:
- Use the provided cable ties to secure all loose wires, ensuring they are not pinched, cut, or melted.
-
Reassemble the Vehicle:
- Replace the trunk liner, threshold panel, and any other components removed during the installation.
-
Test the Installation:
- Test and verify the T-Connector functionality using a test light or trailer.
- Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
Specifications:
- Max. stop/turn light: 1 per side (2.1 amps)
- Max. tail lights: (5.6 amps)
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s rating or the unit specifications.
- Follow all warnings and installation instructions carefully.
Manufacturer Notes:
- Store the 4-flat connector in the spare tire compartment when not in use.
- Refer to the vehicle owner’s manual for additional guidance.
Installation Instructions for T-Connector Adapter for Generic Vehicle
Part Numbers:
- 118517
Tools Required:
- Trim Panel Remover
- 10mm Socket & Ratchet or Wrench
- Drill (3/32” Drill Bit)
- 1/4” Socket
- Wire Crimpers
- Wire Cutters
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Open the Trunk:
- Remove the threshold panel.
- Partially remove the felt trunk liner on both sides to expose the vehicle’s taillight wiring harness.
- Remove the plastic trim fasteners securing the protective cover to access the wiring harness.
-
Locate the Vehicle’s Wiring Harness:
- On the driver’s side, locate the taillight wiring harness.
- Separate the connectors carefully, ensuring not to break the locking tabs.
- Ensure all connector surfaces are clean and free of dirt.
-
Install the Driver-Side T-Connector:
- Insert the T-Connector end with the yellow wire between the vehicle’s connectors.
- Lock the connectors into place, ensuring they are fully inserted and the locking tabs are secure.
-
Route the Passenger-Side T-Connector:
- Route the T-Connector end with the green wire under the felt trunk liner to the passenger side.
- Repeat step 3 using the green wire for the passenger-side connectors.
-
Mount the Black Box:
- Find a flat surface on the driver’s side and mount the T-Connector’s black box using the provided double-sided tape.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as an existing ground stud or the vehicle frame.
- If necessary, drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
Caution:
- Verify what is behind the surface before drilling to avoid damage or injury.
-
Connect the Power Wire:
- Inside the vehicle, connect the red 12-gauge wire from the T-Connector box to the black 12-gauge wire using the yellow butt connector.
- Route the black wire through a grommet or along the vehicle’s existing wiring to the battery, avoiding areas that could pinch, cut, or melt the wire.
-
Connect to the Vehicle Battery:
- Disconnect the vehicle’s negative (-) battery cable.
- Attach the fuse holder to the positive (+) battery cable using the ring terminal.
- Connect the other end of the fuse holder to the black wire using the yellow butt connector.
- Reconnect the negative (-) battery cable and install the 10-amp fuse into the fuse holder.
-
Secure the Wiring:
- Use the provided cable ties to secure all loose wires, ensuring they are not pinched, cut, or melted.
-
Reassemble the Vehicle:
- Replace the trunk liner, threshold panel, and any other components removed during the installation.
-
Test the Installation:
- Test and verify the T-Connector functionality using a test light or trailer.
- Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
Specifications:
- Max. stop/turn light: 1 per side (2.1 amps)
- Max. tail lights: (5.6 amps)
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s rating or the unit specifications.
- Follow all warnings and installation instructions carefully.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Note: Store the 4-flat connector in the spare tire compartment when not in use.
