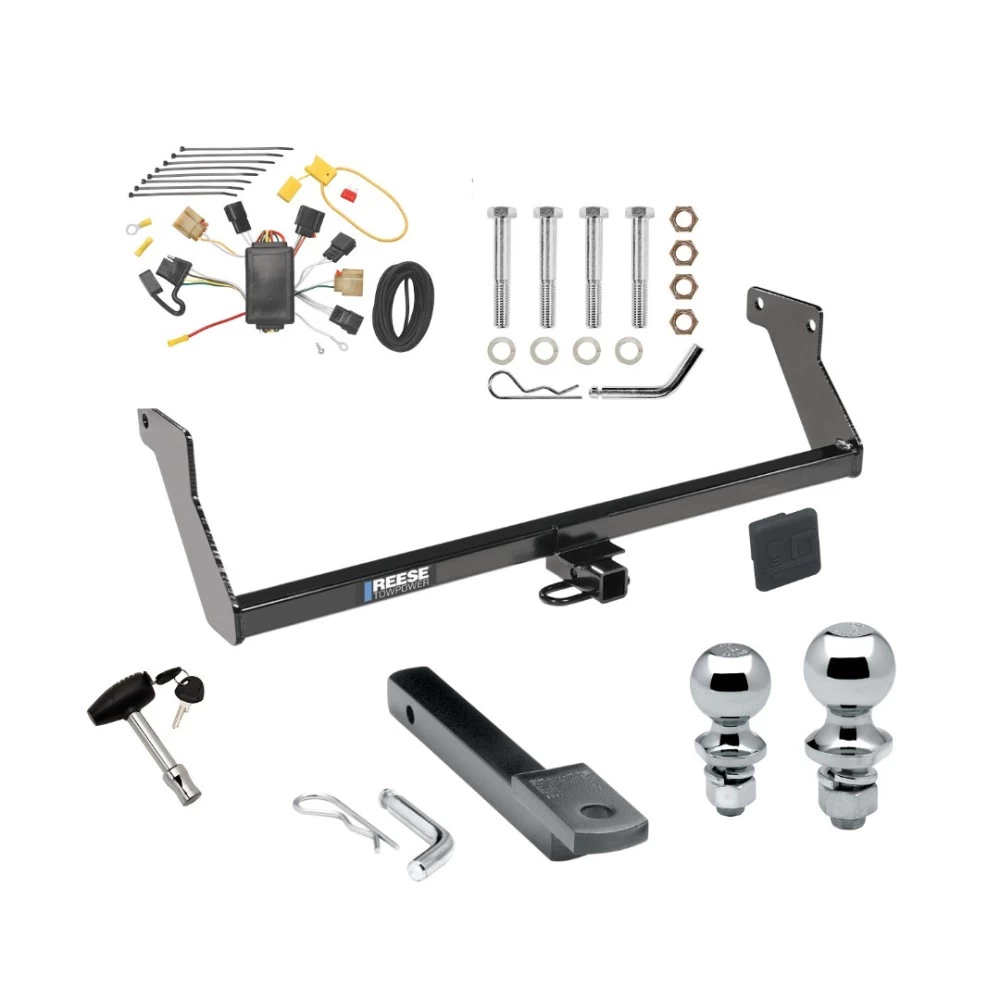

- Includes: Class 1 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball, Trailer Tow Hitch Ball, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover
Compatibility Chart
Description
Get Expert Help
Reese Trailer Tow Hitch For 07 Dodge Caliber Deluxe Package Wiring 2" and 1-7/8" Ball and Lock Install Notes
Installation Instructions for Dodge Caliber (Except SRT4)
Part Numbers:
- 77145
- 24769
- 60832
Wiring Access Location:
- PC1, PC2
Tools Required:
- Wrenches: 15/16”
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Insert 5/8” Bolts:
- Place 5/8” bolts into the bushings from the outboard side of the frame rails.
- Leave the bolts flush with the inboard frame rail.
-
Position Hitch:
- Raise the hitch into position and push the 5/8” bolts through the brackets to support the hitch.
-
Attach Remaining Fasteners:
- Secure the hitch using the provided lock washers and hex nuts as shown in the instructions.
-
Tighten Fasteners:
- Torque all 5/8”-11 fasteners to 100 Lb.-Ft. (136 N*M) using a torque wrench.
Hardware List:
- (4) Hex Bolts: 5/8”-11 x 4”
- (4) Lock Washers: 5/8”
- (4) Hex Nuts: 5/8”-11
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- If the hitch is removed, plug any holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Drawbar Kit: 3591
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
Installation Instructions for Dodge Caliber (Except SRT4)
Part Numbers:
- 77145
- 24769
- 60832
Wiring Access Location:
- PC1, PC2
Tools Required:
- Wrenches: 15/16”
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Insert 5/8” Bolts:
- Place 5/8” bolts into the bushings from the outboard side of the frame rails.
- Leave the bolts flush with the inboard frame rail.
-
Position Hitch:
- Raise the hitch into position and push the 5/8” bolts through the brackets to support the hitch.
-
Attach Remaining Fasteners:
- Secure the hitch using the provided lock washers and hex nuts as shown in the instructions.
-
Tighten Fasteners:
- Torque all 5/8”-11 fasteners to 100 Lb.-Ft. (136 N*M) using a torque wrench.
Hardware List:
- (4) Hex Bolts: 5/8”-11 x 4”
- (4) Lock Washers: 5/8”
- (4) Hex Nuts: 5/8”-11
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- If the hitch is removed, plug any holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Drawbar Kit: 3591
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Revision:
24769 Rev. A 6/25/2014
Installation Instructions for T-Connector Wiring Harness
Product Information:
- Part Number: N118428
- Application: T-Connector wiring for trailer lights
Tools Required:
- Trim Panel Remover
- Drill (3/32” drill bit)
- 1/4" Socket
- Wire Crimpers
- Wire Cutters
- Test Light/Probe
Step-by-Step Instructions:
-
Disconnect Battery:
- Disconnect and isolate the vehicle’s negative battery terminal.
- Caution: Follow all vehicle battery safety warnings.
-
Remove Taillight Assemblies:
- Open the tailgate.
- Remove the two clips holding the right-side taillight assembly in place.
- Carefully pry the housing away without breaking the alignment tabs.
- Repeat for the left-side taillight assembly.
-
Locate Wiring Connectors:
- On both sides (driver and passenger), locate the vehicle’s taillight wiring harness.
- Disconnect the harness by carefully releasing the locking tabs.
-
Install T-Connector Harness:
- Starting on the driver’s side, connect the T-Connector with the yellow wire between the vehicle connectors.
- Repeat this step for the passenger side using the T-Connector with the green wire.
-
Route Wires:
- Route the T-Connector with the green wire and the 4-flat connector down through the opening between the bumper and body.
- Carefully route the green wire up through the opening on the passenger side.
- Avoid contact with hot pipes, heat shields, the fuel tank, or any sharp edges.
-
Ground White Wire:
- Locate a suitable grounding point near the connector, such as the vehicle's frame or cross member.
- Do not drill into exposed or sensitive areas.
- Clean the surface of dirt and rustproofing.
- Drill a 3/32” hole and attach the white wire with the provided eyelet and screw.
-
Mount the T-Connector Black Box:
- Behind the driver’s side taillight assembly, clean a flat area with a 50/50 mixture of rubbing alcohol and water.
- Mount the black box using the double-sided tape provided.
-
Route Battery Wire:
- Locate the red battery wire from the T-Connector black box.
- Crimp the black 12-gauge battery wire to the red wire.
- Route the black wire to the engine compartment following the vehicle’s frame.
- Avoid hot pipes, heat shields, fuel tanks, or sharp edges.
-
Install the Fuse Holder:
- Remove the fuse from the yellow fuse holder.
- Cut the fuse holder wire, attach the ring terminal, and secure it to the vehicle’s Positive (+) battery terminal.
- Connect the other end of the fuse holder to the black wire using the provided butt connector.
-
Reconnect Battery and Install Fuse:
- Reconnect the vehicle’s Negative (-) battery terminal.
- Insert the 10-amp fuse into the fuse holder.
-
Test the System:
- Verify all connections using a test light or connect a trailer to ensure the system functions properly.
-
Secure Wires:
- Use the provided cable ties to secure the remainder of the T-Connector harness.
- Ensure wires are routed away from areas that could pinch, cut, or melt the wiring.
-
Reinstall Taillight Assemblies:
- Reattach the taillight assemblies removed in Step 2.
Warnings:
- Overloading circuits can cause fires.
- Max Stop/Turn Light: 2.1 amps per side
- Max Taillights: 4.2 amps
- Refer to the vehicle’s owner’s manual for towing ratings and guidelines.
- Always test the installation before towing.
Technical Notes:
- Verify all connections are secure and free of dirt or debris before completing the installation.
- Periodically inspect the wiring harness for wear, corrosion, or damage.
Technical Support:
For assistance, contact Technical Support or refer to the manufacturer’s website for additional resources.
Installation Instructions for T-Connector Wiring Harness
Product Information:
- Part Number: N118428
- Application: T-Connector wiring for trailer lights
Tools Required:
- Trim Panel Remover
- Drill (3/32” drill bit)
- 1/4" Socket
- Wire Crimpers
- Wire Cutters
- Test Light/Probe
Step-by-Step Instructions:
-
Disconnect Battery:
- Disconnect and isolate the vehicle’s negative battery terminal.
- Caution: Follow all vehicle battery safety warnings.
-
Remove Taillight Assemblies:
- Open the tailgate.
- Remove the two clips holding the right-side taillight assembly in place.
- Carefully pry the housing away without breaking the alignment tabs.
- Repeat for the left-side taillight assembly.
-
Locate Wiring Connectors:
- On both sides (driver and passenger), locate the vehicle’s taillight wiring harness.
- Disconnect the harness by carefully releasing the locking tabs.
-
Install T-Connector Harness:
- Starting on the driver’s side, connect the T-Connector with the yellow wire between the vehicle connectors.
- Repeat this step for the passenger side using the T-Connector with the green wire.
-
Route Wires:
- Route the T-Connector with the green wire and the 4-flat connector down through the opening between the bumper and body.
- Carefully route the green wire up through the opening on the passenger side.
- Avoid contact with hot pipes, heat shields, the fuel tank, or any sharp edges.
-
Ground White Wire:
- Locate a suitable grounding point near the connector, such as the vehicle's frame or cross member.
- Do not drill into exposed or sensitive areas.
- Clean the surface of dirt and rustproofing.
- Drill a 3/32” hole and attach the white wire with the provided eyelet and screw.
-
Mount the T-Connector Black Box:
- Behind the driver’s side taillight assembly, clean a flat area with a 50/50 mixture of rubbing alcohol and water.
- Mount the black box using the double-sided tape provided.
-
Route Battery Wire:
- Locate the red battery wire from the T-Connector black box.
- Crimp the black 12-gauge battery wire to the red wire.
- Route the black wire to the engine compartment following the vehicle’s frame.
- Avoid hot pipes, heat shields, fuel tanks, or sharp edges.
-
Install the Fuse Holder:
- Remove the fuse from the yellow fuse holder.
- Cut the fuse holder wire, attach the ring terminal, and secure it to the vehicle’s Positive (+) battery terminal.
- Connect the other end of the fuse holder to the black wire using the provided butt connector.
-
Reconnect Battery and Install Fuse:
- Reconnect the vehicle’s Negative (-) battery terminal.
- Insert the 10-amp fuse into the fuse holder.
-
Test the System:
- Verify all connections using a test light or connect a trailer to ensure the system functions properly.
-
Secure Wires:
- Use the provided cable ties to secure the remainder of the T-Connector harness.
- Ensure wires are routed away from areas that could pinch, cut, or melt the wiring.
-
Reinstall Taillight Assemblies:
- Reattach the taillight assemblies removed in Step 2.
Warnings:
- Overloading circuits can cause fires.
- Max Stop/Turn Light: 2.1 amps per side
- Max Taillights: 4.2 amps
- Refer to the vehicle’s owner’s manual for towing ratings and guidelines.
- Always test the installation before towing.
Technical Notes:
- Verify all connections are secure and free of dirt or debris before completing the installation.
- Periodically inspect the wiring harness for wear, corrosion, or damage.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
