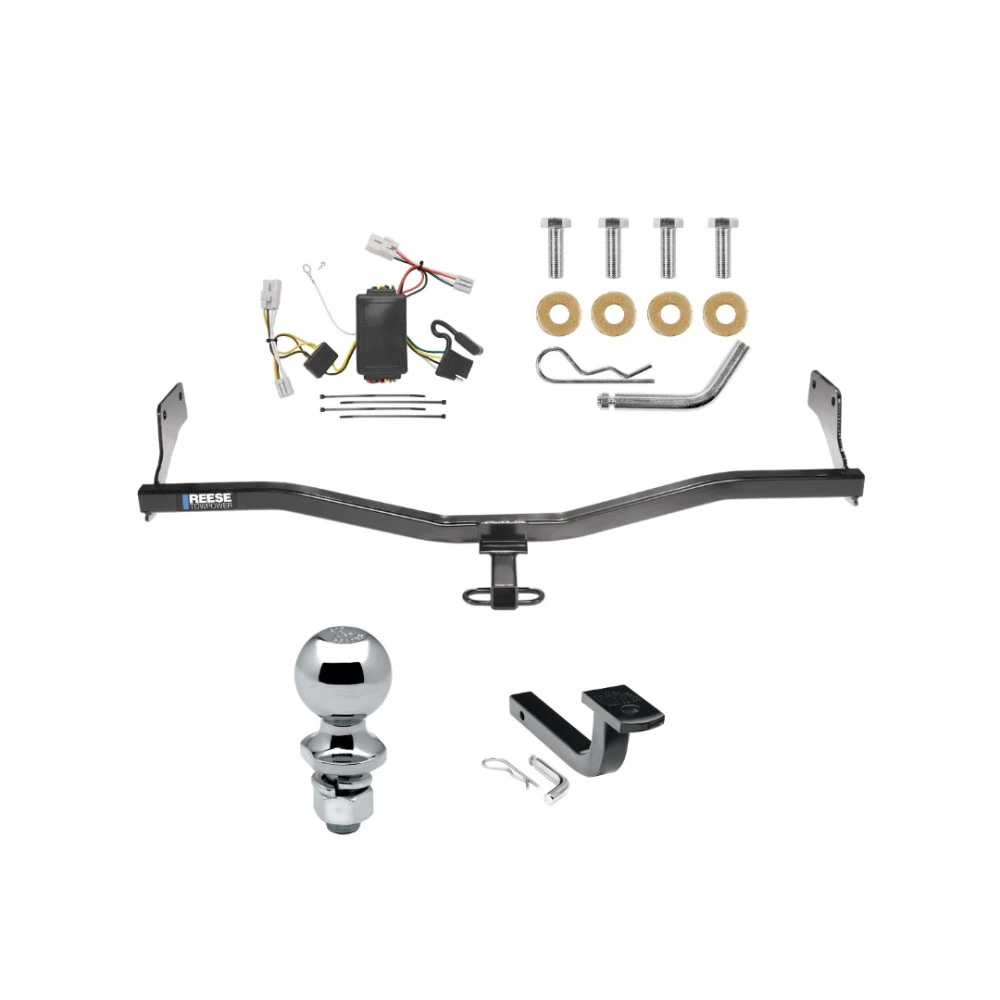

Installation Instructions for Hyundai Elantra Touring

Part Numbers:

• 24844
• 60260
• 77246
• 24819 (U-Haul)

Wiring Access Location:

• PC3, PC4

Tools Required:

• Wrenches: 17mm, 19mm
• Small Phillips Tip Screwdriver
• Drill Bits: None

Specifications:

• Max Gross Trailer Weight: 2,000 lb. (908 kg)
• Max Tongue Weight: 200 lb. (90.8 kg)
• Note: Do not exceed towing vehicle manufacturer’s rating.

Step-by-Step Instructions:

1. Remove Appearance Panel:

   • Detach the appearance panel covering the trunk pan using a Phillips tip screwdriver.
   • Unscrew the 10 plastic screws while applying pressure to the opposite end.
   • Remove the three (3) M6 nuts and return the panel to the vehicle owner.

2. Lower Exhaust:

   • Detach the rubber exhaust hanger to lower the exhaust system.

3. Position Hitch (Driver’s Side First):

   • Lift the driver’s side of the hitch into position, placing the crosstube over the tailpipe.
   • Rotate the side bracket into position on the outside of the frame rail as far back as possible behind the wheel well.

4. Position Hitch (Passenger Side):

   • Raise the passenger side of the hitch into position on the outside of the frame rails in front of the bulkhead.

5. Install Fasteners:

   • Attach the provided M10 bolts and conical washers as shown in the diagram. Hand-tighten all fasteners.

6. Secure Hitch:

   • Push the hitch rearward to align it properly and tighten all fasteners to the specified torque values.

7. Reattach Exhaust:

   • Reinstall the rubber muffler hanger to secure the exhaust system.

Torque Specifications:

• Tighten all M10 CL8.8 fasteners to 42 Lb.-Ft. (57 N*M).

Hardware List:

• (4) M10 x 1.25 x 40mm CL8.8 Bolts
• (4) Conical Toothed Washers

Safety Notes:

• Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
• If the hitch is removed, plug any holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always wear eye protection and follow safety precautions when working beneath the vehicle.
• Do not cut access or attachment holes with a torch.

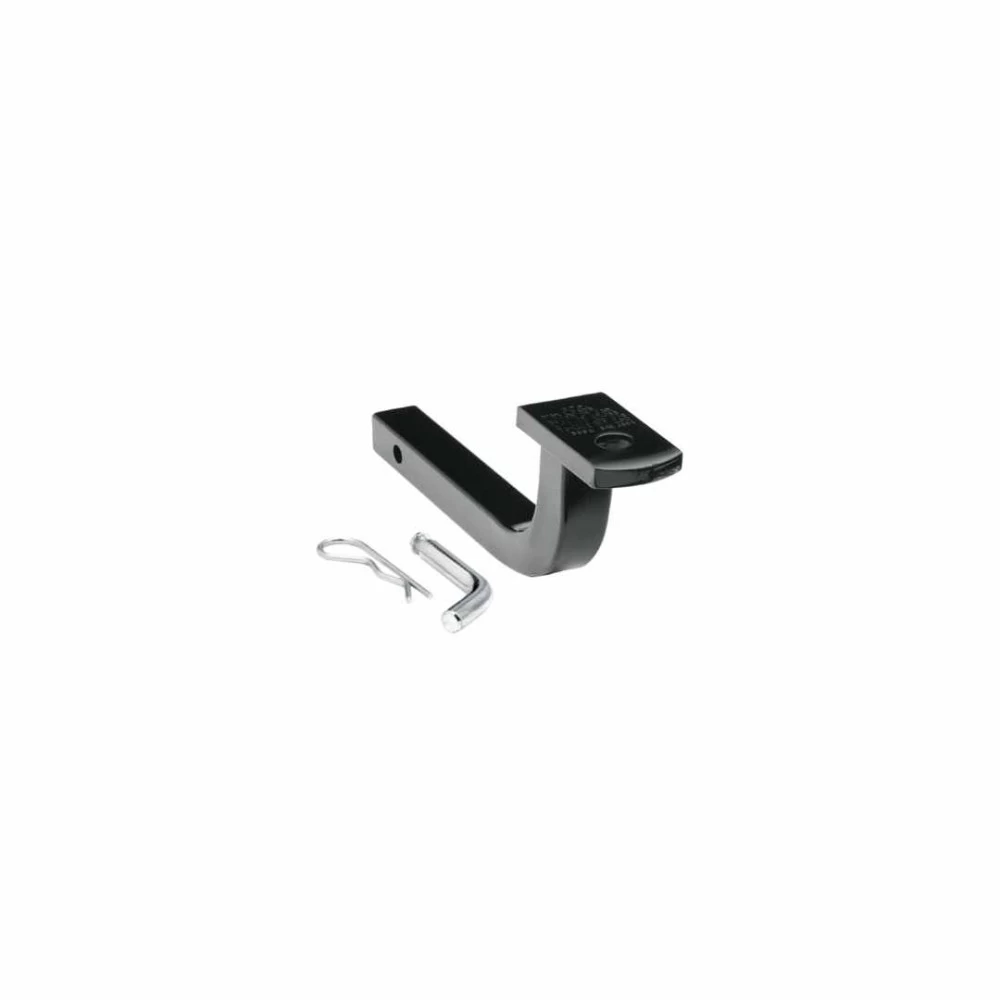

Drawbar:

• Drawbar Kit: 3594
• Important: The drawbar must be used in the rise position only.

Compliance:

• This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.

Additional Notes:

• Check the hitch frequently to ensure all fasteners remain tight.
• For clarity, the exhaust system is not shown in the diagrams.

Installation Instructions

Part Numbers:

• 24844
• 60260
• 77246
• 24819 (U-Haul)

Wiring Access Location:

• PC3, PC4

Tools Required:

• Wrenches: 17mm, 19mm
• Small Phillips Tip Screwdriver
• Drill Bits: None

Specifications:

• Max Gross Trailer Weight: 2,000 lb. (908 kg)
• Max Tongue Weight: 200 lb. (90.8 kg)
• Note: Do not exceed towing vehicle manufacturer’s rating.

Step-by-Step Instructions:

1. Remove Appearance Panel:

   • Detach the appearance panel covering the trunk pan using a Phillips tip screwdriver.
   • Unscrew the 10 plastic screws while applying pressure to the opposite end.
   • Remove the three (3) M6 nuts and return the panel to the vehicle owner.

2. Lower Exhaust:

   • Detach the rubber exhaust hanger to lower the exhaust system.

3. Position Hitch (Driver’s Side First):

   • Lift the driver’s side of the hitch into position, placing the crosstube over the tailpipe.
   • Rotate the side bracket into position on the outside of the frame rail as far back as possible behind the wheel well.

4. Position Hitch (Passenger Side):

   • Raise the passenger side of the hitch into position on the outside of the frame rails in front of the bulkhead.

5. Install Fasteners:

   • Attach the provided M10 bolts and conical washers as shown in the diagram. Hand-tighten all fasteners.

6. Secure Hitch:

   • Push the hitch rearward to align it properly and tighten all fasteners to the specified torque values.

7. Reattach Exhaust:

   • Reinstall the rubber muffler hanger to secure the exhaust system.

Torque Specifications:

• Tighten all M10 CL8.8 fasteners to 42 Lb.-Ft. (57 N*M).

Hardware List:

• (4) M10 x 1.25 x 40mm CL8.8 Bolts
• (4) Conical Toothed Washers

Safety Notes:

• Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
• If the hitch is removed, plug any holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always wear eye protection and follow safety precautions when working beneath the vehicle.
• Do not cut access or attachment holes with a torch.

Drawbar:

• Drawbar Kit: 3594
• Important: The drawbar must be used in the rise position only.

Compliance:

• This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.

Additional Notes:

• Check the hitch frequently to ensure all fasteners remain tight.
• For clarity, the exhaust system is not shown in the diagrams.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

For Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

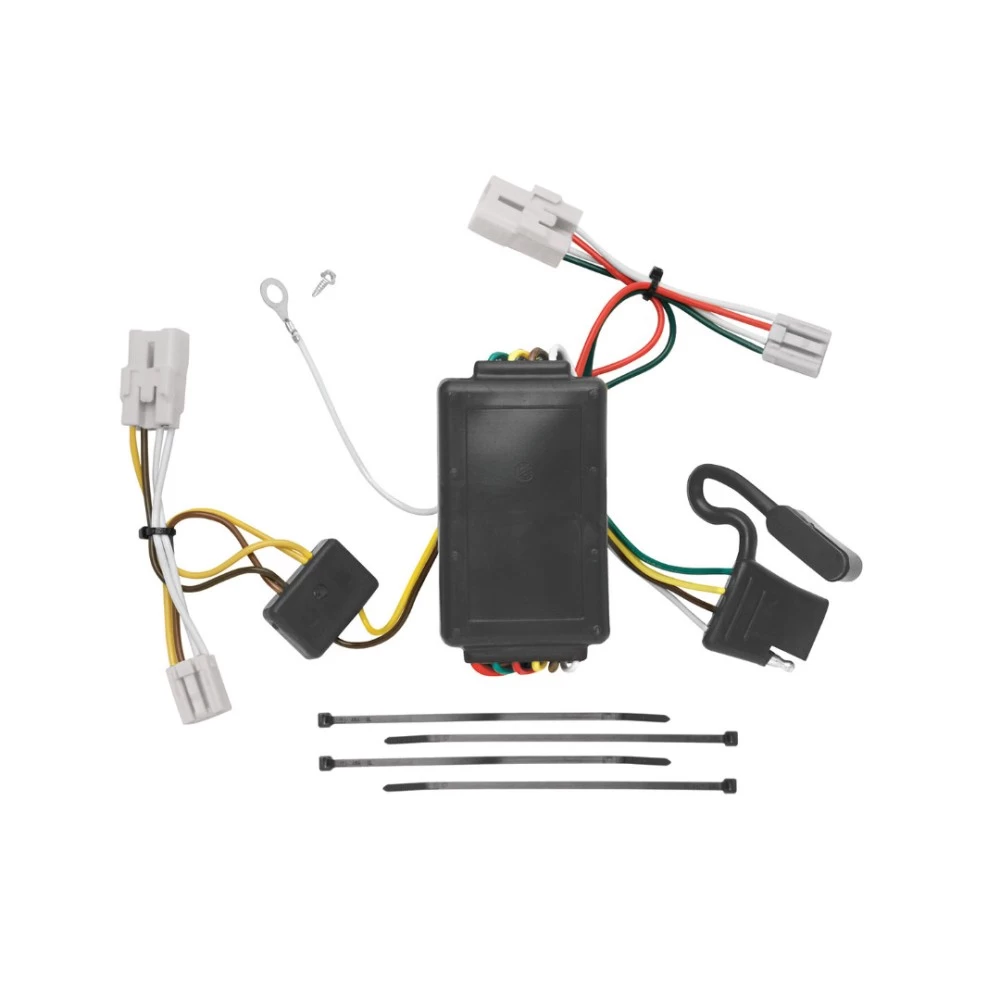

Installation Instructions for T-Connector Adapter for Hyundai Elantra Touring and Hyundai Santa Fe

Part Numbers:

• 118473

Wiring Access Location:

• Rear interior trim panels near the cargo area.

Tools Required:

• Trim panel remover.
• 1/4” socket and ratchet or wrench.
• Drill (3/32” drill bit).
• Phillips head screwdriver.
• Test probe.

Step-by-Step Instructions:

1. Open the rear hatch and fold forward the rear seat.

   • Temporarily remove all floor coverings, cargo trays, and the plastic threshold cover.
   • Partially remove the rear interior trim panels on both the driver’s and passenger’s sides.
   • Remove several trim panel fasteners to take off the panels. Be careful to avoid damaging any parts.
   • Santa Fe Only: Remove the tie-down loop and additional fasteners to remove the panels.

2. Locate the vehicle’s taillight wiring harness on both the driver’s and passenger’s sides.

   • The harness will have a connection point matching the T-Connector adapter.
   • On the driver’s side, insert the T-Connector end with the yellow wire between the vehicle wiring connectors. Lock it into place, ensuring the connectors are fully inserted.

3. Route the T-Connector end with the green wire to the passenger’s side, behind the panels and along the threshold.

   • Repeat step 2 for the passenger’s side using the green wire.

4. Locate a suitable grounding point near the connector, such as the vehicle’s frame or cross member.

   • Caution: Do not drill into the vehicle floor, bed, or any exposed surfaces.
   • Clean the area of dirt and rustproofing.
   • Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.

5. Find a suitable mounting location inside the rear quarter panel on the driver’s side.

   • Clean the mounting area with a 50/50 water-alcohol solution and attach the converter box using the provided double-sided tape.

6. Route the 4-flat connector from beneath the driver’s side trim panel into the rear storage compartment.

   • Santa Fe Only: If necessary, cut a slit or notch in the storage tray to allow the 4-flat connector to enter the compartment.
   • Store the 4-flat connector in the trunk or cargo area when not in use.

7. Reinstall the plastic trim panels, threshold, storage covers, and other items removed during installation.

   • Ensure no wires are pinched or cut during reassembly.

8. Test the installation with a test light or trailer.

   • Ensure all connections are complete for the T-Connector to function properly.

   • Specifications:

     • Max. stop/turn light: 1 per side (2.1 amps).
     • Max. tail lights: (7.5 amps).

Hardware List:

• T-Connector adapter.
• Eyelet and screw.
• Double-sided tape.
• Cable ties.

Safety Notes:

• Ensure all connections are clean and securely fastened.
• Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the unit specifications.

Manufacturer Notes:

• Read all warnings and instructions provided with the product.
• Use a test light or trailer to confirm proper installation.
• Refer to the vehicle owner’s manual for additional details.

Installation Instructions for T-Connector Adapter for Hyundai Elantra Touring and Hyundai Santa Fe

Part Numbers:

• 118473

Wiring Access Location:

• Rear interior trim panels near the cargo area.

Tools Required:

• Trim panel remover.
• 1/4” socket and ratchet or wrench.
• Drill (3/32” drill bit).
• Phillips head screwdriver.
• Test probe.

Step-by-Step Instructions:

1. Open the rear hatch and fold forward the rear seat.

   • Temporarily remove all floor coverings, cargo trays, and the plastic threshold cover.
   • Partially remove the rear interior trim panels on both the driver’s and passenger’s sides.
   • Remove several trim panel fasteners to take off the panels. Be careful to avoid damaging any parts.
   • Santa Fe Only: Remove the tie-down loop and additional fasteners to remove the panels.

2. Locate the vehicle’s taillight wiring harness on both the driver’s and passenger’s sides.

   • The harness will have a connection point matching the T-Connector adapter.
   • On the driver’s side, insert the T-Connector end with the yellow wire between the vehicle wiring connectors. Lock it into place, ensuring the connectors are fully inserted.

3. Route the T-Connector end with the green wire to the passenger’s side, behind the panels and along the threshold.

   • Repeat step 2 for the passenger’s side using the green wire.

4. Locate a suitable grounding point near the connector, such as the vehicle’s frame or cross member.

   • Caution: Do not drill into the vehicle floor, bed, or any exposed surfaces.
   • Clean the area of dirt and rustproofing.
   • Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.

5. Find a suitable mounting location inside the rear quarter panel on the driver’s side.

   • Clean the mounting area with a 50/50 water-alcohol solution and attach the converter box using the provided double-sided tape.

6. Route the 4-flat connector from beneath the driver’s side trim panel into the rear storage compartment.

   • Santa Fe Only: If necessary, cut a slit or notch in the storage tray to allow the 4-flat connector to enter the compartment.
   • Store the 4-flat connector in the trunk or cargo area when not in use.

7. Reinstall the plastic trim panels, threshold, storage covers, and other items removed during installation.

   • Ensure no wires are pinched or cut during reassembly.

8. Test the installation with a test light or trailer.

   • Ensure all connections are complete for the T-Connector to function properly.

   Specifications:

   • Max. stop/turn light: 1 per side (2.1 amps).
   • Max. tail lights: (7.5 amps).

Hardware List:

• T-Connector adapter.
• Eyelet and screw.
• Double-sided tape.
• Cable ties.

Safety Notes:

• Ensure all connections are clean and securely fastened.
• Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the unit specifications.

Installation Notes:

• Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Warranty Information:

• For complete warranty instructions, please download the full installation PDF.

Technical Support:

• For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
