Product Details
- Brand: Reese
- Model: 77205
- UPC: 016118073966

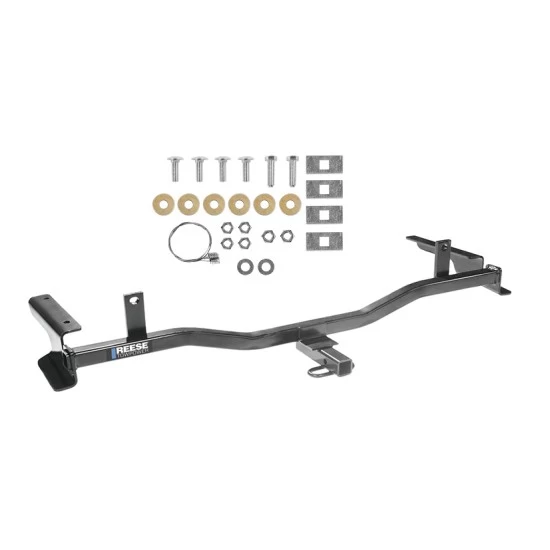

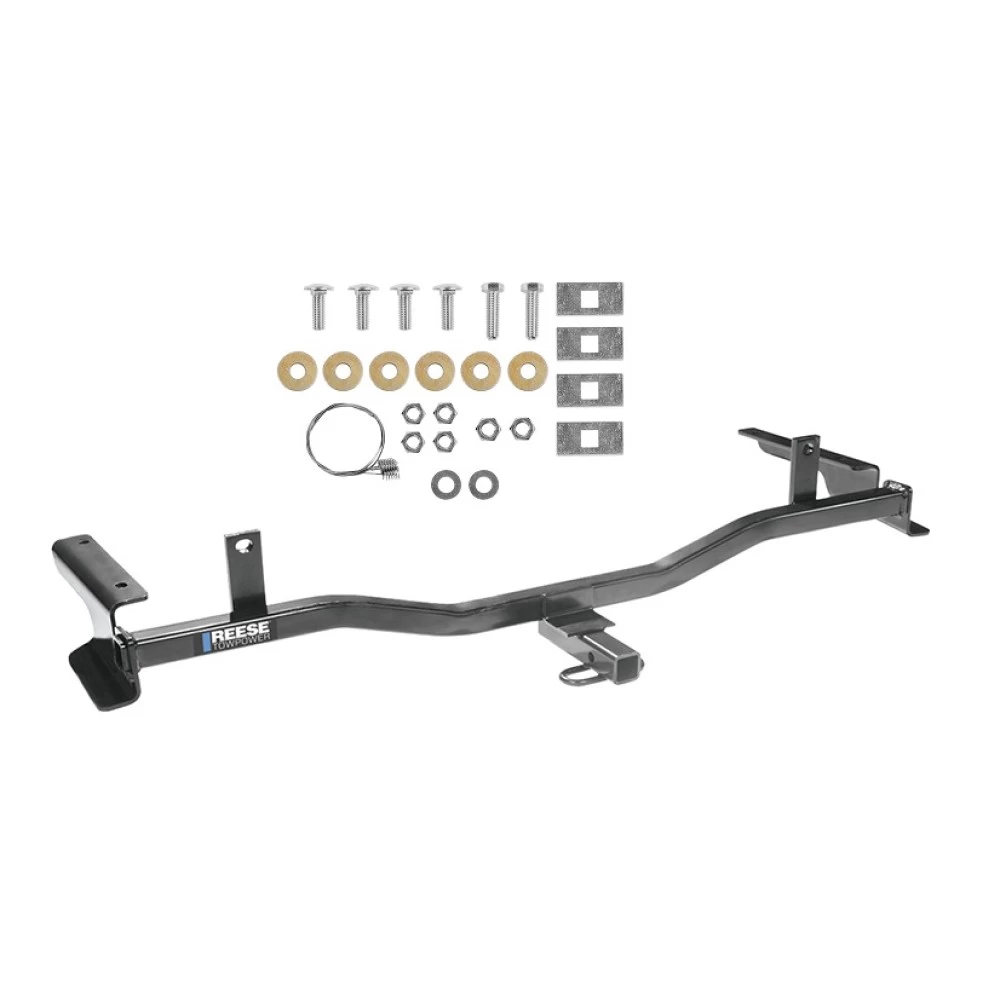

- Includes: Class 1 Trailer Tow Hitch
Compatibility Chart
Description
Get Expert Help
Reese Trailer Tow Hitch For 09-13 Mazda 6 Sedan 1-1/4" Towing Receiver Class 1 Install Notes
Installation Instructions for Mazda 6
Part Numbers:
- 77205
- 60222
- 24832
Wiring Access Location:
- PC3, PC4
Tools Required:
- Wrenches: 11/16”
- Hole Saw: 1-1/8”
- Fish Wire (Provided)
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Raise Vehicle:
- Use ramps or a hoist to safely raise the vehicle.
-
Lower Exhaust System:
- Remove the rubber isolators at the muffler(s) and one isolator near the rear suspension.
- Support the exhaust to prevent damage.
-
Remove Fascia Fasteners (for 6-cylinder models):
- If equipped with rear fascia exhaust trim, remove the two black plastic fasteners near the center of the rear panel to allow the fascia to be gently pulled back.
-
Position and Mark Hitch:
- Raise the hitch into position and temporarily install fasteners in the rear panel to locate the hitch.
- Mark the forward-most hole on the frame.
-
Drill Access Hole:
- Lower the hitch and drill a 1-1/8” access hole in the frame at the marked location.
- Paint all bare metal to prevent corrosion.
-
Install Fasteners:
- Fishwire the frame rail fasteners (carriage bolts and blocks) into place through the access hole.
- Leave the fish wires attached.
-
Raise Hitch:
- Lift the hitch into position, routing the fish wires through the hitch mounting holes.
- Carefully remove the fish wires, install the remaining fasteners, and tighten to specifications.
-
Reattach Exhaust:
- Raise the exhaust back into position and reconnect the rubber isolators.
-
Reinstall Fascia Fasteners (if removed):
- Reinstall the black plastic fascia fasteners removed in Step 3.
Hardware List:
- (4) Carriage Bolts: 7/16”-14 x 1-1/4” GR5
- (2) Hex Head Bolts: 7/16”-14 x 1-1/2” GR5
- (4) Blocks: 1” x 2” x 3/16”
- (6) Conical Washers: 7/16”
- (2) Flat Washers: 7/16”
- (6) Hex Nuts: 7/16”-14
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- Plug any holes in the trunk pan or other body panels if the hitch is removed to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working beneath the vehicle.
- Do not use a torch to cut access or attachment holes.
Drawbar:
- Drawbar Kit: 3592
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Tighten all 7/16” fasteners to 50 Lb.-Ft. (68 N*M).
- Check the hitch frequently to ensure all fasteners remain tight.
Installation Instructions
Part Numbers:
- 77205
- 60222
- 24832
Wiring Access Location:
- PC3, PC4
Tools Required:
- Wrenches: 11/16”
- Hole Saw: 1-1/8”
- Fish Wire (Provided)
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Raise Vehicle:
- Use ramps or a hoist to safely raise the vehicle.
-
Lower Exhaust System:
- Remove the rubber isolators at the muffler(s) and one isolator near the rear suspension.
- Support the exhaust to prevent damage.
-
Remove Fascia Fasteners (for 6-cylinder models):
- If equipped with rear fascia exhaust trim, remove the two black plastic fasteners near the center of the rear panel to allow the fascia to be gently pulled back.
-
Position and Mark Hitch:
- Raise the hitch into position and temporarily install fasteners in the rear panel to locate the hitch.
- Mark the forward-most hole on the frame.
-
Drill Access Hole:
- Lower the hitch and drill a 1-1/8” access hole in the frame at the marked location.
- Paint all bare metal to prevent corrosion.
-
Install Fasteners:
- Fishwire the frame rail fasteners (carriage bolts and blocks) into place through the access hole.
- Leave the fish wires attached.
-
Raise Hitch:
- Lift the hitch into position, routing the fish wires through the hitch mounting holes.
- Carefully remove the fish wires, install the remaining fasteners, and tighten to specifications.
-
Reattach Exhaust:
- Raise the exhaust back into position and reconnect the rubber isolators.
-
Reinstall Fascia Fasteners (if removed):
- Reinstall the black plastic fascia fasteners removed in Step 3.
Hardware List:
- (4) Carriage Bolts: 7/16”-14 x 1-1/4” GR5
- (2) Hex Head Bolts: 7/16”-14 x 1-1/2” GR5
- (4) Blocks: 1” x 2” x 3/16”
- (6) Conical Washers: 7/16”
- (2) Flat Washers: 7/16”
- (6) Hex Nuts: 7/16”-14
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- Plug any holes in the trunk pan or other body panels if the hitch is removed to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working beneath the vehicle.
- Do not use a torch to cut access or attachment holes.
Drawbar:
- Drawbar Kit: 3592
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Tighten all 7/16” fasteners to 50 Lb.-Ft. (68 N*M).
- Check the hitch frequently to ensure all fasteners remain tight.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
