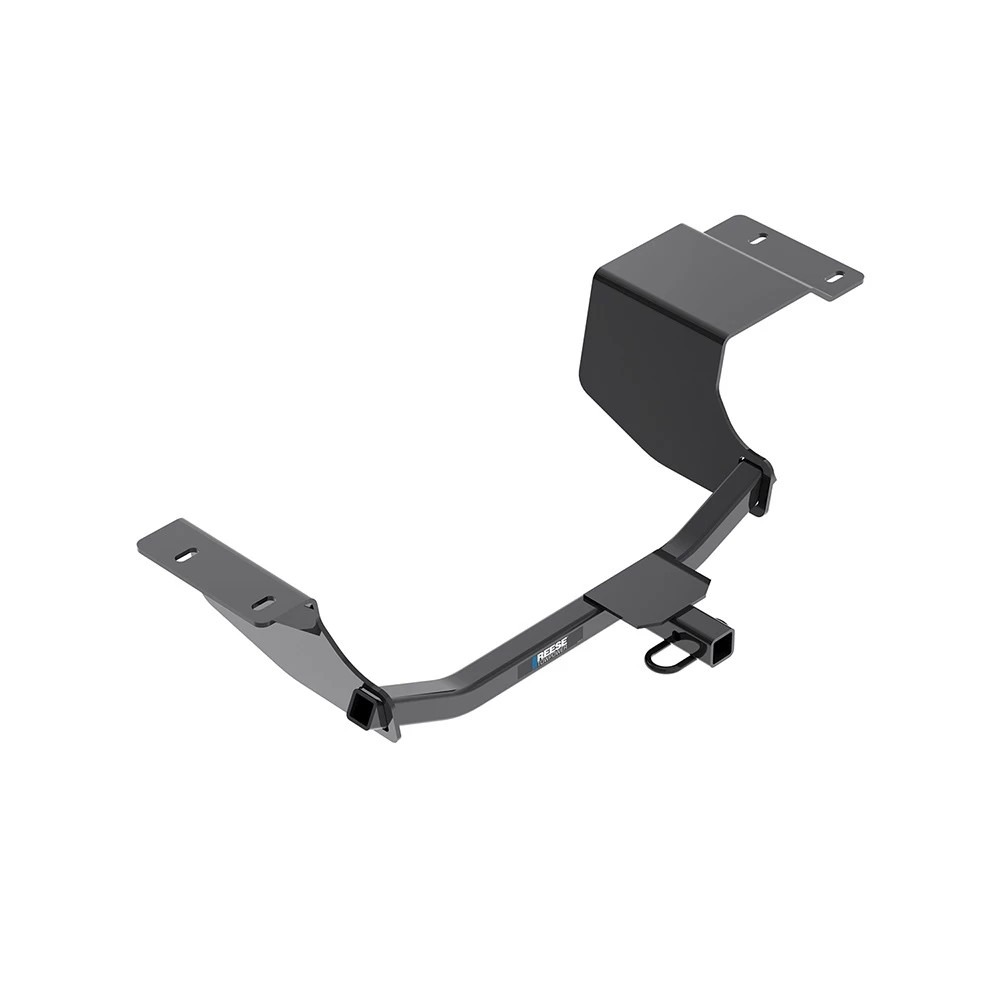

Reese Trailer Tow Hitch For 11‑19 Ford Fiesta Hatchback 1‑1/4" Towing Receiver Class 1
Model: 779612011 - 2019 Ford, Fiesta, 5 Dr. Hatchback
Trailer Hitch Specs:
| Part Number | 77961 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 11 12 13 14 15 16 17 18 19 2011 2012 2013 2014 2015 2016 2017 2018 2019
$165 08 $257.80 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$257.80 $165 08
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $41.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 77961
- UPC: 016118089196
- Includes: Class 1 Trailer Tow Hitch
Compatibility Chart
2011 - 2019 Ford, Fiesta, 5 Dr. Hatchback
Trailer Hitch Specs:
| Part Number | 77961 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 11 12 13 14 15 16 17 18 19 2011 2012 2013 2014 2015 2016 2017 2018 2019
Get Expert Help
Reese Trailer Tow Hitch For 11-19 Ford Fiesta Hatchback 1-1/4" Towing Receiver Class 1 Install Notes
Installation Instructions for Ford Fiesta Hatchback (2011-Current)
Part Numbers:
- 24961
- 77961
- CQT24961
Tools Required:
- Exhaust Removal Pliers
- Tin Snips
- 6” Socket Extension
- Sockets: 10mm, 11/16”, 3/4”
- Torque Wrench
- Ratchet
- Safety Glasses
- Soapy Water or Lubricant
Step-by-Step Instructions:
-
Lower exhaust and trim heat shield:
- Remove 2 rubber isolator hangers from the hanger rods supporting the muffler.
- Use lubricant or soapy water to ease removal of the rubber isolators.
- If necessary, remove nuts from the muffler heat shield using a 10mm socket.
- Measure 1” rearward from the middle attachment hole on the heat shield, mark a perpendicular line, and cut off the rear portion.
- Reinstall the trimmed heat shield using the two remaining attachment holes.
-
Insert fasteners:
- Use the reverse fishwire method to insert 7/16” carriage bolts and special washers into the vehicle frame.
- Repeat for both sides of the vehicle.
-
Raise hitch into position:
- Carefully position the hitch over the muffler and align it with the bolts installed in Step 2.
- Ensure bolts remain in place by leaving fishwires attached.
- Secure the hitch with 7/16” conical washers and 7/16” nuts without fully tightening.
-
Install handle nuts:
- Bend handle nuts as required to insert them through access holes in the frame and align them with the slots in the hitch.
- Attach 1/2” conical washers and 1/2” bolts.
- Tighten all fasteners to the specified torque and raise the muffler back into place.
-
Tighten fasteners:
- Use a torque wrench to tighten:
- 1/2”-13 Gr.5 bolts/nuts to 50 lb-ft (68 N*m).
- 7/16”-14 Gr.5 bolts/nuts to 50 lb-ft (68 N*m).
- Use a torque wrench to tighten:
Hardware List:
- (2) Carriage Bolt, 7/16”-14 x 1.25” GR5
- (2) Special Washer, 3/16” x 1” x 2” (Part No. 1204)
- (2) Conical Washer, 7/16” (Part No. 01292007)
- (2) Hex Nut, 7/16”-14 GR2
- (2) Hex Bolt, 1/2”-13 x 1.25” GR5
- (2) Conical Washer, 1/2” (Part No. 01292008)
- (2) Handle Nut, 1/2”-13 GR5 (Part No. 1332)
- (2) Fish Wire, 7/16” (Part No. 5481)
Safety Notes:
- Always wear safety glasses during installation.
- Check the hitch frequently to ensure all fasteners and the ball are securely tightened.
- Do not cut attachment holes using a torch.
- If the hitch or ball is damaged, remove and replace it immediately.
- Plug all removed holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Do not exceed the vehicle manufacturer’s towing ratings:
- Max Gross Trailer Weight: 2,000 lb (908 kg)
- Max Tongue Weight: 200 lb (91 kg)
Specifications:
- Installation Time: 30 minutes
- Complies with SAE J684 and VESC Regulation V-5 standards.
Installation Instructions for Vehicle (2011-Current)
Part Numbers:
- 24961
- 77961
- CQT24961
Tools Required:
- Exhaust Removal Pliers
- Tin Snips
- 6” Socket Extension
- Sockets: 10mm, 11/16”, 3/4”
- Torque Wrench
- Ratchet
- Safety Glasses
- Soapy Water or Lubricant
Step-by-Step Instructions:
-
Lower exhaust and trim heat shield:
- Remove 2 rubber isolator hangers from the hanger rods supporting the muffler.
- Use lubricant or soapy water to ease removal of the rubber isolators.
- If necessary, remove nuts from the muffler heat shield using a 10mm socket.
- Measure 1” rearward from the middle attachment hole on the heat shield, mark a perpendicular line, and cut off the rear portion.
- Reinstall the trimmed heat shield using the two remaining attachment holes.
-
Insert fasteners:
- Use the reverse fishwire method to insert 7/16” carriage bolts and special washers into the vehicle frame.
- Repeat for both sides of the vehicle.
-
Raise hitch into position:
- Carefully position the hitch over the muffler and align it with the bolts installed in Step 2.
- Ensure bolts remain in place by leaving fishwires attached.
- Secure the hitch with 7/16” conical washers and 7/16” nuts without fully tightening.
-
Install handle nuts:
- Bend handle nuts as required to insert them through access holes in the frame and align them with the slots in the hitch.
- Attach 1/2” conical washers and 1/2” bolts.
- Tighten all fasteners to the specified torque and raise the muffler back into place.
-
Tighten fasteners:
- Use a torque wrench to tighten:
- 1/2”-13 Gr.5 bolts/nuts to 50 lb-ft (68 N*m).
- 7/16”-14 Gr.5 bolts/nuts to 50 lb-ft (68 N*m).
- Use a torque wrench to tighten:
Hardware List:
- (2) Carriage Bolt, 7/16”-14 x 1.25” GR5
- (2) Special Washer, 3/16” x 1” x 2” (Part No. 1204)
- (2) Conical Washer, 7/16” (Part No. 01292007)
- (2) Hex Nut, 7/16”-14 GR2
- (2) Hex Bolt, 1/2”-13 x 1.25” GR5
- (2) Conical Washer, 1/2” (Part No. 01292008)
- (2) Handle Nut, 1/2”-13 GR5 (Part No. 1332)
- (2) Fish Wire, 7/16” (Part No. 5481)
Safety Notes:
- Always wear safety glasses during installation.
- Check the hitch frequently to ensure all fasteners and the ball are securely tightened.
- Do not cut attachment holes using a torch.
- If the hitch or ball is damaged, remove and replace it immediately.
- Plug all removed holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Do not exceed the vehicle manufacturer’s towing ratings:
- Max Gross Trailer Weight: 2,000 lb (908 kg)
- Max Tongue Weight: 200 lb (91 kg)
Specifications:
- Installation Time: 30 minutes
- Complies with SAE J684 and VESC Regulation V-5 standards.
Additional Information:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
- For complete warranty instructions, please download the full installation PDF.
