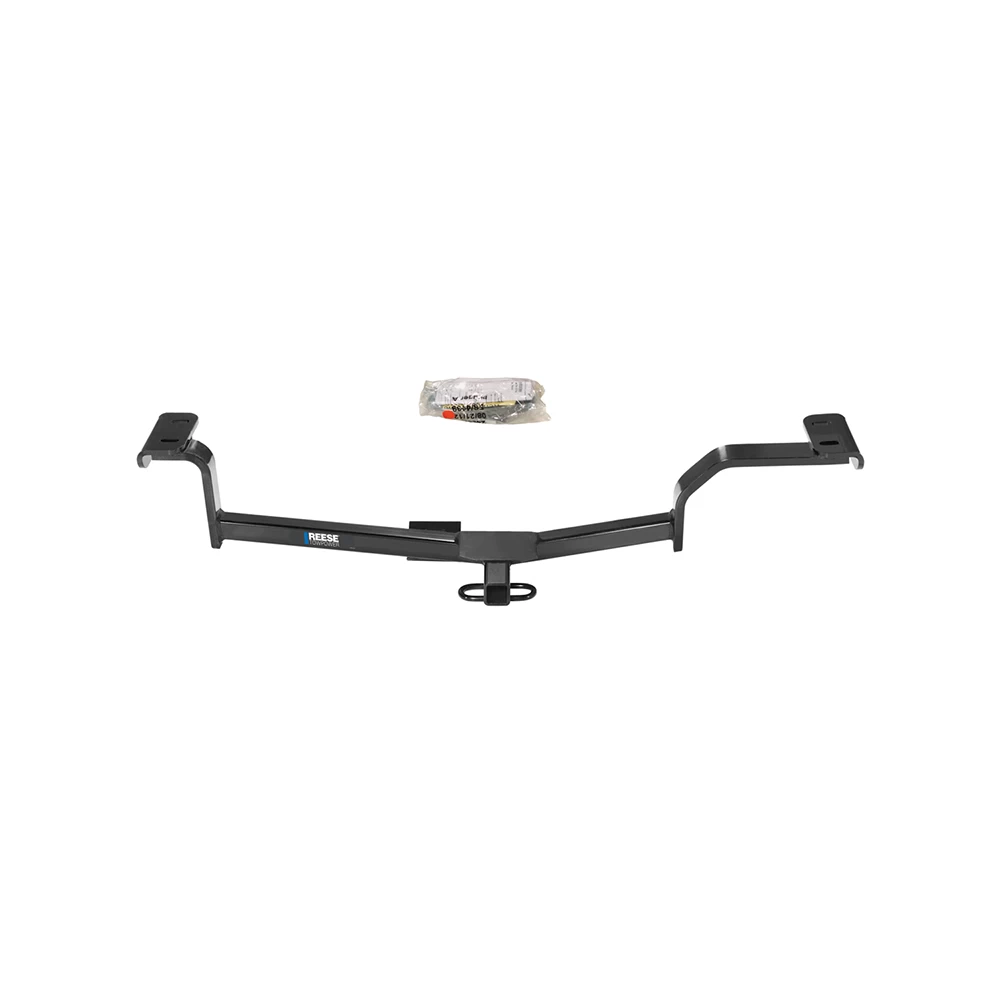

Installation Instructions for Hyundai Accent and Kia Rio

Part Numbers:

• 24884
• 60301
• 77272
• 24899 (U-Haul)

Wiring Access Location:

• PC3, PC4

Tools Required:

• Wrenches: 11/16”

Specifications:

• Max Gross Trailer Weight: 2,000 lb. (908 kg)
• Max Tongue Weight: 200 lb. (90.8 kg)
• Note: Do not exceed towing vehicle manufacturer’s rating.

Step-by-Step Instructions:

1. Prepare Vehicle:

   • For Kia Rio (2014-current), remove the bottom appearance panel on the driver's side and return it to the owner.
   • Remove rubber plugs from frame rails if present. Return to the owner for 5-door models or replace them after installation for 4-door models.

2. Insert Fasteners (4-Door Models):

   • Use the pullwire method to insert the carriage bolts and spacers through the forward hole in the frame rail. Leave pullwires attached.

3. Insert Fasteners (5-Door Models):

   • Use the reverse pullwire method to insert the carriage bolts and spacers through the access hole. Leave pullwires attached.

4. Install Tie-Down Hook Fasteners:

   • Insert the carriage bolt through the spacer and tie-down hook.

5. Position Hitch:

   • Feed the pullwires through the slots on the hitch bars.
   • Place spacers as required:
     • 1 spacer for 5-door Accent
     • 2 spacers for 4-door Accent
     • No spacer for 4-door Kia Rio.
   • Raise the hitch into position, taking care not to push the fasteners back into the frame rails.

6. Secure Hitch:

   • Remove the pullwires and attach conical washers and hex nuts to the fasteners as shown.
   • Use the remaining fasteners to secure the tie-down hook.

7. Tighten Fasteners:

   • Torque all 7/16”-14 GR5 fasteners to 50 Lb.-Ft. (68 N*M).

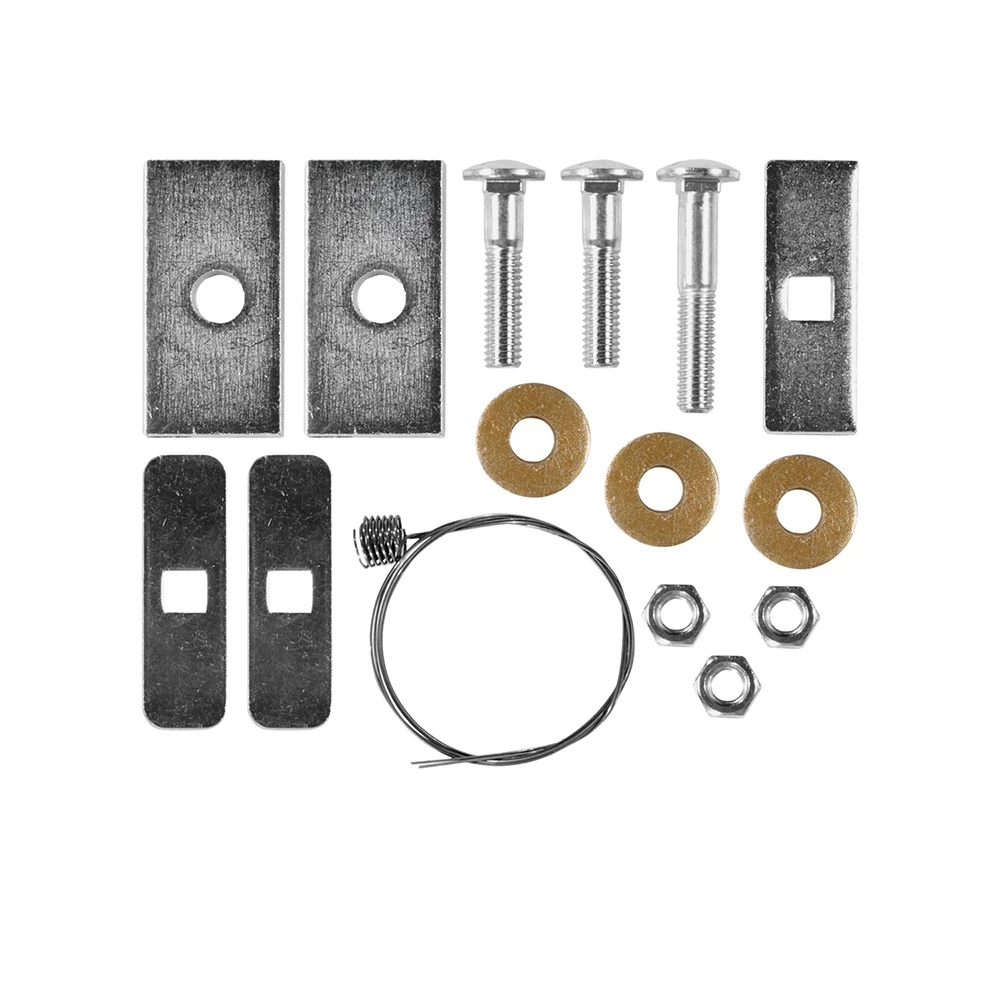

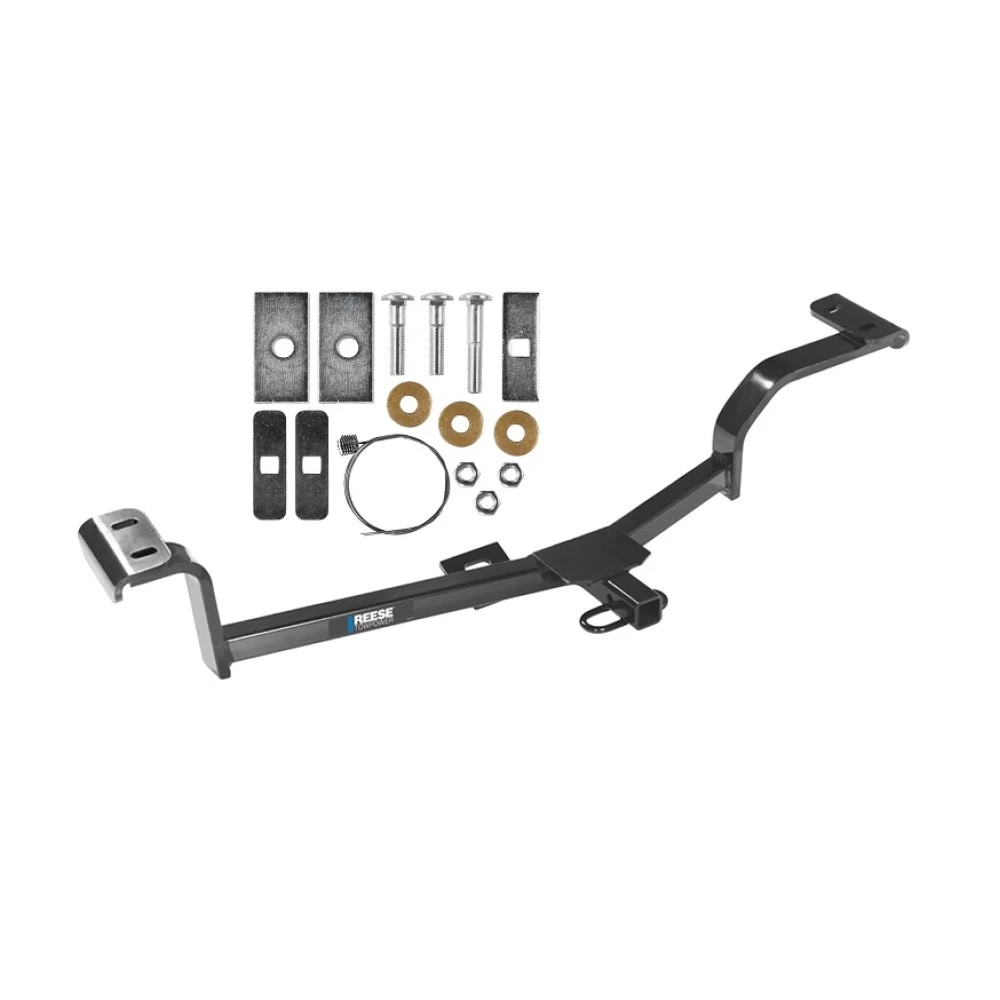

Hardware List:

• (2) Carriage Bolts: 7/16”-14 x 2.00” GR5
• (1) Carriage Bolt: 7/16”-14 x 2.50” GR5
• (2) Spacers: 0.13” x 0.93” x 3.00” (rounded corners)
• (1) Spacer: 0.25” x 1.00” x 3.00” (square corners)
• (3) Conical Washers: 7/16”
• (3) Hex Nuts: 7/16”-14
• (2) Spacers: 0.25” x 1.50” x 3.00”
• (2) Pullwires: 7/16”

Safety Notes:

• Regularly inspect all fasteners and the hitch ball to ensure they are securely tightened.
• If the hitch is removed, plug any holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always observe safety precautions and wear eye protection when working under the vehicle.
• Do not use a torch to cut access or attachment holes.

Drawbar:

• Drawbar Kit: 3592
• Important: The drawbar must be used in the rise position only.

Compliance:

• This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.

Additional Notes:

• Check the hitch frequently to ensure all fasteners remain tight.
• Properly sort hardware before installation to ensure correct placement of bolts and spacers.

Installation Instructions for Vehicle

Part Numbers:

• 24884
• 60301
• 77272
• 24899

Wiring Access Location:

• PC3, PC4

Tools Required:

• Wrenches: 11/16”

Specifications:

• Max Gross Trailer Weight: 2,000 lb. (908 kg)
• Max Tongue Weight: 200 lb. (90.8 kg)
• Note: Do not exceed towing vehicle manufacturer’s rating.

Step-by-Step Instructions:

1. Prepare Vehicle:

   • For vehicle model (2014-current), remove the bottom appearance panel on the driver's side and return it to the owner.
   • Remove rubber plugs from frame rails if present. Return to the owner for 5-door models or replace them after installation for 4-door models.

2. Insert Fasteners (4-Door Models):

   • Use the pullwire method to insert the carriage bolts and spacers through the forward hole in the frame rail. Leave pullwires attached.

3. Insert Fasteners (5-Door Models):

   • Use the reverse pullwire method to insert the carriage bolts and spacers through the access hole. Leave pullwires attached.

4. Install Tie-Down Hook Fasteners:

   • Insert the carriage bolt through the spacer and tie-down hook.

5. Position Hitch:

   • Feed the pullwires through the slots on the hitch bars.
   • Place spacers as required:
     • 1 spacer for 5-door vehicle
     • 2 spacers for 4-door vehicle
     • No spacer for 4-door vehicle model.
   • Raise the hitch into position, taking care not to push the fasteners back into the frame rails.

6. Secure Hitch:

   • Remove the pullwires and attach conical washers and hex nuts to the fasteners as shown.
   • Use the remaining fasteners to secure the tie-down hook.

7. Tighten Fasteners:

   • Torque all 7/16”-14 GR5 fasteners to 50 Lb.-Ft. (68 N*M).

Hardware List:

• (2) Carriage Bolts: 7/16”-14 x 2.00” GR5
• (1) Carriage Bolt: 7/16”-14 x 2.50” GR5
• (2) Spacers: 0.13” x 0.93” x 3.00” (rounded corners)
• (1) Spacer: 0.25” x 1.00” x 3.00” (square corners)
• (3) Conical Washers: 7/16”
• (3) Hex Nuts: 7/16”-14
• (2) Spacers: 0.25” x 1.50” x 3.00”
• (2) Pullwires: 7/16”

Safety Notes:

• Regularly inspect all fasteners and the hitch ball to ensure they are securely tightened.
• If the hitch is removed, plug any holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always observe safety precautions and wear eye protection when working under the vehicle.
• Do not use a torch to cut access or attachment holes.

Drawbar:

• Drawbar Kit: 3592
• Important: The drawbar must be used in the rise position only.

Compliance:

• This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.

Additional Notes:

• Check the hitch frequently to ensure all fasteners remain tight.
• Properly sort hardware before installation to ensure correct placement of bolts and spacers.
