Reese Trailer Tow Hitch For 13‑19 Cadillac XTS 14‑20 Chevy Impala 13‑16 Malibu Receiver w/ Draw Bar Kit

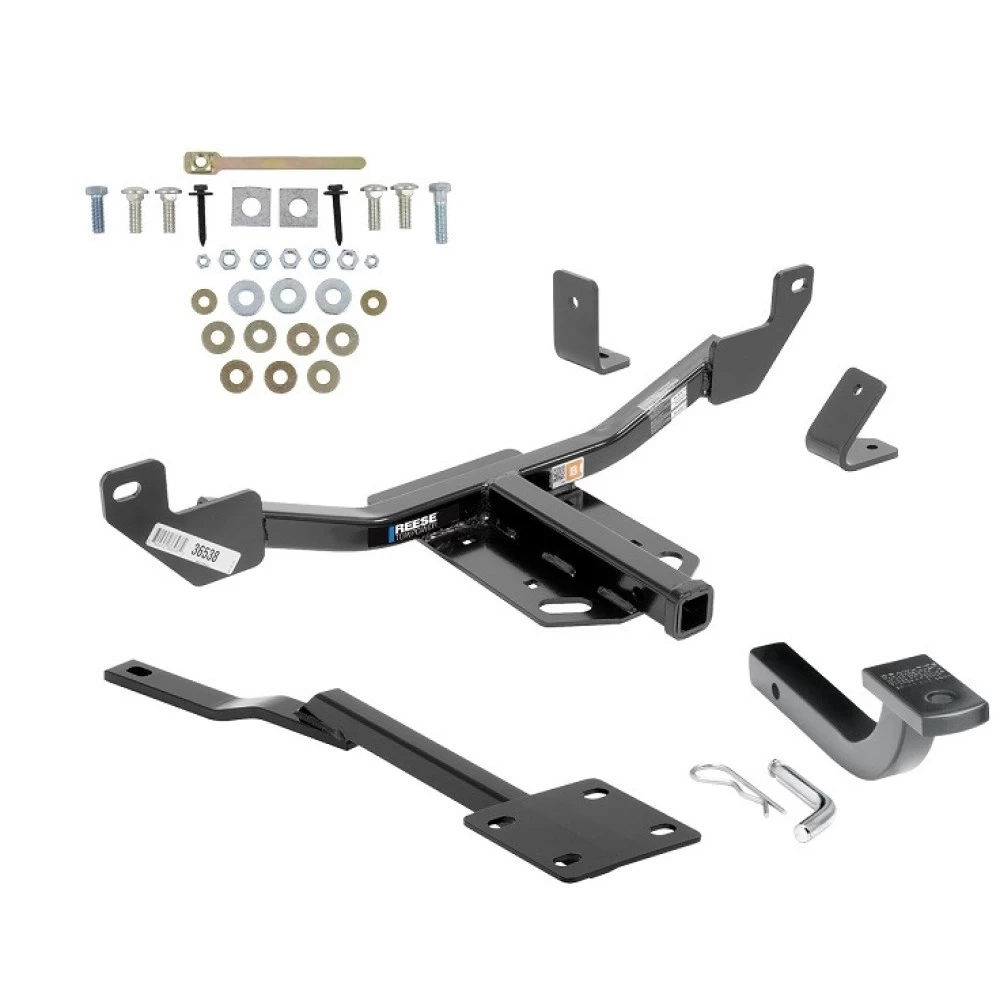

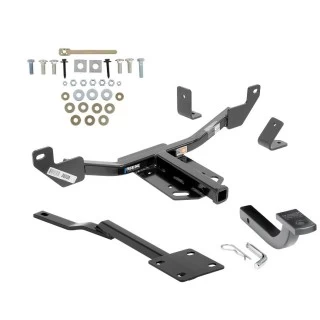

Model: 06168 36061Includes Everything Pictured:

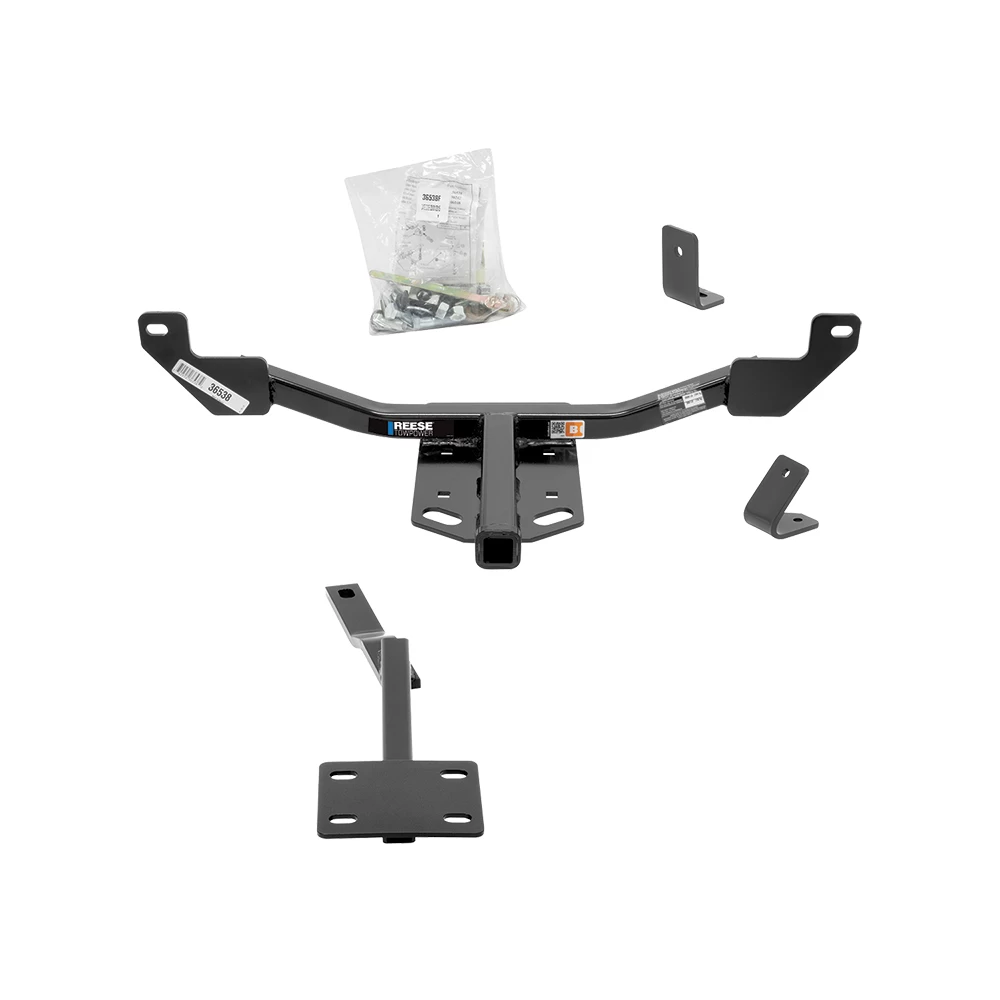

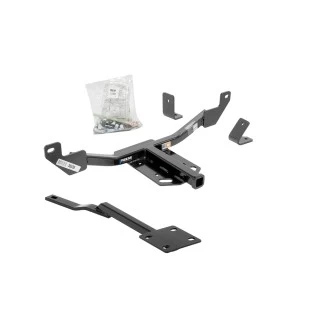

Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Installation Hardware
Installation Instructions
Fits The Following Vehicles:
2010 - 2016 Buick, LaCrosse, All Styles2011 - 2017 Buick, Regal, All Styles
2013 - 2019 Cadillac, XTS, All Styles
2013 - 2015 Chevrolet, Malibu, Except LTZ & Canada Models
2014 - 2015 Chevrolet, Malibu LTZ, Except Canada Models
2014 - 2020 Chevrolet, Impala, Except Impala Limited
2016 – 2019 Chevrolet, Malibu, Limited LTZ, Except Canada Models (Old Body Style)
2016 – 2019 Chevrolet, Malibu, Limited, Except LTZ & Canada Models (Old Body Style)
Trailer Hitch Specs:
| Part Number | 06168 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 2 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 300 lbs |
| Warranty | Lifetime |
Draw-Tite Ball Mount made out of heavy duty steel can be used in either rise or drop position. Ball mount will allow you to hook up your trailer to your vehicle. Simply slide it inside of your hitch receiver opening and secure it with a pin/clip or lock (pin and clip included)
Specifications:
| Fits | 1-1/4" x 1-1/4" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9-3/4" From Center of Pin Hole to Center of Ball Hole |
| Rise | 3-1/8" From inside top of hitch opening |
| Towing Capacity in Rise Position | 3,500 lb Gross Towing Weight 300 lb Tongue Weight |
| Towing Capacity in Drop Position | 3,500 lb Gross Towing Weight 300 lb Tongue Weight |
| Ball Hole Diameter | 3/4" |
| Pin hole diameter | 1/2" |
| Warranty | Limited Lifetime |
REESE Towpower custom-fit hitches are built according to manufacturer vehicle weight specifications and model year to ensure a perfect fit and top towing performance. Featuring solid all-welded construction for maximum strength and safety, every hitch meets and exceeds industry standards.
Partial list of fitment years: 10 11 12 13 14 15 16 17 18 19 20 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020
$300 51 $475.69 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$475.69 $300 51
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $75.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 06168 36061
- Includes: Class 2 Trailer Tow Hitch, Trailer Tow Hitch Ball Mount
Compatibility Chart
Get Expert Help
Reese Trailer Tow Hitch For 13-19 Cadillac XTS 14-20 Chevy Impala 13-16 Malibu Receiver w/ Draw Bar Kit Install Notes
Installation Instructions for Chevrolet Malibu, Chevrolet Impala, Buick LaCrosse, Buick Regal, and Cadillac XTS
Part Numbers:
- 36538
- 90242
- 06168
Wiring Access Location:
- PC3, PC4
Tools Required:
- Wrenches: 10mm, 13mm, 9/16", 3/4"
- Drill Bits: 1/2" (to enlarge holes on Buick LaCrosse and Cadillac XTS)
- Tape Measure (for Impala fascia trimming)
Step-by-Step Instructions:
-
Prepare Hitch Components:
- Unbolt the center section of the hitch, brackets "A" and "B," and keep the fasteners for installation.
-
Install Forward Brackets:
- On the passenger side, remove the existing inner tailpipe hanger 8mm bolt and replace it with the supplied M8 x 55mm bolt and a 5/16" flat washer.
- Sandwich two 1/2" flat washers between the end panel and the hitch bracket. Hand tighten only.
Special Instructions for Models:
- For Buick LaCrosse and Cadillac XTS: Enlarge the rearward hole on the suspension mount to accept a 1/2" bolt.
- Use bracket "B" with the wedge spacer for vehicles before mid-year 2013. Tape the spacer into place for easier installation.
- Use bracket "B" on Buick LaCrosse and bracket "A" on all other models.
-
Attach Rearward Section of Hitch:
- Raise the rearward section of the hitch into place over the 8mm bolts.
- Secure with 3/8" conical washers and M8 hex nuts.
-
Install Carriage Bolts:
- Insert four (4) 1/2"-13 x 1.50" carriage bolts into the hitch's support plate.
- Use the forward hole for Impala and Cadillac models and the rearward hole for Malibu, Regal, and LaCrosse models.
-
Raise Center Section of Hitch:
- Align the center section of the hitch with the carriage bolts on the support plate.
- Attach 1/2" conical washers and hex nuts to the bolts and hand tighten.
-
Secure Forward Section:
- Attach the forward end of the center section to the forward bracket with a 1/2"-13 x 2.00" bolt, 1/2" conical washer, and hex nut.
- Tighten all fasteners to the specified torque.
Torque Specifications:
- Tighten all M8-1.25 CL10.9 fasteners to 25 lb-ft (34 N*m).
- Tighten all 1/2"-13 GR5 fasteners to 75 lb-ft (102 N*m).
- Tighten 1/2"-13 GR5 bolts into handle nut fasteners to 50 lb-ft (68 N*m).
Hardware List:
- (2) Hex Bolts, M8 x 1.25 x 55mm CL10.9
- (4) Carriage Bolts, 1/2"-13 x 1.50" GR5
- (1) Carriage Bolt, 1/2"-13 x 2.00" GR5
- (7) Conical Washers, 1/2"
- (2) Conical Washers, 3/8"
- (7) Hex Nuts, 1/2"-13
- (2) Hex Nuts, M8 x 1.25
- (4) Flat Washers, 1/2"
- (2) Flat Washers, 5/16"
- (1) Handle Nut, 1/2"-13
- (1) Spacer Wedge
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath a vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight: 3,500 lb (1,589 kg)
- Max Tongue Weight: 300 lb (136 kg)
Additional Notes:
- Drawbar Kit: 36061 (sold separately)
- Fastener Kit: 36538F
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Installation Instructions for Chevrolet Malibu, Chevrolet Impala, Buick LaCrosse, Buick Regal, and Cadillac XTS
Part Numbers:
- 36538
- 90242
- 06168
Wiring Access Location:
- PC3, PC4
Tools Required:
- Wrenches: 10mm, 13mm, 9/16", 3/4"
- Drill Bits: 1/2" (to enlarge holes on Buick LaCrosse and Cadillac XTS)
- Tape Measure (for Impala fascia trimming)
Step-by-Step Instructions:
-
Prepare Hitch Components:
- Unbolt the center section of the hitch, brackets "A" and "B," and keep the fasteners for installation.
-
Install Forward Brackets:
- On the passenger side, remove the existing inner tailpipe hanger 8mm bolt and replace it with the supplied M8 x 55mm bolt and a 5/16" flat washer.
- Sandwich two 1/2" flat washers between the end panel and the hitch bracket. Hand tighten only.
Special Instructions for Models:
- For Buick LaCrosse and Cadillac XTS: Enlarge the rearward hole on the suspension mount to accept a 1/2" bolt.
- Use bracket "B" with the wedge spacer for vehicles before mid-year 2013. Tape the spacer into place for easier installation.
- Use bracket "B" on Buick LaCrosse and bracket "A" on all other models.
-
Attach Rearward Section of Hitch:
- Raise the rearward section of the hitch into place over the 8mm bolts.
- Secure with 3/8" conical washers and M8 hex nuts.
-
Install Carriage Bolts:
- Insert four (4) 1/2"-13 x 1.50" carriage bolts into the hitch's support plate.
- Use the forward hole for Impala and Cadillac models and the rearward hole for Malibu, Regal, and LaCrosse models.
-
Raise Center Section of Hitch:
- Align the center section of the hitch with the carriage bolts on the support plate.
- Attach 1/2" conical washers and hex nuts to the bolts and hand tighten.
-
Secure Forward Section:
- Attach the forward end of the center section to the forward bracket with a 1/2"-13 x 2.00" bolt, 1/2" conical washer, and hex nut.
- Tighten all fasteners to the specified torque.
Torque Specifications:
- Tighten all M8-1.25 CL10.9 fasteners to 25 lb-ft (34 N*m).
- Tighten all 1/2"-13 GR5 fasteners to 75 lb-ft (102 N*m).
- Tighten 1/2"-13 GR5 bolts into handle nut fasteners to 50 lb-ft (68 N*m).
Hardware List:
- (2) Hex Bolts, M8 x 1.25 x 55mm CL10.9
- (4) Carriage Bolts, 1/2"-13 x 1.50" GR5
- (1) Carriage Bolt, 1/2"-13 x 2.00" GR5
- (7) Conical Washers, 1/2"
- (2) Conical Washers, 3/8"
- (7) Hex Nuts, 1/2"-13
- (2) Hex Nuts, M8 x 1.25
- (4) Flat Washers, 1/2"
- (2) Flat Washers, 5/16"
- (1) Handle Nut, 1/2"-13
- (1) Spacer Wedge
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath a vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight: 3,500 lb (1,589 kg)
- Max Tongue Weight: 300 lb (136 kg)
Additional Notes:
- Drawbar Kit: 36061 (sold separately)
- Fastener Kit: 36538F
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
