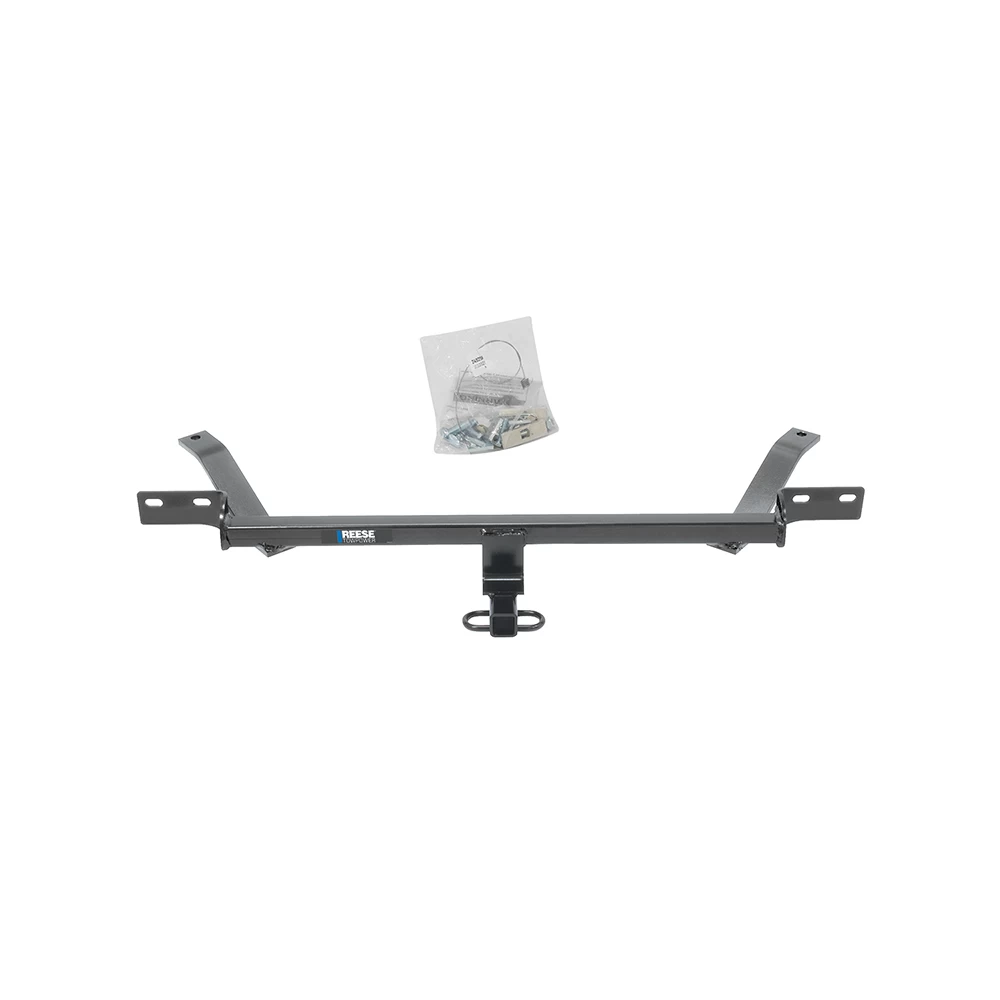

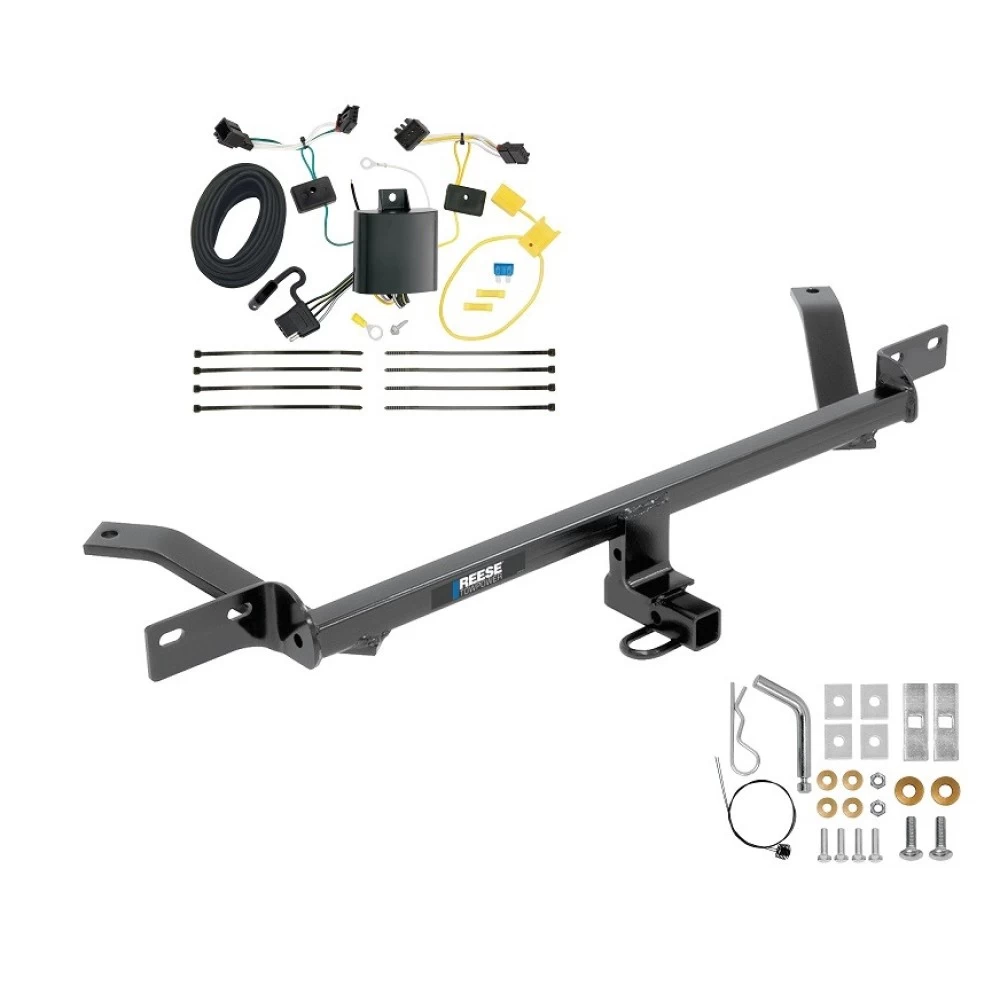

Installation Instructions for 2015-Current Volkswagen Golf

Part Numbers:

• 24925
• 77313
• CQT24925

Installation Time:

• Approximately 1 hour for professional installers.

Wiring Access Location:

Not specified.

Tools Required:

• Ratchet Torque Wrench
• Safety Glasses
• Sockets: 13 mm, 3/4"
• Flat Head Screwdriver
• Plastic Trim Tools
• Utility Knife
• T10 Torxbit Socket
• 6” Socket Extension
• Bungee Cord

Step-by-Step Instructions:

1. Remove Lower Fascia:

   • Use a T10 Torxbit socket to remove two (2) plastic screws and two (2) tabs from the bottom lower fascia.
   • Use plastic trim tools or a flat head screwdriver to unclip all tabs behind the lower fascia.
   • Remove the lower fascia.

2. Lower Exhaust Hanger:

   • Use a 13 mm socket to remove one (1) bolt from the exhaust hanger bracket on each side and lower the muffler temporarily.
   • Support the muffler with a bungee cord to prevent damage.

3. Remove Lower Bumper Bolts:

   • Use a 13 mm socket to remove four (4) M8 factory bolts from the lower portion of the bumper beam.
   • Return the bolts to the vehicle owner.

4. Install Hitch: a. Using the reverse fishwire method, feed the carriage bolt (1) and spacer (2) through slots on the bottom of the frame rails. Leave pull wires attached. b. Tape four (4) 1/4" spacers (6) on the forward side of hitch brackets and align the spacer holes with the hitch slots. c. Raise the hitch into position, over the exhaust, and feed the pull wires through the hitch holes. d. Remove pull wires, then loosely install the 1/2" conical washer (3) and hex nut (4) to the carriage bolt. Adjust the heat shield as needed. e. Loosely install four (4) M8 bolts (5) and four (4) 3/8" conical washers (7) into the existing bumper weldnuts.

5. Tighten Fasteners:

   • Tighten all M8 CL8.8 fasteners to 20 Lb.-Ft. (27 N*M).
   • Tighten all 1/2" GR5 fasteners to 75 Lb.-Ft. (102 N*M).

6. Trim Lower Fascia:

   • Locate the center of the bottom fascia and trim a 2.5" tall by 3.0" wide section.

7. Reinstall Components:

   • Reinstall the exhaust hangers, fasteners, and lower fascia removed in Steps 1 and 2.

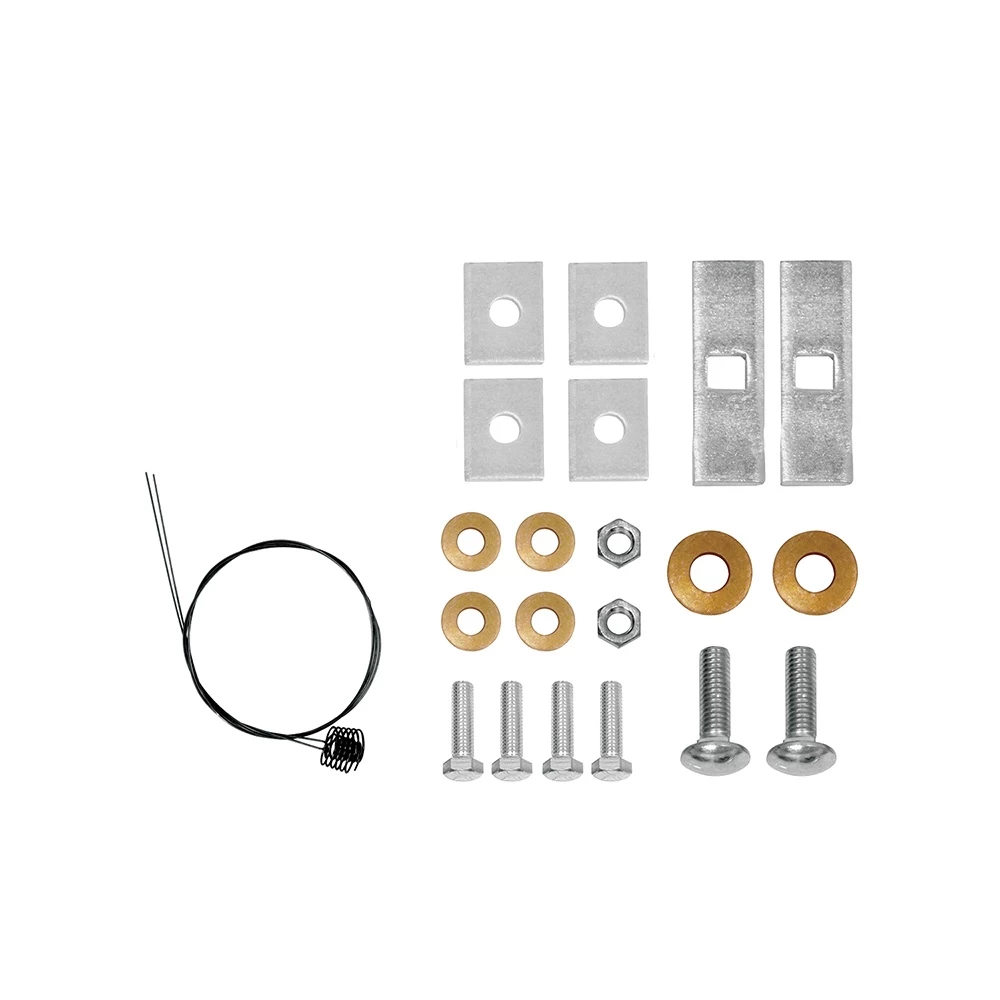

Hardware List:

• (2) Carriage bolts: 1/2-13 x 2.00 GR5
• (2) Spacers: .250 x 1 x 3 (Part #: 3022)
• (2) Conical washers: 1/2" (Part #: 01292008)
• (2) Hex nuts: 1/2-13 GR2
• (4) Bolts: M8 x 1.25 x 40 CL8.8
• (4) Spacers (round hole): .250 x 1 x 1.5 (Part #: 4294)
• (4) Conical washers: 3/8" (Part #: 01292006)
• (2) Pull wires: 1/2-13 (Part #: 5482)

Safety Notes:

• Always wear safety glasses during installation.
• Observe all safety precautions when working under the vehicle.
• Do not cut access or attachment holes with a torch.
• Ensure fasteners and hitch components are periodically checked and tightened.

Specifications:

• Hitch Type:
  • Max Gross Trailer Weight: 2000 lb. (908 kg)
  • Max Tongue Weight: 200 lb. (90.8 kg)
  • Weight Distributing: N/A
• This product complies with SAE J684 and New York V.E.S.C. Regulation V-5 standards.

Installation Instructions for 2015-Current Volkswagen Golf

Part Numbers:

• 24925
• 77313
• CQT24925

Installation Time:

• Approximately 1 hour for professional installers.

Wiring Access Location:

Not specified.

Tools Required:

• Ratchet Torque Wrench
• Safety Glasses
• Sockets: 13 mm, 3/4"
• Flat Head Screwdriver
• Plastic Trim Tools
• Utility Knife
• T10 Torxbit Socket
• 6” Socket Extension
• Bungee Cord

Step-by-Step Instructions:

1. Remove Lower Fascia:

   • Use a T10 Torxbit socket to remove two (2) plastic screws and two (2) tabs from the bottom lower fascia.
   • Use plastic trim tools or a flat head screwdriver to unclip all tabs behind the lower fascia.
   • Remove the lower fascia.

2. Lower Exhaust Hanger:

   • Use a 13 mm socket to remove one (1) bolt from the exhaust hanger bracket on each side and lower the muffler temporarily.
   • Support the muffler with a bungee cord to prevent damage.

3. Remove Lower Bumper Bolts:

   • Use a 13 mm socket to remove four (4) M8 factory bolts from the lower portion of the bumper beam.
   • Return the bolts to the vehicle owner.

4. Install Hitch: a. Using the reverse fishwire method, feed the carriage bolt (1) and spacer (2) through slots on the bottom of the frame rails. Leave pull wires attached. b. Tape four (4) 1/4" spacers (6) on the forward side of hitch brackets and align the spacer holes with the hitch slots. c. Raise the hitch into position, over the exhaust, and feed the pull wires through the hitch holes. d. Remove pull wires, then loosely install the 1/2" conical washer (3) and hex nut (4) to the carriage bolt. Adjust the heat shield as needed. e. Loosely install four (4) M8 bolts (5) and four (4) 3/8" conical washers (7) into the existing bumper weldnuts.

5. Tighten Fasteners:

   • Tighten all M8 CL8.8 fasteners to 20 Lb.-Ft. (27 N*M).
   • Tighten all 1/2" GR5 fasteners to 75 Lb.-Ft. (102 N*M).

6. Trim Lower Fascia:

   • Locate the center of the bottom fascia and trim a 2.5" tall by 3.0" wide section.

7. Reinstall Components:

   • Reinstall the exhaust hangers, fasteners, and lower fascia removed in Steps 1 and 2.

Hardware List:

• (2) Carriage bolts: 1/2-13 x 2.00 GR5
• (2) Spacers: .250 x 1 x 3
• (2) Conical washers: 1/2"
• (2) Hex nuts: 1/2-13 GR2
• (4) Bolts: M8 x 1.25 x 40 CL8.8
• (4) Spacers (round hole): .250 x 1 x 1.5
• (4) Conical washers: 3/8"
• (2) Pull wires: 1/2-13

Safety Notes:

• Always wear safety glasses during installation.
• Observe all safety precautions when working under the vehicle.
• Do not cut access or attachment holes with a torch.
• Ensure fasteners and hitch components are periodically checked and tightened.

Specifications:

• Hitch Type:
  • Max Gross Trailer Weight: 2000 lb. (908 kg)
  • Max Tongue Weight: 200 lb. (90.8 kg)
  • Weight Distributing: N/A
• This product complies with SAE J684 and New York V.E.S.C. Regulation V-5 standards.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

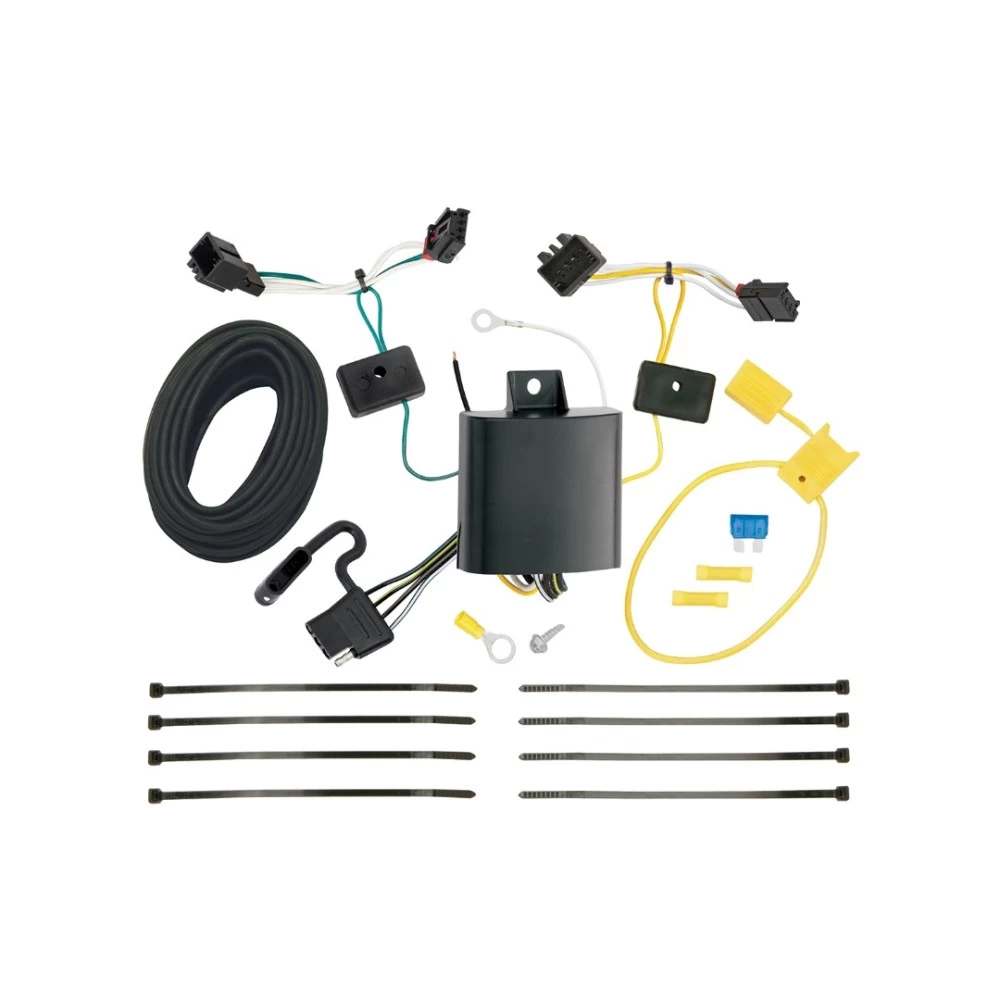

Installation Instructions for T-Connector Adapter for Volkswagen Golf

Part Numbers:

• 118646

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or Wrench
• Drill (3/32” Drill Bit)
• 1/4” Socket
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Prepare the Cargo Area:

   • Open the vehicle’s rear tailgate.
   • Remove the threshold, trunk floor panels, and trays. Set aside all items carefully to avoid damage.

2. Access Interior Panels:

   • Partially remove the rear interior trim panels on both the driver’s and passenger’s sides of the vehicle.
   • Remove necessary trim panel fasteners, being cautious not to damage the panels.

3. Connect the Driver-Side T-Connector:

   • Separate the vehicle’s wiring connectors on the driver’s side, ensuring not to damage the locking tabs.
   • Insert the T-Connector with the yellow wire between the vehicle’s wiring connectors and lock into place.
   • Ensure all connector surfaces are clean and secure.

4. Route the Passenger-Side T-Connector:

   • Route the T-Connector with the green wire below the threshold cover to the passenger-side taillight housing.
   • Repeat Step 3 for the passenger-side T-Connector connection.

5. Ground the White Wire:

   • Locate a suitable grounding point near the connectors on the driver’s side.
   • Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.

   Caution:

   • Verify what is behind the surface before drilling to avoid damage or injury.

6. Mount the Black Box:

   • Locate a flat surface in an out-of-the-way place and mount the T-Connector’s black box module to prevent damage or rattling.

7. Connect the Power Wire:

   • Inside the vehicle, connect the black 12-gauge wire from the T-Connector black box to the provided black wire using the yellow butt connector.
   • Route the black wire through a grommet or along the exterior frame, avoiding areas that may pinch or damage the wire.

8. Connect to the Vehicle Battery:

   • Disconnect the negative (-) battery cable.
   • Attach the ring terminal to the positive (+) battery cable and connect the fuse holder to the black 12-gauge wire using the yellow butt connector.
   • Insert the 15-amp fuse into the fuse holder.

9. Reconnect the Battery:

   • Reconnect the negative (-) battery cable.
   • Test the installation with a test light or trailer.

   Warning:

   • Ensure all connections are complete for proper functionality.

10. Secure the Wiring:

    • Use the provided cable ties to secure the T-Connector harness, avoiding areas that could pinch, cut, or melt the wires.

11. Reassemble the Vehicle:

    • Replace all removed panels, trim pieces, thresholds, and storage covers, ensuring no wires are pinched or damaged.

Specifications:

• Max. stop/turn light: 2 per side (4.2 amps)
• Max. tail lights: 7.5 amps

Safety Notes:

• Do not exceed the towing manufacturer’s rating or the specified circuit ratings.
• Always wear safety glasses and follow safety precautions during installation.

Manufacturer Notes:

• Store the 4-flat connector in the rear cargo area when not in use.
• Refer to the vehicle owner’s manual for additional details.

Installation Instructions for T-Connector Adapter for Volkswagen Golf

Part Numbers:

• 118646

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or Wrench
• Drill (3/32” Drill Bit)
• 1/4” Socket
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Prepare the Cargo Area:

   • Open the vehicle’s rear tailgate.
   • Remove the threshold, trunk floor panels, and trays. Set aside all items carefully to avoid damage.

2. Access Interior Panels:

   • Partially remove the rear interior trim panels on both the driver’s and passenger’s sides of the vehicle.
   • Remove necessary trim panel fasteners, being cautious not to damage the panels.

3. Connect the Driver-Side T-Connector:

   • Separate the vehicle’s wiring connectors on the driver’s side, ensuring not to damage the locking tabs.
   • Insert the T-Connector with the yellow wire between the vehicle’s wiring connectors and lock into place.
   • Ensure all connector surfaces are clean and secure.

4. Route the Passenger-Side T-Connector:

   • Route the T-Connector with the green wire below the threshold cover to the passenger-side taillight housing.
   • Repeat Step 3 for the passenger-side T-Connector connection.

5. Ground the White Wire:

   • Locate a suitable grounding point near the connectors on the driver’s side.
   • Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.

   Caution:

   • Verify what is behind the surface before drilling to avoid damage or injury.

6. Mount the Black Box:

   • Locate a flat surface in an out-of-the-way place and mount the T-Connector’s black box module to prevent damage or rattling.

7. Connect the Power Wire:

   • Inside the vehicle, connect the black 12-gauge wire from the T-Connector black box to the provided black wire using the yellow butt connector.
   • Route the black wire through a grommet or along the exterior frame, avoiding areas that may pinch or damage the wire.

8. Connect to the Vehicle Battery:

   • Disconnect the negative (-) battery cable.
   • Attach the ring terminal to the positive (+) battery cable and connect the fuse holder to the black 12-gauge wire using the yellow butt connector.
   • Insert the 15-amp fuse into the fuse holder.

9. Reconnect the Battery:

   • Reconnect the negative (-) battery cable.
   • Test the installation with a test light or trailer.

   Warning:

   • Ensure all connections are complete for proper functionality.

10. Secure the Wiring:

    • Use the provided cable ties to secure the T-Connector harness, avoiding areas that could pinch, cut, or melt the wires.

11. Reassemble the Vehicle:

    • Replace all removed panels, trim pieces, thresholds, and storage covers, ensuring no wires are pinched or damaged.

Specifications:

• Max. stop/turn light: 2 per side (4.2 amps)
• Max. tail lights: 7.5 amps

Safety Notes:

• Do not exceed the towing manufacturer’s rating or the specified circuit ratings.
• Always wear safety glasses and follow safety precautions during installation.

Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Manufacturer Notes:

• Store the 4-flat connector in the rear cargo area when not in use.
• Refer to the vehicle owner’s manual for additional details.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.
