Product Details
- Brand: Reese
- Model: 44719 85863 21536 7054430 7000600
- Includes: Class 3 Trailer Tow Hitch, T-Connector Custom Harness, Trailer Tow Hitch Ball Mount Starter Kit, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover
Compatibility Chart
Description
Get Expert Help

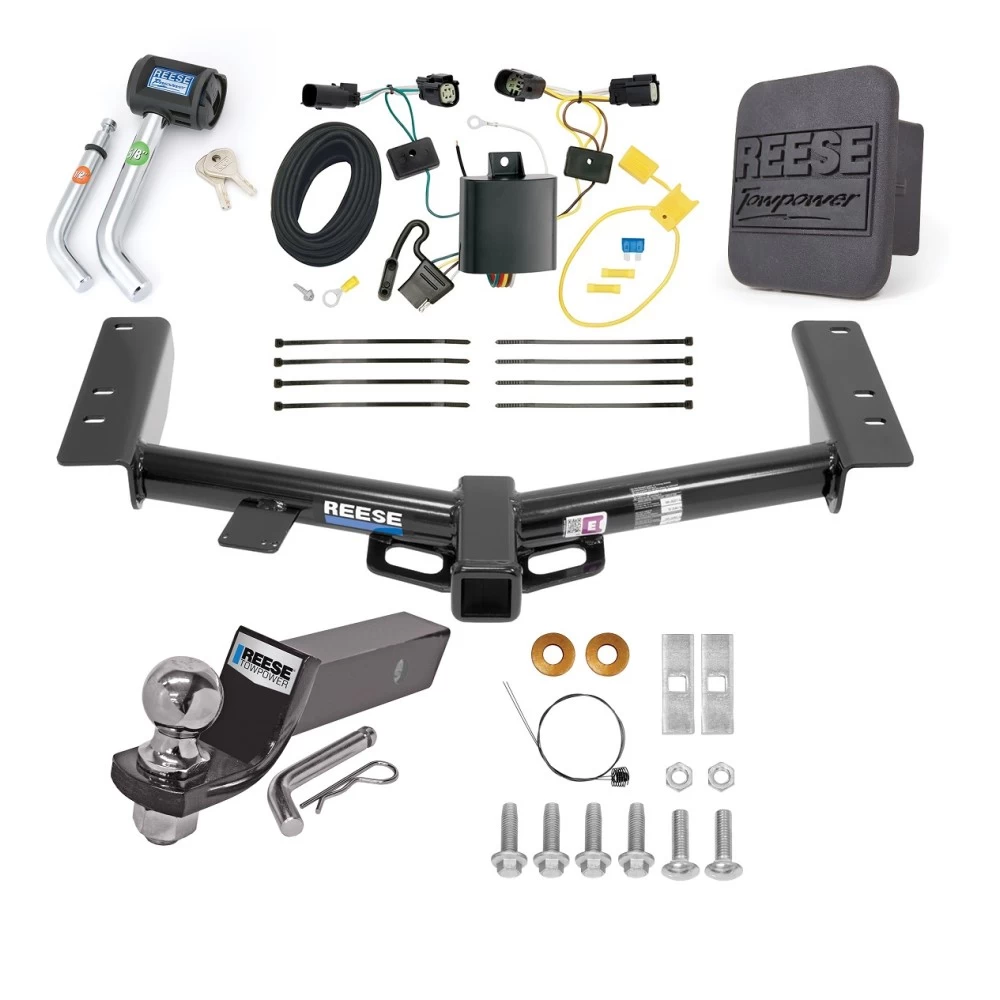

Reese Trailer Tow Hitch For 15-23 Ford Transit 150 250 350 Deluxe Package Wiring 2" Ball and Lock Install Notes
Installation Instructions for Ford Transit
Part Numbers:
- 75912
- 44719
- CQT75912
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Wrenches: 15mm, 3/4"
- Drill Bits: None
Step-by-Step Instructions:
-
Prepare Self-Tapping Bolts:
- Start threading the self-tapping bolts (Item 5) into the designated locations on the frame rail.
- Ensure the bolts are perpendicular to the frame rail and thread halfway or more before removing the bolts for later reinstallation.
-
Install Carriage Bolts:
- Feed the pull wire through the forward slot in the frame rail and out the open end of the frame.
- Attach the carriage bolt and spacer to the pull wire and pull them into position through the forward hole. Leave pull wires attached.
-
Raise Hitch into Position:
- Align the hitch with the frame rails and feed pull wires through the hitch slots. Use conical washers to hold bolts in place while removing the pull wires.
- Attach hex nuts and tighten to hold the hitch in place. Repeat on the opposite side.
-
Reinstall Self-Tapping Bolts:
- Secure the hitch with self-tapping bolts. Once all bolts are in place, center the hitch on the vehicle and tighten.
-
Torque Fasteners:
- Tighten all fasteners to the specified torque values:
- M12 x 1.75 fasteners: 75 lb-ft (102 N*m)
- 1/2"-13 GR5 fasteners: 75 lb-ft (102 N*m)
- Tighten all fasteners to the specified torque values:
Hardware List:
- Qty (2): Carriage Bolt – 1/2"-13 x 1.50 GR5
- Qty (2): Spacer – 0.25 x 1.00 x 3.00
- Qty (2): Conical Washer – 1/2"
- Qty (2): Hex Nut – 1/2"-13
- Qty (4): Self-Tapping Bolt – M12 x 1.75 x 40
- Qty (2): Pull Wire – 1/2"
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Weight Distributing
- Max Gross Trailer Weight: 8,000 lbs (3,632 kg)
- Max Tongue Weight: 900 lbs (408 kg)
- Hitch Type: Weight Carrying (Ball Mount)
- Max Gross Trailer Weight: 6,000 lbs (2,722 kg)
- Max Tongue Weight: 900 lbs (408 kg)
Manufacturer Notes:
- Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for Vehicle
Part Numbers:
- 75912
- 44719
- CQT75912
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Wrenches: 15mm, 3/4"
- Drill Bits: None
Step-by-Step Instructions:
-
Prepare Self-Tapping Bolts:
- Start threading the self-tapping bolts (Item 5) into the designated locations on the frame rail.
- Ensure the bolts are perpendicular to the frame rail and thread halfway or more before removing the bolts for later reinstallation.
-
Install Carriage Bolts:
- Feed the pull wire through the forward slot in the frame rail and out the open end of the frame.
- Attach the carriage bolt and spacer to the pull wire and pull them into position through the forward hole. Leave pull wires attached.
-
Raise Hitch into Position:
- Align the hitch with the frame rails and feed pull wires through the hitch slots. Use conical washers to hold bolts in place while removing the pull wires.
- Attach hex nuts and tighten to hold the hitch in place. Repeat on the opposite side.
-
Reinstall Self-Tapping Bolts:
- Secure the hitch with self-tapping bolts. Once all bolts are in place, center the hitch on the vehicle and tighten.
-
Torque Fasteners:
- Tighten all fasteners to the specified torque values:
- M12 x 1.75 fasteners: 75 lb-ft (102 N*m)
- 1/2"-13 GR5 fasteners: 75 lb-ft (102 N*m)
- Tighten all fasteners to the specified torque values:
Hardware List:
- Qty (2): Carriage Bolt – 1/2"-13 x 1.50 GR5
- Qty (2): Spacer – 0.25 x 1.00 x 3.00
- Qty (2): Conical Washer – 1/2"
- Qty (2): Hex Nut – 1/2"-13
- Qty (4): Self-Tapping Bolt – M12 x 1.75 x 40
- Qty (2): Pull Wire – 1/2"
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Weight Distributing
- Max Gross Trailer Weight: 8,000 lbs (3,632 kg)
- Max Tongue Weight: 900 lbs (408 kg)
- Hitch Type: Weight Carrying (Ball Mount)
- Max Gross Trailer Weight: 6,000 lbs (2,722 kg)
- Max Tongue Weight: 900 lbs (408 kg)
Manufacturer Notes:
- Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Installation Instructions for T-One® T-Connector for Ford Transit
Part Numbers:
- 118643
Tools Required:
- Trim Panel Remover
- Drill (3/32” Drill Bit)
- Phillips Head Screwdriver
- Test Probe
- Flat Screwdriver
Step-by-Step Instructions:
-
Remove the Taillights:
- Open the rear door.
- Remove the screws securing the taillights on both the driver and passenger sides.
- Carefully pull the taillights away from the vehicle, avoiding damage to alignment pins.
-
Disconnect the Wiring Harness:
- On both sides, locate the vehicle’s taillight wiring harness.
- Separate the connector carefully, ensuring not to break the locking tabs.
- Ensure all connector surfaces are clean and free of dirt.
-
Install the Driver-Side T-Connector:
- Insert the T-One® T-Connector end with the yellow wire between the vehicle’s wiring connectors on the driver’s side.
- Ensure the connectors are fully inserted with locking tabs in place.
-
Route the Green Wire to the Passenger Side:
- Route the harness containing the green wire and 4-flat connector through the opening behind the driver’s side taillight.
- Continue routing the green wire underneath the vehicle to the passenger side and up through the opening behind the passenger’s taillight.
Warning: Avoid hot pipes, heat shields, fuel tanks, or other areas where the wire could be pinched or damaged.
-
Install the Passenger-Side T-Connector:
- Repeat Step 3 on the passenger side using the T-One® T-Connector with the green wire.
-
Ground the White Wire:
- Locate a suitable grounding point on the driver’s side near the connectors.
- Drill a 3/32” hole and secure the white wire using the provided screw and eyelet.
Caution: Verify the area behind the surface before drilling to avoid vehicle damage or injury.
-
Connect the Power Wire:
- Open the hood and locate the positive 12V power post. Using a 15mm socket, remove the nut.
- Attach the provided ring terminal to the positive battery post using the nut removed earlier.
-
Prepare the Fuse Holder:
- Remove the fuse from the yellow fuse holder.
- Attach one end of the fuse holder to the positive battery post and the other end to the black 12-gauge wire using the yellow butt connector.
-
Route the Black Power Wire:
- Route the black wire from the engine compartment to the rear driver’s side of the vehicle.
- Connect the black wire to the power wire on the T-One® T-Connector black box using the yellow butt connector.
Warning: Avoid routing near hot pipes, heat shields, or fuel tanks.
-
Reconnect the Battery:
- Reconnect the vehicle’s negative (-) battery cable.
- Install the 15-amp fuse into the fuse holder.
Warning: All connections must be complete for the trailer tow harness to function properly. Test the installation using a test light or trailer.
-
Mount the T-One® Black Box:
- Mount the black box on the driver’s side using the provided double-sided tape.
- Secure the remainder of the T-One® harness using the provided cable ties.
Warning: Ensure the epoxy side of the black box is facing downward to prevent water buildup.
-
Reinstall the Taillights:
- Reinstall the taillight assemblies, ensuring the wiring is positioned properly.
-
Mount the 4-Flat Connector:
- Secure the 4-flat connector in an accessible location using a bracket or electrical box (not included).
Specifications:
- Max. stop/turn light: 4.2 amps per side
- Max. tail lights: 7.5 amps
Safety Notes:
- Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
- Always wear safety glasses and follow all safety precautions during installation.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and the instruction sheet for additional information.
- Store these instructions for future reference.
Installation Instructions for T-One® T-Connector for Ford Transit
Part Numbers:
- 118643
Tools Required:
- Trim Panel Remover
- Drill (3/32” Drill Bit)
- Phillips Head Screwdriver
- Test Probe
- Flat Screwdriver
Step-by-Step Instructions:
-
Remove the Taillights:
- Open the rear door.
- Remove the screws securing the taillights on both the driver and passenger sides.
- Carefully pull the taillights away from the vehicle, avoiding damage to alignment pins.
-
Disconnect the Wiring Harness:
- On both sides, locate the vehicle’s taillight wiring harness.
- Separate the connector carefully, ensuring not to break the locking tabs.
- Ensure all connector surfaces are clean and free of dirt.
-
Install the Driver-Side T-Connector:
- Insert the T-One® T-Connector end with the yellow wire between the vehicle’s wiring connectors on the driver’s side.
- Ensure the connectors are fully inserted with locking tabs in place.
-
Route the Green Wire to the Passenger Side:
- Route the harness containing the green wire and 4-flat connector through the opening behind the driver’s side taillight.
- Continue routing the green wire underneath the vehicle to the passenger side and up through the opening behind the passenger’s taillight.
Warning: Avoid hot pipes, heat shields, fuel tanks, or other areas where the wire could be pinched or damaged.
-
Install the Passenger-Side T-Connector:
- Repeat Step 3 on the passenger side using the T-One® T-Connector with the green wire.
-
Ground the White Wire:
- Locate a suitable grounding point on the driver’s side near the connectors.
- Drill a 3/32” hole and secure the white wire using the provided screw and eyelet.
Caution: Verify the area behind the surface before drilling to avoid vehicle damage or injury.
-
Connect the Power Wire:
- Open the hood and locate the positive 12V power post. Using a 15mm socket, remove the nut.
- Attach the provided ring terminal to the positive battery post using the nut removed earlier.
-
Prepare the Fuse Holder:
- Remove the fuse from the yellow fuse holder.
- Attach one end of the fuse holder to the positive battery post and the other end to the black 12-gauge wire using the yellow butt connector.
-
Route the Black Power Wire:
- Route the black wire from the engine compartment to the rear driver’s side of the vehicle.
- Connect the black wire to the power wire on the T-One® T-Connector black box using the yellow butt connector.
Warning: Avoid routing near hot pipes, heat shields, or fuel tanks.
-
Reconnect the Battery:
- Reconnect the vehicle’s negative (-) battery cable.
- Install the 15-amp fuse into the fuse holder.
Warning: All connections must be complete for the trailer tow harness to function properly. Test the installation using a test light or trailer.
-
Mount the T-One® Black Box:
- Mount the black box on the driver’s side using the provided double-sided tape.
- Secure the remainder of the T-One® harness using the provided cable ties.
Warning: Ensure the epoxy side of the black box is facing downward to prevent water buildup.
-
Reinstall the Taillights:
- Reinstall the taillight assemblies, ensuring the wiring is positioned properly.
-
Mount the 4-Flat Connector:
- Secure the 4-flat connector in an accessible location using a bracket or electrical box (not included).
Specifications:
- Max. stop/turn light: 4.2 amps per side
- Max. tail lights: 7.5 amps
Safety Notes:
- Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
- Always wear safety glasses and follow all safety precautions during installation.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and the instruction sheet for additional information.
- Store these instructions for future reference.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
