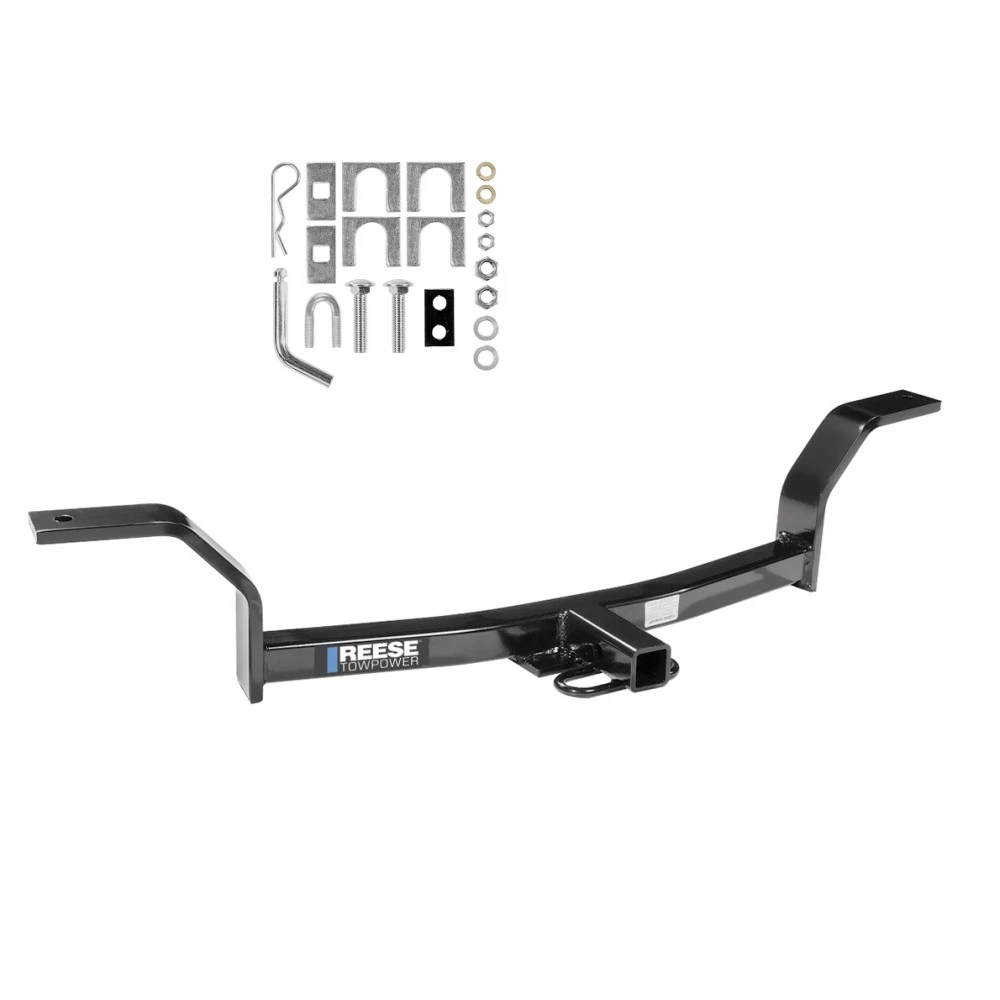

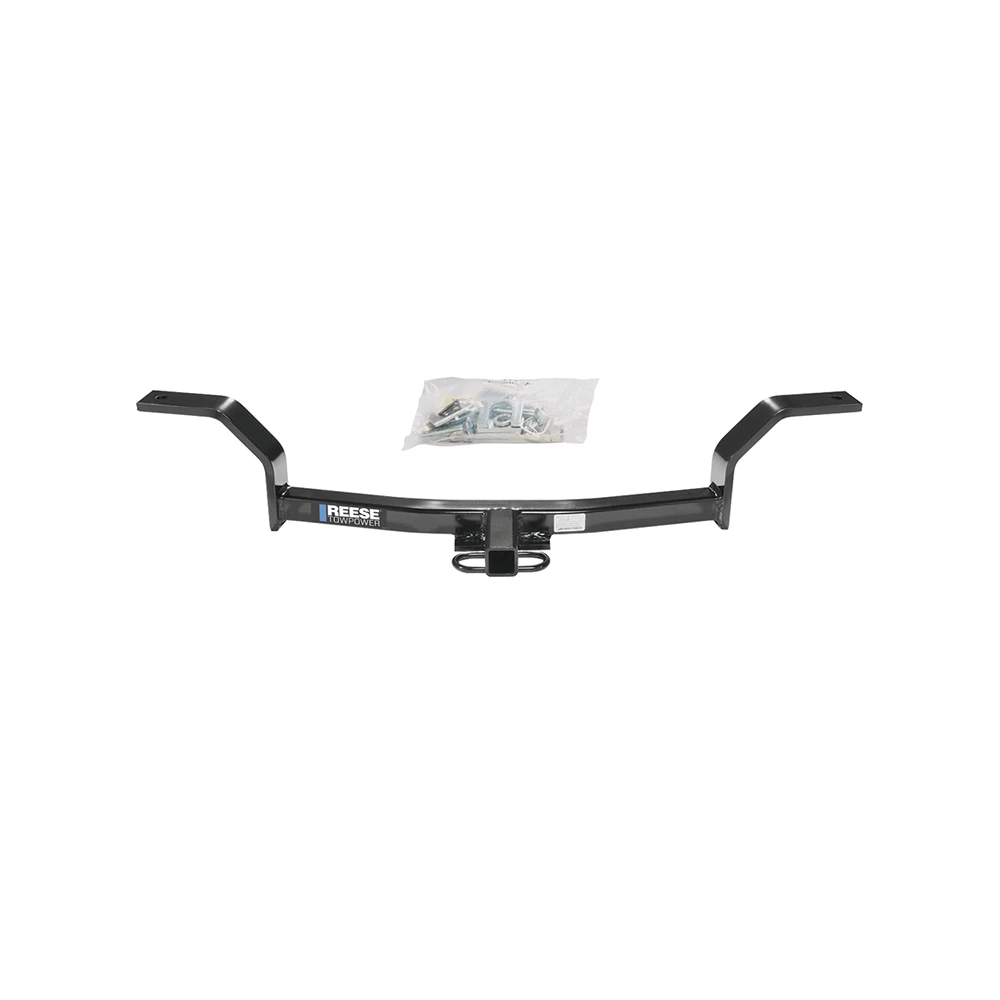

Reese Trailer Tow Hitch For 92‑00 Honda Civic Coupe and Sedan ONLY 97‑01 Acura EL 1‑1/4" Towing Receiver Class 1
Model: 77025
1992 - 2000 Honda, Civic, Coupe and Sedan
1997 - 2001 Acura, EL, All Styles
Trailer Hitch Specs:
| Part Number | 77025 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 92 93 94 95 96 97 98 99 00 01 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001
$220 40 $320.73 31% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$320.73 $220 40
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $55.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 77025
- UPC: 016118770254
- Includes: Class 1 Trailer Tow Hitch
Compatibility Chart
Description
1992 - 2000 Honda, Civic, Coupe and Sedan
1997 - 2001 Acura, EL, All Styles
Trailer Hitch Specs:
| Part Number | 77025 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 92 93 94 95 96 97 98 99 00 01 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001
Get Expert Help
Reese Trailer Tow Hitch For 92-00 Honda Civic Coupe and Sedan ONLY 97-01 Acura EL 1-1/4" Towing Receiver Class 1 Install Notes
Installation Instructions for Honda Civic and Acura 1.6 EL (Canada Only)
Part Numbers:
- 24677
- 77075
- 60034
Wiring Access Location:
- PC3
Tools Required:
- Wrenches: 9/16", 7/8"
- Drill Bits: None
Specifications:
- Max Gross Trailer Weight: 2,000 lb.
- Max Tongue Weight: 200 lb.
- Note: Do not exceed towing vehicle ratings.
Step-by-Step Instructions:
-
Prepare Frame Rail:
- Fishwire the carriage bolt and block (5121) through the end of the frame rail as shown in the diagram.
-
Position Hitch:
- Raise the hitch into position and loosely install the U-bolt, lock washers, and locknuts as shown.
-
Insert Spacer Blocks:
- Insert the 1/4” x 1-3/4” x 2” U-shaped block (3029) between each hitch side arm and the vehicle frame.
- Be cautious not to sandwich and crush the turned-down edge of the frame hole.
- Use the second U-shaped block (3029) if necessary to ensure that the receiver tube is level or slightly tilted upward.
-
Attach Tie Down Hook:
- Install the 3/8”-16 U-bolt through the tie-down hook and hitch bracket as shown. Use block (6484) if needed to level or tilt the receiver tube slightly upward.
-
Tighten Fasteners:
- Torque all 3/8”-16 GR2 fasteners to 20 Lb.-Ft.
- Torque all 1/2”-13 GR5 fasteners to 75 Lb.-Ft.

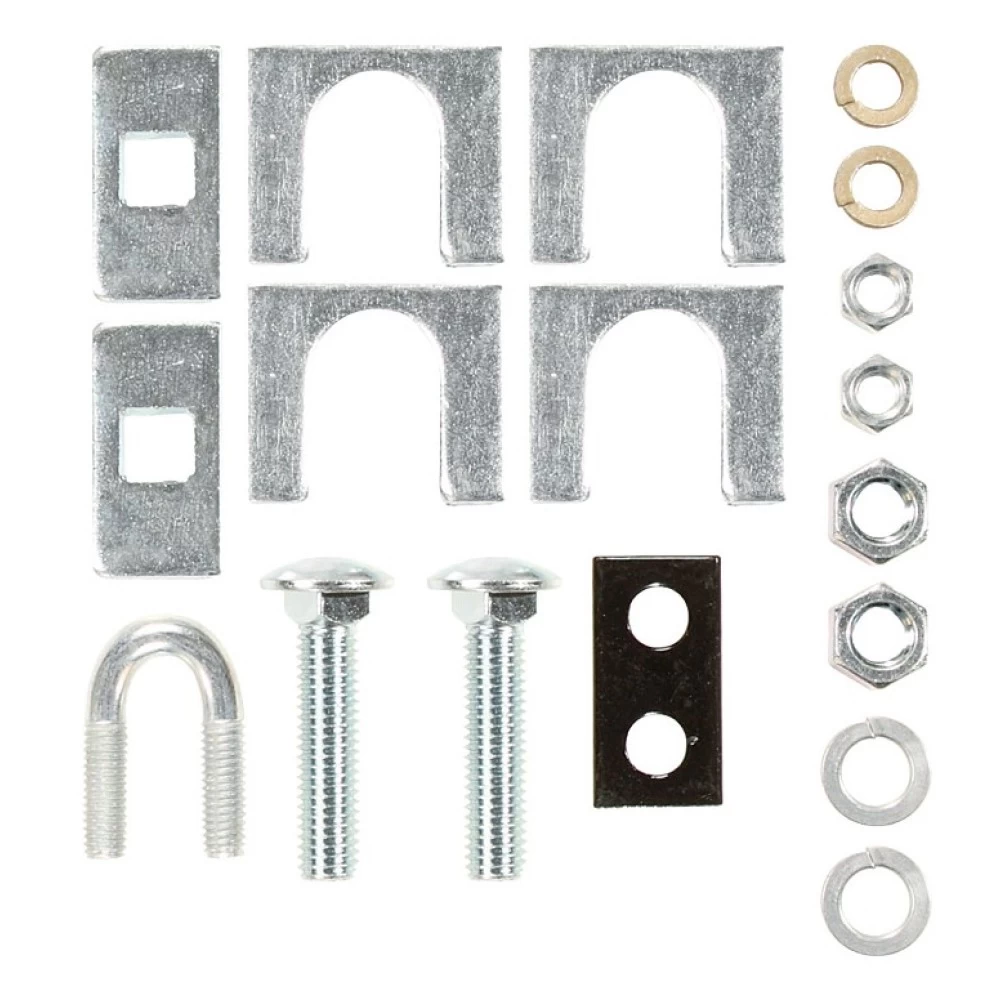

Hardware List:
- (1) 1/2”-13 x 2.25” GR5 Carriage Bolt
- (1) 1/4” x 1 x 2 Block (5121)
- (2) 1/4” x 1-3/4” x 2” U-shaped Blocks (3029)
- (1) 3/8”-16 U-bolt GR2
- (2) Lock Washers
- (2) Locknuts
- Optional Block: (6484) for adjustment if needed.
Drawbar:
- Drawbar: 3598
- Length: 6.62”
- Rise: 2.75”
- Clip: 2209 DT
- Important: Use only the drawbar shown for correct bumper clearance and height. The drawbar must be used in the rise position only.
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure they are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball.
- Always observe safety precautions and wear safety glasses during installation.
- Do not cut access or attachment holes with a torch.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and the safety specifications of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
- Ensure the hitch meets the weight and clearance requirements of the vehicle and trailer.
Installation Instructions for Honda Civic and Acura 1.6 EL (Canada Only)
Part Numbers:
- 24677
- 77075
- 60034
Wiring Access Location:
- PC3
Tools Required:
- Wrenches: 9/16", 7/8"
- Drill Bits: None
Specifications:
- Max Gross Trailer Weight: 2,000 lb.
- Max Tongue Weight: 200 lb.
- Note: Do not exceed towing vehicle ratings.
Step-by-Step Instructions:
-
Prepare Frame Rail:
- Fishwire the carriage bolt and block (5121) through the end of the frame rail as shown in the diagram.
-
Position Hitch:
- Raise the hitch into position and loosely install the U-bolt, lock washers, and locknuts as shown.
-
Insert Spacer Blocks:
- Insert the 1/4” x 1-3/4” x 2” U-shaped block (3029) between each hitch side arm and the vehicle frame.
- Be cautious not to sandwich and crush the turned-down edge of the frame hole.
- Use the second U-shaped block (3029) if necessary to ensure that the receiver tube is level or slightly tilted upward.
-
Attach Tie Down Hook:
- Install the 3/8”-16 U-bolt through the tie-down hook and hitch bracket as shown. Use block (6484) if needed to level or tilt the receiver tube slightly upward.
-
Tighten Fasteners:
- Torque all 3/8”-16 GR2 fasteners to 20 Lb.-Ft.
- Torque all 1/2”-13 GR5 fasteners to 75 Lb.-Ft.
Hardware List:
- (1) 1/2”-13 x 2.25” GR5 Carriage Bolt
- (1) 1/4” x 1 x 2 Block (5121)
- (2) 1/4” x 1-3/4” x 2” U-shaped Blocks (3029)
- (1) 3/8”-16 U-bolt GR2
- (2) Lock Washers
- (2) Locknuts
- Optional Block: (6484) for adjustment if needed.
Drawbar:
- Drawbar: 3598
- Length: 6.62”
- Rise: 2.75”
- Clip: 2209 DT
- Important: Use only the drawbar shown for correct bumper clearance and height. The drawbar must be used in the rise position only.
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure they are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball.
- Always observe safety precautions and wear safety glasses during installation.
- Do not cut access or attachment holes with a torch.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and the safety specifications of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
- Ensure the hitch meets the weight and clearance requirements of the vehicle and trailer.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Revision:
24677 Rev. A 6/25/2014
