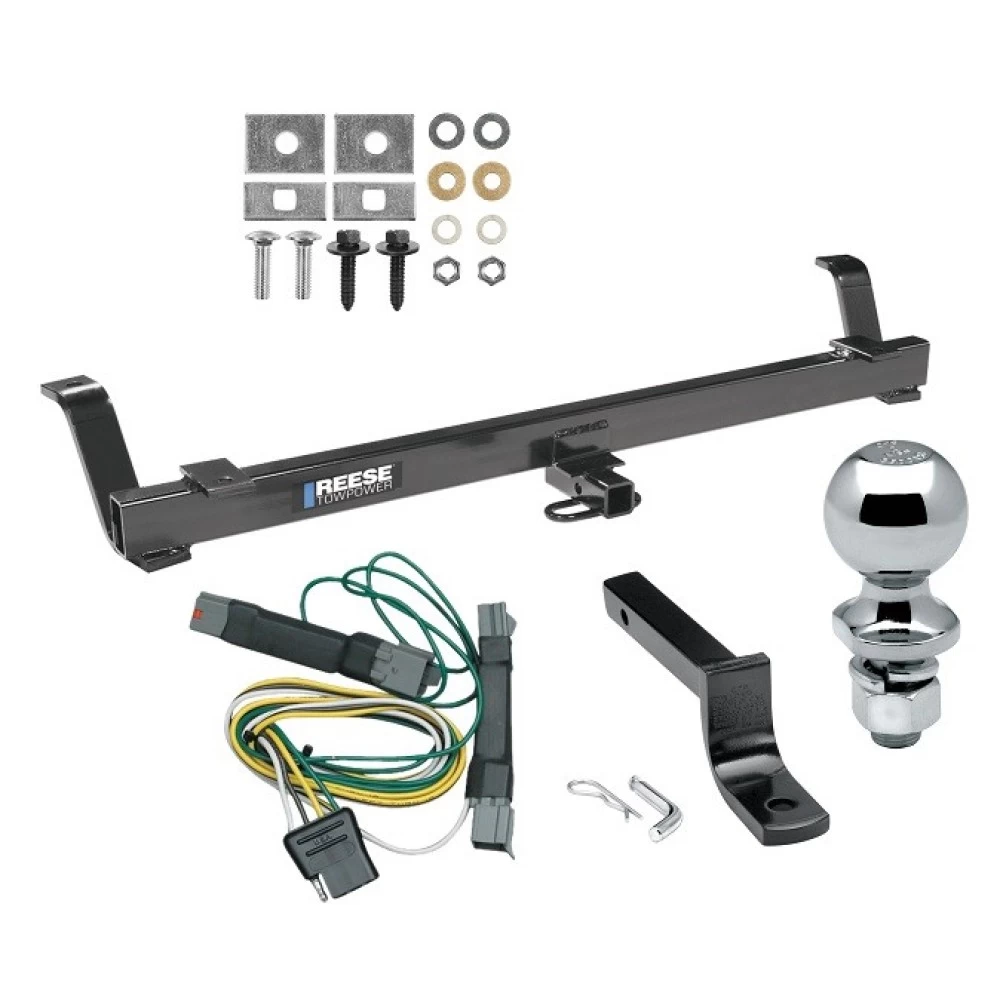

Reese Trailer Tow Hitch For 94-04 Ford Mustang Except Cobra SVT Complete Package w/ Wiring Draw Bar and 2" Ball Install Notes
Installation Instructions for Ford Mustang – All Models
Part Numbers:
- 24687
- 77029
Wiring Access Location:
- PC3, PC4
Tools Required:
- Drill Bits: 1/4", 7/16", 1" Hole Saw
- Wrenches: 13mm, 15mm, 11/16", 17mm
Specifications:
- Max Gross Trailer Weight: 2,000 lb.
- Max Tongue Weight: 200 lb.
- Note: Do not exceed towing vehicle ratings.
Step-by-Step Instructions:
-
Remove Bumper Bracket Bolts:
- Remove the bumper bracket bolts from the bottom of each frame rail. These fasteners will not be reused. Return them to the vehicle owner.
-
Install M10 Bolts:
- Attach M10 bolts and 3/8” conical washers through the hitch into the existing weldnuts on both sides of the vehicle. Leave the fasteners loose for adjustment.
-
Drill Access Hole:
- Drill a 1” hole using a hole saw on the inboard side of the frame rail, approximately 3” forward of the bumper inboard edge (see Figure 2). Use this hole for fishwiring the 7/16” carriage bolt and block.
-
Fishwire Hardware:
- Fishwire the 7/16” x 1.50” carriage bolts and spacer blocks (3837) through the drilled hole and into position.
-
Raise Hitch:
- Position the hitch on the vehicle, supporting it with a jack or additional person. Install 7/16” flat washers and nuts onto the bolts. Do not fully tighten yet.
-
Install Optional Spacers:
- If there are variations in bumper position, install the optional spacer blocks (4833-003) between the hitch tab and bumper to ensure proper alignment. Tighten fasteners as shown.
-
Tighten Fasteners:
- Torque all M10 CL10.9 fasteners to 58 Lb.-Ft.
- Torque all 7/16” GR5 fasteners to 50 Lb.-Ft.
Hardware List:
- (2) M10 x 1.50 x 35mm CL10.9 Bolts
- (2) Conical Toothed Washers: 3/8”
- (2) 7/16” x 1.50” GR5 Carriage Bolts
- (2) 3/8” x 1 x 2 Blocks (3837)
- (2) Flat Washers
- (2) 7/16” Nuts
- (2) Optional Spacer Blocks (4833-003)

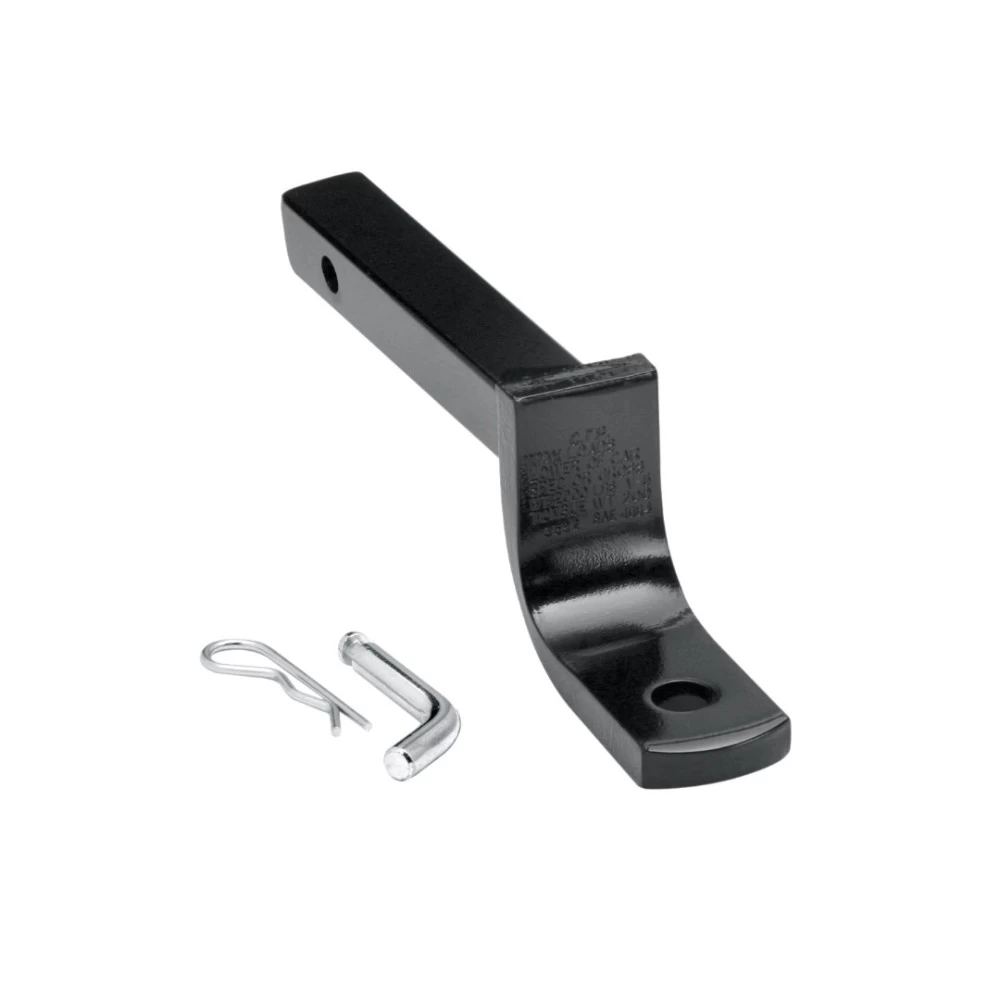

Drawbar:
- Standard Drawbar: 3592
- Length: 6.62”
- Rise: 2.75”
- Clip: 2209 DT
- Important: Use only the drawbar shown for correct bumper clearance and height. The drawbar must be used in the rise position only.
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- Plug all holes in the trunk pan or frame to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses when working under the vehicle.
- Do not use a torch to cut access or attachment holes.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and New York safety requirements.
Additional Notes:
- Check the hitch regularly to ensure all fasteners remain tight.
- Ensure proper alignment and securement before towing.
Installation Instructions for Ford Mustang – All Models
Part Numbers:
- 24687
- 77029
Wiring Access Location:
- PC3, PC4
Tools Required:
- Drill Bits: 1/4", 7/16", 1" Hole Saw
- Wrenches: 13mm, 15mm, 11/16", 17mm
Specifications:
- Max Gross Trailer Weight: 2,000 lb.
- Max Tongue Weight: 200 lb.
- Note: Do not exceed towing vehicle ratings.
Step-by-Step Instructions:
-
Remove Bumper Bracket Bolts:
- Remove the bumper bracket bolts from the bottom of each frame rail. These fasteners will not be reused. Return them to the vehicle owner.
-
Install M10 Bolts:
- Attach M10 bolts and 3/8” conical washers through the hitch into the existing weldnuts on both sides of the vehicle. Leave the fasteners loose for adjustment.
-
Drill Access Hole:
- Drill a 1” hole using a hole saw on the inboard side of the frame rail, approximately 3” forward of the bumper inboard edge (see Figure 2). Use this hole for fishwiring the 7/16” carriage bolt and block.
-
Fishwire Hardware:
- Fishwire the 7/16” x 1.50” carriage bolts and spacer blocks (3837) through the drilled hole and into position.
-
Raise Hitch:
- Position the hitch on the vehicle, supporting it with a jack or additional person. Install 7/16” flat washers and nuts onto the bolts. Do not fully tighten yet.
-
Install Optional Spacers:
- If there are variations in bumper position, install the optional spacer blocks (4833-003) between the hitch tab and bumper to ensure proper alignment. Tighten fasteners as shown.
-
Tighten Fasteners:
- Torque all M10 CL10.9 fasteners to 58 Lb.-Ft.
- Torque all 7/16” GR5 fasteners to 50 Lb.-Ft.
Hardware List:
- (2) M10 x 1.50 x 35mm CL10.9 Bolts
- (2) Conical Toothed Washers: 3/8”
- (2) 7/16” x 1.50” GR5 Carriage Bolts
- (2) 3/8” x 1 x 2 Blocks (3837)
- (2) Flat Washers
- (2) 7/16” Nuts
- (2) Optional Spacer Blocks (4833-003)
Drawbar:
- Standard Drawbar: 3592
- Length: 6.62”
- Rise: 2.75”
- Clip: 2209 DT
- Important: Use only the drawbar shown for correct bumper clearance and height. The drawbar must be used in the rise position only.
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- Plug all holes in the trunk pan or frame to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses when working under the vehicle.
- Do not use a torch to cut access or attachment holes.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and New York safety requirements.
Additional Notes:
- Check the hitch regularly to ensure all fasteners remain tight.
- Ensure proper alignment and securement before towing.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Revision:
24687 Rev. A 6/25/2014

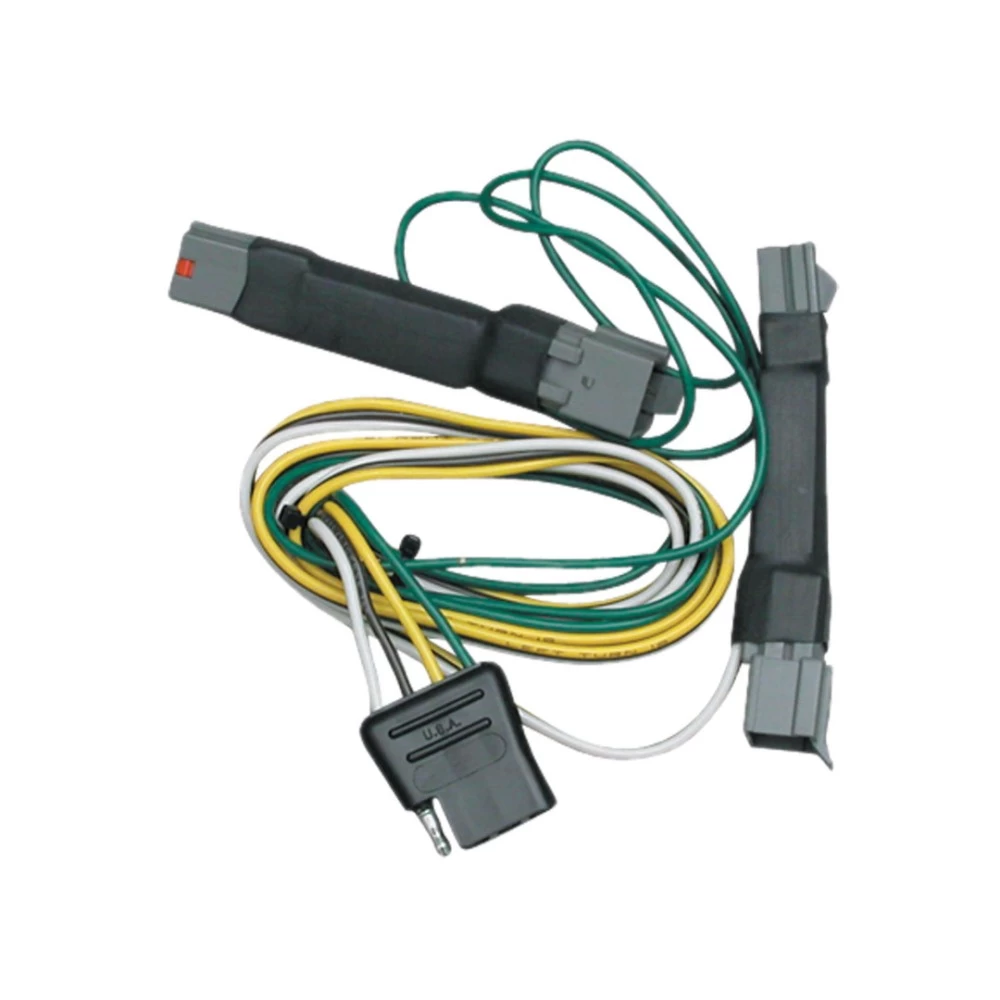

Installation Instructions for T-One® T-Connector
Part Numbers:
- 118326
Tools Required:
- Screwdriver
Step-by-Step Instructions:
-
Remove Plastic Nuts:
- Remove two plastic nuts that secure the felt trunk liner behind the tail lights. One is on the driver’s side, and one is on the passenger side.
-
Access the Connector:
- Pull the liner on the driver’s side out far enough to access the connector mounted to the rear wall of the trunk.
- Separate the connectors, being careful not to break the locking tabs.
-
Connect the T-Connector (Driver’s Side):
- Insert the T-Connector’s 3-wire connector between the vehicle’s connectors.
- Ensure all tabs are locked into place.
-
Route the T-Connector to Passenger Side:
- Route the single-wire end of the T-Connector under the liner to the passenger side.
- Locate the passenger side connector in the same spot as on the driver’s side.
- Separate the connectors and make the attachment with the T-Connector.
-
Test the Installation:
- Test the installation with a test light or trailer.
-
Reposition the Trunk Liner:
- Reposition the trunk liner and reattach the two plastic nuts.
Warning:
- This unit is rated for 7.5 amps per circuit. Do not exceed the stated product ratings.
- Refer to the vehicle owner’s manual and instruction sheet for additional details.
Safety Notes:
- Always wear safety glasses and use proper precautions during installation.
- Avoid routing wires near sharp edges or hot components that may damage the harness.
- Follow all vehicle warnings and installation instructions carefully.
Manufacturer Notes:
- Store these instructions for future reference.
- Refer to the vehicle owner’s manual for additional details.
Installation Instructions for T-One® T-Connector
Part Numbers:
- 118326
Tools Required:
- Screwdriver
Step-by-Step Instructions:
-
Remove Plastic Nuts:
- Remove two plastic nuts that secure the felt trunk liner behind the tail lights.
- One is on the driver’s side, and one is on the passenger side.
-
Access the Connector:
- Pull the liner on the driver’s side out far enough to access the connector mounted to the rear wall of the trunk.
- Separate the connectors, being careful not to break the locking tabs.
-
Connect the T-Connector (Driver’s Side):
- Insert the T-Connector’s 3-wire connector between the vehicle’s connectors.
- Ensure all tabs are locked into place.
-
Route the T-Connector to Passenger Side:
- Route the single-wire end of the T-Connector under the liner to the passenger side.
- Locate the passenger side connector in the same spot as on the driver’s side.
- Separate the connectors and make the attachment with the T-Connector.
-
Test the Installation:
- Test the installation with a test light or trailer to ensure functionality.
-
Reposition the Trunk Liner:
- Reposition the trunk liner and reattach the two plastic nuts.
Specifications:
- Maximum Current Rating: 7.5 amps per circuit
Safety Notes:
- Always wear safety glasses and use proper precautions during installation.
- Avoid routing wires near sharp edges or hot components that may damage the harness.
- Follow all vehicle warnings and installation instructions carefully.
Additional Information:
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Note: Store these instructions for future reference and consult the vehicle owner’s manual for additional details.
