Installation Instructions for Ford Escape, Mercury Mariner, and Mazda Tribute (Including Hybrid Models)

Part Numbers:

• 75751
• 87626
• 44680

Wiring Access Location:

• SUV1, SUV2

Tools Required:

• Wrenches: 10mm, 18mm, 22mm, 5/8”
• Other Tools: Pullwires (provided)
• Drill Bits: None

Step-by-Step Instructions:

For Vehicles with O.E.M. Class 2 Integrated Hitch/Bumper:

1. Remove the existing bolts from inside the frame rails and return them to the owner.
2. Relocate the existing electrical bracket by removing its screws and shifting it toward the driver’s side. Use the inside screw hole on the bracket and the outside weld nut (refer to Figure 3).
3. Raise the hitch into position and install conical toothed washers and hex bolts into the existing weldnuts.
4. Using the provided pullwire, feed the carriage bolts and blocks through the access slot at the end of the frame rail (Figure 1). Use the kink pullwire method to keep the block independent of the bolt (Figure 2).
5. Attach conical toothed washers and hex nuts.
6. Ensure that both hitches are not used simultaneously, as this may overload and damage the vehicle.

For Vehicles Without O.E.M. Class 2 Hitch/Bumper:

1. Use the pullwire to feed the 7/16-14 carriage bolts and blocks into the forward hole on the passenger’s frame rail through the access hole (Figure 4).
2. Repeat the process for the driver’s frame rail using the existing access hole.
3. Raise the hitch into position onto the carriage bolts, then attach it with conical toothed washers and nuts. Hand-tighten fasteners.
4. Using the pullwire, insert the remaining 7/16-14 carriage bolts and blocks (two per side) through the same access holes as before.
5. Tighten all fasteners to the specified torque values.

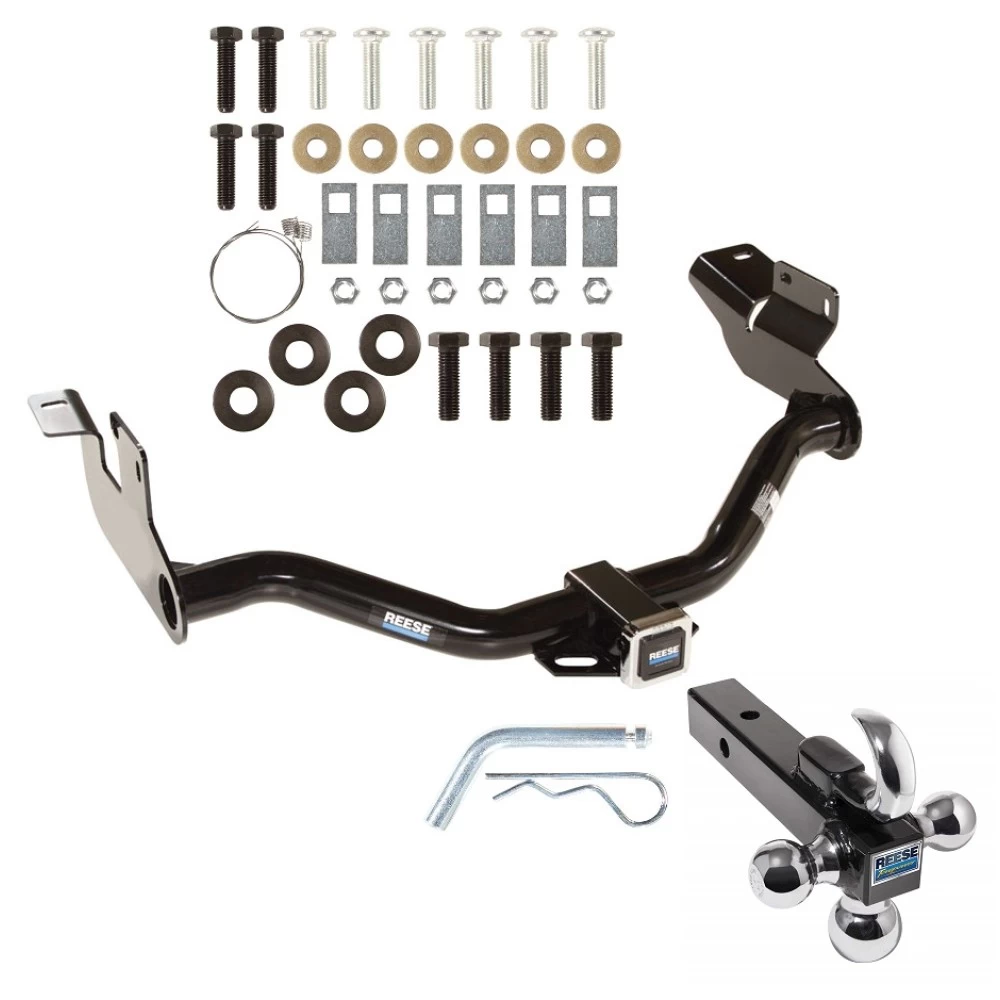

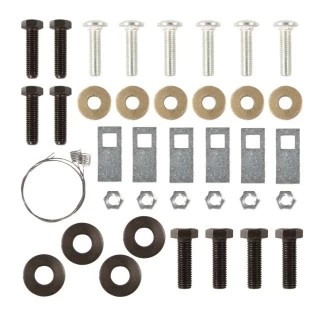

Hardware List:

• Qty (6): Carriage Bolt – 7/16-14 x 1.75 GR5
• Qty (6): Block
• Qty (6): Conical Washer – 7/16”
• Qty (6): Hex Nut – 7/16-14
• Qty (4): Bolt – M12 x 1.75 x 45 CL10.9 or M14 x 2.0 x 45 CL10.9
• Qty (4): Conical Washer – 5/8”

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Observe safety precautions when working beneath the vehicle and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type: Weight Distributing
  • Max Gross Trailer Weight: 5,250 lbs (2,383 kg)
  • Max Tongue Weight: 675 lbs (306 kg)
• Hitch Type: Weight Carrying (Ball Mount)
  • Max Gross Trailer Weight: 4,500 lbs (2,043 kg)
  • Max Tongue Weight: 675 lbs (306 kg)

Manufacturer Notes:

• Tighten all M12 CL10.9 fasteners to 75 lb-ft (102 N*m).
• Tighten all M14 CL10.9 fasteners to 115 lb-ft (156 N*m).
• Tighten all 7/16-14 GR5 fasteners to 50 lb-ft (68 N*m).
• Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.
• Do not use both the O.E.M. hitch and the installed hitch simultaneously to avoid overloading the vehicle.

Installation Instructions

Part Numbers:

• 75751
• 87626
• 44680

Wiring Access Location:

• SUV1, SUV2

Tools Required:

• Wrenches: 10mm, 18mm, 22mm, 5/8”
• Other Tools: Pullwires (provided)
• Drill Bits: None

Step-by-Step Instructions:

For Vehicles with O.E.M. Class 2 Integrated Hitch/Bumper:

1. Remove the existing bolts from inside the frame rails and return them to the owner.
2. Relocate the existing electrical bracket by removing its screws and shifting it toward the driver’s side. Use the inside screw hole on the bracket and the outside weld nut (refer to Figure 3).
3. Raise the hitch into position and install conical toothed washers and hex bolts into the existing weldnuts.
4. Using the provided pullwire, feed the carriage bolts and blocks through the access slot at the end of the frame rail (Figure 1). Use the kink pullwire method to keep the block independent of the bolt (Figure 2).
5. Attach conical toothed washers and hex nuts.
6. Ensure that both hitches are not used simultaneously, as this may overload and damage the vehicle.

For Vehicles Without O.E.M. Class 2 Hitch/Bumper:

1. Use the pullwire to feed the 7/16-14 carriage bolts and blocks into the forward hole on the passenger’s frame rail through the access hole (Figure 4).
2. Repeat the process for the driver’s frame rail using the existing access hole.
3. Raise the hitch into position onto the carriage bolts, then attach it with conical toothed washers and nuts. Hand-tighten fasteners.
4. Using the pullwire, insert the remaining 7/16-14 carriage bolts and blocks (two per side) through the same access holes as before.
5. Tighten all fasteners to the specified torque values.

Hardware List:

• Qty (6): Carriage Bolt – 7/16-14 x 1.75 GR5
• Qty (6): Block
• Qty (6): Conical Washer – 7/16”
• Qty (6): Hex Nut – 7/16-14
• Qty (4): Bolt – M12 x 1.75 x 45 CL10.9 or M14 x 2.0 x 45 CL10.9
• Qty (4): Conical Washer – 5/8”

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Observe safety precautions when working beneath the vehicle and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type: Weight Distributing
  • Max Gross Trailer Weight: 5,250 lbs (2,383 kg)
  • Max Tongue Weight: 675 lbs (306 kg)
• Hitch Type: Weight Carrying (Ball Mount)
  • Max Gross Trailer Weight: 4,500 lbs (2,043 kg)
  • Max Tongue Weight: 675 lbs (306 kg)

Manufacturer Notes:

• Tighten all M12 CL10.9 fasteners to 75 lb-ft (102 N·m).
• Tighten all M14 CL10.9 fasteners to 115 lb-ft (156 N·m).
• Tighten all 7/16-14 GR5 fasteners to 50 lb-ft (68 N·m).
• Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.
• Do not use both the O.E.M. hitch and the installed hitch simultaneously to avoid overloading the vehicle.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty:

For complete warranty instructions, please download the full installation PDF.
