Installation Instructions for Nissan Murano
(Will not fit with optional Aero kit.)

Part Numbers:

• 44600
• 75647
• 87486
• 78282 (U-Haul)

Tools Required:

• Small Screwdriver
• Wrenches: 10mm, 16mm, 17mm, 19mm
• Drill Bits: None

Wiring Access Location:

• SUV3, SUV4

Step-by-Step Instructions:

1. Lower the Exhaust:

   • Remove three (3) rubber exhaust hangers from the hanger mounting brackets:
     • Two (2) hangers on the driver’s side.
     • One (1) hanger on the passenger’s side.

2. Remove the Tie-Down Bracket:

   • Detach the tie-down bracket from the driver’s side frame rail.
   • Return the tie-down bracket and fasteners to the vehicle owner.

3. Disconnect the Fascia:

   • Remove two (2) plastic push pins to disconnect the fascia from the valence panel.
   • Return the push pins to the vehicle owner.

4. Remove the Valence Panel:

   • Detach the valence panel from the vehicle bulkhead by removing four (4) hex nuts.
   • Return the panel and nuts to the vehicle owner.

5. Install the Hitch:

   • Carefully pull the fascia down to allow clearance for the hitch side brackets.
   • Raise the hitch into position and secure it using the following:
     • Four (4) M12 x 1.25 x 30mm CL8.8 hex bolts.
     • Four (4) 3/8” conical washers.

6. Reinstall the Exhaust:

   • Raise the exhaust back into position and reattach the hangers.

7. Secure the Fascia:

   • Use two (2) cable ties to secure the plastic fascia to the hitch crosstube.

8. Torque Fasteners:

   • Tighten all M12 CL8.8 fasteners to 76 lb-ft (103 N·m).
   • Tighten all M10 CL8.8 fasteners to 42 lb-ft (57 N·m).

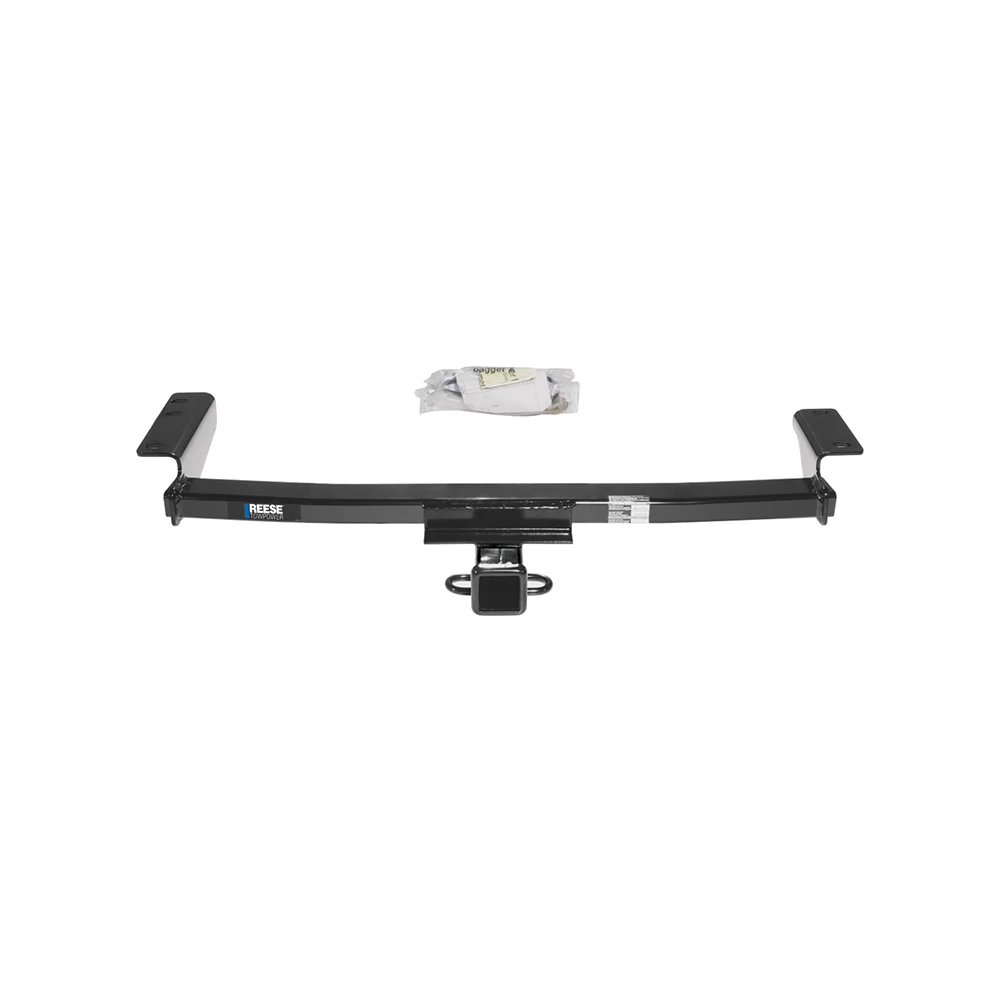

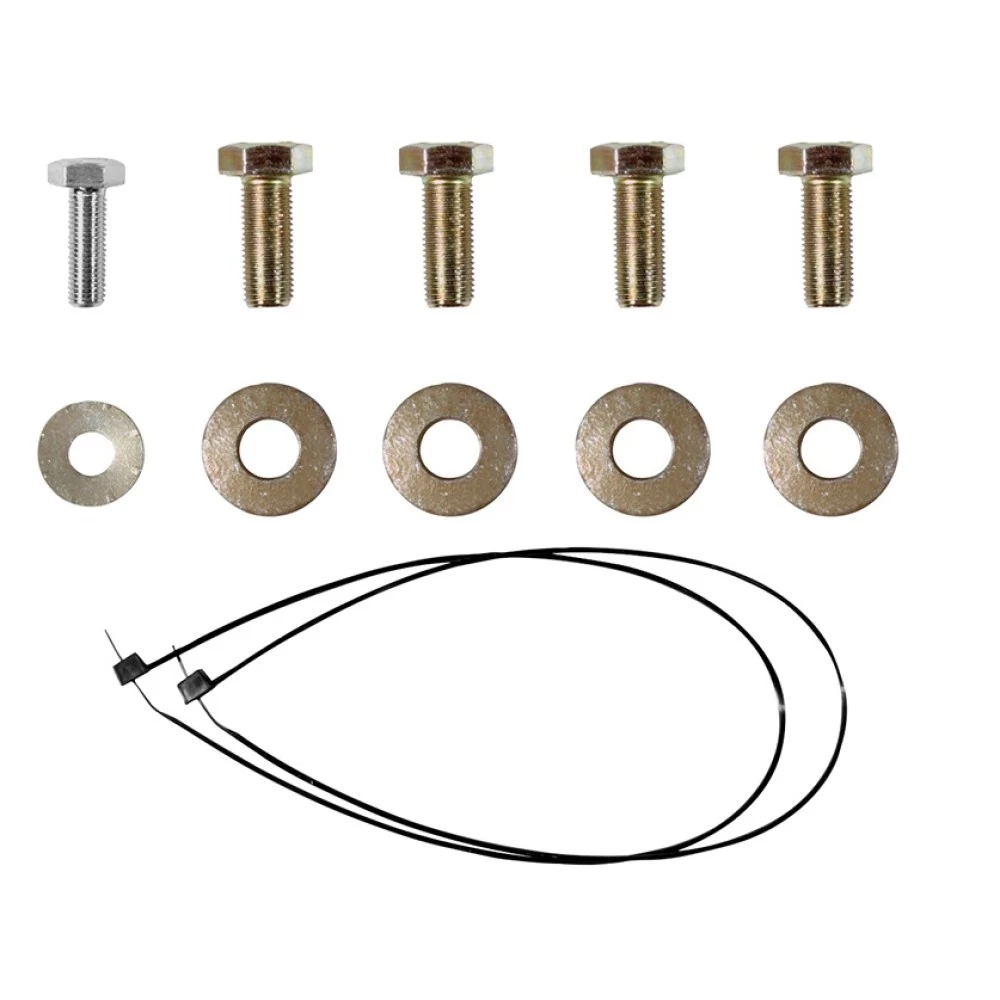

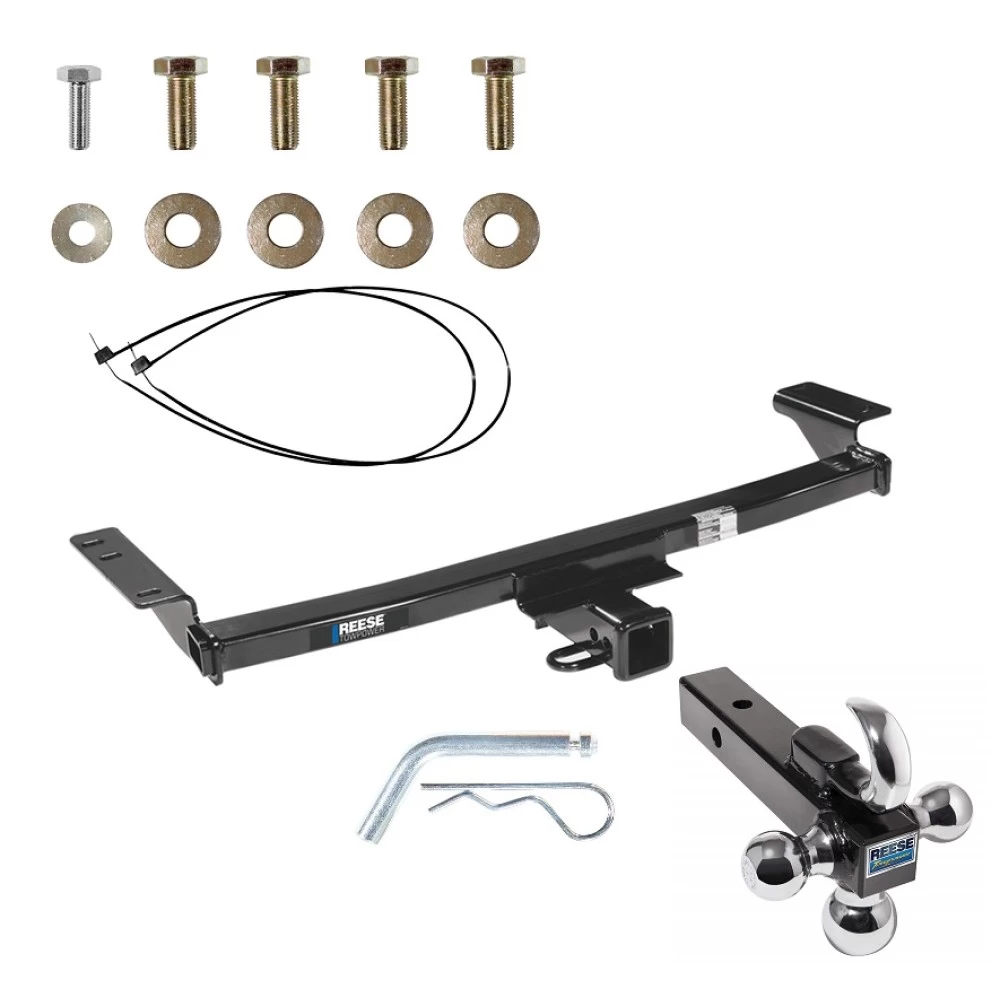

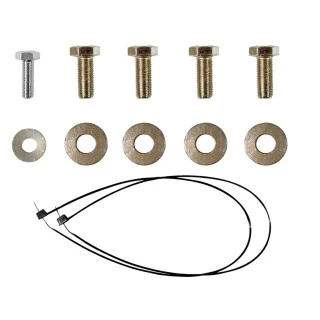

Hardware List:

• (4) M12 x 1.25 x 30mm CL8.8 Hex Bolts
• (4) 3/8” Conical Washers
• (4) 1/2” Conical Washers
• (1) M10 x 1.25 x 30mm CL8.8 Hex Bolt
• (2) Cable Ties

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Follow all safety precautions when working beneath the vehicle, and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type and Weight Ratings:
  • Weight Distributing: Not for use with spring bars.
  • Weight Carrying (Ball Mount): Max Trailer Weight 4,000 lbs (1,816 kg), Max Tongue Weight 400 lbs (182 kg).
• Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.

Installation Instructions for Vehicles (Generic)
(Will not fit with optional Aero kit.)

Part Numbers:

• 44600
• 75647
• 87486
• 78282 (U-Haul)

Tools Required:

• Small Screwdriver
• Wrenches: 10mm, 16mm, 17mm, 19mm
• Drill Bits: None

Wiring Access Location:

• SUV3, SUV4

Step-by-Step Instructions:

1. Lower the Exhaust:

   • Remove three (3) rubber exhaust hangers from the hanger mounting brackets:
     • Two (2) hangers on the driver’s side.
     • One (1) hanger on the passenger’s side.

2. Remove the Tie-Down Bracket:

   • Detach the tie-down bracket from the driver’s side frame rail.
   • Return the tie-down bracket and fasteners to the vehicle owner.

3. Disconnect the Fascia:

   • Remove two (2) plastic push pins to disconnect the fascia from the valence panel.
   • Return the push pins to the vehicle owner.

4. Remove the Valence Panel:

   • Detach the valence panel from the vehicle bulkhead by removing four (4) hex nuts.
   • Return the panel and nuts to the vehicle owner.

5. Install the Hitch:

   • Carefully pull the fascia down to allow clearance for the hitch side brackets.
   • Raise the hitch into position and secure it using the following:
     • Four (4) M12 x 1.25 x 30mm CL8.8 hex bolts.
     • Four (4) 3/8” conical washers.

6. Reinstall the Exhaust:

   • Raise the exhaust back into position and reattach the hangers.

7. Secure the Fascia:

   • Use two (2) cable ties to secure the plastic fascia to the hitch crosstube.

8. Torque Fasteners:

   • Tighten all M12 CL8.8 fasteners to 76 lb-ft (103 N·m).
   • Tighten all M10 CL8.8 fasteners to 42 lb-ft (57 N·m).

Hardware List:

• (4) M12 x 1.25 x 30mm CL8.8 Hex Bolts
• (4) 3/8” Conical Washers
• (4) 1/2” Conical Washers
• (1) M10 x 1.25 x 30mm CL8.8 Hex Bolt
• (2) Cable Ties

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Follow all safety precautions when working beneath the vehicle, and wear eye protection.
• Do not cut access or attachment holes with a torch.

Warranty Information:

• For complete warranty instructions, please download the full installation PDF.

Specifications:

• Hitch Type and Weight Ratings:
  • Weight Carrying (Ball Mount): Max Trailer Weight 4,000 lbs (1,816 kg), Max Tongue Weight 400 lbs (182 kg).
  • Weight Distributing: Not for use with spring bars.
• Complies with safety specifications and requirements for connecting devices and towing systems.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
