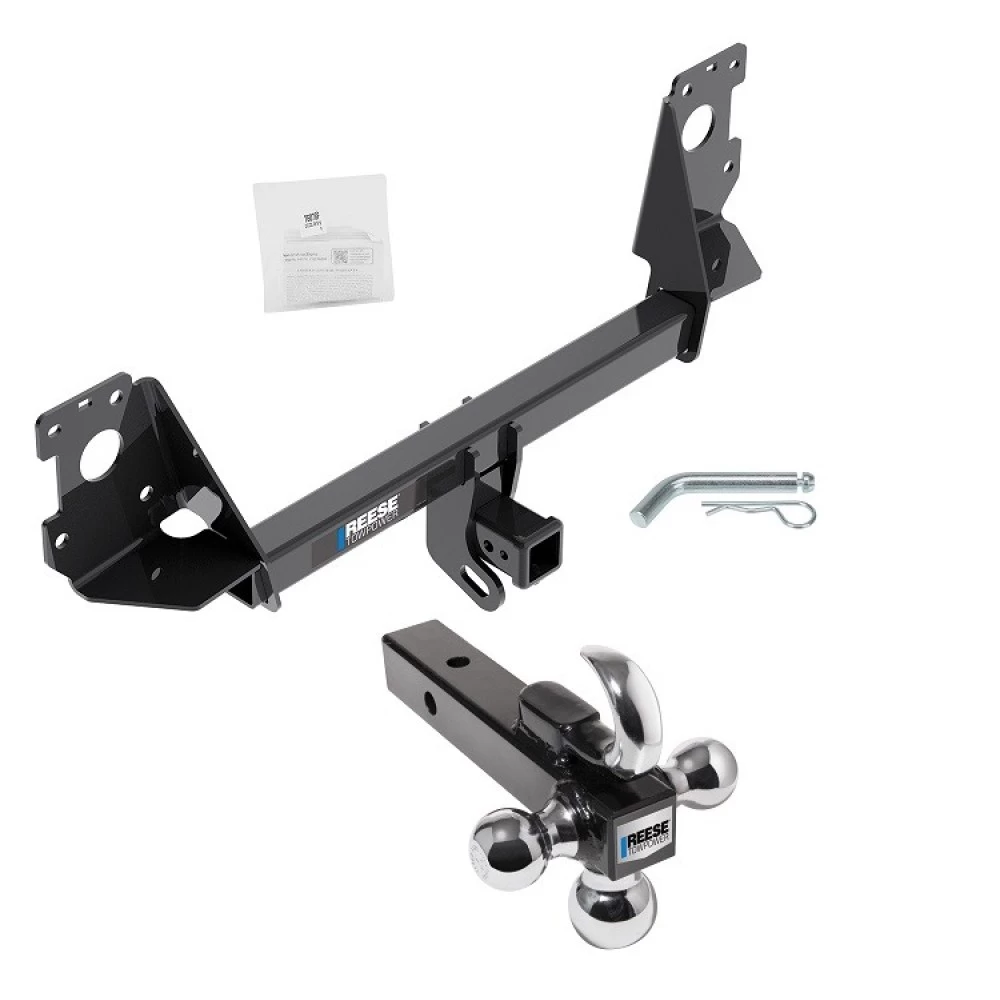

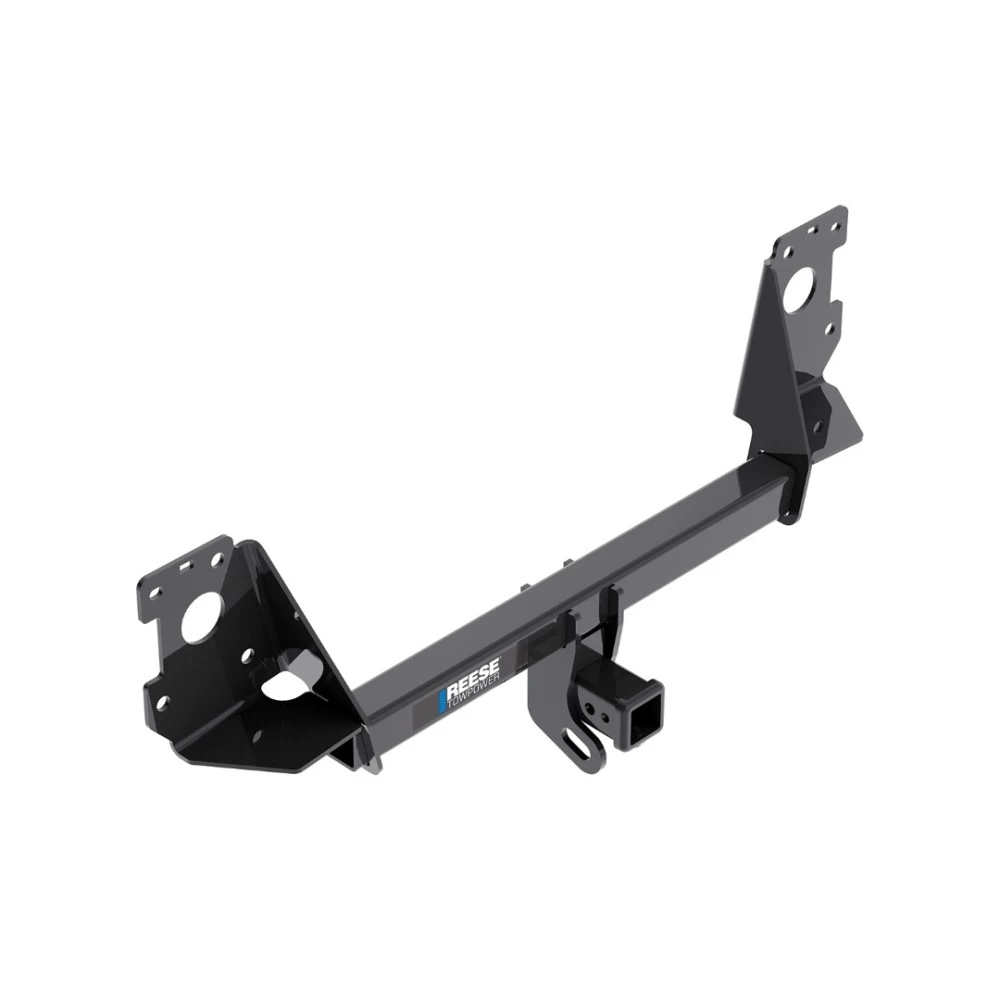

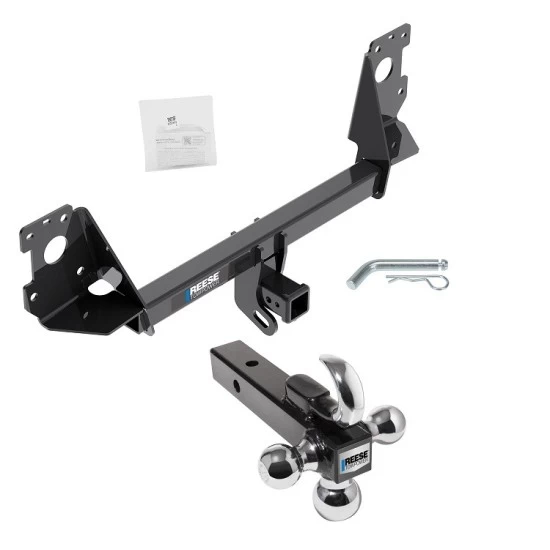

Installation Instructions for Audi Q7 (2017-Current)

Part Numbers:

• 76076
• 84076
• CQT76076

Tools Required:

• Safety Glasses
• Ratchet
• Torque Wrench
• Sockets: 18mm, T25 Torx
• Flat Head Screwdriver
• Plastic Trim Tools
• Tin Snips
• 6” Socket Extension

Weight Capacities:

• Weight Carrying (Ball Mount):
  • Max Gross Trailer Weight: 7,700 lbs (3,496 kg)
  • Max Tongue Weight: 770 lbs (349 kg)
• Weight Distributing:
  • Not Applicable

Step-by-Step Instructions:

Remove Bumper Fascia and Beam:

1. Wheel Well Liner Screws:

   • Use a T25 Torx bit to remove 4 screws exposed at the wheel well liner.
   • Pull back the liner to expose and remove an additional screw.
   • Remove 2 screws at the bottom of each wheel well liner.
   • Remove 4 screws from the middle underside of the fascia. Repeat on both sides.

2. Trim Panel Removal:

   • Gently pry off the body trim piece at the upper wheel well using plastic trim tools.
   • Remove 2 screws beneath the trim using a T25 Torx bit.

3. Remove Bumper Fascia:

   • Carefully pull off the fascia, disconnecting all electrical connectors for sensors and lights.
   • Unclip the wiring from the fascia and set it aside.

4. Remove Bumper Beam:

   • Use an 18mm socket to remove 4 bolts from each side of the bumper beam.

Install Hitch:

1. Position Hitch:

   • Raise the hitch and bumper beam into position, aligning the holes with the weld nuts in the vehicle's end panel.
   • Sandwich the hitch between the bumper beam and the end panel.

2. Secure Hitch:

   • Reuse the existing bolts to secure the hitch and bumper beam.
   • Tighten all fasteners to 68 lb-ft (92 N·m) using a torque wrench.

Trim and Reinstall Fascia:

1. Adjust Sensor Wiring:

   • Unclip the sensor antenna wire from the forward edge inside the bumper fascia to move it out of the trim area.

2. Trim Fascia:

   • Use tin snips to trim the fascia as shown in the provided diagram.

3. Reattach Fascia:

   • Reinstall the fascia by reversing the removal steps.
   • Once the fascia is in place, reattach the sensor antenna wire.

Safety Notes:

• Regularly check all fasteners to ensure the hitch is securely mounted.
• If the hitch is removed, plug all holes in the trunk pan or other panels to prevent water or exhaust fume entry.
• Replace any damaged hitch or ball immediately.
• Always wear eye protection and follow safety precautions when working under the vehicle.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type: Class III
• Compliance: This product meets safety standards per V.E.S.C. Regulation V-5 and SAE J684.

Note: Always adhere to the towing vehicle manufacturer’s weight rating or the hitch’s maximum load rating, whichever is lower.

Installation Instructions for Vehicle Models (2017-Current)

Part Numbers:

• 76076
• 84076
• CQT76076

Tools Required:

• Safety Glasses
• Ratchet
• Torque Wrench
• Sockets: 18mm, T25 Torx
• Flat Head Screwdriver
• Plastic Trim Tools
• Tin Snips
• 6” Socket Extension

Weight Capacities:

• Weight Carrying (Ball Mount):
  • Max Gross Trailer Weight: 7,700 lbs (3,496 kg)
  • Max Tongue Weight: 770 lbs (349 kg)
• Weight Distributing:
  • Not Applicable

Step-by-Step Instructions:

Remove Bumper Fascia and Beam:

1. Wheel Well Liner Screws:

   • Use a T25 Torx bit to remove 4 screws exposed at the wheel well liner.
   • Pull back the liner to expose and remove an additional screw.
   • Remove 2 screws at the bottom of each wheel well liner.
   • Remove 4 screws from the middle underside of the fascia. Repeat on both sides.

2. Trim Panel Removal:

   • Gently pry off the body trim piece at the upper wheel well using plastic trim tools.
   • Remove 2 screws beneath the trim using a T25 Torx bit.

3. Remove Bumper Fascia:

   • Carefully pull off the fascia, disconnecting all electrical connectors for sensors and lights.
   • Unclip the wiring from the fascia and set it aside.

4. Remove Bumper Beam:

   • Use an 18mm socket to remove 4 bolts from each side of the bumper beam.

Install Hitch:

1. Position Hitch:

   • Raise the hitch and bumper beam into position, aligning the holes with the weld nuts in the vehicle's end panel.
   • Sandwich the hitch between the bumper beam and the end panel.

2. Secure Hitch:

   • Reuse the existing bolts to secure the hitch and bumper beam.
   • Tighten all fasteners to 68 lb-ft (92 N·m) using a torque wrench.

Trim and Reinstall Fascia:

1. Adjust Sensor Wiring:

   • Unclip the sensor antenna wire from the forward edge inside the bumper fascia to move it out of the trim area.

2. Trim Fascia:

   • Use tin snips to trim the fascia as shown in the provided diagram.

3. Reattach Fascia:

   • Reinstall the fascia by reversing the removal steps.
   • Once the fascia is in place, reattach the sensor antenna wire.

Safety Notes:

• Regularly check all fasteners to ensure the hitch is securely mounted.
• If the hitch is removed, plug all holes in the trunk pan or other panels to prevent water or exhaust fume entry.
• Replace any damaged hitch or ball immediately.
• Always wear eye protection and follow safety precautions when working under the vehicle.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type: Class III
• Compliance: This product meets safety standards per V.E.S.C. Regulation V-5 and SAE J684.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Warranty Information:

• Duration: 1-year limited warranty from the date of purchase.
• Coverage: Covers defects in materials and workmanship under normal use conditions.

For complete warranty instructions, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
