Installation Instructions for Hyundai Palisade (2020-Present)

Part Numbers:

• 75998
• 44764
• CQT75998

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 17mm, 19mm

Wiring Access Location:

• SUV3, SUV4

Step-by-Step Instructions:

1. Prepare Frame Rails:

   • Remove any rubber plugs from the bottom of the frame rails to expose the weldnuts.
   • Clean the threads of the weldnuts with a wire brush to remove any debris or corrosion.

2. Position the Hitch:

   • Raise the hitch into position under the vehicle, aligning the slots on the hitch with the weldnuts in the vehicle frame.

3. Install Fasteners:

   • Secure the hitch using six (6) M12 x 1.25 x 40mm CL10.9 hex bolts and six (6) 1/2" conical toothed washers.
   • Ensure the toothed side of the washers faces the hitch.

4. Tighten Fasteners:

   • Use a torque wrench to tighten all M12 fasteners to 79 lb-ft (107 Nm).

5. Verify Installation:

   • Double-check that all bolts are securely tightened, and the hitch is properly aligned.

Hardware List:

• (6) M12 x 1.25 x 40mm CL10.9 Bolts
• (6) 1/2" Conical Toothed Washers

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always follow safety precautions when working beneath the vehicle, and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type and Weight Ratings:
  • Weight Carrying (Ball Mount): Max Trailer Weight 5,000 lbs (2,268 kg), Max Tongue Weight 500 lbs (227 kg).
  • Weight Distributing: Max Trailer Weight 6,000 lbs (2,721 kg), Max Tongue Weight 600 lbs (272 kg).
• Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.

Additional Notes:

• Installation time is approximately 30 minutes for a professional installer.
• If you encounter difficulty installing, consult a professional or contact customer support.

Installation Instructions for Vehicle (2020-Present)

Part Numbers:

• 75998
• 44764
• CQT75998

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 17mm, 19mm

Wiring Access Location:

• SUV3, SUV4

Step-by-Step Instructions:

1. Prepare Frame Rails:

   • Remove any rubber plugs from the bottom of the frame rails to expose the weldnuts.
   • Clean the threads of the weldnuts with a wire brush to remove any debris or corrosion.

2. Position the Hitch:

   • Raise the hitch into position under the vehicle, aligning the slots on the hitch with the weldnuts in the vehicle frame.

3. Install Fasteners:

   • Secure the hitch using six (6) M12 x 1.25 x 40mm CL10.9 hex bolts and six (6) 1/2" conical toothed washers.
   • Ensure the toothed side of the washers faces the hitch.

4. Tighten Fasteners:

   • Use a torque wrench to tighten all M12 fasteners to 79 lb-ft (107 Nm).

5. Verify Installation:

   • Double-check that all bolts are securely tightened, and the hitch is properly aligned.

Hardware List:

• (6) M12 x 1.25 x 40mm CL10.9 Bolts
• (6) 1/2" Conical Toothed Washers

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always follow safety precautions when working beneath the vehicle, and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type and Weight Ratings:
  • Weight Carrying (Ball Mount): Max Trailer Weight 5,000 lbs (2,268 kg), Max Tongue Weight 500 lbs (227 kg).
  • Weight Distributing: Max Trailer Weight 6,000 lbs (2,721 kg), Max Tongue Weight 600 lbs (272 kg).
• Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.

Additional Notes:

• Installation time is approximately 30 minutes for a professional installer.
• If you encounter difficulty installing, consult a professional or contact customer support.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

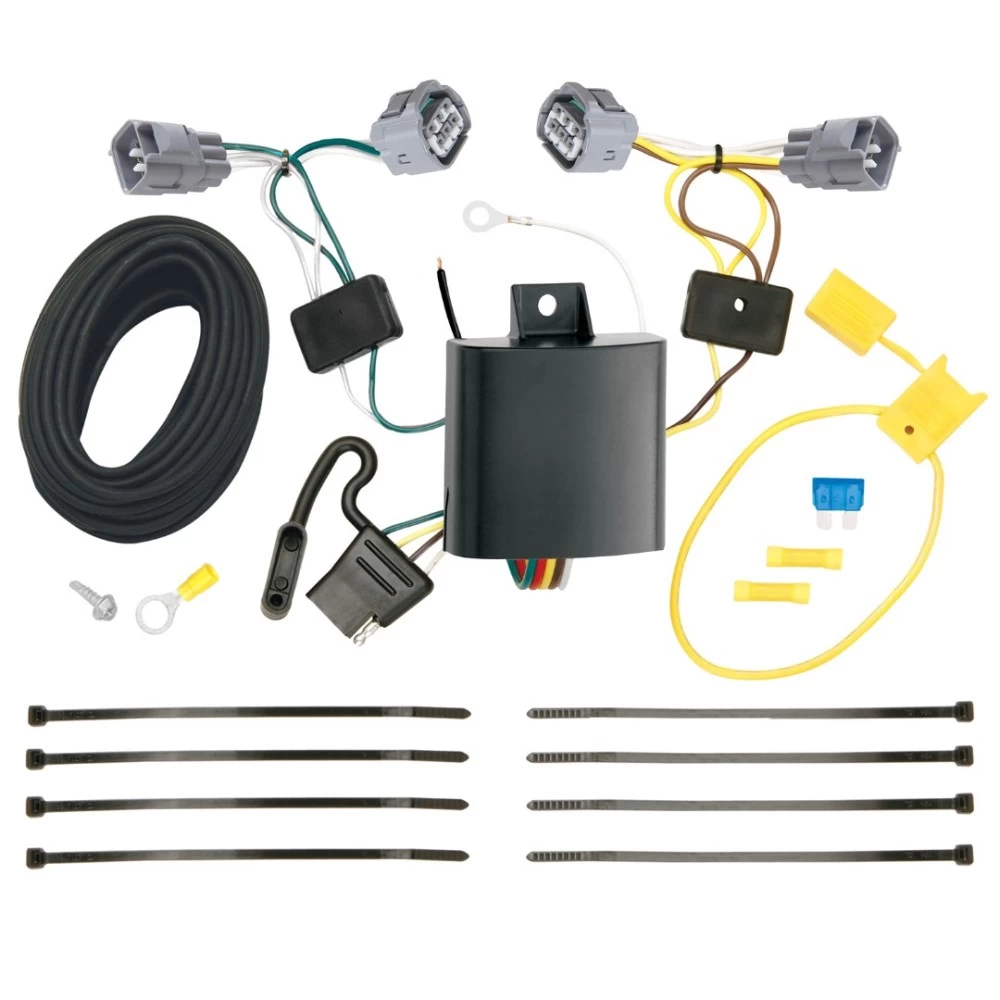

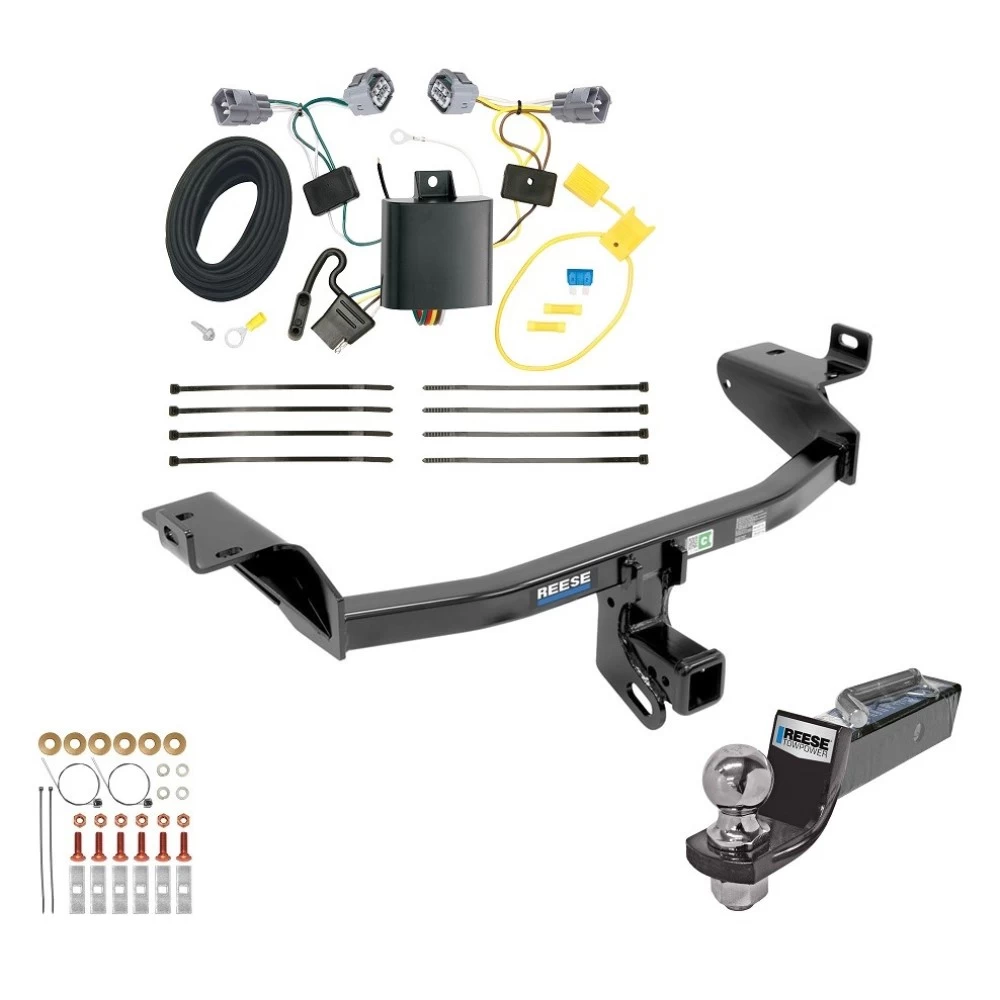

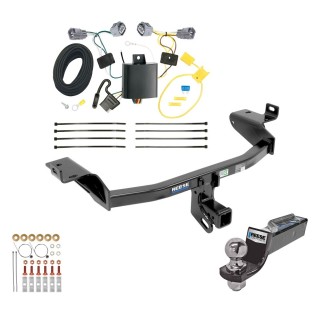

Installation Instructions for T-One® T-Connector for Jeep Cherokee

Part Numbers:

• 118605

Tools Required:

• T30 Socket & Ratchet
• Trim Panel Remover
• 10mm Socket & Ratchet or 10mm Wrench
• Drill (3/32” Drill Bit)
• 1/4” Socket
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Remove the Taillights:

   • Open the tailgate and remove the vehicle’s taillight assemblies by unscrewing the four T30 bolts on each side.
   • Carefully pry the housings away from the vehicle, avoiding damage to the alignment tabs.

2. Disconnect the Wiring Harness:

   • On the driver’s side, disconnect the vehicle wiring harness from the taillight socket.
   • Route the T-One® T-Connector end with the yellow wires up between the bumper and vehicle body into the taillight pocket.

3. Connect the Driver-Side T-Connector:

   • Plug the T-One® T-Connector end with the yellow wire between the mating plugs on the driver-side taillight socket and vehicle wiring harness.

4. Route the Passenger-Side T-Connector:

   • Route the T-One® T-Connector end with the green wire to the passenger side underneath the bumper.
   • Bring the green wire up through the opening on the passenger side and connect it to the taillight wiring harness as done on the driver side.

   Warning: Avoid routing near hot pipes, heat shields, fuel tanks, or areas where the wire may be pinched or damaged.

5. Ground the White Wire:

   • Locate a suitable grounding point near the connector. Avoid drilling into the vehicle floor or bed.
   • Clean the grounding area and drill a 3/32” hole.
   • Secure the white wire with the provided eyelet and screw.

   Caution: Verify what is behind any surface before drilling to avoid damage or injury.

6. Connect the Power Wire:

   • Disconnect the vehicle’s negative (-) battery cable.
   • Remove the fuse from the yellow fuse holder.
   • Attach the ring terminal to the positive (+) battery cable and connect the black 12-gauge wire to the fuse holder using the provided yellow butt connector.
   • Insert the 15-amp fuse into the fuse holder.

7. Route the Black Wire:

   • From the front of the vehicle, route the black 12-gauge wire rearward along the frame rail to the rear driver-side taillight area.
   • Avoid hot pipes, heat shields, and areas that could damage the wire.

8. Connect the Black Wire:

   • Attach the black 12-gauge wire to the black wire from the T-One® T-Connector’s black box using the supplied yellow butt connector.

9. Reconnect the Battery:

   • Reconnect the vehicle’s negative (-) battery cable.
   • Test the installation with a test light or trailer.

10. Mount the Black Box:

    • On the driver’s side, locate a flat, out-of-the-way surface to mount the black converter box using the provided double-sided tape.
    • Ensure the epoxy side faces downward to prevent water buildup.

11. Secure the Wiring:

    • Secure the remainder of the T-One® T-Connector harness under the bumper with the provided cable ties, avoiding areas that could pinch or cut the wires.

12. Reassemble the Vehicle:

    • Reinstall the taillight housing assemblies, positioning the wiring harness between the housing and the vehicle body.
    • Replace all trim panels and covers removed during installation.

13. Store the 4-Flat Connector:

    • Mount the 4-flat connector in a suitable location under the vehicle. (Bracket not included.)

Specifications:

• Max. stop/turn light: 2 per side (4.2 amps)
• Max. tail lights: 7.5 amps

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the lower of the vehicle manufacturer's ratings or the product’s stated specifications.
• Always wear safety glasses and follow all safety precautions during installation.

Manufacturer Notes:

• Refer to the vehicle owner’s manual and instruction sheet for additional details.
• Store these instructions for future reference.

Installation Instructions for T-One® T-Connector for Jeep Cherokee

Part Numbers:

• 118605

Tools Required:

• T30 Socket & Ratchet
• Trim Panel Remover
• 10mm Socket & Ratchet or 10mm Wrench
• Drill (3/32” Drill Bit)
• 1/4” Socket
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Remove the Taillights:

   • Open the tailgate and remove the vehicle’s taillight assemblies by unscrewing the four T30 bolts on each side.
   • Carefully pry the housings away from the vehicle, avoiding damage to the alignment tabs.

2. Disconnect the Wiring Harness:

   • On the driver’s side, disconnect the vehicle wiring harness from the taillight socket.
   • Route the T-One® T-Connector end with the yellow wires up between the bumper and vehicle body into the taillight pocket.

3. Connect the Driver-Side T-Connector:

   • Plug the T-One® T-Connector end with the yellow wire between the mating plugs on the driver-side taillight socket and vehicle wiring harness.

4. Route the Passenger-Side T-Connector:

   • Route the T-One® T-Connector end with the green wire to the passenger side underneath the bumper.
   • Bring the green wire up through the opening on the passenger side and connect it to the taillight wiring harness as done on the driver side.

   Warning: Avoid routing near hot pipes, heat shields, fuel tanks, or areas where the wire may be pinched or damaged.

5. Ground the White Wire:

   • Locate a suitable grounding point near the connector. Avoid drilling into the vehicle floor or bed.
   • Clean the grounding area and drill a 3/32” hole.
   • Secure the white wire with the provided eyelet and screw.

   Caution: Verify what is behind any surface before drilling to avoid damage or injury.

6. Connect the Power Wire:

   • Disconnect the vehicle’s negative (-) battery cable.
   • Remove the fuse from the yellow fuse holder.
   • Attach the ring terminal to the positive (+) battery cable and connect the black 12-gauge wire to the fuse holder using the provided yellow butt connector.
   • Insert the 15-amp fuse into the fuse holder.

7. Route the Black Wire:

   • From the front of the vehicle, route the black 12-gauge wire rearward along the frame rail to the rear driver-side taillight area.
   • Avoid hot pipes, heat shields, and areas that could damage the wire.

8. Connect the Black Wire:

   • Attach the black 12-gauge wire to the black wire from the T-One® T-Connector’s black box using the supplied yellow butt connector.

9. Reconnect the Battery:

   • Reconnect the vehicle’s negative (-) battery cable.
   • Test the installation with a test light or trailer.

10. Mount the Black Box:

    • On the driver’s side, locate a flat, out-of-the-way surface to mount the black converter box using the provided double-sided tape.
    • Ensure the epoxy side faces downward to prevent water buildup.

11. Secure the Wiring:

    • Secure the remainder of the T-One® T-Connector harness under the bumper with the provided cable ties, avoiding areas that could pinch or cut the wires.

12. Reassemble the Vehicle:

    • Reinstall the taillight housing assemblies, positioning the wiring harness between the housing and the vehicle body.
    • Replace all trim panels and covers removed during installation.

13. Store the 4-Flat Connector:

    • Mount the 4-flat connector in a suitable location under the vehicle. (Bracket not included.)

Specifications:

• Max. stop/turn light: 2 per side (4.2 amps)
• Max. tail lights: 7.5 amps

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the lower of the vehicle manufacturer's ratings or the product’s stated specifications.
• Always wear safety glasses and follow all safety precautions during installation.

Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty Information:
For complete warranty instructions, please download the full installation PDF.

Note: Store these instructions for future reference.
