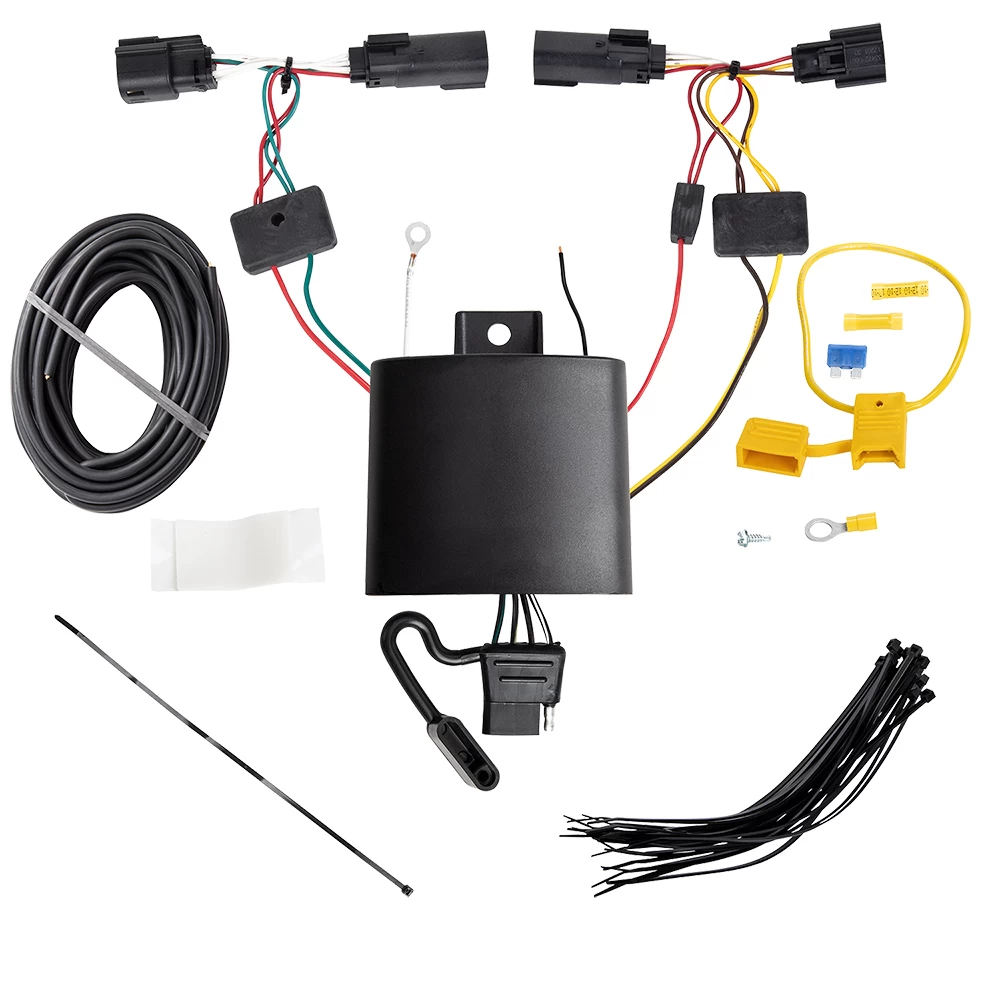

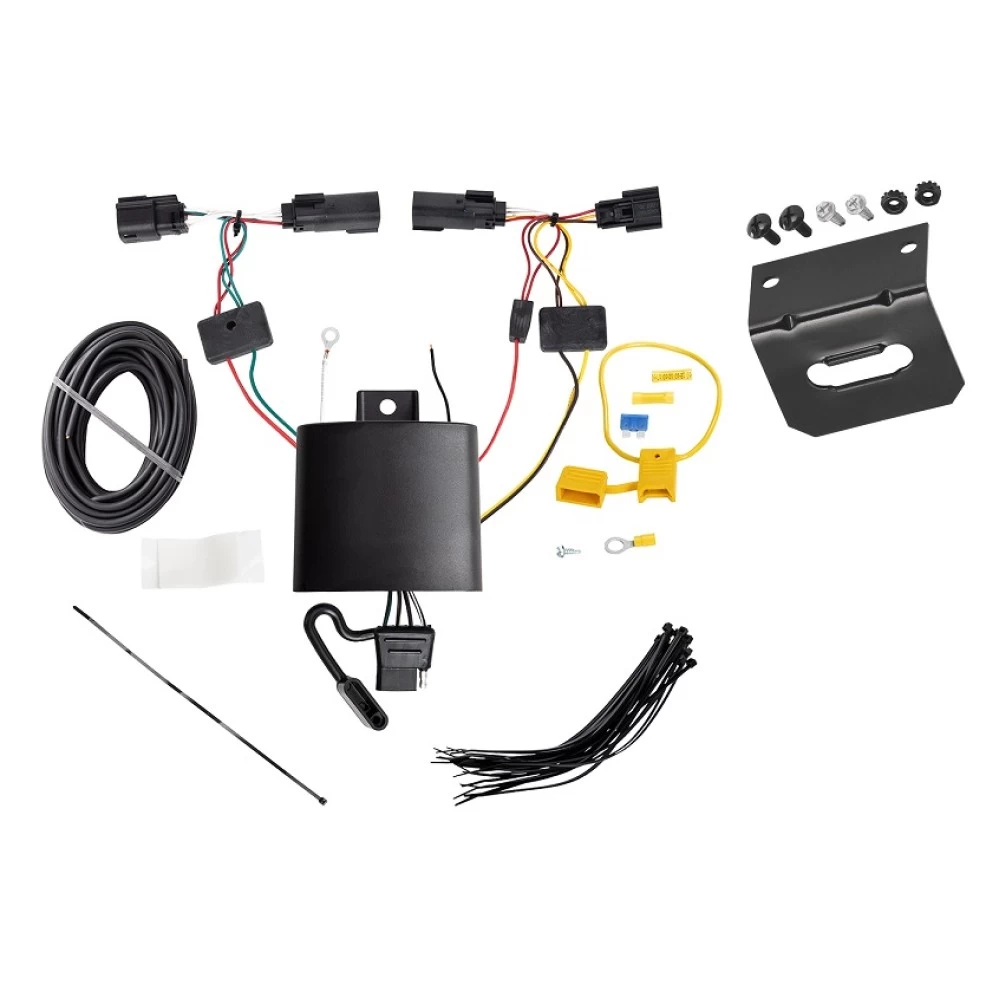

Installation Instructions for T-One® T-Connector for Jeep Cherokee

Part Numbers:

• 118779

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or 10mm Wrench
• Drill (3/32” Drill Bit)
• 1/4” Socket
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe
• Torx 30 Driver

Step-by-Step Instructions:

1. Remove the Taillight Assemblies:

• Open the rear tailgate to access the bolts securing the taillights.
• On both the driver and passenger sides, remove the two Torx-30 screws holding the taillights.
• Carefully pull the taillights away from the vehicle, being cautious not to damage the alignment pins.

2. Disconnect the Wiring Harness:

• Locate the vehicle’s taillight wiring harness on both the driver and passenger sides.
• Disconnect the harness connectors carefully, ensuring not to break the locking tabs.
• Ensure all connector surfaces are clean and free of dirt.

3. Mount the T-One® Black Box:

• Underneath the vehicle, determine a suitable mounting point behind the rear bumper fascia on the driver’s side.
• Secure the black box using the provided double-sided tape.
• Ensure the epoxy side faces downward to prevent water accumulation.

Warning:

• Ensure the black box is in a protected area to avoid damage from road debris.

4. Connect the Driver-Side T-Connector:

• Route the T-One® Connector end with the yellow wires up between the bumper and the vehicle body into the driver’s side taillight pocket.
• Insert the yellow wire connector between the taillight socket and the vehicle wiring harness.

5. Route and Connect the Passenger-Side T-Connector:

• Route the green wire connector underneath the bumper to the passenger side.
• Insert the green wire connector between the passenger-side taillight socket and the vehicle wiring harness.
• Avoid hot pipes, heat shields, and other points that may pinch or damage the wire.

6. Ground the White Wire:

• Locate a suitable grounding point near the connector, such as the vehicle’s frame or crossmember.
• Clean the area of dirt and rustproofing.
• Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.

Caution:

• Verify what is behind the surface before drilling to prevent damage or injury.

7. Route the Power Wire:

• On the driver’s side, locate the black 12-gauge power wire from the T-One® Connector box.
• Attach the provided black wire and route it along the exterior frame or existing wiring to the engine compartment.
• Avoid hot pipes, heat shields, or areas that may pinch or damage the wire.

8. Connect to the Vehicle Battery:

• Disconnect the Negative (-) battery cable.
• Remove the fuse from the yellow fuse holder and attach the ring terminal to the Positive (+) battery cable.
• Connect the other end of the fuse holder to the black wire using the provided yellow butt connector.

Warning:

• Follow all warnings printed on the tow vehicle’s battery.

9. Reconnect the Battery and Test:

• Reconnect the Negative (-) battery cable.
• Insert the 15-amp fuse into the fuse holder.
• Test the installation using a test light or trailer.

10. Secure the Wiring Harness:

- Use the provided cable ties to secure the T-One® Connector harness.
- Avoid areas that may pinch, cut, or melt the wire.

11. Route the 4-Flat Connector:

- Route the 4-flat harness underneath and to the center of the vehicle.
- Mount the 4-flat connector in an accessible location using a bracket or electrical box (not included).

12. Reassemble the Vehicle:

- Reinstall the taillight assemblies and any other panels removed during installation.

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
• Always wear safety glasses and follow safety precautions during installation.
