Trailer Hitch Brake Control Wiring For 03‑06 Avalanche Suburban Tahoe Yukon XL w/ Dual 2" and 2- 5/16" Ball 2" Drop Mount 7‑Way Pin Blade RV Controller

Name: Trailer Hitch Brake Control Wiring For 03-06 Avalanche Suburban Tahoe Yukon XL w/ Dual 2" and 2- 5/16" Ball 2" Drop Mount 7-Way Pin Blade RV Controller
Brand: Draw-Tite
Price: 413.05 USD
Availability: InStock

Model: 75725 74682 23 63845 63847 5535 3015

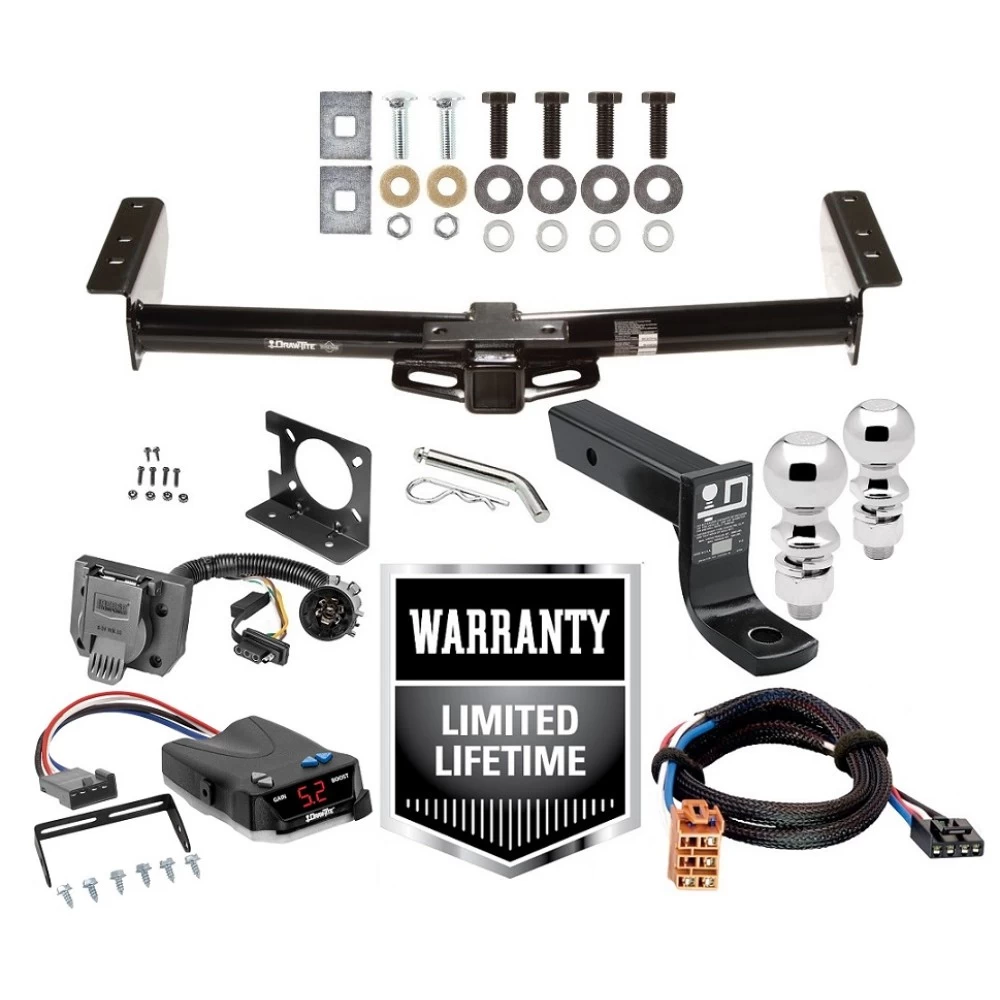

Includes Everything Pictured:
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
Proportional Brake Control For 1-4 Axles
Plug & Play Brake Control Wiring Adapter
2" Drop Ball-Mount w/ Pin/Clip
2" and 2-5/16" Chrome Balls
Installation Hardware
Installation Instructions

Brake controller unit provided is proportional, meaning in an emergency stop the proportional controller will match the braking power instantly instead of ramping up

Fits The Following Vehicles

2003 - 2006    Chevrolet, Avalanche 1500, All Styles
2003 - 2006    Chevrolet, Avalanche 2500, All Styles
2003 - 2006    Chevrolet, Suburban 1500, w/Amber Turn Signals
2003 - 2006    Chevrolet, Suburban 2500, w/Amber Turn Signals
2003 - 2006    Chevrolet, Tahoe, w/Amber Turn Signals
2003 - 2006    GMC, Yukon, w/Amber Turn Signals
2003 - 2006    GMC, Yukon XL 1500, All Styles
2003 - 2006    GMC, Yukon XL 2500, All Styles

Trailer Hitch Specs:

Part Number	75725
Brand	Draw-Tite
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	6,000 lbs
Max GTW w/ weight distribution	10,000 lbs
Max Tongue Weight	900 / 1000 lbs
Warranty	Lifetime
Installation Instructions

Direct Plug & Play Wiring Kit

Part Number	74682
Brand	Reese
Features	7-Way Flat Pin Connector/4-Flat Combo Adapter Harness For quick connection to 4-Flat or 7-Way trailer connectors Includes mounting bracket and hardware Easily adapts to existing vehicle 7-Way plug Ability to tow trailers with different style trailer connectors Durable plastic shell Weather tight seal Attractive point-of-purchase packaging
Warranty	1 Year
Installation Instructions

Brake Control Specs:

Part Number	5535
Brand	Draw-Tite
Type	Proportional
Axles	1 to 4 axle trailers
Warranty	Lifetime
Features:	Exclusive to Draw-Tite, a compact, proportional brake control that requires no leveling with up-front buttons for easy access to Output and Boost. Boost feature gives the ability to apply more initial trailer braking Reverse battery protection No level adjustment necessary Diagnostics features incorporated in LED Display Plug and Play feature allows for quick and easy connection
Installation Instructions
Warranty	Lifetime

Plug & Play Brake Control Wiring Kit

Part Number	3015
Brand	Tekonsha
Warranty	1 Year
Installation Instructions

Ball Mount Specs:

Fits	2" x 2" Trailer Hitch Receiver
Brand	Draw-Tite
Finish	Black Powdercoat
Length	9" From Center of Pin Hole to Center of Ball Hole
Towing Capacity	7,500 lb Gross Towing Weight 750 lb Tongue Weight
Drop	2" From inside top of hitch opening
Rise	3/4" from top of inside of hitch opening
Warranty	Lifetime

2" Hitch Ball Specs:

Part Number	63845
Brand	Draw-Tite
Size	2" x 1" x 2-1/8"
Towing Capacity	7,500 lbs. GTW
Material	Chrome (Cold forged for superior strength)
Torque	torgue to 250 ft. lbs
Ball Hole Diameter	1"
Warranty	Lifetime

2-5/16" Hitch Ball Specs:

Part Number	63847
Brand	Draw-Tite
Size	2-5/16" x 1" x 2-1/8"
Towing Capacity	7,500 lbs. GTW
Material	Chrome (Cold forged for superior strength)
Torque	torgue to 250 ft. lbs
Ball Hole Diameter	1"
Warranty	Lifetime

Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions.

Partial list of fitment years: 03 04 05 06 2003 2004 2005 2006

See Full Description

$413 ⁰⁵ $634.88 35% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$634.88 $413 ⁰⁵

Pay in 4 interest-free installments of $103.25 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $103.25 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Draw-Tite
Model: 75725 74682 23 63845 63847 5535 3015
Includes: Class 4 Trailer Tow Hitch, Tow Custom Harness, Trailer Brake Controller Custom Harness, I-Command Proportional Brake Controller for Trailers with 1-4 Axles, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball, Trailer Tow Hitch Ball

Compatibility Chart

Specification
Attachment Location	Rear
Ball Mount Included	Yes
Color	Black
Drilling Required	No
Gross Towing Weight	6,000 lbs.
Gross Towing Weight w/ Weight Distribution Kit	10,000 lbs.
Hitch Class	IV
Material	Steel
Maximum Tongue Weight	900 lbs.
Maximum Tongue Weight w/ Weight Distribution Kit	1,000 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	2 in.
Receiver Type	Round Tube

Be the first to ask a question.

Description

Trailer Hitch Specs:

Part Number	75725
Brand	Draw-Tite
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	6,000 lbs
Max GTW w/ weight distribution	10,000 lbs
Max Tongue Weight	900 / 1000 lbs
Warranty	Lifetime
Installation Instructions

Direct Plug & Play Wiring Kit

Part Number	74682
Brand	Reese
Features	7-Way Flat Pin Connector/4-Flat Combo Adapter Harness For quick connection to 4-Flat or 7-Way trailer connectors Includes mounting bracket and hardware Easily adapts to existing vehicle 7-Way plug Ability to tow trailers with different style trailer connectors Durable plastic shell Weather tight seal Attractive point-of-purchase packaging
Warranty	1 Year
Installation Instructions

Brake Control Specs:

Part Number	5535
Brand	Draw-Tite
Type	Proportional
Axles	1 to 4 axle trailers
Warranty	Lifetime
Features:	Exclusive to Draw-Tite, a compact, proportional brake control that requires no leveling with up-front buttons for easy access to Output and Boost. Boost feature gives the ability to apply more initial trailer braking Reverse battery protection No level adjustment necessary Diagnostics features incorporated in LED Display Plug and Play feature allows for quick and easy connection
Installation Instructions
Warranty	Lifetime

Plug & Play Brake Control Wiring Kit

Part Number	3015
Brand	Tekonsha
Warranty	1 Year
Installation Instructions

Ball Mount Specs:

Fits	2" x 2" Trailer Hitch Receiver
Brand	Draw-Tite
Finish	Black Powdercoat
Length	9" From Center of Pin Hole to Center of Ball Hole
Towing Capacity	7,500 lb Gross Towing Weight 750 lb Tongue Weight
Drop	2" From inside top of hitch opening
Rise	3/4" from top of inside of hitch opening
Warranty	Lifetime

2" Hitch Ball Specs:

Part Number	63845
Brand	Draw-Tite
Size	2" x 1" x 2-1/8"
Towing Capacity	7,500 lbs. GTW
Material	Chrome (Cold forged for superior strength)
Torque	torgue to 250 ft. lbs
Ball Hole Diameter	1"
Warranty	Lifetime

2-5/16" Hitch Ball Specs:

Part Number	63847
Brand	Draw-Tite
Size	2-5/16" x 1" x 2-1/8"
Towing Capacity	7,500 lbs. GTW
Material	Chrome (Cold forged for superior strength)
Torque	torgue to 250 ft. lbs
Ball Hole Diameter	1"
Warranty	Lifetime

Questions or Comments? Call 702-374-8999

Tags: 75725 , 74682 , 23 , 63845 , 63847 , 5535 , 3015 , Draw-Tite , Trailer , Hitch , Brake , Control , Wiring , 03-06 , Avalanche , Suburban , Tahoe , Yukon , XL , Dual , 2" , and , 2- , 5/16" , Ball , 2" , Drop , Mount , 7-Way , Pin , Blade , RV , Controller , 03 , 04 , 05 , 06 , 2003 , 2004 , 2005 , 2006

Get Expert Help

Trailer Hitch Brake Control Wiring For 03-06 Avalanche Suburban Tahoe Yukon XL w/ Dual 2" and 2- 5/16" Ball 2" Drop Mount 7-Way Pin Blade RV Controller Install Notes

Installation Instructions for Chevrolet Suburban, Chevrolet Tahoe, GMC Yukon XL, GMC Yukon, Cadillac Escalade, and Chevrolet Avalanche

Part Numbers:

75725
87614
44668

Wiring Access Location:

SUV6

Tools Required:

Wrenches: 7/8", 22mm
Drill Bits: None

Step-by-Step Instructions:

Remove the existing M14 bumper bracket bolts from the bottom surface of the frame on both sides and return them to the vehicle owner.
Raise the hitch into position and align it with the existing weldnuts inside the bumper.
Install the provided fasteners as shown. Ensure all bolts are secured evenly on both sides.

Hardware List:

Qty (2): Carriage Bolts 1/2-13 x 1.75 GR5
Qty (2): Spacers
Qty (2): Conical Washers
Qty (2): Hex Nuts 1/2-13
Qty (4): Hex Bolts M14 x 2.00 x 40mm CL10.9
Qty (4): Lock Washers
Qty (4): Flat Washers

Safety Notes:

Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
Replace any damaged hitch or ball immediately.
Observe safety precautions when working beneath the vehicle and wear eye protection.
Do not cut access or attachment holes with a torch.

Specifications:

Hitch Type: Weight Distributing
- Max Gross Trailer Weight: 10,000 lbs (4,540 kg)
- Max Tongue Weight: 1,000 lbs (454 kg)
Hitch Type: Weight Carrying (Ball Mount)
- Max Gross Trailer Weight: 6,000 lbs (2,724 kg)
- Max Tongue Weight: 900 lbs (409 kg)

Manufacturer Notes:

All vehicles require the OEM bumper.
Tighten all 1/2 GR5 fasteners to 75 lb-ft (102 N*m) using a torque wrench.
Tighten all M14 CL10.9 fasteners to 115 lb-ft (156 N*m) using a torque wrench.
Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.

Installation Instructions

Part Numbers:

75725
87614
44668

Wiring Access Location:

SUV6

Tools Required:

Wrenches: 7/8", 22mm
Drill Bits: None

Step-by-Step Instructions:

Remove the existing M14 bumper bracket bolts from the bottom surface of the frame on both sides and return them to the vehicle owner.
Raise the hitch into position and align it with the existing weldnuts inside the bumper.
Install the provided fasteners as shown. Ensure all bolts are secured evenly on both sides.

Hardware List:

Qty (2): Carriage Bolts 1/2-13 x 1.75 GR5
Qty (2): Spacers
Qty (2): Conical Washers
Qty (2): Hex Nuts 1/2-13
Qty (4): Hex Bolts M14 x 2.00 x 40mm CL10.9
Qty (4): Lock Washers
Qty (4): Flat Washers

Safety Notes:

Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
Replace any damaged hitch or ball immediately.
Observe safety precautions when working beneath the vehicle and wear eye protection.
Do not cut access or attachment holes with a torch.

Specifications:

Hitch Type: Weight Distributing
- Max Gross Trailer Weight: 10,000 lbs (4,540 kg)
- Max Tongue Weight: 1,000 lbs (454 kg)
Hitch Type: Weight Carrying (Ball Mount)
- Max Gross Trailer Weight: 6,000 lbs (2,724 kg)
- Max Tongue Weight: 900 lbs (409 kg)

Manufacturer Notes:

All vehicles require the OEM bumper.
Tighten all 1/2 GR5 fasteners to 75 lb-ft (102 N·m) using a torque wrench.
Tighten all M14 CL10.9 fasteners to 115 lb-ft (156 N·m) using a torque wrench.
Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty:

For complete warranty instructions, please download the full installation PDF.

Installation Instructions for 7-Way Flat Pin Connector / 4-Flat Combo Adapter Harness

Part Numbers:

74682

Tools Required:

Phillips Head Screwdriver
Adjustable Wrench

Mounting Bracket Instructions:

Determine a suitable mounting point on the tow vehicle for the connector or use an existing mount. Ensure the trailer’s wire harness has sufficient length to reach this point.
Secure the mounting bracket on the rear of the tow vehicle or to the plate attached to the hitch cross tube using the self-tapping screws provided.
- Caution: Do not drill into the hitch cross tube to avoid damage to the hitch or personal injury. Do not drill into any exposed surfaces. Refer to the hitch owner’s manual or instruction sheet for recommendations and limitations.

Socket Instructions:

Install the 7-way Blade Socket (connector) onto the mounting bracket using the screws and nuts provided.
Plug the OEM factory-equipped car-end socket harness into the 7-way Blade Car Socket.
Insert the 4-flat connector into the slot in the bracket.
Tighten all screws securely.

Safety Notes:

All connections must be completed to ensure proper functionality. Test and verify the installation using a test light, circuit tester, or trailer.
Warning: Overloading circuits can cause fires. DO NOT exceed the lower of the towing manufacturer’s rating or:
- Max Right Turn, Left Turn, Stop, and Tail Light Circuits: 7.5 amps
- Max (+) Battery, Reverse, and Electric Brake Circuits: 30 amps
Consult the vehicle’s owner’s manual and instruction sheet for additional information. Additional fusing may be required.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warning: Improper use or failure to follow instructions may result in property damage, serious injury, or death. Always consult your vehicle and trailer manuals for compatibility and installation guidelines.

Installation Instructions for Electric Trailer Brake Control Wiring Adapter
Part Number: 301500

Tools Required:

None

Step-by-Step Instructions:

Step 1: Locate the Vehicle’s Electric Junction Box

Find the black Electric Junction Box inside the vehicle:
- Under the dashboard, left of the steering column, just above the carpet.
Remove the cover of the Electric Junction Box.
Locate the connection point for the electric trailer brakes in the top row, second slot from the left.

Step 2: Plug the Brake Control Adapter into the Vehicle Connector

Plug the brake control adapter into the mating connection point inside the Electric Junction Box.
Use a circuit tester to verify that battery (+) power is supplied to the adapter.

NOTE:

Not all vehicles are pre-wired with complete power connections to the battery and/or wiring for electric trailer brakes.
If power is already supplied, skip to Step 4.

Step 3: Add Power Supply (If Required)

For vehicles with no power supply:

Use an Electric Brake Control Wiring Kit and route all wires as described in the wiring kit instructions or as follows:

A. Vehicle Brake Control Feed Wire (Blue):
- Open the vehicle’s hood and locate the black Electrical Center Box on the driver’s side.
- Remove the cover to access the blue brake control feed wire.
- This step may require temporarily removing the vehicle’s support brace.
B. Vehicle Battery (+) Power Supply Wire (Red):
- Locate the red battery (+) power supply wire in the Electrical Center Box.
- Connect the wiring and ensure an in-line fuse or circuit breaker is installed.
- Reinstall the Electrical Center Box cover, lid, and support brace.

Step 4: Connect the Brake Controller

Plug the brake control adapter into the vehicle’s brake control harness connector.
Follow the brake control manufacturer’s instructions for wiring and mounting the unit.

Warnings:

Complete the installation following the brake control manufacturer’s instructions.
Mount the brake controller securely as directed.
Perform all test procedures outlined in the brake controller manual.
Do NOT overload the circuit:
- Maximum capacity: 4 axles / 8 brakes (24 amps)
Always follow the vehicle manufacturer’s towing and load limits.

Wiring Overview:

Blue Wire: Brake control feed wire (output to trailer brakes)
Red Wire: Battery (+) power supply
Ground: Connects brake controller to vehicle ground
Stop Lamp Switch (Input): Vehicle braking signal to the brake controller

Final Notes:

Periodically inspect the connections for tightness and wear.
Ensure all wires are properly routed away from sharp edges, heat sources, and pinch points.
Consult the vehicle owner’s manual for additional information regarding towing and electrical connections.

End of Instructions

Installation Instructions for Electric Trailer Brake Control Wiring Adapter
Part Number: 301500

Tools Required:

None

Step-by-Step Instructions:

Step 1: Locate the Vehicle’s Electric Junction Box

Find the black Electric Junction Box inside the vehicle:
- Under the dashboard, left of the steering column, just above the carpet.
Remove the cover of the Electric Junction Box.
Locate the connection point for the electric trailer brakes in the top row, second slot from the left.

Step 2: Plug the Brake Control Adapter into the Vehicle Connector

Plug the brake control adapter into the mating connection point inside the Electric Junction Box.
Use a circuit tester to verify that battery (+) power is supplied to the adapter.

NOTE:

Not all vehicles are pre-wired with complete power connections to the battery and/or wiring for electric trailer brakes.
If power is already supplied, skip to Step 4.

Step 3: Add Power Supply (If Required)

For vehicles with no power supply:

Use an Electric Brake Control Wiring Kit and route all wires as described in the wiring kit instructions or as follows:

A. Vehicle Brake Control Feed Wire (Blue):
- Open the vehicle’s hood and locate the black Electrical Center Box on the driver’s side.
- Remove the cover to access the blue brake control feed wire.
- This step may require temporarily removing the vehicle’s support brace.
B. Vehicle Battery (+) Power Supply Wire (Red):
- Locate the red battery (+) power supply wire in the Electrical Center Box.
- Connect the wiring and ensure an in-line fuse or circuit breaker is installed.
- Reinstall the Electrical Center Box cover, lid, and support brace.

Step 4: Connect the Brake Controller

Plug the brake control adapter into the vehicle’s brake control harness connector.
Follow the brake control manufacturer’s instructions for wiring and mounting the unit.

Warnings:

Complete the installation following the brake control manufacturer’s instructions.
Mount the brake controller securely as directed.
Perform all test procedures outlined in the brake controller manual.
Do NOT overload the circuit:
- Maximum capacity: 4 axles / 8 brakes (24 amps)
Always follow the vehicle manufacturer’s towing and load limits.

Wiring Overview:

Blue Wire: Brake control feed wire (output to trailer brakes)
Red Wire: Battery (+) power supply
Ground: Connects brake controller to vehicle ground
Stop Lamp Switch (Input): Vehicle braking signal to the brake controller

Final Notes:

Periodically inspect the connections for tightness and wear.
Ensure all wires are properly routed away from sharp edges, heat sources, and pinch points.
Consult the vehicle owner’s manual for additional information regarding towing and electrical connections.

Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Installation Instructions for Electronic Brake Control
Part Number: N5535

Components of the Brake Control:

A. Output (Gain) Control
B. Boost Control
C. Manual Slide Control
D. Bracket Mounting Holes
E. LED Display

Package Contents:

(1) Brake Control Unit
(1) Mounting Bracket
(4) Self-Tapping Mounting Screws (#6 x 3/8”)
(1) Warranty Card

Tools Required:

Phillips Screwdriver
Drill with 1/8” Drill Bit
Wire Connector Crimp Tool
Probe-Type Circuit Tester
Wire Cutter/Stripper
Assorted End Wrenches

Wiring and Controls:

Black Wire: Vehicle Power
Red Wire: Stop Light Switch
White Wire: Vehicle Ground
Blue Wire: Trailer Brakes

Installation Steps:

Step 1: Selecting a Mounting Location

Choose a secure, solid surface that is easily accessible to the driver.
Ensure the area behind the panel is clear to avoid damage during drilling.

Step 2: Install the Mounting Bracket

Hold the mounting bracket in the selected position and mark the hole locations.
Drill holes with a 1/8” drill bit.
Secure the bracket using (2) self-tapping screws (provided).
Mount the Brake Control unit into the bracket with the remaining screws.

Adjusting Power to the Trailer Brakes:

Connect the trailer to the tow vehicle.
With the engine running, hold the Manual Slide Control fully to the left and set the Output (Gain) Control to approximately 5.0.
Drive at 25 mph on a level, dry, paved surface.
Fully apply the Manual Slide Control:
- If the trailer brakes lock up: Decrease the power using the Output/Gain Control.
- If braking is insufficient: Increase the power.
Repeat until braking is sufficient but just below wheel lock-up.
Test braking using the brake pedal at low speeds.

Boost Control:

The Boost feature increases braking aggressiveness with three levels:

b.1: Boost Level 1 – Starts braking at 14% power.
b.2: Boost Level 2 – Starts braking at 28% power.
b.3: Boost Level 3 – Highest boost setting for heavy loads.

To Activate Boost:

Press the Boost Button to display the current level.
Use the + or - buttons to adjust.

Troubleshooting:

Issue	Cause	Solution
No Display	Power or ground wire issue.	Check black and white connections.
Flashing Display (2/sec)	Overload or short on the brake wire.	Inspect trailer brake wiring.
Braking Too Aggressive	Output set too high.	Reduce Output/Gain setting.
No Braking	Output set too low.	Increase Output/Gain setting.
Blank Display (Idle)	Power-saving mode (after 15 minutes).	Activate the brakes to resume.

Brake Adjustment Procedure:

Raise the trailer and secure it with jack stands.
Remove the cover on the brake backing plate.
Adjust the brake shoes until the wheel is hard to turn.
Back off the adjuster slightly until the wheel spins freely with slight drag.
Repeat for all wheels.

End of Instructions

Installation Instructions for Electronic Brake Control

Part Number: N5535

Components of the Brake Control:

A. Output (Gain) Control
B. Boost Control
C. Manual Slide Control
D. Bracket Mounting Holes
E. LED Display

Package Contents:

(1) Brake Control Unit
(1) Mounting Bracket
(4) Self-Tapping Mounting Screws (#6 x 3/8”)
(1) Warranty Card

Tools Required:

Phillips Screwdriver
Drill with 1/8” Drill Bit
Wire Connector Crimp Tool
Probe-Type Circuit Tester
Wire Cutter/Stripper
Assorted End Wrenches

Wiring and Controls:

Black Wire: Vehicle Power
Red Wire: Stop Light Switch
White Wire: Vehicle Ground
Blue Wire: Trailer Brakes

Installation Steps:

Step 1: Selecting a Mounting Location

Choose a secure, solid surface that is easily accessible to the driver.
Ensure the area behind the panel is clear to avoid damage during drilling.

Step 2: Install the Mounting Bracket

Hold the mounting bracket in the selected position and mark the hole locations.
Drill holes with a 1/8” drill bit.
Secure the bracket using (2) self-tapping screws (provided).
Mount the Brake Control unit into the bracket with the remaining screws.

Adjusting Power to the Trailer Brakes:

Connect the trailer to the tow vehicle.
With the engine running, hold the Manual Slide Control fully to the left and set the Output (Gain) Control to approximately 5.0.
Drive at 25 mph on a level, dry, paved surface.
Fully apply the Manual Slide Control:
- If the trailer brakes lock up: Decrease the power using the Output/Gain Control.
- If braking is insufficient: Increase the power.
Repeat until braking is sufficient but just below wheel lock-up.
Test braking using the brake pedal at low speeds.

Boost Control:

The Boost feature increases braking aggressiveness with three levels:

b.1: Boost Level 1 – Starts braking at 14% power.
b.2: Boost Level 2 – Starts braking at 28% power.
b.3: Boost Level 3 – Highest boost setting for heavy loads.

To Activate Boost:

Press the Boost Button to display the current level.
Use the + or - buttons to adjust.

Troubleshooting:

Issue	Cause	Solution
No Display	Power or ground wire issue.	Check black and white connections.
Flashing Display (2/sec)	Overload or short on the brake wire.	Inspect trailer brake wiring.
Braking Too Aggressive	Output set too high.	Reduce Output/Gain setting.
No Braking	Output set too low.	Increase Output/Gain setting.
Blank Display (Idle)	Power-saving mode (after 15 minutes).	Activate the brakes to resume.

Brake Adjustment Procedure:

Raise the trailer and secure it with jack stands.
Remove the cover on the brake backing plate.
Adjust the brake shoes until the wheel is hard to turn.
Back off the adjuster slightly until the wheel spins freely with slight drag.
Repeat for all wheels.

Warranty Information:

Limited Lifetime Warranty:
- Covers defects in materials and workmanship.
- Excludes normal wear and tear, misuse, or improper installation.
For complete warranty information, please download the full installation PDF.

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

End of Instructions

Related Products

Stock: In Stock

J-Pin Anti Rattle Stabilization Security Silencing Pin w/ Lock Keys for 2" Trailer Hitch Tow Receiver

More than just a hitch pin, J-Pin® quickly and confidently secures ball mounts and other hitch-mounted accessories, eliminating the sway and rattle ca..

$51.49

Add to Cart

Add to Wish List Compare this Product

Buy Now Ask Question

Stock: In Stock

Pro Series Push-To-Test LED Electric Trailer Breakaway System Kit Built-In Battery Charger Top Load 48" Switch

Breakaway System w/ABCD charger for 1 to 3 Axle Trailers w/Electric Brakes, Includes Battery Box, 5 Amp Battery Push to Test LED Test Meter, and 48" B..

$62.59
