Adjustable Tri Ball Triple 1-7/8", 2", & 2-5/16" Tow Balls Ball Mount Draw-Bar System w/Step 2" Sq. Shank

Adjustable Tri Ball Triple 1‑7/8", 2", & 2‑5/16" Tow Balls Ball Mount Draw‑Bar System w/Step 2" Sq. Shank

Name: Adjustable Tri Ball Triple 1-7/8", 2", & 2-5/16" Tow Balls Ball Mount Draw-Bar System w/Step 2" Sq. Shank
Brand: Draw-Tite
Price: 285.79 USD
Availability: InStock

Model: 63070

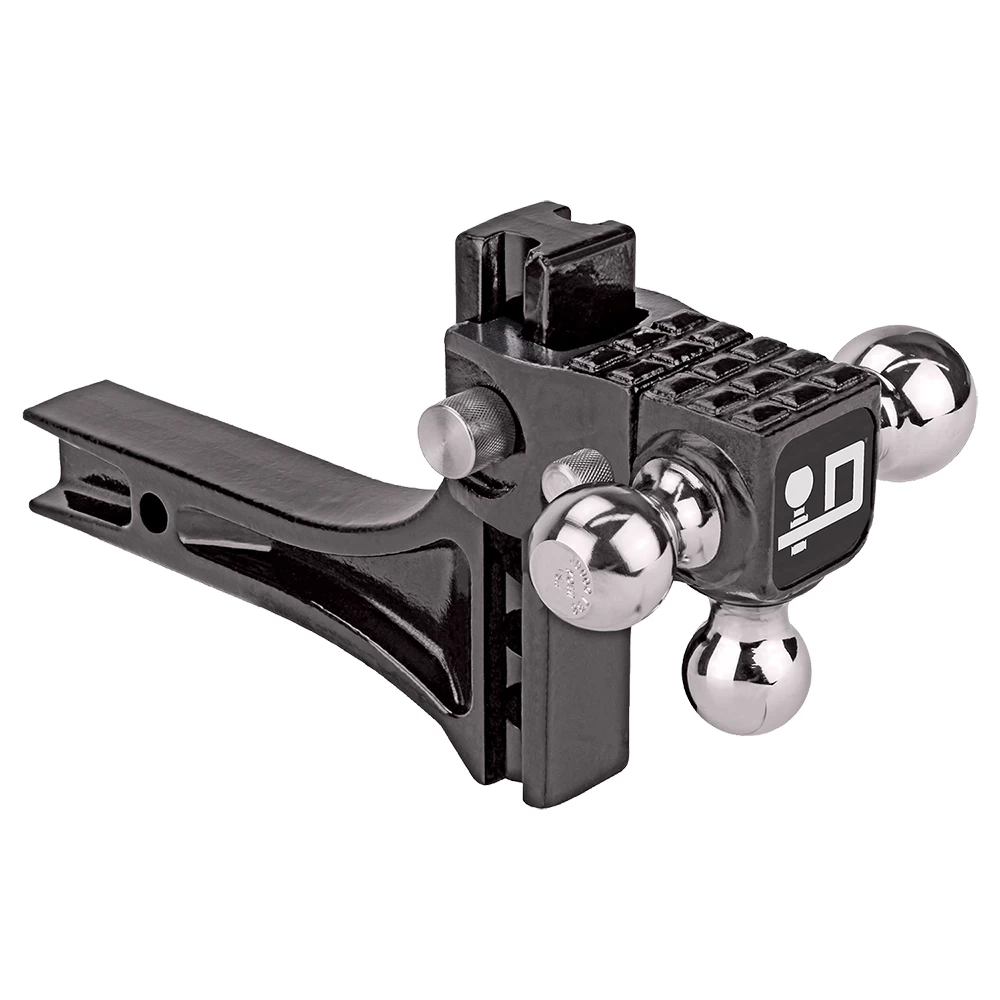

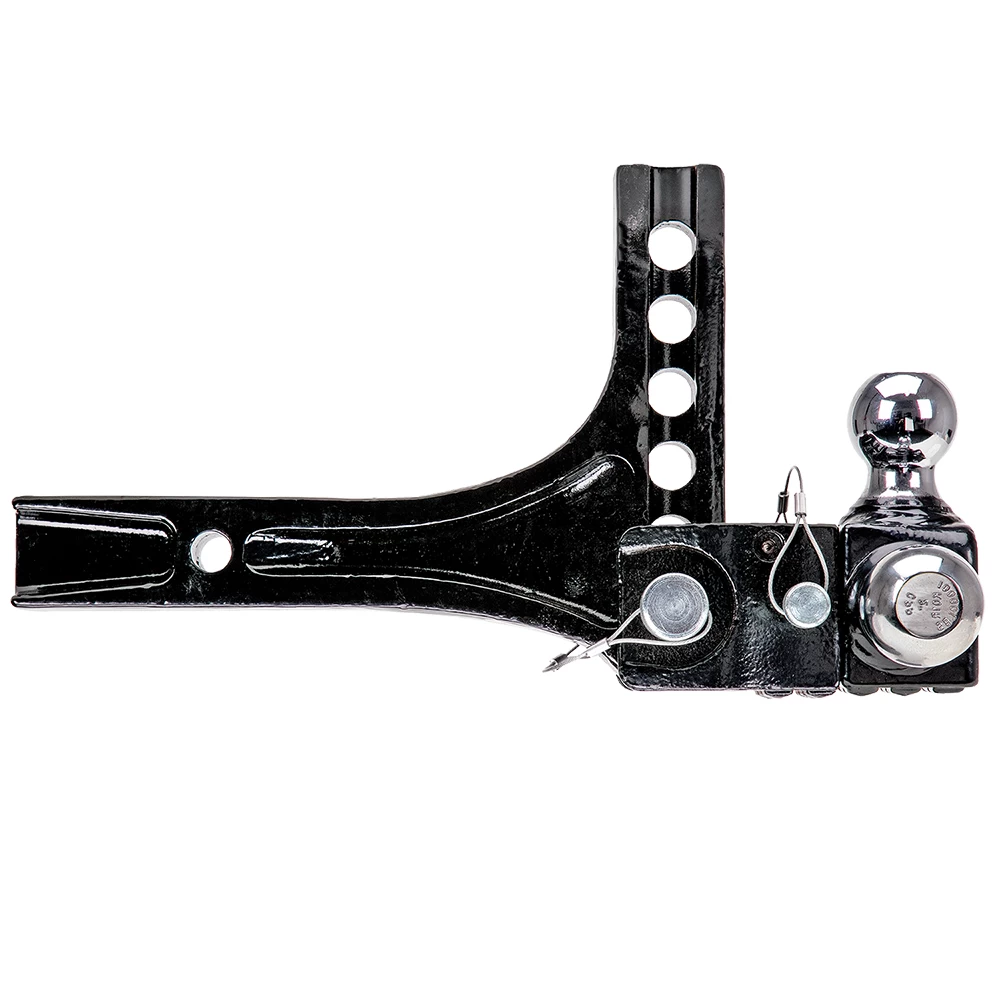

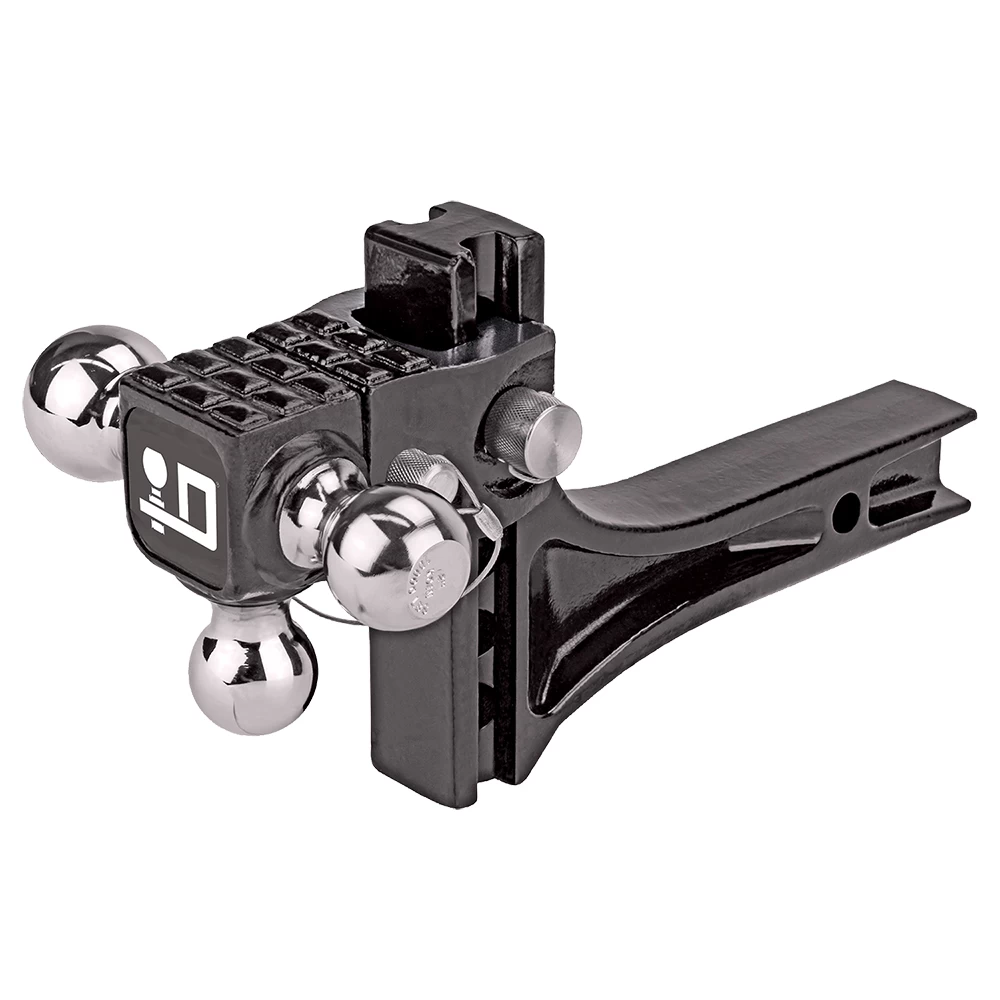

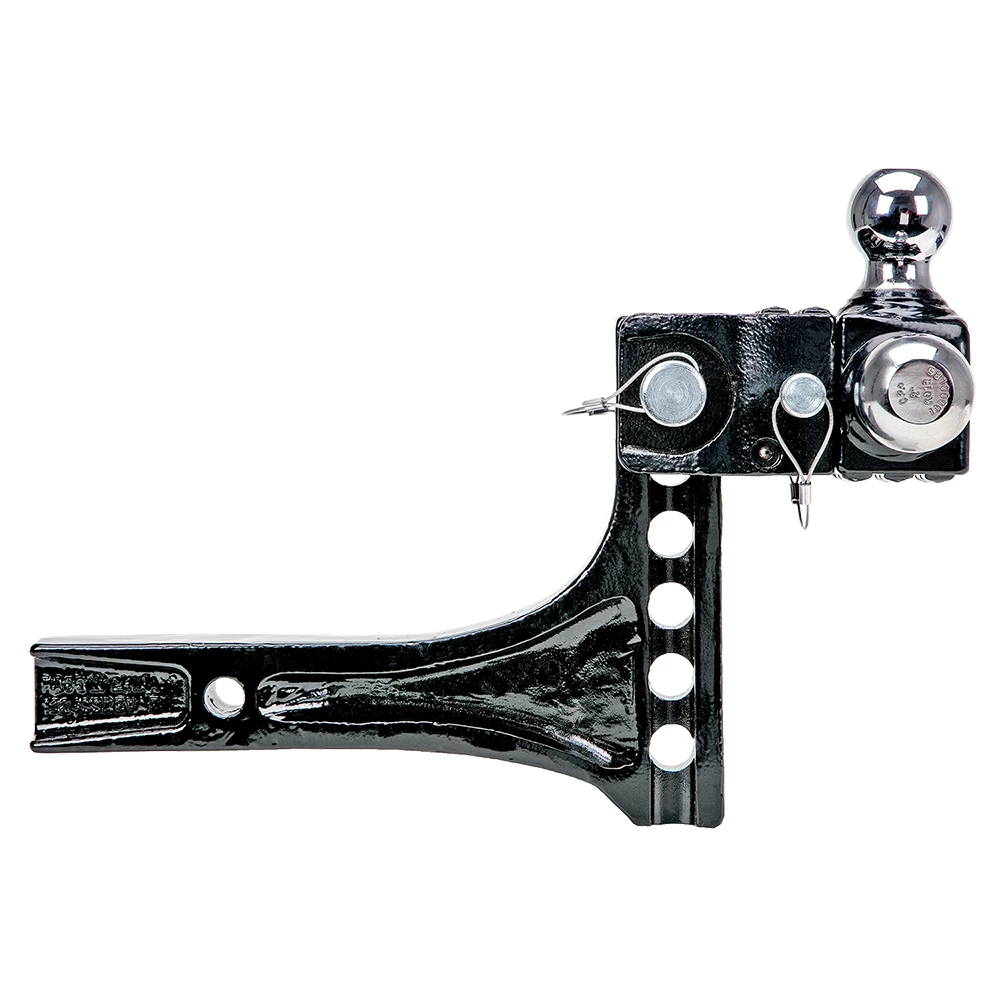

Adjustable Tri-Ball Ball Mount System w/Step, 2" Sq. Shank

Designed as an accessory for the Draw Tite Rotating Tri Ball, this keyed alike lock set keeps your hitch secure. Featuring both a 5/8 and a 3/4 inch diameter dog bone locks, so it stays on the hitch and stays together. One key unlocks it all.

Adjustable height - Perfect for towing multiple trailers of varying heights and couplers
Height adjusts up to 10.5”
Rated up to 14k GTW
Fits 2” receivers and rated up to 14K GTW
Cast shank, variable height capability
Integrated hitch step with grip pattern
Knurled bolt pins with secure lanyard
Black powder coat finish

See Full Description

$285 ⁷⁹ $503.15 43% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Add to Wish List

$503.15 $285 ⁷⁹

Pay in 4 interest-free installments of $71.25 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $71.25 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Draw-Tite
Model: 63070
UPC: 016118121513
Includes: Adjustable Tri Ball Mount w/ Step

Description

Questions & Answers

Be the first to ask a question.

Reviews

Tags: 63070 , Draw-Tite , Adjustable , Trailer , Hitch , Ball , Mount , 14000 , lbs. , Capacity , Heavy , Duty , Fits , 2 , inch , Receiver , 4-3/4 , inch , Drop , Black

Get Expert Help

Adjustable Tri Ball Triple 1-7/8", 2", & 2-5/16" Tow Balls Ball Mount Draw-Bar System w/Step 2" Sq. Shank Install Notes

Installation Instructions for Adjustable Tri-Ball Mount ## Part Numbers: - 63070 - 7068900 - 7068933 ### Additional Reese Towpower Farm & Ranch Products: - 7094333: Shank - 7093533: Tri-Ball Head - 7093333: Dual Ball Head - 7074833: Pintle Plate Only ## Tools Required: - Pin & Clip (sold separately) - Shank Pin & Clip - Spindle Pin & Clip ## Step-by-Step Instructions: 1. Insert the shank into the hitch receiver and attach the pin & clip (sold separately). 2. Insert the tri-ball assembly onto the shank, adjust to the proper height, and attach the shank pin & clip. - Height adjustments are in increments of 1.25 inches. 3. Remove the spindle pin & clip, rotate the assembly to select the ball size or step, and reinstall the spindle pin & clip. ### Note: - Ensure proper ball mount height when the vehicle and trailer are loaded for travel. - The trailer coupler and tongue should be level with the ground. ## Specifications: - 1 7/8” Ball: 2,000 lbs (907 kg) - 2” Ball: 10,000 lbs (4535 kg) - 2 5/16” Ball: 14,000 lbs (6350 kg) ## Safety Notes: - Check the hitch frequently to ensure all fasteners are properly tightened. - Replace any damaged hitch or ball. - Do not exceed the lower rating between the towing vehicle manufacturer's rating and the ball mount capacity. - Complies with V.E.S.C. Regulation V-5 and SAE J684 standards. - Do not lubricate threads, as over-tightening can cause bolt failure. - Follow all D.O.T. regulations for safe coupling and uncoupling. ## Replacement Parts: - 63911: Cast Shank - 63075: Adjustable Tri-Ball Mount, Head Unit Only - 63076: Adjustable Dual Ball Mount, Head Unit Only ## Additional Products: - Dual Ball Mount (P/N: 63071) - Pintle Mount (P/N: 63072) ## Manufacturer Notes: - ©2020 Horizon Global™ Corp. – Printed in China - Document Revision: 63070N 08-05-20 Rev. E

Installation Instructions for Adjustable Tri-Ball Mount

Part Numbers:

63070
7068900
7068933

Additional Farm & Ranch Products:

7094333: Shank
7093533: Tri-Ball Head
7093333: Dual Ball Head
7074833: Pintle Plate Only

Tools Required:

Pin & Clip (sold separately)
Shank Pin & Clip
Spindle Pin & Clip

Step-by-Step Instructions:

Insert the shank into the hitch receiver and attach the pin & clip (sold separately).
Insert the tri-ball assembly onto the shank, adjust to the proper height, and attach the shank pin & clip.
- Height adjustments are in increments of 1.25 inches.
Remove the spindle pin & clip, rotate the assembly to select the ball size or step, and reinstall the spindle pin & clip.

Note:

Ensure proper ball mount height when the vehicle and trailer are loaded for travel.
The trailer coupler and tongue should be level with the ground.

Specifications:

1 7/8” Ball: 2,000 lbs (907 kg)
2” Ball: 10,000 lbs (4535 kg)
2 5/16” Ball: 14,000 lbs (6350 kg)

Safety Notes:

Check the hitch frequently to ensure all fasteners are properly tightened.
Replace any damaged hitch or ball.
Do not exceed the lower rating between the towing vehicle manufacturer's rating and the ball mount capacity.
Complies with V.E.S.C. Regulation V-5 and SAE J684 standards.
Do not lubricate threads, as over-tightening can cause bolt failure.
Follow all D.O.T. regulations for safe coupling and uncoupling.

Replacement Parts:

63911: Cast Shank
63075: Adjustable Tri-Ball Mount, Head Unit Only
63076: Adjustable Dual Ball Mount, Head Unit Only

Additional Products:

Dual Ball Mount (P/N: 63071)
Pintle Mount (P/N: 63072)

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Document Revision: 63070N 08-05-20, Rev. E
